NSP131L-CGFNBW (2017)

Toyota Yaris Grmn

Production Nov 2017 - Apr 2018
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1711- )

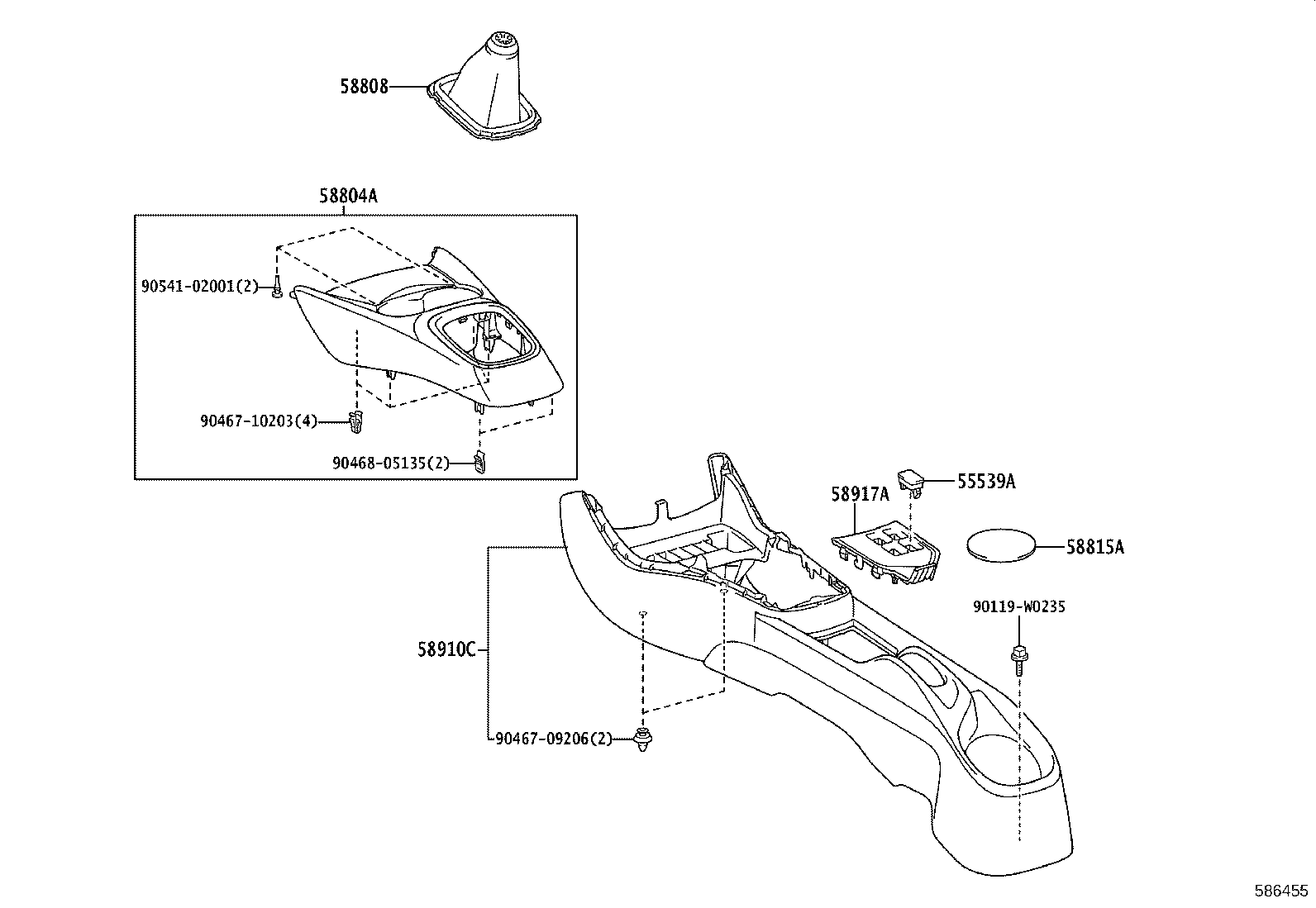

Click highlighted areas on diagram

diagram 55539A 58804A 58808 58815A 58910C 58917A 90119W0235 9046709206 9046710203 9046805135 9054102001
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-52070C0

NSP131

BLACK

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-0D190C5

NSP131

EU BLACK/BLACK,TRIM2#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-0D270B8

NSP131

BLACK/GRAY NO.205,TRIM2#

 1
58815A - CARPET, CONSOLE BOX
58815-0D280

NSP131

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-0D290C1

NSP131

EU BLACK,TRIM2#

 1
58917A - COVER, CONSOLE BOX, REAR
58917-0D160C1

NSP131

EU BLACK,TRIM2#

 1
Common parts
90119-W0235
90467-09206
90467-10203
90468-05135
90541-02001
