NSP131L-CGFNBW (2017)

Toyota Yaris Grmn

Production Nov 2017 - Apr 2018
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1711- )

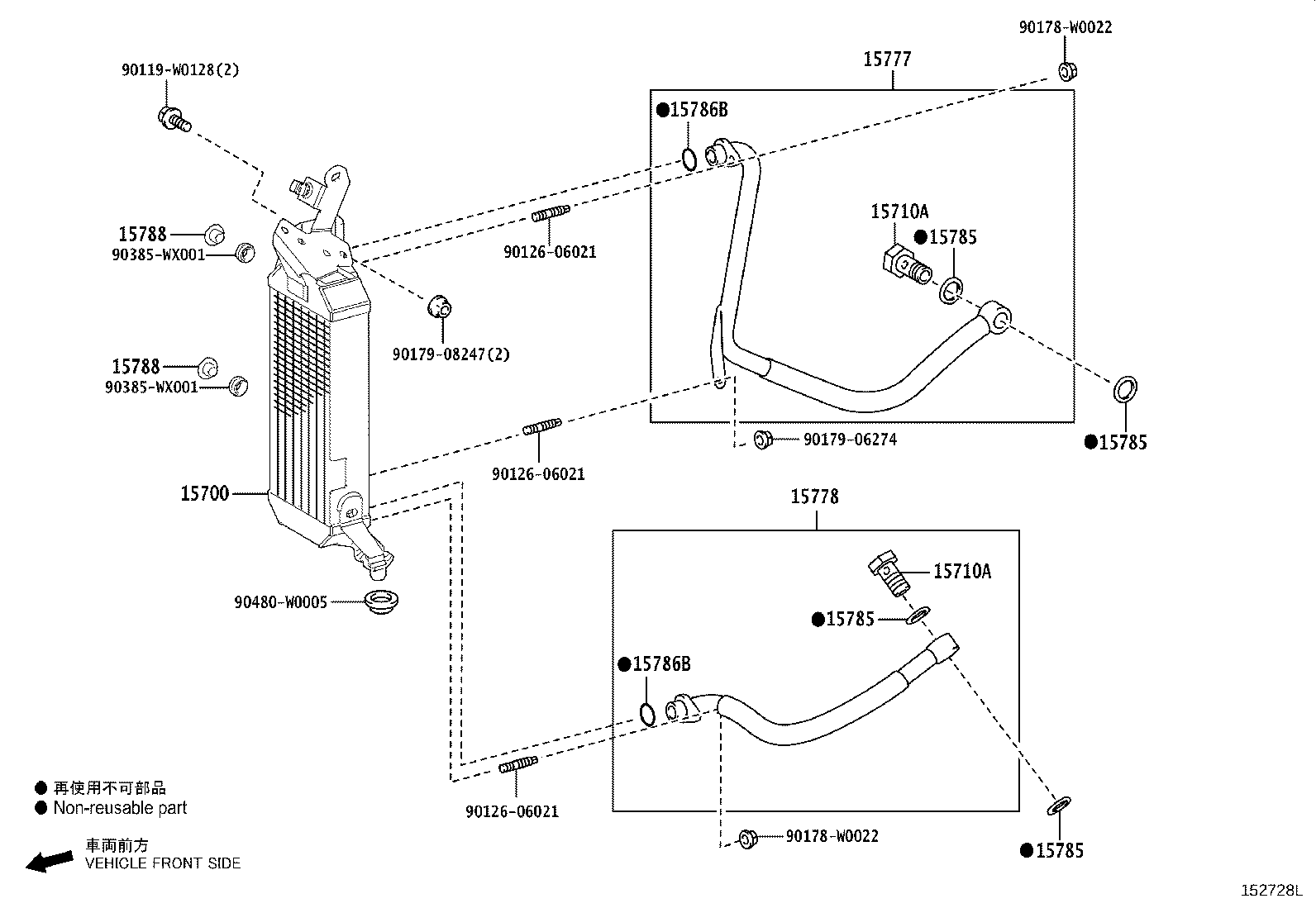

Click highlighted areas on diagram

diagram 15700 15710A 15710A 15777 15778 15785 15785 15785 15785 15786B 15786B 15788 15788 90119W0128 9012606021 9012606021 9012606021 90178W0022 90178W0022 9017906274 9017908247 90385WX001 90385WX001 90480W0005
Part # Description Qty Price
15700 - COOLER ASSY, OIL W/BRACKET
15700-0T011

2ZRFE..NSP131

 1
15710A - BOLT, UNION(FOR OIL COOLER)
90401-W0004

2ZRFE..NSP131

 1
15710A - BOLT, UNION(FOR OIL COOLER)
90401-W0004

2ZRFE..NSP131

 1
15777 - HOSE, OIL COOLER
15777-0T050

2ZRFE..NSP131

 1
15778 - HOSE, OIL COOLER, NO.2
15778-0T050

2ZRFE..NSP131

 1
15785 - GASKET, OIL COOLER
15785-0T070

2ZRFE..NSP131

 1
15785 - GASKET, OIL COOLER
15785-0T070

2ZRFE..NSP131

 1
15785 - GASKET, OIL COOLER
15785-0T070

2ZRFE..NSP131

 1
15785 - GASKET, OIL COOLER
15785-0T070

2ZRFE..NSP131

 1
15786B - SEAL, OIL PIPE
15786-0T010

2ZRFE..NSP131

 1
15786B - SEAL, OIL PIPE
15786-0T010

2ZRFE..NSP131

 1
15788 - SPACER, OIL COOLER
15788-0T010

2ZRFE..NSP131

 2
15788 - SPACER, OIL COOLER
15788-0T010

2ZRFE..NSP131

 2
Common parts
90119-W0128
90126-06021
90178-W0022
90179-06274
90179-08247
90385-WX001
90480-W0005
