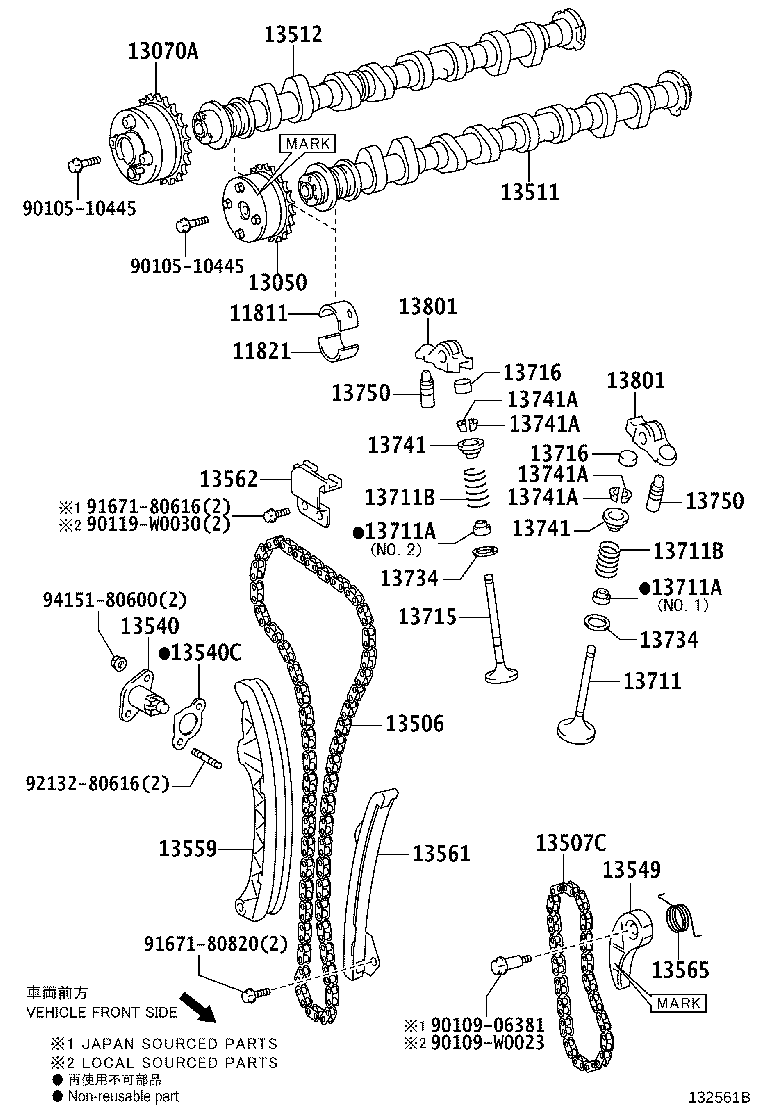

NSP131L-CGFNBW (2017)
Toyota Yaris Grmn
(1711- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11811 - BEARING, CAMSHAFT, NO.1 | ||||
| 11811-37010 |
2ZRFE..NSP131 |
2 | ||
| 11821 - BEARING, CAMSHAFT, NO.2 | ||||
| 11821-37010 |
2ZRFE..NSP131 |
2 | ||
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-37060 |
2ZRFE..NSP131 W/O MARK |
1 | ||
| 13050-0T080 |
2ZRFE..NSP131 MARK=13050-0T080 |
1 | ||
| 13070A - GEAR ASSY, CAMSHAFT TIMING EXHAUST | ||||
| 13070-37010 |
2ZRFE..NSP131 (J) |
1 | ||
| 13070-0T030 |
2ZRFE..NSP131 (L) |
1 | ||
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-0T110 |
2ZRFE..NSP131 (L) |
1 | ||
| 13506-37070 |
2ZRFE..NSP131 (J) |
1 | ||
| 13507C - CHAIN SUB-ASSY, OIL PUMP DRIVE | ||||
| 13507-28010 |
2ZRFE..NSP131 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-0T030 |
2ZRFE..NSP131 (L) |
1 | ||
| 13501-37011 |
2ZRFE..NSP131 (J) |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-0T030 |
2ZRFE..NSP131 (L) |
1 | ||
| 13502-37010 |
2ZRFE..NSP131 (J) |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-0T030 |
2ZRFE..NSP131 (L) |
1 | ||
| 13540-37030 |
2ZRFE..NSP131 (J) |
1 | ||
| 13540C - GASKET(FOR CHAIN TENSIONER) | ||||
| 13552-37010 |
2ZRFE..NSP131 (J) |
1 | ||
| 13552-0T030 |
2ZRFE..NSP131 (L) |
1 | ||
| 13549 - PLATE, CHAIN TENSIONER | ||||
| 13549-37020 |
2ZRFE..NSP131 W/O MARK |
1 | ||
| 13549-0T050 |
2ZRFE..NSP131 MARK=UK |
1 | ||
| 13559 - SLIPPER, CHAIN TENSIONER | ||||
| 13559-0T080 |
2ZRFE..NSP131 MADE IN EUROPE |
1 | ||
| 13559-37050 |
2ZRFE..NSP131 MADE IN JAPAN |
1 | ||
| 13561 - DAMPER, CHAIN VIBRATION, NO.1 | ||||
| 13561-37050 |
2ZRFE..NSP131 W/O MARK |
1 | ||
| 13561-0T080 |
2ZRFE..NSP131 MARK=UK |
1 | ||
| 13562 - DAMPER, CHAIN VIBRATION, NO.2 | ||||
| 13562-0T050 |
2ZRFE..NSP131 MARK=UK |
1 | ||
| 13562-37020 |
2ZRFE..NSP131 W/O MARK |
1 | ||
| 13565 - SPRING, CHAIN DAMPER | ||||
| 13565-0T030 |
2ZRFE..NSP131 (L) |
1 | ||
| 13565-37010 |
2ZRFE..NSP131 (J) |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-0T040 |
2ZRFE..NSP131 (L) |
8 | ||
| 13711-37020 |
2ZRFE..NSP131 (J) |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02101 |
2ZRFE..NSP131 (J),NO.1 |
8 | ||
| 90080-31061 |
2ZRFE..NSP131 (L),NO.1 |
8 | ||
| 90080-31062 |
2ZRFE..NSP131 (L),NO.2 |
8 | ||
| 90913-02112 |
2ZRFE..NSP131 (J),NO.2 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02101 |
2ZRFE..NSP131 (J),NO.1 |
8 | ||
| 90080-31061 |
2ZRFE..NSP131 (L),NO.1 |
8 | ||
| 90080-31062 |
2ZRFE..NSP131 (L),NO.2 |
8 | ||
| 90913-02112 |
2ZRFE..NSP131 (J),NO.2 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-32072 |
2ZRFE..NSP131 |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-32072 |
2ZRFE..NSP131 |
16 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-0T040 |
2ZRFE..NSP131 (L) |
8 | ||
| 13715-37030 |
2ZRFE..NSP131 (J) |
8 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-0T020 |
2ZRFE..NSP131 (L) |
16 | ||
| 13716-75020 |
2ZRFE..NSP131 (J) |
16 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-0T020 |
2ZRFE..NSP131 (L) |
16 | ||
| 13716-75020 |
2ZRFE..NSP131 (J) |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
2ZRFE..NSP131 (J) |
16 | ||
| 13734-0P010 |
2ZRFE..NSP131 (L) |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
2ZRFE..NSP131 (J) |
16 | ||
| 13734-0P010 |
2ZRFE..NSP131 (L) |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-36010 |
2ZRFE..NSP131 |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-36010 |
2ZRFE..NSP131 |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2ZRFE..NSP131 (J) |
32 | ||
| 90913-W3001 |
2ZRFE..NSP131 (L) |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2ZRFE..NSP131 (J) |
32 | ||
| 90913-W3001 |
2ZRFE..NSP131 (L) |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2ZRFE..NSP131 (J) |
32 | ||
| 90913-W3001 |
2ZRFE..NSP131 (L) |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2ZRFE..NSP131 (J) |
32 | ||
| 90913-W3001 |
2ZRFE..NSP131 (L) |
32 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-0T040 |
2ZRFE..NSP131 (L) |
16 | ||
| 13750-21010 |
2ZRFE..NSP131 (J) |
16 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-0T040 |
2ZRFE..NSP131 (L) |
16 | ||
| 13750-21010 |
2ZRFE..NSP131 (J) |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-0T030 |
2ZRFE..NSP131 (L) |
16 | ||
| 13801-36020 |
2ZRFE..NSP131 (J) |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-0T030 |
2ZRFE..NSP131 (L) |
16 | ||
| 13801-36020 |
2ZRFE..NSP131 (J) |
16 | ||
| Common parts | ||||
| 90105-10445 | ||||
| 90109-06381 | ||||
| 90109-W0023 | ||||
| 90119-W0030 | ||||
| 91671-80616 | ||||
| 91671-80820 | ||||
| 92132-80616 | ||||
| 94151-80600 | ||||
