GXPA16R-AGFGZQ (2020)

Toyota Yaris Gr

Production Aug 2020 - Sep 9999
Engine G16EGTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2008- )

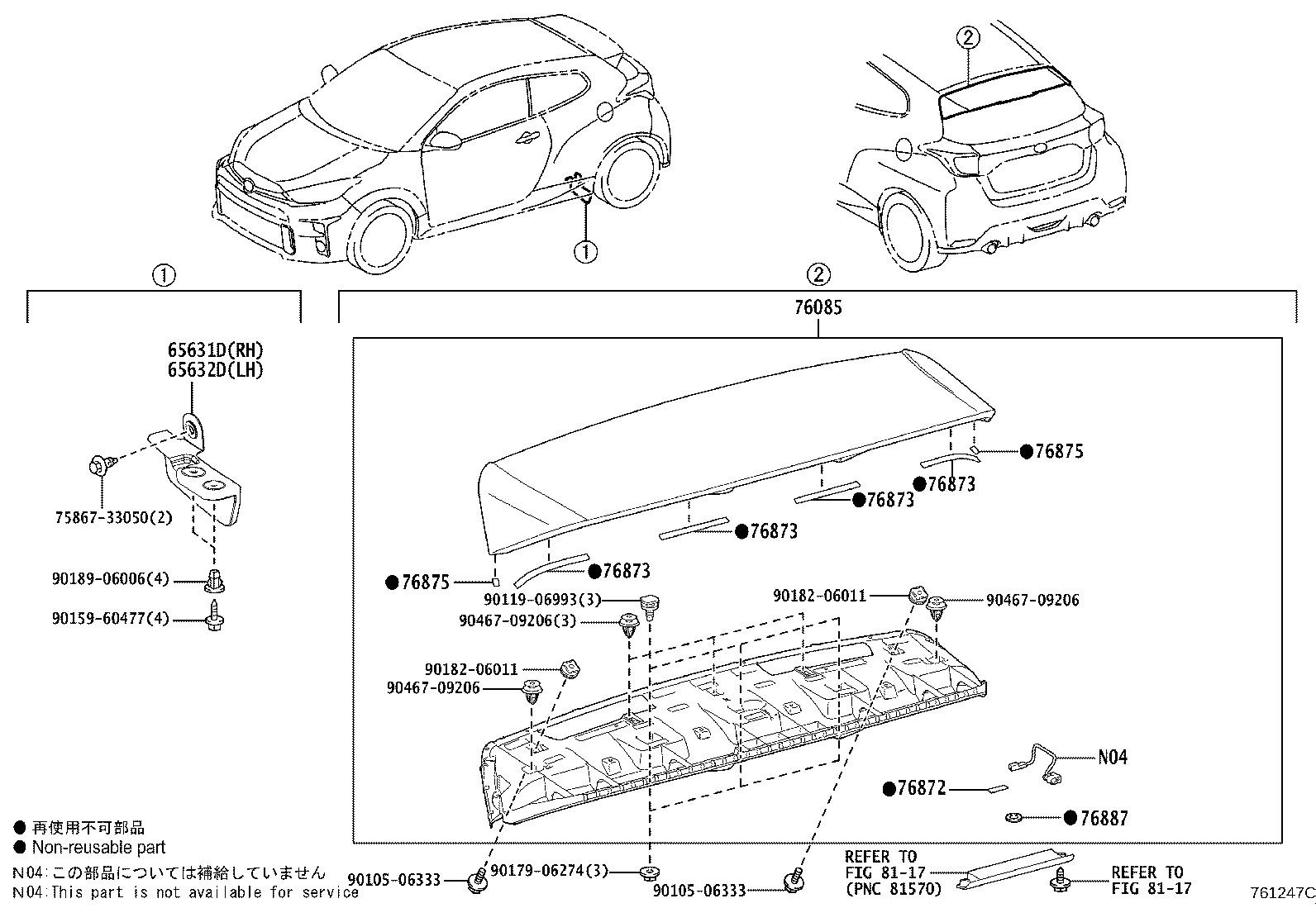

Click highlighted areas on diagram

diagram 65631D 65632D 7586733050 76085 76872 76873 76873 76873 76873 76875 76875 76887 8117 8117 9010506333 9010506333 9011906993 9015960477 9017906274 9018206011 9018206011 9018906006 9046709206 9046709206 9046709206
Part # Description Qty Price
65631D - PLATE, REAR WHEEL HOUSE, FRONT RH
65631-K0010

GXPA16

 1
65632D - PLATE, REAR WHEEL HOUSE, FRONT LH
65632-K0010

GXPA16

 1
76085 - SPOILER SUB-ASSY, REAR
76085-52923

GXPA16

NO PAINT REQ.

 1
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-52140

GXPA16

 1
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-52150

GXPA16

 4
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-52150

GXPA16

 4
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-52150

GXPA16

 4
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-52150

GXPA16

 4
76875 - PROTECTOR, REAR SPOILER, NO.4
76875-52090

GXPA16

 2
76875 - PROTECTOR, REAR SPOILER, NO.4
76875-52090

GXPA16

 2
76887 - SEAL, REAR SPOILER
76887-52060

GXPA16

 1
Common parts
75867-33050
90105-06333
90119-06993
90159-60477
90179-06274
90182-06011
90189-06006
90467-09206
Linked diagrams
8117
