GXPA16R-AGFGZQ (2020)
Toyota Yaris Gr
(2008- )

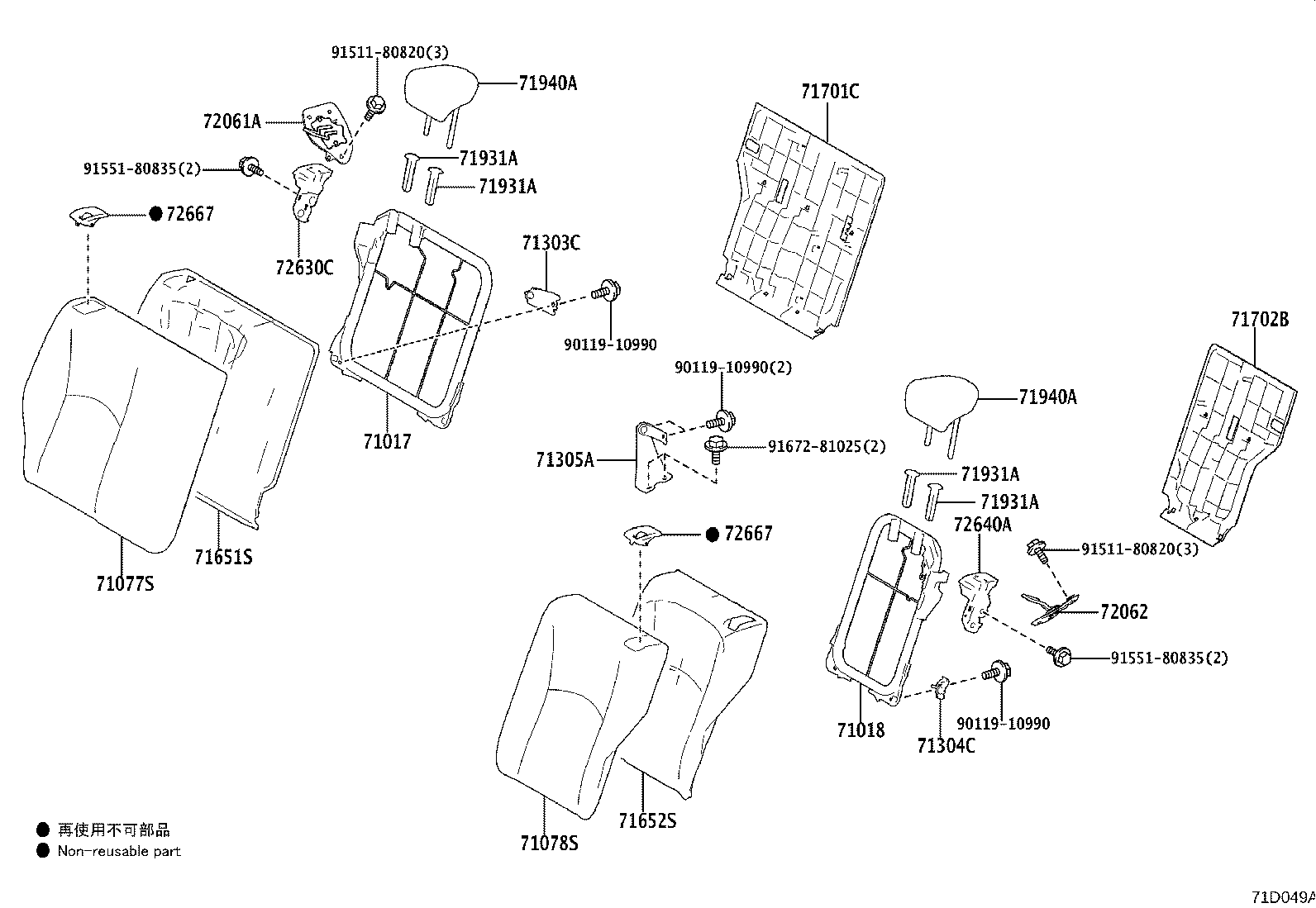

SEAT BACK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-52850 |
GXPA16 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-47100 |
GXPA16 |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-52W40C3 |
GXPA16..ARL BLACK,TRIM2# |
1 | ||
| 71077-52X30C1 |
GXPA16..ARL HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71077-52X30C1 |
GXPA16..ARL HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE,BLACK,TRIM2# |
1 | ||
| 71077-52X30C1 |
GXPA16..ARL HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE(EMOTIONALCOLOR),BLACK,TRIM2# |
1 | ||
| 71077-52X30C1 |
GXPA16..ARL HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE,BLACK,TRIM2# |
1 | ||
| 71077-52X30C1 |
GXPA16..ARL HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE(EMOTIONALCOLOR)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71077-52X30C1 |
GXPA16..ARL "HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71077-52X30C1 |
GXPA16..ARL HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71077-52X30C1 |
GXPA16..ARL HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE(EMOTIONAL COLOR),BLACK,TRIM2# |
1 | ||
| 71077-52X30C1 |
GXPA16..ARL "HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE,BLACK,TRIM2# |
1 | ||
| 71077-52X30C1 |
GXPA16..ARL "HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE(EMOTIONAL COLOR),BLACK,TRIM2# |
1 | ||
| 71077-52X30C1 |
GXPA16..ARL HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE(EMOTIONAL COLOR)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71077-52X30C1 |
GXPA16..ARL "HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE(EMOTIONAL COLOR)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-52S70C1 |
GXPA16..ARL HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE(EMOTIONALCOLOR),BLACK,TRIM2# |
1 | ||
| 71078-52S70C1 |
GXPA16..ARL HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE(EMOTIONAL COLOR),BLACK,TRIM2# |
1 | ||
| 71078-52S70C1 |
GXPA16..ARL HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE,BLACK,TRIM2# |
1 | ||
| 71078-52S70C1 |
GXPA16..ARL HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE(EMOTIONALCOLOR)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71078-52S70C1 |
GXPA16..ARL "HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE(EMOTIONAL COLOR),BLACK,TRIM2# |
1 | ||
| 71078-52S70C1 |
GXPA16..ARL "HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71078-52S70C1 |
GXPA16..ARL HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE(EMOTIONAL COLOR)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71078-52S70C1 |
GXPA16..ARL "HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE(EMOTIONAL COLOR)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71078-52S70C1 |
GXPA16..ARL HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71078-52S70C1 |
GXPA16..ARL HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71078-52S70C1 |
GXPA16..ARL "HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE,BLACK,TRIM2# |
1 | ||
| 71078-52S70C1 |
GXPA16..ARL HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE,BLACK,TRIM2# |
1 | ||
| 71078-52R90C3 |
GXPA16..ARL BLACK,TRIM2# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-47030 |
GXPA16 |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-47030 |
GXPA16 |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-52140 |
GXPA16 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-52850 |
GXPA16 |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-52530 |
GXPA16 |
1 | ||
| 71701C - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-47020 |
GXPA16 |
1 | ||
| 71702B - BOARD SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71702-47020 |
GXPA16 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47030C4 |
GXPA16 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47050C5 |
GXPA16 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47030C4 |
GXPA16 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47050C5 |
GXPA16 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47030C4 |
GXPA16 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47050C5 |
GXPA16 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47030C4 |
GXPA16 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47050C5 |
GXPA16 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52M00C2 |
GXPA16..ARL BLACK,TRIM2# |
2 | ||
| 71940-52N20C2 |
GXPA16..ARL HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE,BLACK,TRIM2# |
2 | ||
| 71940-52N20C2 |
GXPA16..ARL HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71940-52N20C2 |
GXPA16..ARL HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE(EMOTIONAL COLOR),BLACK,TRIM2# |
2 | ||
| 71940-52N20C2 |
GXPA16..ARL HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE(EMOTIONALCOLOR)&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71940-52N20C2 |
GXPA16..ARL "HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71940-52N20C2 |
GXPA16..ARL "HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE,BLACK,TRIM2# |
2 | ||
| 71940-52N20C2 |
GXPA16..ARL HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE(EMOTIONALCOLOR),BLACK,TRIM2# |
2 | ||
| 71940-52N20C2 |
GXPA16..ARL HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE,BLACK,TRIM2# |
2 | ||
| 71940-52N20C2 |
GXPA16..ARL "HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE(EMOTIONAL COLOR)&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71940-52N20C2 |
GXPA16..ARL "HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE(EMOTIONAL COLOR),BLACK,TRIM2# |
2 | ||
| 71940-52N20C2 |
GXPA16..ARL HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71940-52N20C2 |
GXPA16..ARL HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE(EMOTIONAL COLOR)&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52M00C2 |
GXPA16..ARL BLACK,TRIM2# |
2 | ||
| 71940-52N20C2 |
GXPA16..ARL HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE,BLACK,TRIM2# |
2 | ||
| 71940-52N20C2 |
GXPA16..ARL HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71940-52N20C2 |
GXPA16..ARL HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE(EMOTIONAL COLOR),BLACK,TRIM2# |
2 | ||
| 71940-52N20C2 |
GXPA16..ARL HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE(EMOTIONALCOLOR)&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71940-52N20C2 |
GXPA16..ARL "HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71940-52N20C2 |
GXPA16..ARL "HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE,BLACK,TRIM2# |
2 | ||
| 71940-52N20C2 |
GXPA16..ARL HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE(EMOTIONALCOLOR),BLACK,TRIM2# |
2 | ||
| 71940-52N20C2 |
GXPA16..ARL HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE,BLACK,TRIM2# |
2 | ||
| 71940-52N20C2 |
GXPA16..ARL "HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE(EMOTIONAL COLOR)&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71940-52N20C2 |
GXPA16..ARL "HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE(EMOTIONAL COLOR),BLACK,TRIM2# |
2 | ||
| 71940-52N20C2 |
GXPA16..ARL HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71940-52N20C2 |
GXPA16..ARL HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE(EMOTIONAL COLOR)&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 72061A - BASE SUB-ASSY, REAR SEAT BACK LOCK, RH | ||||
| 72061-47010 |
GXPA16 |
1 | ||
| 72062 - BASE SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72062-47010 |
GXPA16 |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-47050C2 |
GXPA16 BLACK,TRIM2# |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-47050C2 |
GXPA16 BLACK,TRIM2# |
1 | ||
| 72667 - BEZEL, REAR SEAT BACK LOCK, UPPER | ||||
| 72667-47010C1 |
GXPA16 BLACK,TRIM2# |
2 | ||
| 72667 - BEZEL, REAR SEAT BACK LOCK, UPPER | ||||
| 72667-47010C1 |
GXPA16 BLACK,TRIM2# |
2 | ||
| Common parts | ||||
| 90119-10990 | ||||
| 91511-80820 | ||||
| 91551-80835 | ||||
| 91672-81025 | ||||
(2008- )

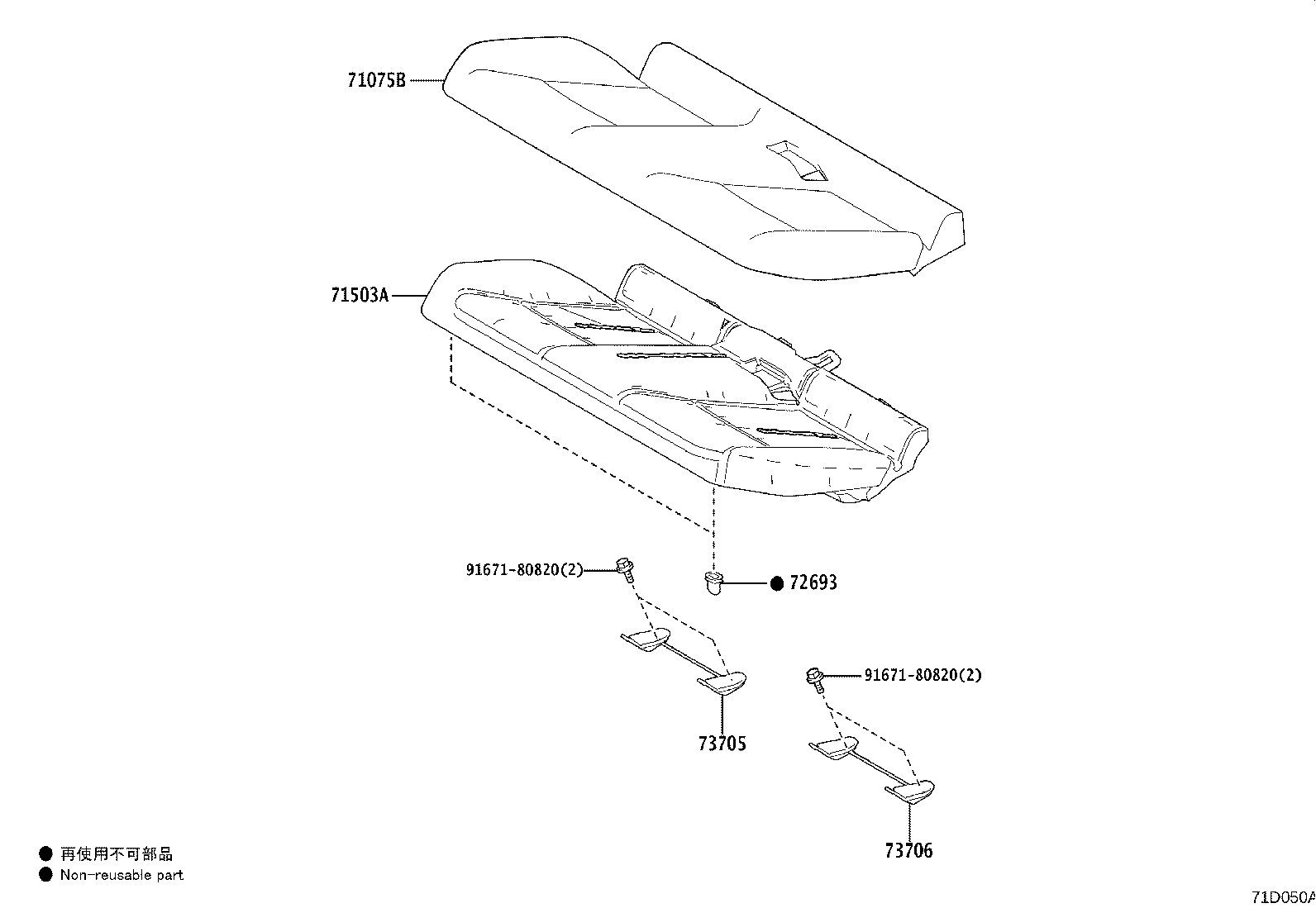

SEAT CUSHION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-52U60C3 |
GXPA16..ARL BLACK,TRIM2# |
1 | ||
| 71075-52V40C2 |
GXPA16..ARL HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71075-52V40C2 |
GXPA16..ARL HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE,BLACK,TRIM2# |
1 | ||
| 71075-52V40C2 |
GXPA16..ARL HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE,BLACK,TRIM2# |
1 | ||
| 71075-52V40C2 |
GXPA16..ARL HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71075-52V40C2 |
GXPA16..ARL HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE(EMOTIONALCOLOR),BLACK,TRIM2# |
1 | ||
| 71075-52V40C2 |
GXPA16..ARL "HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE,BLACK,TRIM2# |
1 | ||
| 71075-52V40C2 |
GXPA16..ARL HI GRADE PACKAGE&"HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE(EMOTIONALCOLOR)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71075-52V40C2 |
GXPA16..ARL "HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE(EMOTIONAL COLOR)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71075-52V40C2 |
GXPA16..ARL "HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE(EMOTIONAL COLOR),BLACK,TRIM2# |
1 | ||
| 71075-52V40C2 |
GXPA16..ARL HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE(EMOTIONAL COLOR),BLACK,TRIM2# |
1 | ||
| 71075-52V40C2 |
GXPA16..ARL HI GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE(EMOTIONAL COLOR)&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71075-52V40C2 |
GXPA16..ARL "HIGH PERFORMANCE"*(H)OR*(I)&SEAT COVER MATERIAL-SUEDE&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71503A - PAD SUB-ASSY, REAR SEAT CUSHION | ||||
| 71503-52670 |
GXPA16 |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
GXPA16 |
2 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-52240 |
GXPA16 |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73705-52250 |
GXPA16 |
1 | ||
| Common parts | ||||
| 91671-80820 | ||||
