GXPA16R-AGFGZQ (2020)

Toyota Yaris Gr

Production Aug 2020 - Sep 9999
Engine G16EGTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2008- )

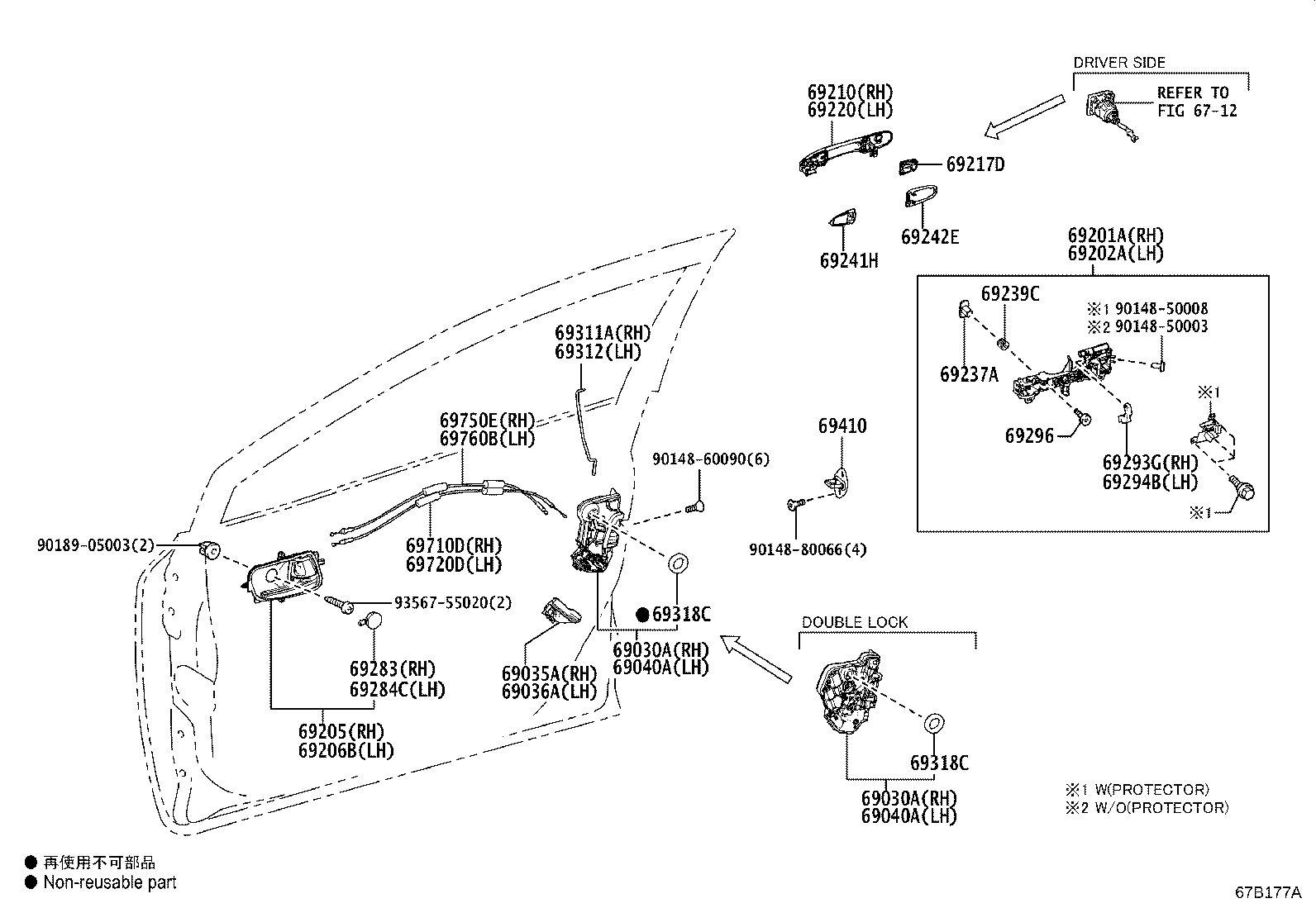

Click highlighted areas on diagram

diagram 6712 69030A 69030A 69035A 69036A 69040A 69040A 69201A 69202A 69205 69206B 69210 69217D 69220 69237A 69239C 69241H 69242E 69283 69284C 69293G 69294B 69296 69311A 69312 69318C 69318C 69410 69710D 69720D 69750E 69760B 9014850003 9014850008 9014860090 9014880066 9018905003 9356755020
Part # Description Qty Price
69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH
69030-76011

GXPA16..ARL

 1
69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH
69030-76011

GXPA16..ARL

 1
69035A - COVER SUB-ASSY, FRONT DOOR LOCK, RH
69035-30010

GXPA16

 1
69036A - COVER SUB-ASSY, FRONT DOOR LOCK, LH
69036-30010

GXPA16

 1
69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH
69040-52470

GXPA16..ARL

 1
69040-52460

GXPA16..ARL

ANTI-THEFT SYSTEM-WITH(SECURITY HORN)

 1
69040-52460

GXPA16..ARL

ANTI-THEFT SYSTEM-WITH(SECURITY HORN)&BLIND SPOT MONITOR-WITH

 1
69040-52460

GXPA16..ARL

BLIND SPOT MONITOR-WITH

 1
69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH
69040-52460

GXPA16..ARL

ANTI-THEFT SYSTEM-WITH(SECURITY HORN)

 1
69040-52460

GXPA16..ARL

ANTI-THEFT SYSTEM-WITH(SECURITY HORN)&BLIND SPOT MONITOR-WITH

 1
69040-52460

GXPA16..ARL

BLIND SPOT MONITOR-WITH

 1
69040-52470

GXPA16..ARL

 1
69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69201-47070

GXPA16..ARL;GXPA16..LHD

 1
69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69202-47040

GXPA16

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-52160C0

GXPA16

BLACK,TRIM2#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-52160C0

GXPA16

BLACK,TRIM2#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-K0010A0

GXPA16..ARL

HI GRADE PACKAGE&BLIND SPOT MONITOR-WITH,SUPER WHITE 2,040

 1
69210-K0010A0

GXPA16..ARL

HI GRADE PACKAGE,SUPER WHITE 2,040

 1
69210-K0010A3

GXPA16..ARL

BLIND SPOT MONITOR-WITH,PLATINUM WHITE PEARL MC.,089

 1
69210-K0010C2

GXPA16..ARL

BLIND SPOT MONITOR-WITH,PRECIOUS BLACK,219

 1
69210-K0010A3

GXPA16..ARL

HI GRADE PACKAGE&BLIND SPOT MONITOR-WITH,PLATINUM WHITE PEARL MC.,089

 1
69210-K0010A3

GXPA16..ARL

HI GRADE PACKAGE,PLATINUM WHITE PEARL MC.,089

 1
69211-33120A1

GXPA16..ARL

PLATINUM WHITE PEARL MC.,089

 1
69210-K0010C2

GXPA16..ARL

HI GRADE PACKAGE,PRECIOUS BLACK,219

 1
69211-33120D4

GXPA16..ARL

EMOTIONAL RED 2,3U5

 1
69211-33120A0

GXPA16..ARL

SUPER WHITE 2,040

 1
69210-K0010C2

GXPA16..ARL

HI GRADE PACKAGE&BLIND SPOT MONITOR-WITH,PRECIOUS BLACK,219

 1
69210-K0010D5

GXPA16..ARL

HI GRADE PACKAGE,EMOTIONAL RED 2,3U5

 1
69210-K0010D5

GXPA16..ARL

HI GRADE PACKAGE&BLIND SPOT MONITOR-WITH,EMOTIONAL RED 2,3U5

 1
69210-K0010A0

GXPA16..ARL

BLIND SPOT MONITOR-WITH,SUPER WHITE 2,040

 1
69211-33120C4

GXPA16..ARL

PRECIOUS BLACK,219

 1
69210-K0010D5

GXPA16..ARL

BLIND SPOT MONITOR-WITH,EMOTIONAL RED 2,3U5

 1
69217D - COVER, FRONT DOOR OUTSIDE HANDLE
69217-47020

GXPA16

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69210-K0020A3

GXPA16..ARL

HI GRADE PACKAGE,PLATINUM WHITE PEARL MC.,089

 1
69210-K0020C2

GXPA16..ARL

HI GRADE PACKAGE,PRECIOUS BLACK,219

 1
69210-K0020A0

GXPA16..ARL

BLIND SPOT MONITOR-WITH,SUPER WHITE 2,040

 1
69210-K0020A3

GXPA16..ARL

HI GRADE PACKAGE&BLIND SPOT MONITOR-WITH,PLATINUM WHITE PEARL MC.,089

 1
69210-K0020A3

GXPA16..ARL

BLIND SPOT MONITOR-WITH,PLATINUM WHITE PEARL MC.,089

 1
69210-K0020A0

GXPA16..ARL

HI GRADE PACKAGE,SUPER WHITE 2,040

 1
69210-K0020C2

GXPA16..ARL

HI GRADE PACKAGE&BLIND SPOT MONITOR-WITH,PRECIOUS BLACK,219

 1
69210-K0020D5

GXPA16..ARL

HI GRADE PACKAGE&BLIND SPOT MONITOR-WITH,EMOTIONAL RED 2,3U5

 1
69210-K0020A0

GXPA16..ARL

HI GRADE PACKAGE&BLIND SPOT MONITOR-WITH,SUPER WHITE 2,040

 1
69211-47021C4

GXPA16..ARL

PRECIOUS BLACK,219

 1
69210-K0020C2

GXPA16..ARL

BLIND SPOT MONITOR-WITH,PRECIOUS BLACK,219

 1
69211-47021A0

GXPA16..ARL

SUPER WHITE 2,040

 1
69210-K0020D5

GXPA16..ARL

HI GRADE PACKAGE,EMOTIONAL RED 2,3U5

 1
69211-47021A2

GXPA16..ARL

PLATINUM WHITE PEARL MC.,089

 1
69210-K0020D5

GXPA16..ARL

BLIND SPOT MONITOR-WITH,EMOTIONAL RED 2,3U5

 1
69211-47021D6

GXPA16..ARL

EMOTIONAL RED 2,3U5

 1
69237A - NUT, FRONT DOOR HANDLE
69237-62010

GXPA16

 2
69239C - BUSH, FRONT DOOR HANDLE
69239-47010

GXPA16

 2
69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69241-52030

GXPA16

 2
69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR
69242-52040

GXPA16

 2
69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69283-52010C1

GXPA16

BLACK,TRIM2#

 1
69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69283-52010C1

GXPA16

BLACK,TRIM2#

 1
69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293-12030

GXPA16

 1
69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH
69293-12040

GXPA16

 1
69296 - SCREW, DOOR INSIDE HANDLE
69296-30010

GXPA16

 2
69311A - ROD, FRONT DOOR LOCK OPEN, RH
69311-52270

GXPA16

 1
69312 - ROD, FRONT DOOR LOCK OPEN, LH
69312-52240

GXPA16

 1
69318C - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

GXPA16

 2
69318C - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

GXPA16

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-60030

GXPA16

 2
69710D - CABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVE
69710-52250

GXPA16

 1
69720D - CABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVE
69710-52250

GXPA16

 1
69750E - CABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK
69750-52180

GXPA16

 1
69760B - CABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK
69750-52180

GXPA16

 1
Common parts
90148-50003
90148-50008
90148-60090
90148-80066
90189-05003
93567-55020
Linked diagrams
6712
