GXPA16R-AGFGZQ (2020)

Toyota Yaris Gr

Production Aug 2020 - Sep 9999
Engine G16EGTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2008- )

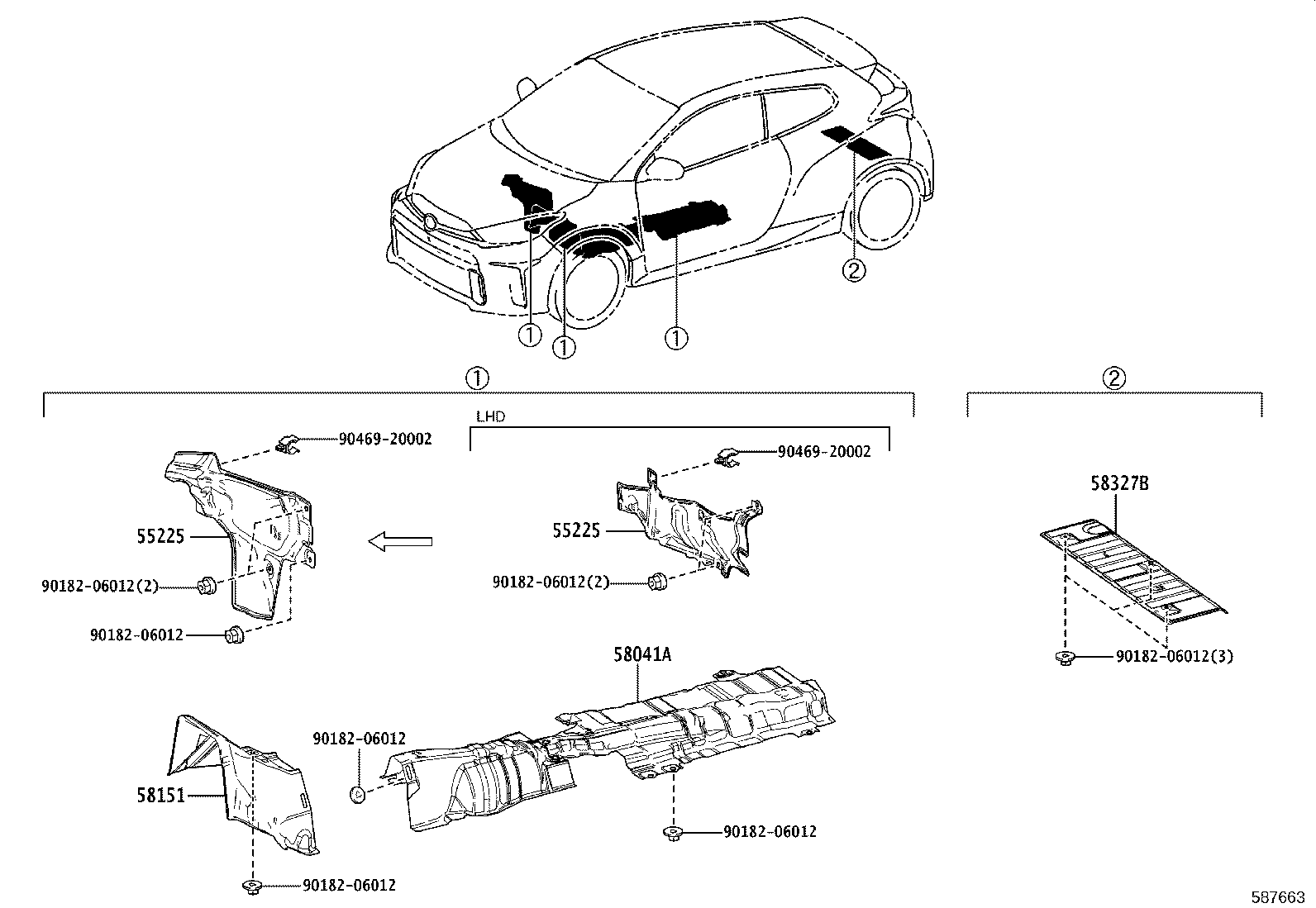

Click highlighted areas on diagram

diagram 55225 55225 58041A 58151 58327B 9018206012 9018206012 9018206012 9018206012 9018206012 9018206012 9018206012 9046920002 9046920002
Part # Description Qty Price
55225 - INSULATOR, DASH PANEL HEAT
55225-52010

GXPA16..RHD

 1
55225 - INSULATOR, DASH PANEL HEAT
55225-52010

GXPA16..RHD

 1
58041A - INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1
58041-52050

GXPA16

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-52130

GXPA16

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-52180

GXPA16

 1
Common parts
90182-06012
90469-20002
