GXPA16R-AGFGZQ (2020)
Toyota Yaris Gr
Production
Aug 2020
-
Sep 9999
Engine
G16EGTS
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(2008- )

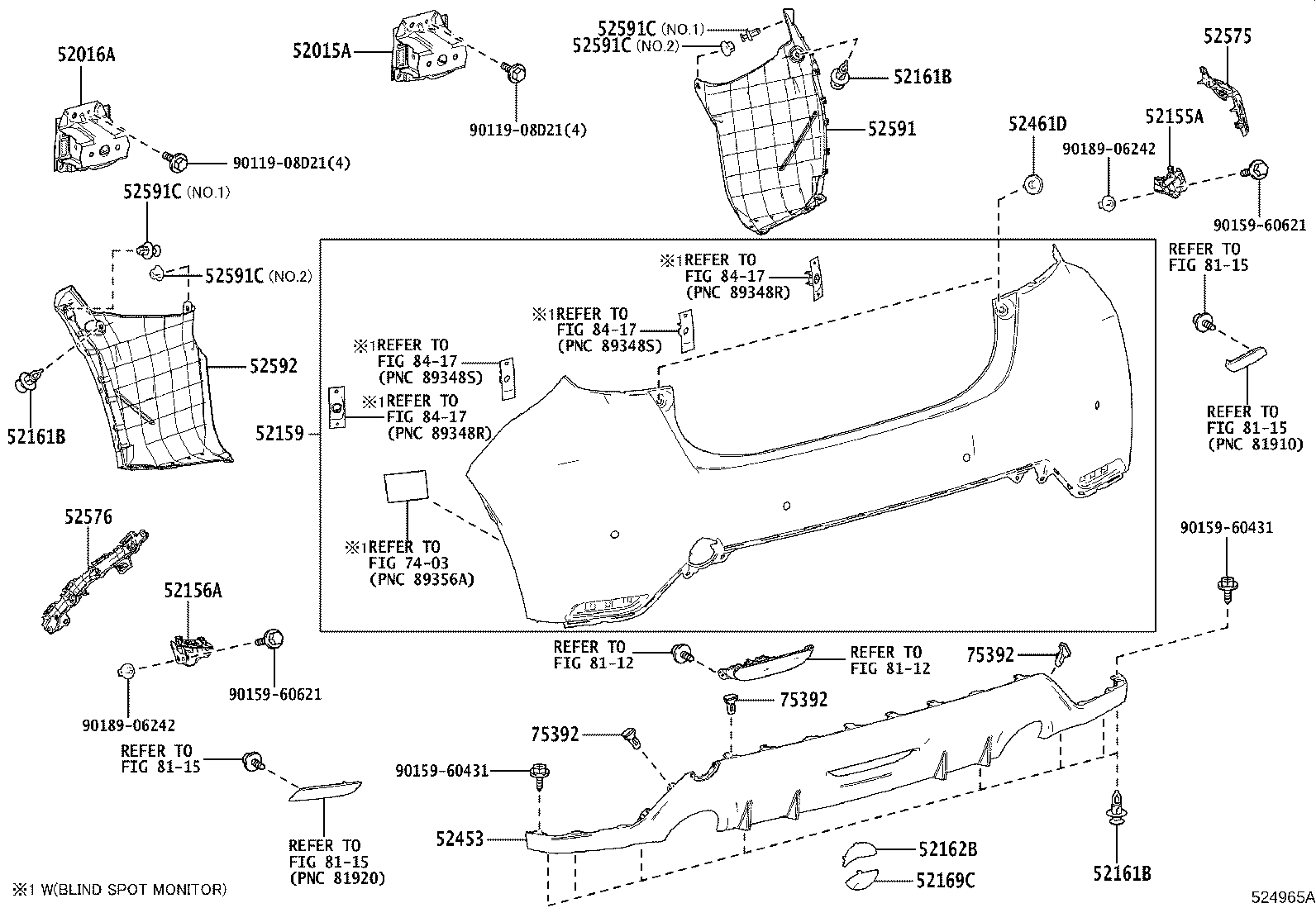

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-52150 |
GXPA16 |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-52160 |
GXPA16 |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-K0010 |
GXPA16 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-K0010 |
GXPA16 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-K0909 |
GXPA16 PAINT REQ. |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GXPA16 |
10 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GXPA16 |
10 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GXPA16 |
10 | ||
| 52162B - PLATE, REAR BUMPER, NO.1 | ||||
| 52162-52912 |
GXPA16 |
1 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-52110 |
GXPA16..ARL NO PAINT REQ.,HI GRADE PACKAGE |
1 | ||
| 52169-52120 |
GXPA16..ARL NO PAINT REQ. |
1 | ||
| 52453 - GUARD, REAR BUMPER, CENTER | ||||
| 52453-52120 |
GXPA16..ARL |
1 | ||
| 52453-52110 |
GXPA16..ARL HI GRADE PACKAGE |
1 | ||
| 52461D - CUSHION, REAR BUMPER | ||||
| 52461-52020 |
GXPA16 |
2 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-52240 |
GXPA16 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-52220 |
GXPA16 |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-52430 |
GXPA16 |
1 | ||
| 52591C - CLIP, REAR BUMPER SIDE SEAL | ||||
| 90467-05170 |
GXPA16 NO.1:REFER ILLUST. |
2 | ||
| 90467-06121 |
GXPA16 NO.2:REFER ILLUST. |
2 | ||
| 52591C - CLIP, REAR BUMPER SIDE SEAL | ||||
| 90467-05170 |
GXPA16 NO.1:REFER ILLUST. |
2 | ||
| 90467-06121 |
GXPA16 NO.2:REFER ILLUST. |
2 | ||
| 52591C - CLIP, REAR BUMPER SIDE SEAL | ||||
| 90467-05170 |
GXPA16 NO.1:REFER ILLUST. |
2 | ||
| 90467-06121 |
GXPA16 NO.2:REFER ILLUST. |
2 | ||
| 52591C - CLIP, REAR BUMPER SIDE SEAL | ||||
| 90467-05170 |
GXPA16 NO.1:REFER ILLUST. |
2 | ||
| 90467-06121 |
GXPA16 NO.2:REFER ILLUST. |
2 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-52420 |
GXPA16 |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
GXPA16 |
3 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
GXPA16 |
3 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
GXPA16 |
3 | ||
| Common parts | ||||
| 90119-08D21 | ||||
| 90159-60431 | ||||
| 90159-60621 | ||||
| 90189-06242 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8112 | ||||
| 8115 | ||||
| 8417 | ||||
