GXPA16L-AGFGZW (2020)
Toyota Yaris Gr
Production
Aug 2020
-
Sep 9999
Engine
G16EGTS
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(2008- )LHD

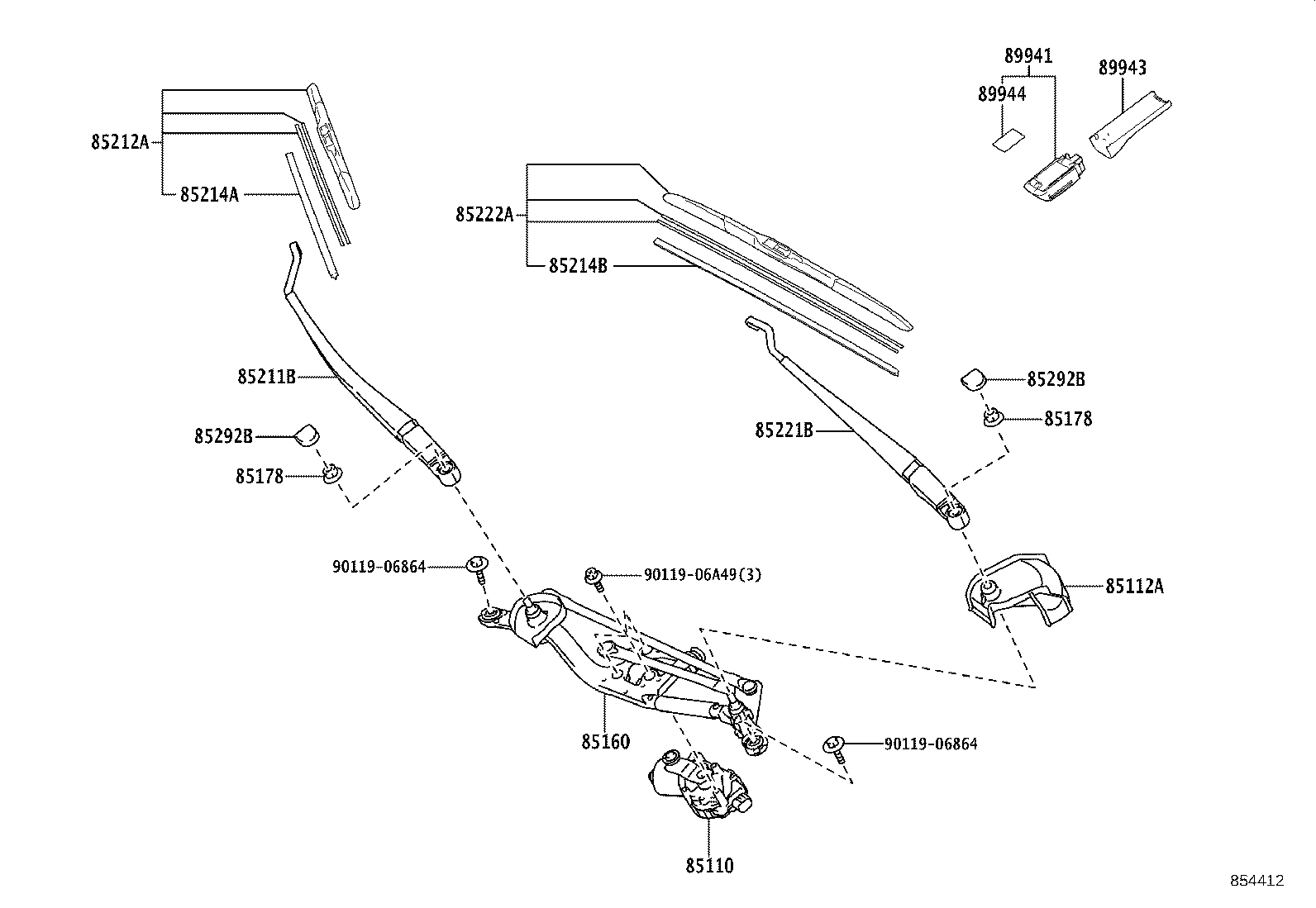

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-K0120 |
GXPA16..LHD |
1 | ||
| 85112A - COVER, WINDSHIELD WIPER SHAFT, NO.1 | ||||
| 85112-0D010 |
GXPA16..LHD |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85150-K0030 |
GXPA16..LHD |
1 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90182-10006 |
GXPA16 |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90182-10006 |
GXPA16 |
2 | ||
| 85211B - ARM, FRONT WIPER, RH | ||||
| 85211-52610 |
GXPA16..LHD |
1 | ||
| 85212A - BLADE, FR WIPER, RH | ||||
| 85212-K0020 |
GXPA16..LHD |
1 | ||
| 85214A - RUBBER, WIPER, RH | ||||
| 85214-28090 |
GXPA16..LHD |
1 | ||
| 85214B - RUBBER, WIPER, LH | ||||
| 85214-30380 |
GXPA16..LHD |
1 | ||
| 85221B - ARM, FRONT WIPER, LH | ||||
| 85221-52560 |
GXPA16..LHD |
1 | ||
| 85222A - BLADE, FR WIPER, LH | ||||
| 85222-K0020 |
GXPA16..LHD |
1 | ||
| 85292B - CAP, FRONT WIPER ARM HEAD | ||||
| 85292-13010 |
GXPA16 |
2 | ||
| 85292B - CAP, FRONT WIPER ARM HEAD | ||||
| 85292-13010 |
GXPA16 |
2 | ||
| 89941 - SENSOR, RAIN | ||||
| 89941-30040 |
GXPA16..EUR |
1 | ||
| 89943 - COVER, RAIN SENSOR | ||||
| 89943-12040 |
GXPA16..EUR |
1 | ||
| 89944 - TAPE, RAIN SENSOR | ||||
| 89944-42020 |
GXPA16..EUR |
1 | ||
| Common parts | ||||
| 90119-06864 | ||||
| 90119-06A49 | ||||
