GXPA16L-AGFGZW (2020)
Toyota Yaris Gr
Production
Aug 2020
-
Sep 9999
Engine
G16EGTS
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

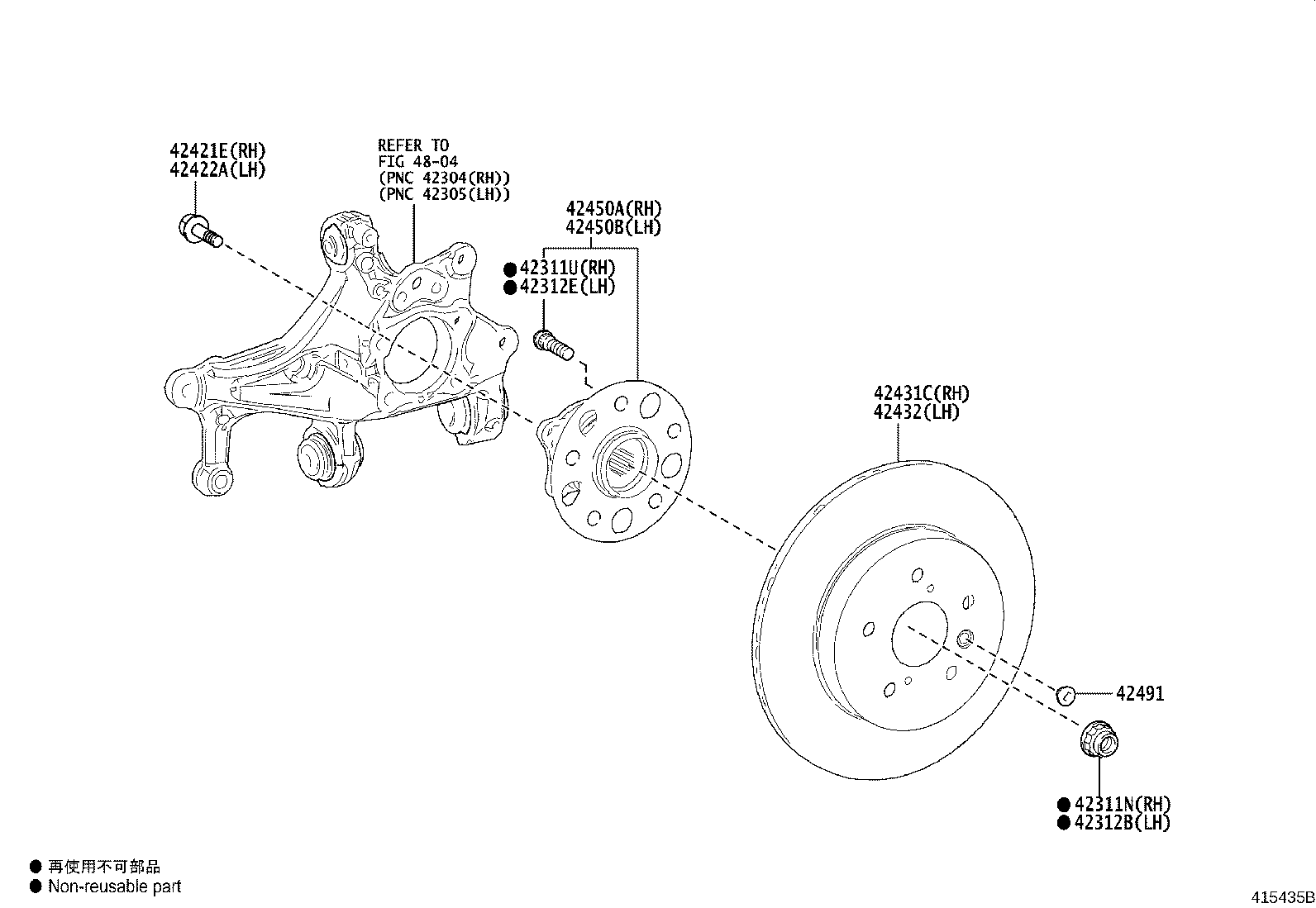

ILLUST NO. 1 OF 2(2008- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90177-22001 |
GXPA16 |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02049 |
GXPA16 |
5 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90177-22001 |
GXPA16 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02049 |
GXPA16 |
5 | ||
| 42421E - BOLT (FOR REAR AXLE BEARING CASE RH) | ||||
| 90105-12406 |
GXPA16 |
4 | ||
| 42422A - BOLT (FOR REAR AXLE BEARING CASE LH) | ||||
| 90105-12406 |
GXPA16 |
4 | ||
| 42431C - DISC, REAR RH | ||||
| 42431-52190 |
GXPA16 |
1 | ||
| 42432 - DISC, REAR LH | ||||
| 42432-52010 |
GXPA16 |
1 | ||
| 42450A - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42410-42060 |
GXPA16 |
1 | ||
| 42450B - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42410-42060 |
GXPA16 |
1 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-22020 |
GXPA16 |
2 | ||
| Linked diagrams | ||||
| 4804 | ||||

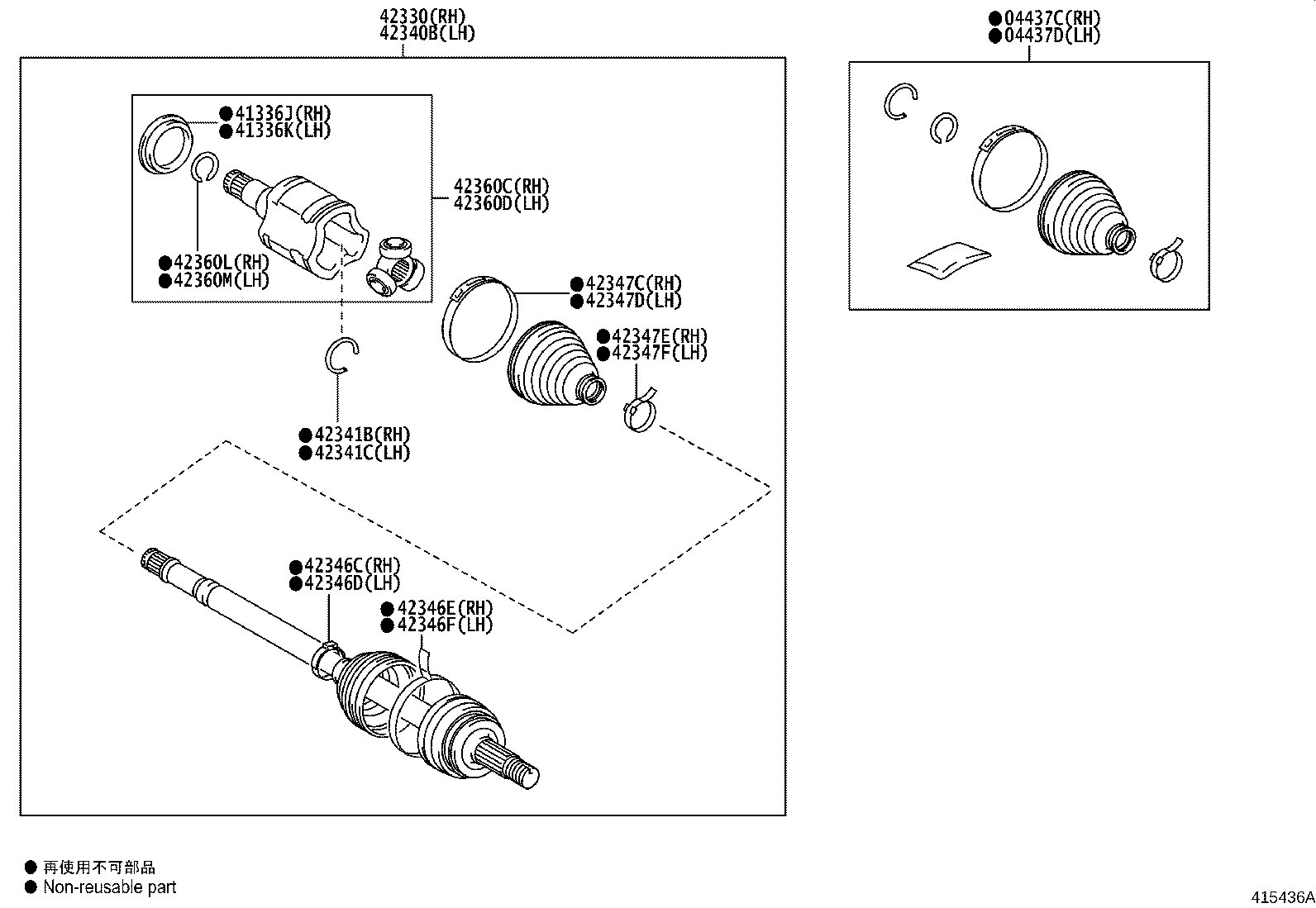

ILLUST NO. 2 OF 2(2008- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04437C - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04439-52060 |
GXPA16 |
1 | ||
| 04437D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04439-52060 |
GXPA16 |
1 | ||
| 41336J - COVER, REAR DRIVE SHAFT DUST, RH | ||||
| 41336-48020 |
GXPA16 |
1 | ||
| 41336K - COVER, REAR DRIVE SHAFT DUST, LH | ||||
| 41336-48020 |
GXPA16 |
1 | ||
| 42330 - SHAFT ASSY, REAR DRIVE, RH | ||||
| 42330-52010 |
GXPA16 |
1 | ||
| 42340B - SHAFT ASSY, REAR DRIVE, LH | ||||
| 42340-52070 |
GXPA16 |
1 | ||
| 42341B - RING, SNAP (FOR REAR DRIVE SHAFT RH) | ||||
| 43425-52050 |
GXPA16 |
1 | ||
| 42341C - RING, SNAP (FOR REAR DRIVE SHAFT LH) | ||||
| 43425-52050 |
GXPA16 |
1 | ||
| 42346C - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) | ||||
| 42345-21040 |
GXPA16 |
1 | ||
| 42346D - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) | ||||
| 42345-21040 |
GXPA16 |
1 | ||
| 42346E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT R | ||||
| 42345-52310 |
GXPA16 |
1 | ||
| 42346F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT L | ||||
| 42345-52310 |
GXPA16 |
1 | ||
| 42347C - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) | ||||
| 42345-50050 |
GXPA16 ID=69.8 |
1 | ||
| 42347D - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH) | ||||
| 42345-50050 |
GXPA16 ID=69.8 |
1 | ||
| 42347E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH | ||||
| 42345-21040 |
GXPA16 |
1 | ||
| 42347F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH | ||||
| 42345-21040 |
GXPA16 |
1 | ||
| 42360C - JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH | ||||
| 42360-52020 |
GXPA16 |
1 | ||
| 42360D - JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH | ||||
| 42360-52020 |
GXPA16 |
1 | ||
| 42360L - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH | ||||
| 90521-26004 |
GXPA16 |
1 | ||
| 42360M - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH | ||||
| 90521-26004 |
GXPA16 |
1 | ||
