ZSP90R-AHMVKW (2006)

Toyota Yaris (Jpp)

Production Nov 2006 - Sep 2008
Engine 2ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0611- )ZSP90..JPP..RHD

Click highlighted areas on diagram

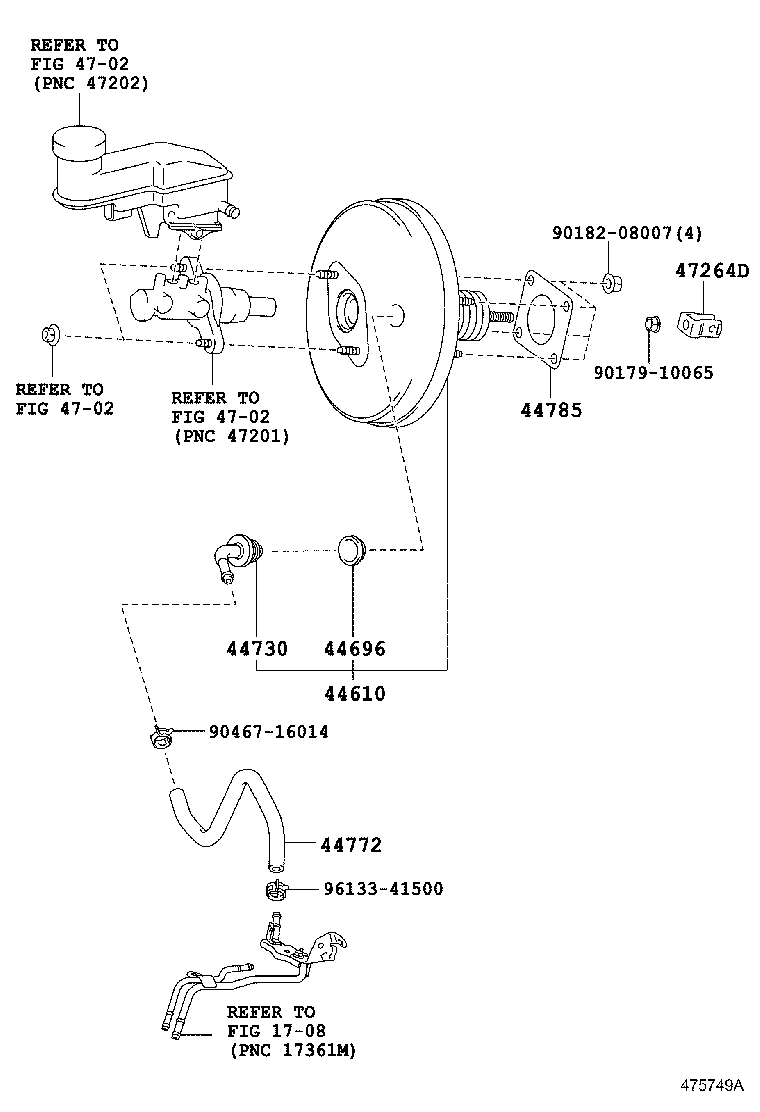

diagram 1708 44610 44696 44730 44772 44785 4702 4702 4702 47264D 9017910065 9018208007 9046716014 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-52560

ZSP90..JPP..RHD

 1
44696 - GROMMET, CHECK VALVE
90480-24015

KSP90,ZSP90..JPP..RHD..5F

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10020

ZSP90..JPP..RHD..5F

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-52140

ZSP90..JPP..RHD..5F

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-12060

ZSP90..JPP..5F;KSP90..JPP..RHD

 1
Common parts
90179-10065
90182-08007
90467-16014
96133-41500
Linked diagrams
1708
4702
