ZSP90R-AGMVKW (2006)

Toyota Yaris (Jpp)

Production Nov 2006 - Sep 2008
Engine 2ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 7(0611- )ZSP90..JPP..RHD

Click highlighted areas on diagram

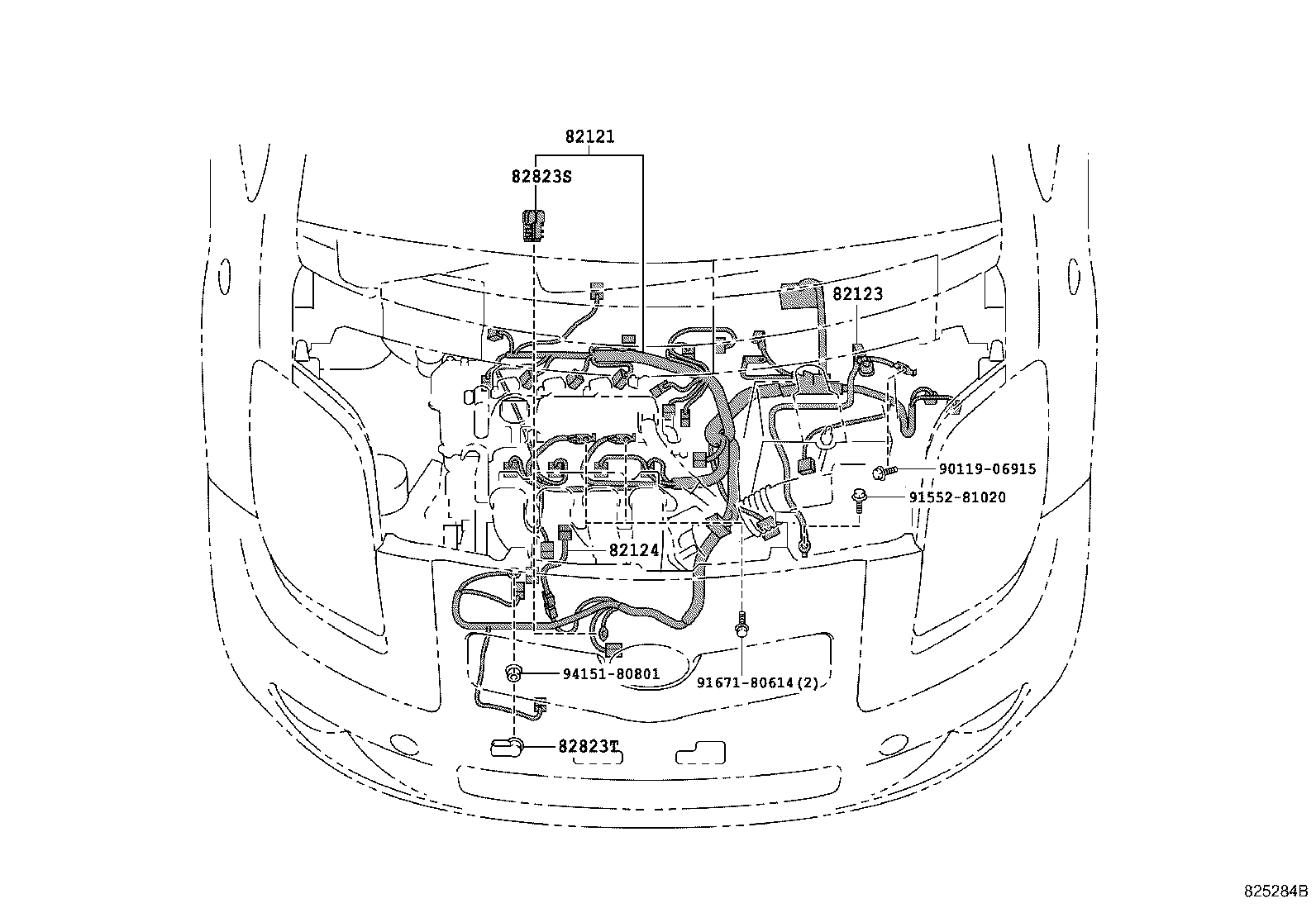

ENGINE

diagram 82121 82123 82124 82823S 82823T 9011906915 9155281020 9167180614 9415180801
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-52E60

ZSP90..JPP..RHD

 1
82123 - WIRE, ENGINE, NO.3
82123-52280

ZSP90..JPP

 1
82124 - WIRE, ENGINE, NO.4
82124-02090

ZSP90..JPP..5F

 1
82823S - CAP, STARTER TERMINAL
82823-20080

KSP90,ZSP90..JPP

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

KSP90,ZSP90..JPP

 1
Common parts
90119-06915
91552-81020
91671-80614
94151-80801

ILLUST NO. 6 OF 7(0611- )ZSP90..JPP

Click highlighted areas on diagram

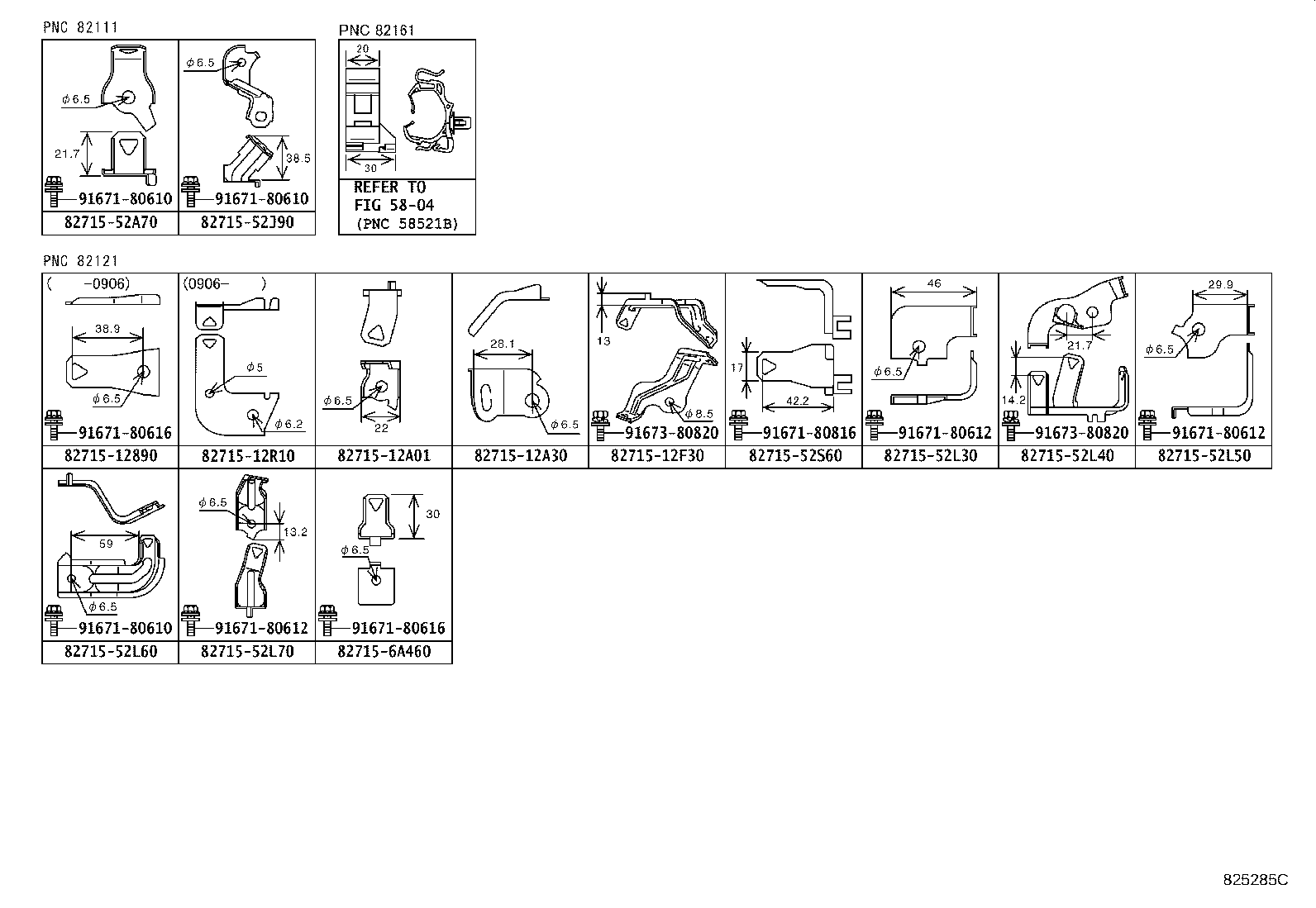

CLAMP & BRACKET

diagram 5804 8271512890 8271512A01 8271512A30 8271512F30 8271512R10 8271552A70 8271552J90 8271552L30 8271552L40 8271552L50 8271552L60 8271552L70 8271552S60 827156A460 9167180610 9167180610 9167180610 9167180612 9167180612 9167180612 9167180616 9167180616 9167180816 9167380820 9167380820
Part # Description Qty Price
Common parts
82715-12890
82715-12A01
82715-12A30
82715-12F30
82715-12R10
82715-52A70
82715-52J90
82715-52L30
82715-52L40
82715-52L50
82715-52L60
82715-52L70
82715-52S60
82715-6A460
91671-80610
91671-80612
91671-80616
91671-80816
91673-80820
Linked diagrams
5804
