ZSP90R-AGMVKW (2006)
Toyota Yaris (Jpp)

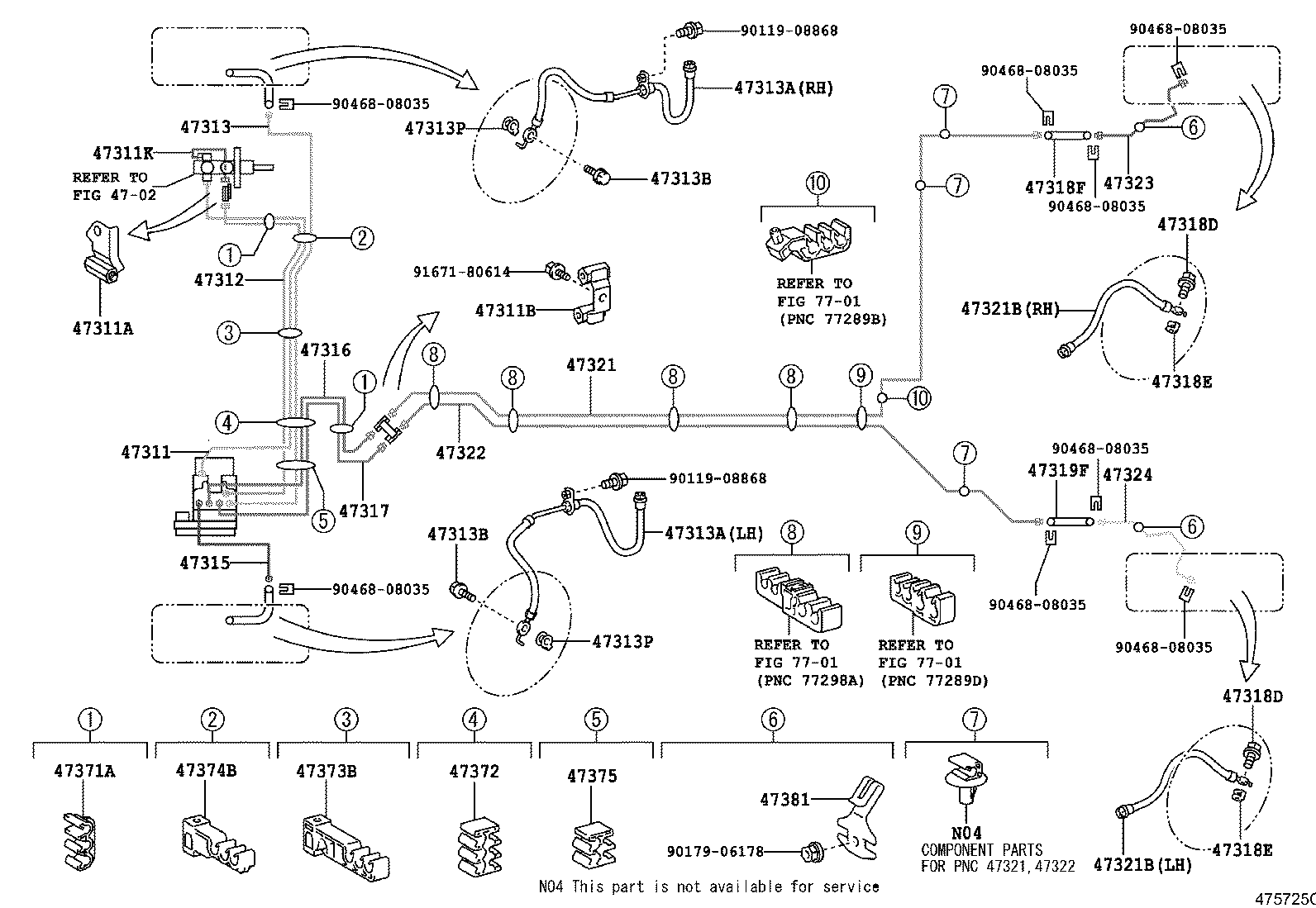

ILLUST NO. 1 OF 2(0611- )ZSP90..JPP..RHD
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52290 |
ZSP90..JPP..RHD..5F |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10273 |
ZSP90..JPP..RHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 47311K - TUBE, BRAKE MASTER CYLINDER TO WAY | ||||
| 47311-52300 |
ZSP90..JPP..RHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52260 |
ZSP90..JPP..RHD..5F |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-52120 |
ZSP90..JPP..RHD..5F |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02E07 |
KSP90,ZSP90..JPP..5F RH |
1 | ||
| 90947-02E08 |
KSP90,ZSP90..JPP..5F LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02E07 |
KSP90,ZSP90..JPP..5F RH |
1 | ||
| 90947-02E08 |
KSP90,ZSP90..JPP..5F LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
KSP90,ZSP90..JPP..5F |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
KSP90,ZSP90..JPP..5F |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
KSP90,ZSP90..JPP..5F |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
KSP90,ZSP90..JPP..5F |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52150 |
ZSP90..JPP..RHD..5F |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52110 |
ZSP90..JPP..RHD..5F |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52110 |
ZSP90..JPP..RHD..5F |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZSP90..JPP..5F |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZSP90..JPP..5F |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZSP90..JPP..5F |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZSP90..JPP..5F |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02E09 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02E10 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52270 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02E11 |
ZSP90..JPP..5F |
2 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02E11 |
ZSP90..JPP..5F |
2 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52250 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-52110 |
ZSP90..JPP..5F |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-52100 |
ZSP90..JPP..5F |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00868 |
ZSP90..JPP..RHD..5F |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01969 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01D27 |
KSP90,ZSP90..JPP..RHD..5F |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01D02 |
KSP90,ZSP90..JPP..RHD..5F |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90464-00883 |
ZSP90..JPP..5F;KSP90..JPP..LHD |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-52020 |
KSP90,ZSP90..JPP..5F |
2 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90179-06178 | ||||
| 90468-08035 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||
