ZSP90L-AGMVKW (2006)

Toyota Yaris (Jpp)

Production Nov 2006 - Sep 2008
Engine 2ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0611- )ZSP90..JPP..LHD

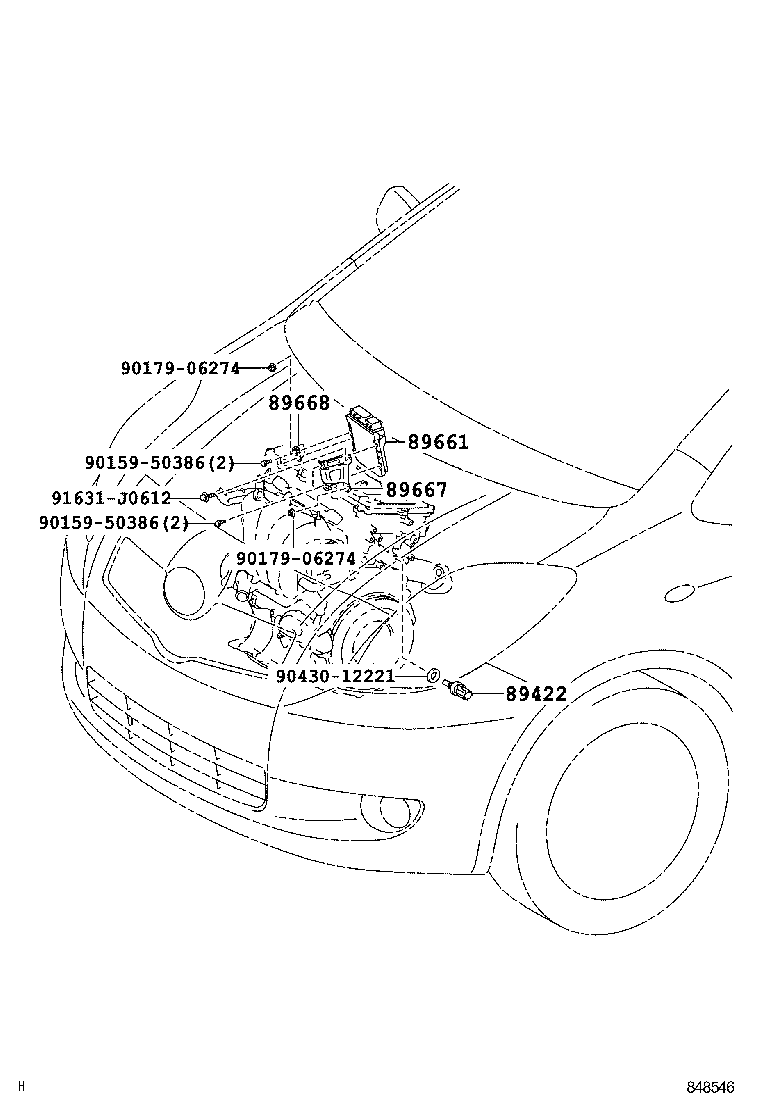

Click highlighted areas on diagram

diagram 89422 89661 89667 89668 9015950386 9015950386 9017906274 9017906274 9043012221 91631J0612
Part # Description Qty Price
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

KSP90,ZSP90..JPP..5F

 1
89661 - COMPUTER, ENGINE CONTROL
89661-52F40

ZSP90..JPP

EXHAUST EMISSION CONTROL-EURO4 WITHOUT(ON BOARD DIAGNOSIS)

 1
89661-52F30

ZSP90..JPP

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-52200

ZSP90..JPP..LHD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-52220

ZSP90..JPP..LHD

 1
Common parts
90159-50386
90179-06274
90430-12221
91631-J0612
