SCP10R-AHMRKW (1999)
Toyota Yaris (Jpp)

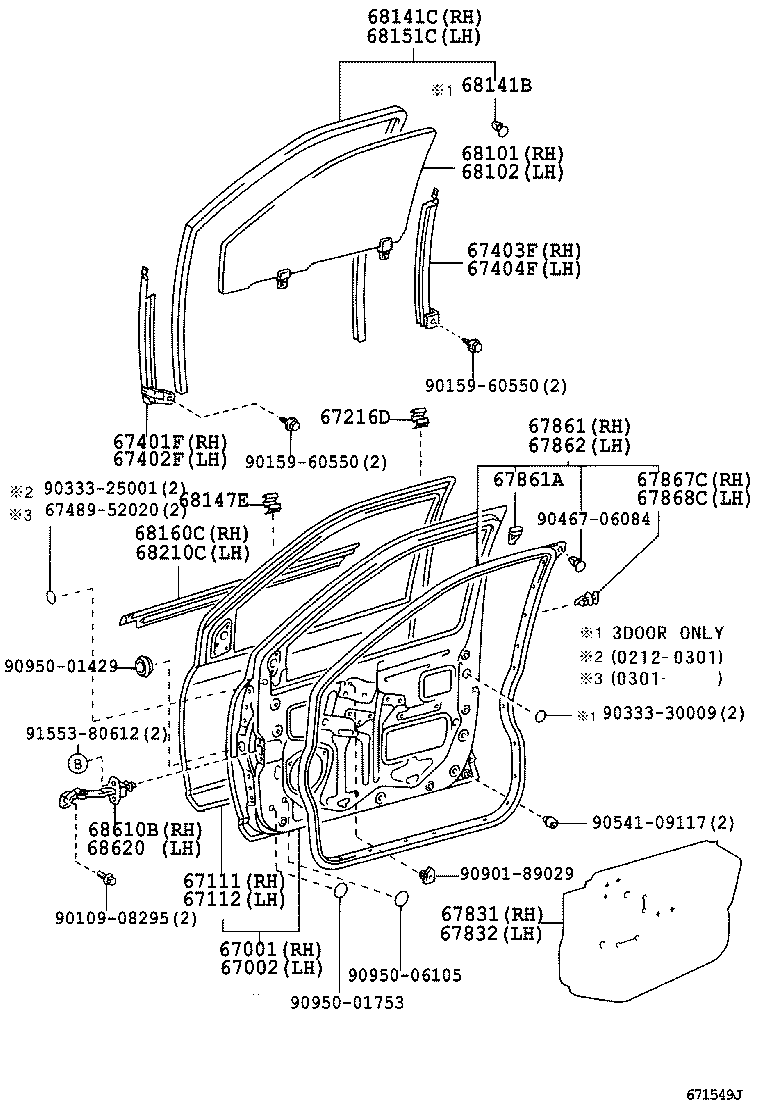

ILLUST NO. 2 OF 3(9901- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-52010 |
NCP10,SCP10..JPP..5D |
1 | ||
| 67001-52011 |
NCP1#,NLP10,SCP10..JPP..5D |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-52010 |
NCP10,SCP10..JPP..5D |
1 | ||
| 67002-52011 |
NCP1#,NLP10,SCP10..JPP..5D |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-52010 |
NCP1#,NLP10,SCP10..JPP..5D |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-52010 |
NCP1#,NLP10,SCP10..JPP..5D |
1 | ||
| 67216D - STOPPER, FRONT DOOR GLASS, UPPER NO.2 | ||||
| 67216-52010 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-52010 |
NCP1#,NLP10,SCP10..JPP..5D |
1 | ||
| 67401-52011 |
NCP1#,NLP10,SCP10..JPP..5D |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-52011 |
NCP1#,NLP10,SCP10..JPP..5D |
1 | ||
| 67402-52010 |
NCP1#,NLP10,SCP10..JPP..5D |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-52050 |
NCP1#,NLP10,SCP10..JPP..RHD..5D W(POWER DOOR LOCK) |
1 | ||
| 67403-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 67404-52080 |
NCP1#,NLP10,SCP10..JPP..RHD..5D W(POWER DOOR LOCK) |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-52020 |
NCP1#,NLP10,SCP10..JPP..5D W(FRONT DOOR SPEAKER) |
1 | ||
| 67831-52010 |
NCP1#,NLP10,SCP10..JPP..5D |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-52020 |
NCP1#,NLP10,SCP10..JPP..5D W(FRONT DOOR SPEAKER) |
1 | ||
| 67831-52010 |
NCP1#,NLP10,SCP10..JPP..5D |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-52010 |
NCP1#,NLP10,SCP10..JPP..5D |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67867-52020 |
NCP10,SCP10..JPP..5D RH |
10 | ||
| 67867-52010 |
SCP10..JPP..5D |
20 | ||
| 67867-52020 |
NCP1#,NLP10,SCP10..JPP RH |
11 | ||
| 67867-52030 |
NCP10,SCP10..JPP..5D LH |
10 | ||
| 67867-52030 |
NCP1#,NLP10,SCP10..JPP LH |
11 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-52010 |
NCP1#,NLP10,SCP10..JPP..5D |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
NCP10,SCP10..JPP..5D |
22 | ||
| 67867-12150 |
NCP1#,NLP10,SCP10..JPP..5D |
21 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
NCP10,SCP10..JPP..5D |
22 | ||
| 67867-12150 |
NCP1#,NLP10,SCP10..JPP..5D |
21 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68110-52010 |
NCP1#,NLP10,SCP10..JPP..5D *TEM,T=3.1,GREEN |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68120-52010 |
NCP1#,NLP10,SCP10..JPP..5D *TEM,T=3.1,GREEN |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-52011 |
NCP1#,NLP10,SCP10..JPP..5D |
1 | ||
| 68141-52010 |
NCP1#,NLP10,SCP10..JPP..5D |
1 | ||
| 68147E - STOP, FRONT DOOR GLASS, UPPER | ||||
| 68147-52010 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-52010 |
NCP1#,NLP10,SCP10..JPP..5D |
1 | ||
| 68151-52011 |
NCP1#,NLP10,SCP10..JPP..5D |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68160-52010 |
NCP1#,NLP10,SCP10..JPP..5D |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68210-52010 |
NCP1#,NLP10,SCP10..JPP..5D |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| Common parts | ||||
| 67489-52020 | ||||
| 90109-08295 | ||||
| 90159-60550 | ||||
| 90333-25001 | ||||
| 90333-30009 | ||||
| 90467-06084 | ||||
| 90541-09117 | ||||
| 90901-89029 | ||||
| 90950-01429 | ||||
| 90950-01753 | ||||
| 90950-06105 | ||||
| 91553-80612 | ||||
ILLUST NO. 3 OF 3(9901-0212)JPP

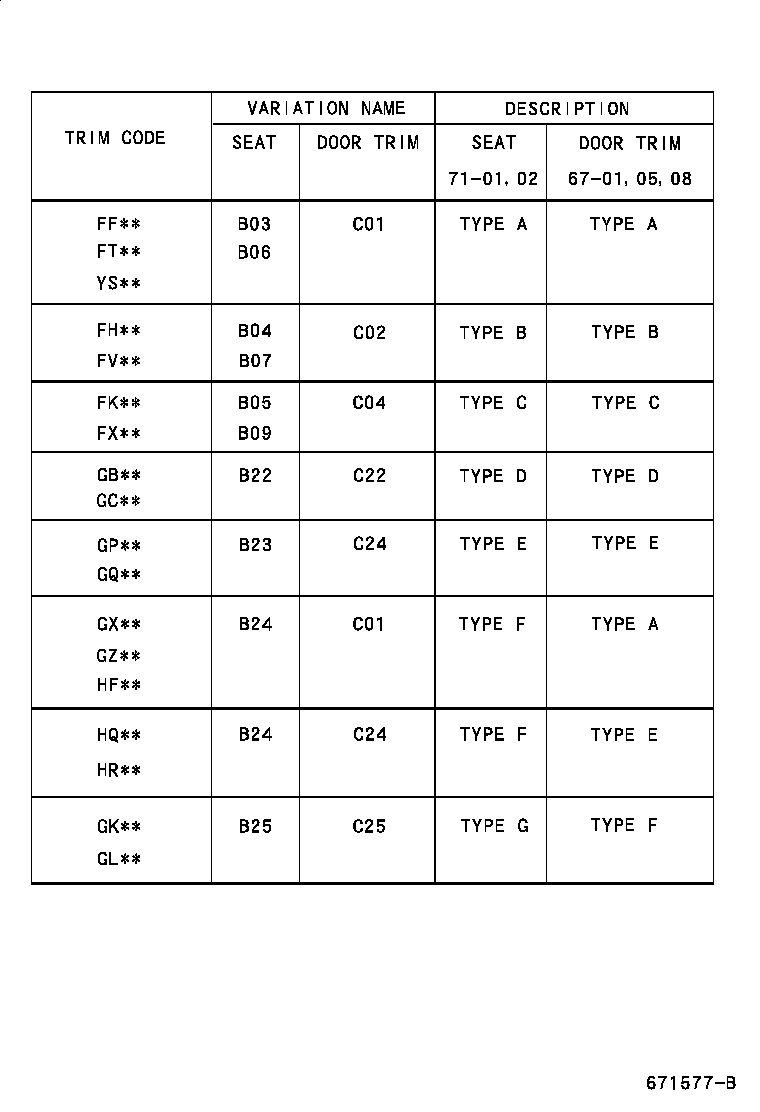

TRIM CODE TABLE
| Part # | Description | Qty | Price |
|---|

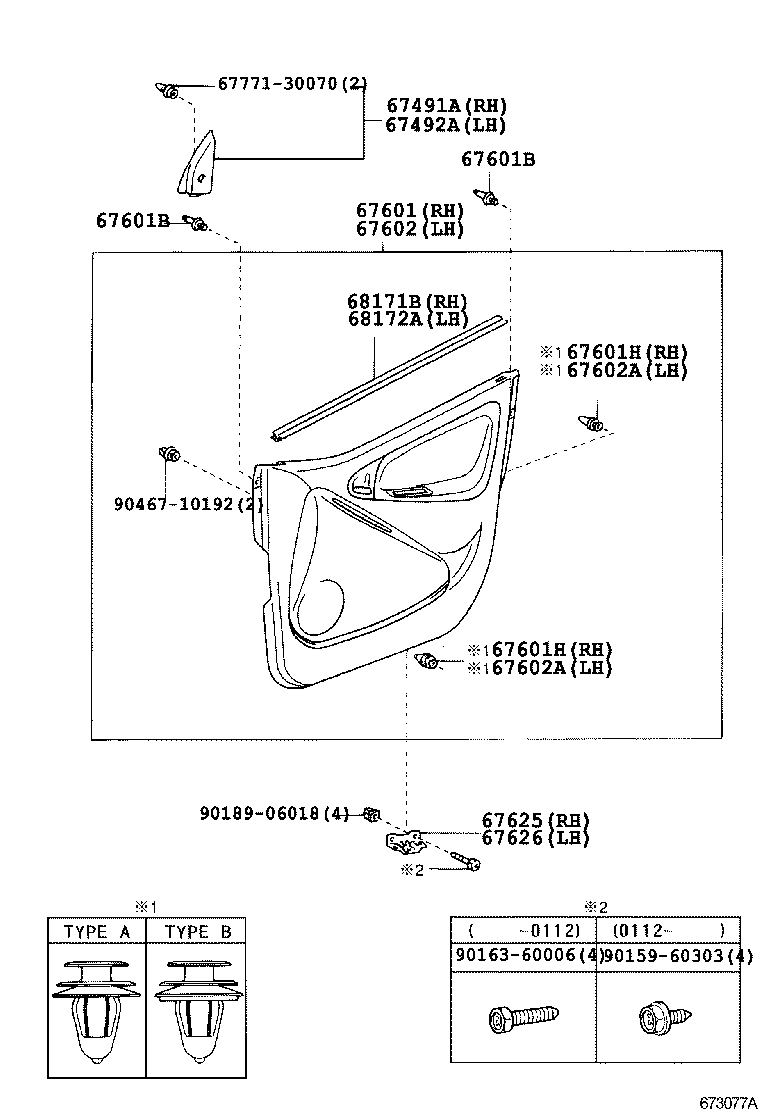

ILLUST NO. 1 OF 3(9901- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-52020 |
NCP10,NLP10,SCP10..JPP W(OUTSIDE MIRROR=STICK ADJUSTABLE) |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-52020 |
NCP10,NLP10,SCP10..JPP W(OUTSIDE MIRROR=STICK ADJUSTABLE) |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-52160B1 |
SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104 & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-52180H1 |
SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & SPEAKER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67610-52230B0 |
SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-52180B1 |
SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-52160H1 |
SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104 & W(SPEAKER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67610-52250B2 |
SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-52230H0 |
SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67610-52250H2 |
SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67610-52231B3 |
NLP10,SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-52181H2 |
NLP10,SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & SPEAKER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67610-52181B2 |
NLP10,SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-52251H3 |
NLP10,SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67610-52251B3 |
NLP10,SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-52161H2 |
NLP10,SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104 & W(SPEAKER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67610-52231H3 |
NLP10,SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67610-52161B2 |
NLP10,SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104 & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-52191H4 |
NCP10,NLP10,SCP10..JPP..RHD..5D..(LUNA,TRSTD) DOOR TRIM=TYPE E-*104 & W(SPEAKER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67610-52241B4 |
NCP10,NLP10,SCP10..JPP..RHD..5D..(LUNA,TRSTD) DOOR TRIM=TYPE E-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-52171B4 |
NCP10,NLP10,SCP10..JPP..RHD..5D..(LUNA,TRSTD) DOOR TRIM=TYPE E-*104 & W(POWER WINDOW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-52191B4 |
NCP10,NLP10,SCP10..JPP..RHD..5D..(LUNA,TRSTD) DOOR TRIM=TYPE E-*104 & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-52261H4 |
NCP10,NLP10,SCP10..JPP..RHD..5D..(LUNA,TRSTD) DOOR TRIM=TYPE E-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67610-52261B4 |
NCP10,NLP10,SCP10..JPP..RHD..5D..(LUNA,TRSTD) DOOR TRIM=TYPE E-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-52241H4 |
NCP10,NLP10,SCP10..JPP..RHD..5D..(LUNA,TRSTD) DOOR TRIM=TYPE E-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67610-52171H4 |
NCP10,NLP10,SCP10..JPP..RHD..5D..(LUNA,TRSTD) DOOR TRIM=TYPE E-*104 & W(POWER WINDOW & SPEAKER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-07190B0 |
NCP10,NLP10,SCP10..JPP..5D SHADOW GRAY,TRIM1# |
6 | ||
| 90467-07190B2 |
NCP10,NLP10,SCP10..JPP..5D DK.GRAY,TRIM1# |
6 | ||
| 90467-07190H0 |
NCP10,NLP10,SCP10..JPP..5D FRENCH TURQUOISE,TRIM7# |
6 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-07190B0 |
NCP10,NLP10,SCP10..JPP..5D SHADOW GRAY,TRIM1# |
6 | ||
| 90467-07190B2 |
NCP10,NLP10,SCP10..JPP..5D DK.GRAY,TRIM1# |
6 | ||
| 90467-07190H0 |
NCP10,NLP10,SCP10..JPP..5D FRENCH TURQUOISE,TRIM7# |
6 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-28020 |
NCP1#,NLP10,SCP10..JPP TYPE B:REFER ILLUST. |
3 | ||
| 67771-12050 |
SCP10..JPP..5D TYPE A:REFER ILLUST. |
6 | ||
| 67771-12050 |
NCP1#,NLP10,SCP10..JPP..5D TYPE A:REFER ILLUST. |
3 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-28020 |
NCP1#,NLP10,SCP10..JPP TYPE B:REFER ILLUST. |
3 | ||
| 67771-12050 |
SCP10..JPP..5D TYPE A:REFER ILLUST. |
6 | ||
| 67771-12050 |
NCP1#,NLP10,SCP10..JPP..5D TYPE A:REFER ILLUST. |
3 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-52160B1 |
SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104 & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-52180H1 |
SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & SPEAKER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67620-52160H1 |
SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104 & W(SPEAKER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67620-52180B1 |
SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-52250B2 |
SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-52230B0 |
SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-52230H0 |
SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67620-52250H2 |
SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67620-52181B2 |
NLP10,SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-52161B2 |
NLP10,SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104 & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-52161H2 |
NLP10,SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104 & W(SPEAKER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67620-52181H2 |
NLP10,SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & SPEAKER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67660-52090B0 |
NLP10,SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67660-52100B0 |
NLP10,SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67660-52090H0 |
NLP10,SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67620-52171H4 |
NCP10,NLP10,SCP10..JPP..RHD..5D..(LUNA,TRSTD) DOOR TRIM=TYPE E-*104 & W(POWER WINDOW & SPEAKER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67620-52170H2 |
SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE B-*104 & W(POWER WINDOW & SPEAKER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67620-52191H4 |
NCP10,NLP10,SCP10..JPP..RHD..5D..(LUNA,TRSTD) DOOR TRIM=TYPE E-*104 & W(SPEAKER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67660-52100H0 |
NLP10,SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67620-52240H2 |
SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67620-52170B2 |
SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE B-*104 & W(POWER WINDOW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-52171B4 |
NCP10,NLP10,SCP10..JPP..RHD..5D..(LUNA,TRSTD) DOOR TRIM=TYPE E-*104 & W(POWER WINDOW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-52240B2 |
SCP10..JPP..RHD..5D..TRSTD DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-52241H4 |
NCP10,NLP10,SCP10..JPP..RHD..5D..(LUNA,TRSTD) DOOR TRIM=TYPE E-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67620-52241B4 |
NCP10,NLP10,SCP10..JPP..RHD..5D..(LUNA,TRSTD) DOOR TRIM=TYPE E-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-52261B4 |
NCP10,NLP10,SCP10..JPP..RHD..5D..(LUNA,TRSTD) DOOR TRIM=TYPE E-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-52261H4 |
NCP10,NLP10,SCP10..JPP..RHD..5D..(LUNA,TRSTD) DOOR TRIM=TYPE E-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67620-52191B4 |
NCP10,NLP10,SCP10..JPP..RHD..5D..(LUNA,TRSTD) DOOR TRIM=TYPE E-*104 & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-28020 |
NCP13,NLP10..JPP;NCP10,SCP10..JPP..RHD;NCP10,SCP10..JPP..LHD..5D..LUNA;NCP10,SCP10..JPP..LHD..(SOL,TRSTD,TSGS) TYPE B:REFER ILLUST. |
3 | ||
| 67771-12050 |
SCP10..JPP..5D TYPE A:REFER ILLUST. |
6 | ||
| 67771-12050 |
NCP1#,NLP10,SCP10..JPP..5D TYPE A:REFER ILLUST. |
3 | ||
| 67771-28020 |
NCP1#,NLP10,SCP10..JPP TYPE B:REFER ILLUST. |
3 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-28020 |
NCP13,NLP10..JPP;NCP10,SCP10..JPP..RHD;NCP10,SCP10..JPP..LHD..5D..LUNA;NCP10,SCP10..JPP..LHD..(SOL,TRSTD,TSGS) TYPE B:REFER ILLUST. |
3 | ||
| 67771-12050 |
SCP10..JPP..5D TYPE A:REFER ILLUST. |
6 | ||
| 67771-12050 |
NCP1#,NLP10,SCP10..JPP..5D TYPE A:REFER ILLUST. |
3 | ||
| 67771-28020 |
NCP1#,NLP10,SCP10..JPP TYPE B:REFER ILLUST. |
3 | ||
| 67625 - BRACKET, FRONT DOOR TRIM, RH | ||||
| 67625-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 67626 - BRACKET, FRONT DOOR TRIM, LH | ||||
| 67625-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-52041 |
NCP1#,NLP10,SCP10..JPP..5D |
1 | ||
| 68171-52040 |
NCP1#,NLP10,SCP10..JPP..5D |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-52021 |
NCP1#,NLP10,SCP10..JPP..5D |
1 | ||
| 68172-52020 |
NCP1#,NLP10,SCP10..JPP..5D |
1 | ||
| Common parts | ||||
| 67771-30070 | ||||
| 90159-60303 | ||||
| 90163-60006 | ||||
| 90189-06018 | ||||
| 90467-10192 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
