SCP10R-AHMRKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901-0212)JPP

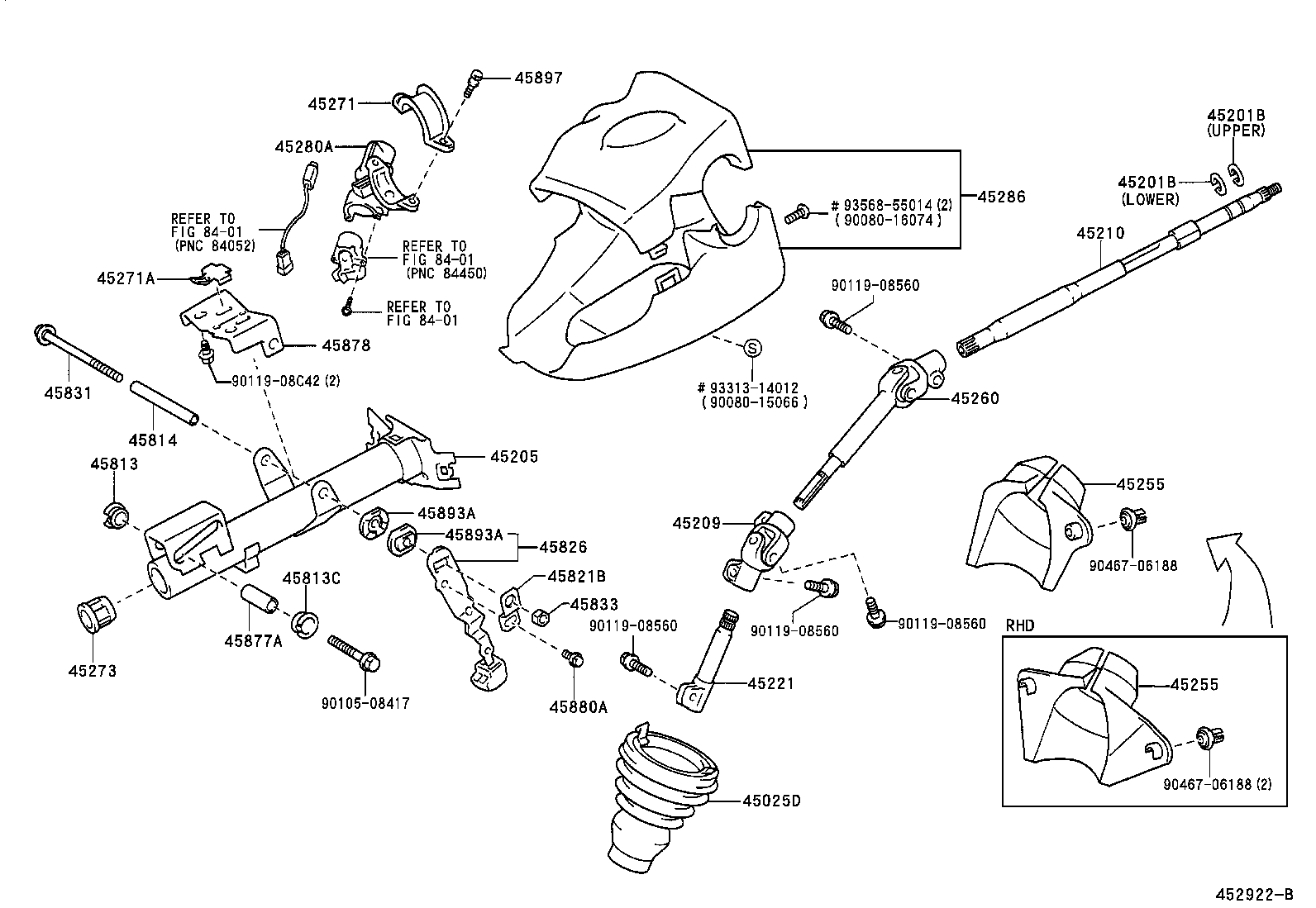

Click highlighted areas on diagram

diagram 45025D 45201B 45201B 45205 45209 45210 45221 45255 45255 45260 45271 45271A 45273 45280A 45286 45813 45813C 45814 45821B 45826 45831 45833 45877A 45878 45880A 45893A 45893A 45897 8401 8401 8401 9008015066 9008016074 9010508417 9011908560 9011908560 9011908560 9011908560 9011908C42 9046706188 9046706188 9331314012 9356855014
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-52010

NCP10,NLP10,SCP10..JPP..RHD

W(POWER STEERING)

 1
45025-52011

NCP1#,NLP10,SCP10..JPP..RHD

W(POWER STEERING)

 1
45025-52020

NCP10,NLP10,SCP10..JPP..RHD..(LUNA,TRSTD)

W(MANUAL STEERING)

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269

NCP1#,NLP10,SCP10..JPP

T=1.20,UPPER

 1
90520-17042

NCP1#,NLP10,SCP10..JPP

T=1.20,LOWER

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269

NCP1#,NLP10,SCP10..JPP

T=1.20,UPPER

 1
90520-17042

NCP1#,NLP10,SCP10..JPP

T=1.20,LOWER

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-52010

NCP1#,NLP10,SCP10..JPP

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-52020

NCP1#,NLP10,SCP10..JPP

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-52010

NCP1#,NLP10,SCP10..JPP

 1
45221 - SHAFT, STEERING INTERMEDIATE
45297-52010

NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD)

W(POWER STEERING)

 1
45297-52020

NCP10,NLP10,SCP10..JPP..(LUNA,TRSTD,TSGS)

W(MANUAL STEERING)

 1
45255 - PLATE, STEERING COLUMN HOLE COVER
45255-52010

NCP1#,NLP10,SCP10..JPP..RHD

 1
45255 - PLATE, STEERING COLUMN HOLE COVER
45255-52010

NCP1#,NLP10,SCP10..JPP..RHD

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-52010

NCP1#,NLP10,SCP10..JPP..RHD

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-16020

NCP1#,NLP10,SCP10..JPP

 1
45271A - CLAMP, STEERING COLUMN, UPPER NO.2
45271-52010

NCP1#,NLP10,SCP10..JPP

 1
45273 - BUSH, STEERING MAIN SHAFT
45273-33030

NCP1#,NLP10,SCP10..JPP

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-52020

NCP1#,NLP10,SCP10..JPP..5F

 1
45286 - COVER, STEERING COLUMN
45286-52902G0

NCP10,NLP10,SCP10..JPP

MIST GREEN,TRIM7#

 1
45286-52901B0

SCP10..JPP

MD.GRAY,TRIM1#

 1
45286-52902B0

NCP10,NLP10,SCP10..JPP

MD.GRAY,TRIM1#

 1
45813 - COLLAR, TILT STEERING SUPPORT, NO.1
45813-52010

NCP1#,NLP10,SCP10..JPP

OD=24

 1
45813C - COLLAR, TILT STEERING SUPPORT, NO.1
45813-52020

NCP1#,NLP10,SCP10..JPP

 1
45814 - COLLAR, TILT STEERING SUPPORT, NO.2
45814-52010

NCP1#,NLP10,SCP10..JPP

OD=8

 1
45821B - REINFORCE, TILT STEERING SUPPORT, NO.1
45821-52010

NCP1#,NLP10,SCP10..JPP

 1
45826 - LEVER, STEERING TILT
45826-52010

SCP10..JPP

 1
45826-52011

NCP1#,NLP10,SCP10..JPP

 1
45831 - BOLT, TILT LEVER LOCK, NO.1
45831-52010

NCP1#,NLP10,SCP10..JPP

 1
45833 - NUT, TILT STEERING ADJUSTING, NO.1
45833-52010

NCP1#,NLP10,SCP10..JPP

 1
45877A - SPACER, STEERING COLUMN BRACKET
45877-52010

NCP1#,NLP10,SCP10..JPP

 1
45878 - BRACKET, STEERING COLUMN UPPER SUPPORT
45878-52010

NCP1#,NLP10,SCP10..JPP

 1
45880A - BOLT(FOR STEERING TILT LEVER)
45832-12010

NCP1#,NLP10,SCP10..JPP

 1
45893A - STOPPER, TILT STEERING PAWL
45893-52010

NCP1#,NLP10,SCP10..JPP

 2
45893A - STOPPER, TILT STEERING PAWL
45893-52010

NCP1#,NLP10,SCP10..JPP

 2
45897 - BOLT, STEERING LOCK SET
45897-12020

NCP1#,NLP10,SCP10..JPP

 2
Common parts
90080-15066
90080-16074
90105-08417
90119-08560
90119-08C42
90467-06188
93313-14012
93568-55014
Linked diagrams
8401
