SCP10R-AHMNKW (1999)

Toyota Yaris (Jpp)

Production Aug 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9901-0212)SCP10..JPP..RHD

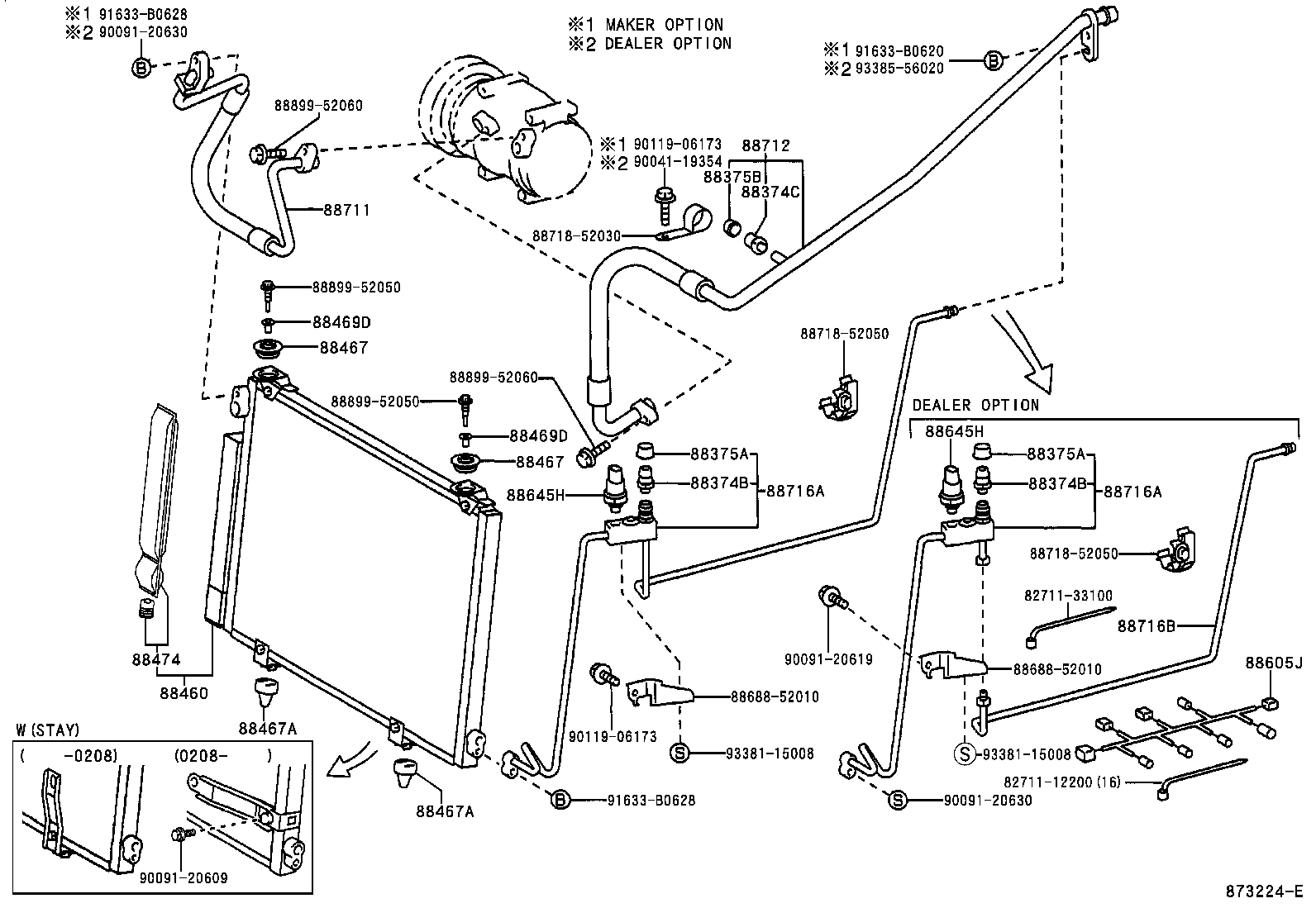

Click highlighted areas on diagram

diagram 8271112200 8271133100 88374B 88374B 88374C 88375A 88375A 88375B 88460 88467 88467 88467A 88467A 88469D 88469D 88474 88605J 88645H 88645H 8868852010 8868852010 88711 88712 88716A 88716A 88716B 8871852030 8871852050 8871852050 8889952050 8889952050 8889952060 8889952060 9004119354 9009120609 9009120619 9009120630 9009120630 9011906173 9011906173 91633B0620 91633B0628 91633B0628 9338115008 9338115008 9338556020
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

NCP1#,NLP10,SCP10..JPP

 1
88374B - VALVE, SERVICE, NO.1
88374-30010

NCP1#,NLP10,SCP10..JPP

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

NCP1#,NLP10,SCP10..JPP

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

NCP1#,NLP10,SCP10..JPP

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

NCP1#,NLP10,SCP10..JPP

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

NCP1#,NLP10,SCP10..JPP

 1
88460 - CONDENSER ASSY, COOLER
88460-52050

NCP1#,SCP10..JPP..RHD

W(STAY)

 1
88460-52010

NCP10,NLP10,SCP10..JPP..RHD

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

NCP1#,NLP10,SCP10..JPP..RHD

 2
88467-52010

NCP1#,NLP10,SCP10..JPP..RHD

DEALER OPTION

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

NCP1#,NLP10,SCP10..JPP..RHD

 2
88467-52010

NCP1#,NLP10,SCP10..JPP..RHD

DEALER OPTION

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-52020

NCP1#,NLP10,SCP10..JPP

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-52020

NCP1#,NLP10,SCP10..JPP

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

NCP1#,NLP10,SCP10..JPP

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

NCP1#,NLP10,SCP10..JPP

 2
88474 - DRYER, COOLER
88474-47010

NCP1#,SCP10..JPP

DEALER OPTION

 1
88474-17010

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

MAKER OPTION

 1
88474-47010

NCP1#,NLP10,SCP10..JPP

 1
88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-52060

SCP10..JPP..RHD

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

NCP1#,NLP10,SCP10..JPP

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

NCP1#,NLP10,SCP10..JPP

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-52010

SCP10..JPP

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-52020

SCP10..JPP..RHD

DEALER OPTION OR W(FREE TRONIC)

 1
88712-52010

SCP10..JPP..RHD

MAKER OPTION

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-52010

SCP10..JPP..RHD

MAKER OPTION

 1
88716-52060

SCP10..JPP..RHD

DEALER OPTION

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-52010

SCP10..JPP..RHD

MAKER OPTION

 1
88716-52060

SCP10..JPP..RHD

DEALER OPTION

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-52050

SCP10..JPP..RHD

 1
Common parts
82711-12200
82711-33100
88688-52010
88718-52030
88718-52050
88899-52050
88899-52060
90041-19354
90091-20609
90091-20619
90091-20630
90119-06173
91633-B0620
91633-B0628
93381-15008
93385-56020
