SCP10R-AHMNKW (1999)

Toyota Yaris (Jpp)

Production Aug 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9901-0212)JPP..RHD

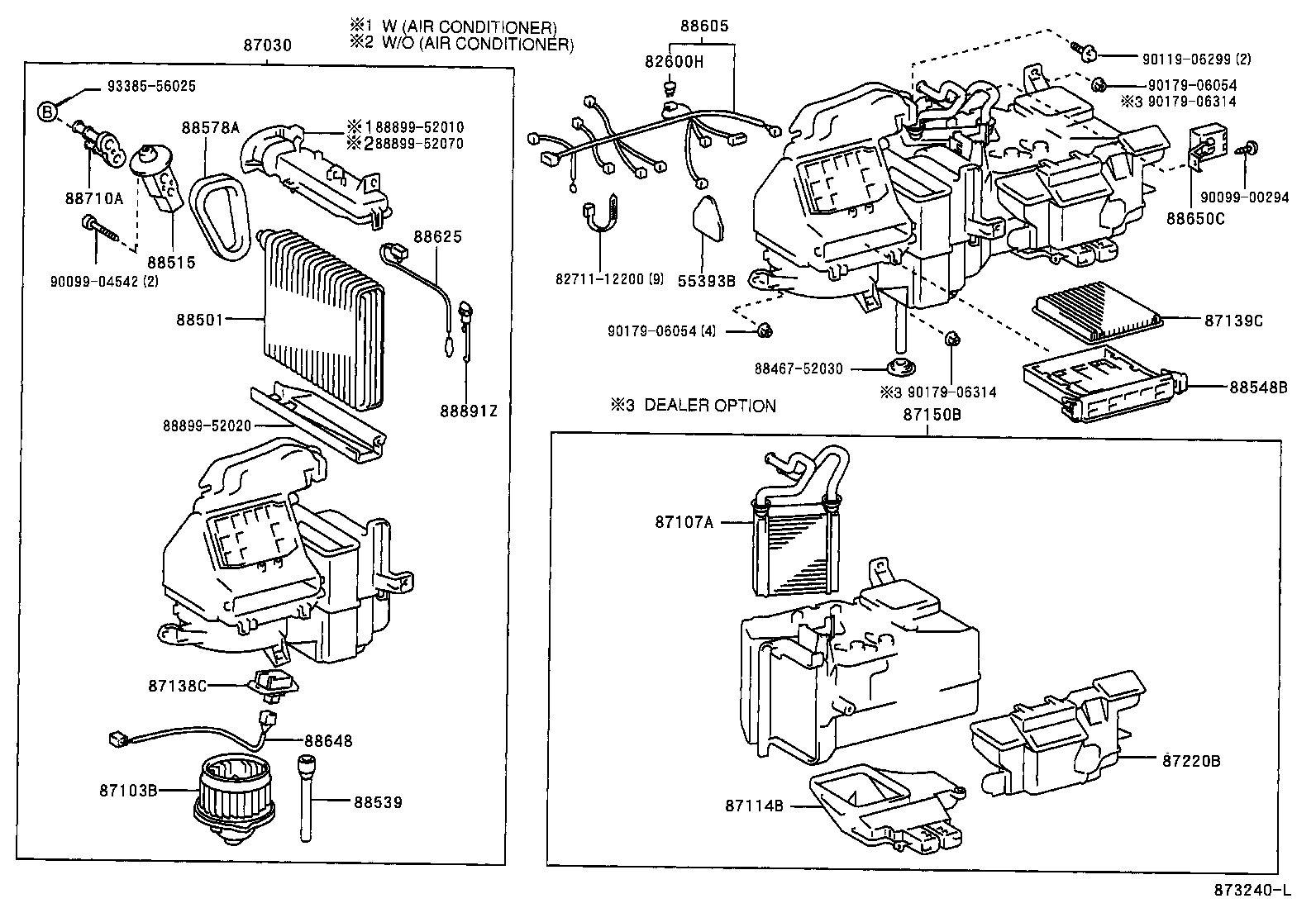

Click highlighted areas on diagram

diagram 55393B 82600H 8271112200 87030 87103B 87107A 87114B 87138C 87139C 87150B 87220B 8846752030 88501 88515 88539 88548B 88578A 88605 88625 88648 88650C 88710A 88891Z 8889952010 8889952020 8889952070 9009900294 9009904542 9011906299 9017906054 9017906054 9017906314 9017906314 9338556025
Part # Description Qty Price
82600H - FUSE, FUSE BLOCK
90982-09005

NCP10,SCP10..JPP

7.5A

 1
87030 - BLOWER ASSY, AIR CONDITIONER
87030-52030

NCP1#,NLP10,SCP10..JPP..RHD

 1
87030-52010

NCP1#,NLP10,SCP10..JPP..RHD

W(AIR CONDITIONER)

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52010

NCP1#,NLP10,SCP10..JPP..RHD

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52010

NCP1#,NLP10,SCP10..JPP..RHD

 1
87114B - COVER, HEATER
87114-52010

NCP1#,NLP10,SCP10..JPP..RHD

 1
87138C - RESISTOR, BLOWER
87138-52010

NCP1#,NLP10,SCP10..JPP

 1
87139C - FILTER, CLEAN AIR
88568-52010

NCP1#,NLP10,SCP10..JPP

 1
87150B - RADIATOR ASSY, HEATER
87150-52010

NCP1#,NLP10,SCP10..JPP..RHD

 1
87220B - DUCT ASSY, AIR
87220-52010

NCP1#,NLP10,SCP10..JPP..RHD

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-52010

NCP1#,SCP10..JPP..RHD

MAKER OPTION

 1
88515 - VALVE, COOLER EXPANSION
88515-52010

NCP1#,NLP10,SCP10..JPP

 1
88515-52020

NCP1#,NLP10,SCP10..JPP..RHD

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-52010

NCP1#,NLP10,SCP10..JPP

 1
88548B - CASE, AIR FILTER
88548-52010

NCP1#,NLP10,SCP10..JPP

 1
88578A - PACKING, COOLER STABILIZER AMPLIFIER
88578-52010

NCP10,NLP10,SCP10..JPP..RHD

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-52130

NCP10,SCP10..JPP

 1
88605-52050

NCP10,SCP10..JPP

 1
88625 - THERMISTOR, COOLER, NO.1
88625-52070

NCP1#,NLP10,SCP10..JPP..RHD

 1
88625-52020

NCP1#,NLP10,SCP10..JPP

 1
88648 - WIRING, COOLER, NO.1
88648-52020

NCP1#,NLP10,SCP10..JPP

 1
88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER
88650-52110

NCP1#,SCP10..JPP

 1
88891Z - BRACKET, COOLER THERMISTOR
88891-20240

NCP1#,NLP10,SCP10..JPP

 1
Common parts
82711-12200
88467-52030
88899-52010
88899-52020
88899-52070
90099-00294
90099-04542
90119-06299
90179-06054
90179-06314
93385-56025
