SCP10R-AHMNKW (1999)
Toyota Yaris (Jpp)
ILLUST NO. 1 OF 6(9901-0212)SCP10..JPP
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33117H - PROTECTOR, TRANSMISSION CASE | ||||
| 33117-52020 |
SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
NCP1#,SCP10..JPP DENSO |
1 | ||
| 83530-60020 |
NCP1#,SCP10..JPP YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60030 |
SCP10..JPP |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52020 |
SCP10..JPP |
1 | ||
| 84540D - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52030 |
SCP10..JPP |
1 | ||
| 84540E - GASKET, NEUTRAL START SWITCH | ||||
| 90430-16010 |
SCP10..JPP |
1 | ||
| 84540E - GASKET, NEUTRAL START SWITCH | ||||
| 90430-16010 |
SCP10..JPP |
1 | ||
| 84540F - GASKET, NEUTRAL START SWITCH | ||||
| 90430-16010 |
SCP10..JPP |
1 | ||
| 84540F - GASKET, NEUTRAL START SWITCH | ||||
| 90430-16010 |
SCP10..JPP |
1 | ||
| 89413A - SENSOR, TRANSMISSION REVOLUTION | ||||
| 89413-52010 |
SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-10120 |
SCP10..JPP DENSO |
1 | ||
| 89428-52010 |
SCP10..JPP AISIN |
1 | ||
| 89451A - SENSOR, SHIFT LEVER POSITION | ||||
| 89451-52010 |
SCP10..JPP |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-52020 |
SCP10..JPP |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-52180 |
SCP10..JPP |
1 | ||
| 89465-52030 |
SCP10..JPP |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-52010 |
NCP10,SCP10..JPP MATSUSHITA |
1 | ||
| 89615-52010 |
SCP10..JPP |
1 | ||
| Common parts | ||||
| 82715-52190 | ||||
| 82715-52270 | ||||
| 82715-52280 | ||||
| 90462-07001 | ||||
| 90463-13003 | ||||
| 91611-60616 | ||||
| 91611-60812 | ||||
| 91635-60816 | ||||

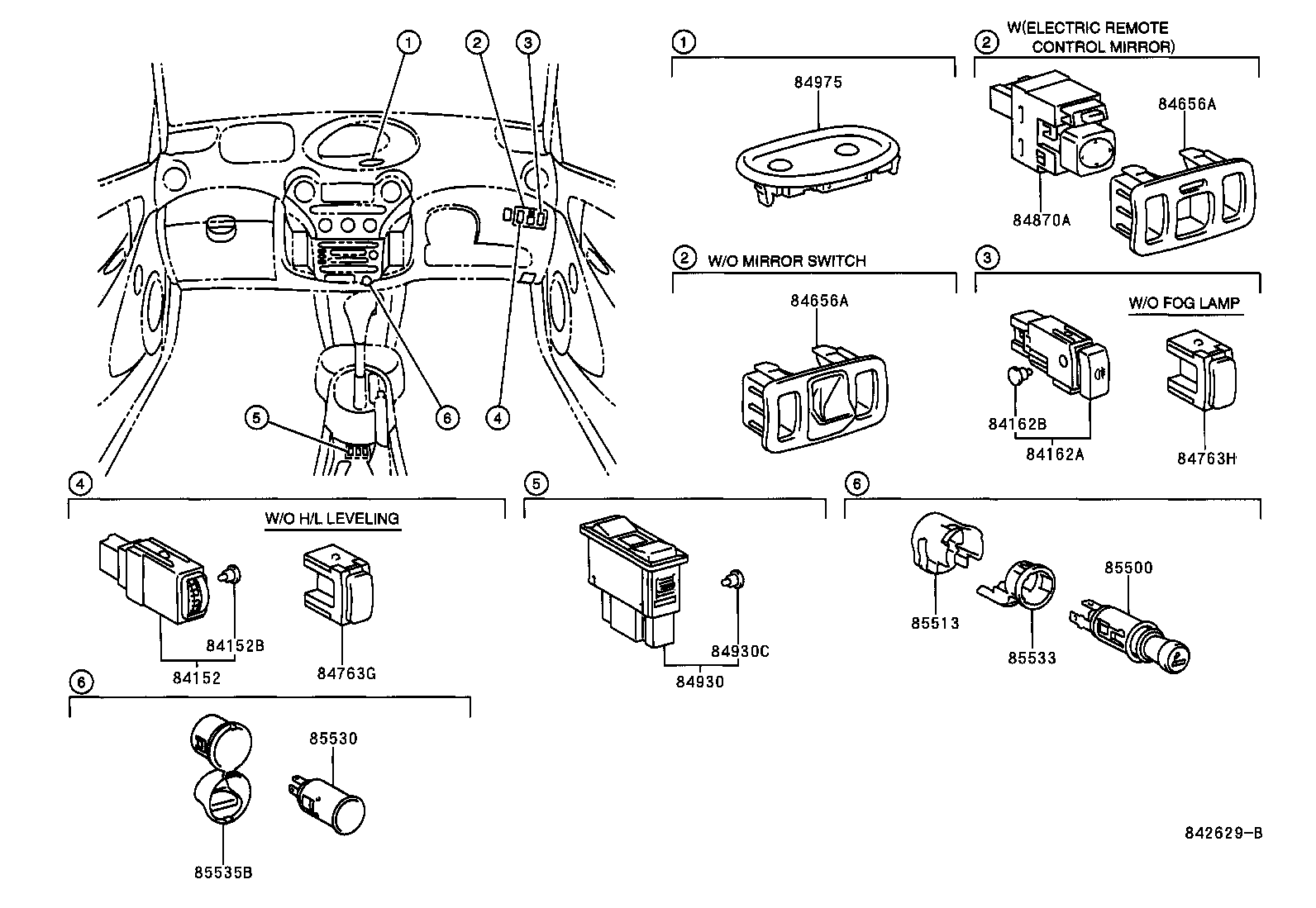

ILLUST NO. 4 OF 6(9901-0212)JPP..RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52010 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 84999-10540 |
NCP1#,NLP10,SCP10..JPP 14V 1.19W |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-52020 |
NCP10,SCP10..JPP |
1 | ||
| 84162B - BULB, FOG LAMP SWITCH | ||||
| 90010-09005 |
NCP10,SCP10..JPP 14V40MA,W(GREEN CAP) |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-12060G0 |
NCP10,NLP10,SCP10..JPP MIST GREEN,TRIM7# |
1 | ||
| 84656-12040G0 |
SCP10..JPP..LHD..TRSTD;NCP10,SCP10..JPP..(LUNA,SOL) W(ELECTRIC REMOTE CONTOROL MIRROR),MIST GREEN,TRIM7# |
1 | ||
| 84656-12040B2 |
SCP10..JPP..LHD..TRSTD;NCP10,SCP10..JPP..(LUNA,SOL) W(ELECTRIC REMOTE CONTOROL MIRROR),MD.GRAY,TRIM1# |
1 | ||
| 84656-12060B2 |
NCP10,NLP10,SCP10..JPP MD.GRAY,TRIM1# |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-12060G0 |
NCP10,NLP10,SCP10..JPP MIST GREEN,TRIM7# |
1 | ||
| 84656-12040G0 |
SCP10..JPP..LHD..TRSTD;NCP10,SCP10..JPP..(LUNA,SOL) W(ELECTRIC REMOTE CONTOROL MIRROR),MIST GREEN,TRIM7# |
1 | ||
| 84656-12040B2 |
SCP10..JPP..LHD..TRSTD;NCP10,SCP10..JPP..(LUNA,SOL) W(ELECTRIC REMOTE CONTOROL MIRROR),MD.GRAY,TRIM1# |
1 | ||
| 84656-12060B2 |
NCP10,NLP10,SCP10..JPP MD.GRAY,TRIM1# |
1 | ||
| 84763G - COVER, HOLE NO.1 | ||||
| 84763-12110B2 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) MD.GRAY,TRIM1# |
1 | ||
| 84763-12110G0 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) MIST GREEN,TRIM7# |
1 | ||
| 84763-12110G0 |
NCP10,NLP10,SCP10..JPP MIST GREEN,TRIM7# |
1 | ||
| 84763-12110B2 |
NCP10,NLP10,SCP10..JPP MD.GRAY,TRIM1# |
1 | ||
| 84763H - COVER, HOLE NO.2 | ||||
| 84763-12110B2 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) MD.GRAY,TRIM1# |
1 | ||
| 84763-12110G0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) MIST GREEN,TRIM7# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-12130 |
NLP10,SCP10..JPP..LHD..TRSTD;NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TS) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-52010 |
NCP10,NLP10,SCP10..JPP..(LUNA,TRSTD) |
1 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 84999-10310 |
NCP10,NLP10,SCP10..JPP..(LUNA,TRSTD) 14V 0.91W |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-52030H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 84975-52040B0 |
NCP10,NLP10,SCP10..JPP..RHD W(TACHOMETER---MILE/H+KM/H),SHADOW GRAY,TRIM1# |
1 | ||
| 84975-52030B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 84975-52040H0 |
NCP10,NLP10,SCP10..JPP..RHD W(TACHOMETER---MILE/H+KM/H),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28050 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30060 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||

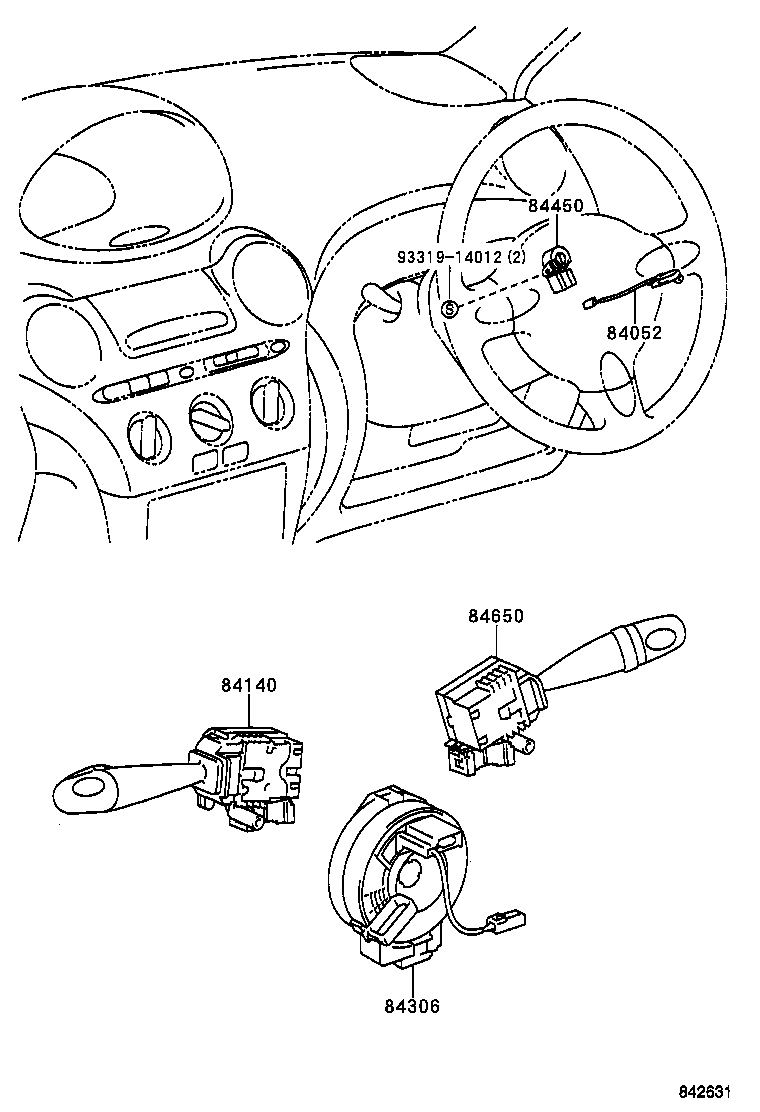

ILLUST NO. 5 OF 6(9901-0212)JPP..RHD
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-60010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-52020 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(REAR FOG LAMP) |
1 | ||
| 84140-52020 |
NCP10,SCP10..JPP |
1 | ||
| 84140-52040 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-52040 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||
