SCP10R-AHMNKW (1999)
Toyota Yaris (Jpp)

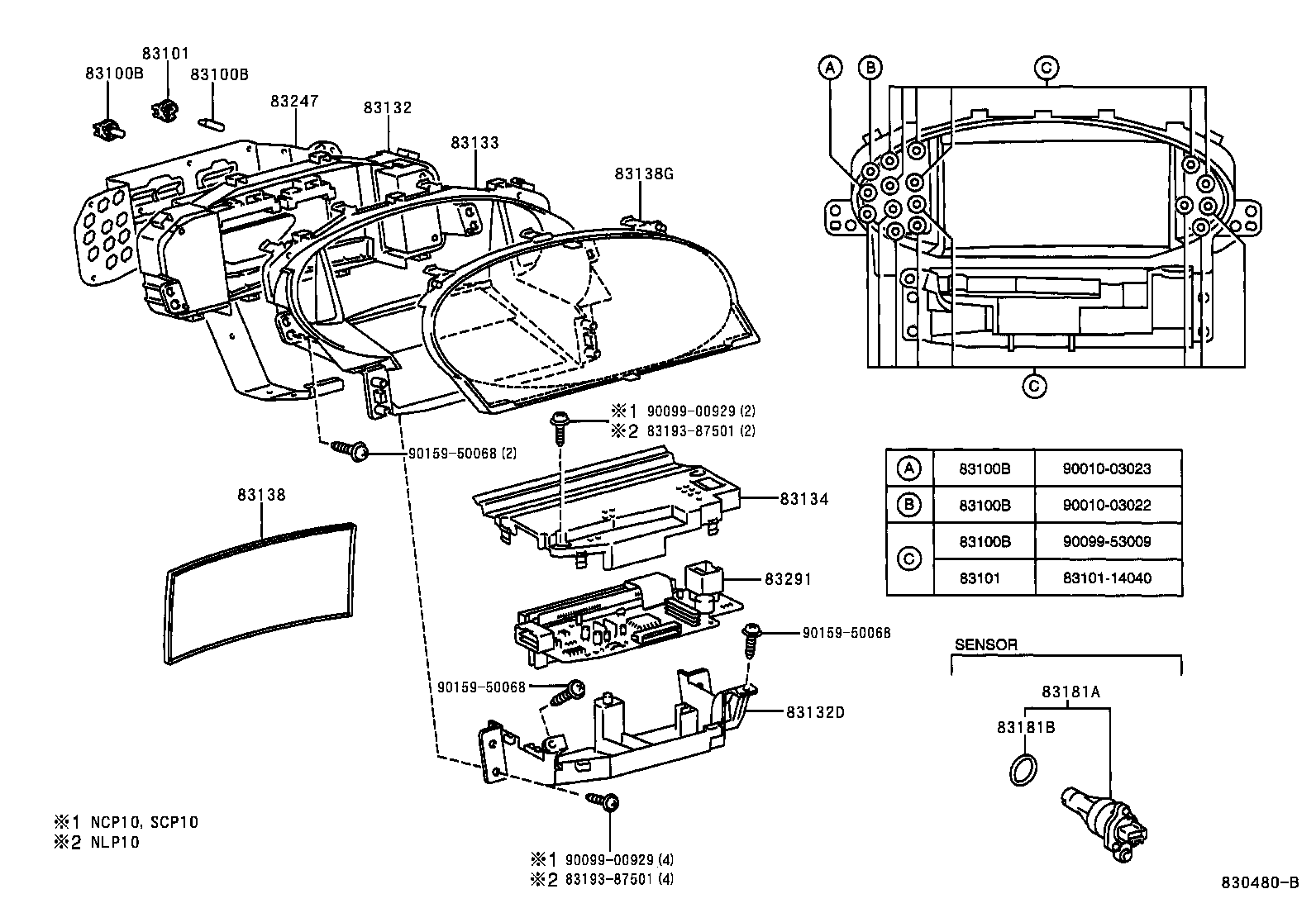

ILLUST NO. 1 OF 2(9901-0212)NCP10,NLP10,SCP10..JPP..RHD
DIGITAL METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP10,NLP10,SCP10..JPP 14V 1.4W,W(RED CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F 14V 1.4W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F 12V 1.2W W/O SOCKET,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP10,NLP10,SCP10..JPP 14V0.84W W/O(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 99132-12034 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F 12V 3.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03023 |
NCP10,NLP10,SCP10..JPP 14V 1.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP10,NLP10,SCP10..JPP 14V 1.4W,W(RED CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F 14V 1.4W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F 12V 1.2W W/O SOCKET,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP10,NLP10,SCP10..JPP 14V0.84W W/O(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 99132-12034 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F 12V 3.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03023 |
NCP10,NLP10,SCP10..JPP 14V 1.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-32020 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
NCP10,SCP10..JPP TYPE C OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-52040 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F ANALOGUE METER |
1 | ||
| 83841-52130 |
NCP10,SCP10..JPP..RHD DIGITAL METER |
1 | ||
| 83132D - CASE, COMBINATION METER, NO.2 | ||||
| 83842-52100 |
NCP10,NLP10,SCP10..JPP..RHD |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-52100 |
NCP10,SCP10..JPP..RHD DIGITAL METER |
1 | ||
| 83811-52040 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F ANALOGUE METER |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-52100 |
NCP10,NLP10,SCP10..JPP..RHD |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-52110 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-52040 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F ANALOGUE METER |
1 | ||
| 83852-52130 |
NCP10,SCP10..JPP..RHD DIGITAL METER |
1 | ||
| 83852-52620 |
NCP10,SCP10..JPP..RHD DIGITAL METER |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-52130 |
NCP10,SCP10..JPP..RHD DIGITAL METER |
1 | ||
| 83861-52040 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F ANALOGUE METER |
1 | ||
| 83861-52620 |
NCP10,SCP10..JPP..RHD DIGITAL METER |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-52040 |
NCP10,SCP10..JPP..RHD DIGITAL METER,MILE/H+KM/H |
1 | ||
| 83291-52050 |
NCP10,SCP10..JPP..RHD DIGITAL METER,KM/H |
1 | ||
| 83291-52330 |
NCP10,SCP10..JPP..RHD DIGITAL METER,MILE/H+KM/H |
1 | ||
| 83291-52340 |
NCP10,SCP10..JPP..RHD DIGITAL METER,KM/H |
1 | ||
| Common parts | ||||
| 83193-87501 | ||||
| 90099-00929 | ||||
| 90159-50068 | ||||
ILLUST NO. 1 OF 2(9901-0212)NCP10,SCP10..JPP
ANALOGUE METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP10,NLP10,SCP10..JPP 14V 1.4W,W(RED CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F 14V 1.4W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F 12V 1.2W W/O SOCKET,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP10,NLP10,SCP10..JPP 14V0.84W W/O(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 99132-12034 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F 12V 3.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03023 |
NCP10,NLP10,SCP10..JPP 14V 1.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP10,NLP10,SCP10..JPP 14V 1.4W,W(RED CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F 14V 1.4W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F 12V 1.2W W/O SOCKET,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP10,NLP10,SCP10..JPP 14V0.84W W/O(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 99132-12034 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F 12V 3.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03023 |
NCP10,NLP10,SCP10..JPP 14V 1.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP10,NLP10,SCP10..JPP 14V 1.4W,W(RED CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-03024 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F 14V 1.4W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F 12V 1.2W W/O SOCKET,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP10,NLP10,SCP10..JPP 14V0.84W W/O(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 99132-12034 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F 12V 3.4W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03023 |
NCP10,NLP10,SCP10..JPP 14V 1.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-32020 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
NCP10,SCP10..JPP TYPE C OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-32020 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
NCP10,SCP10..JPP TYPE C OR TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-52020 |
NCP10,SCP10..JPP..RHD..5F ANALOGUE METER,MILE/H+KM/H |
1 | ||
| 83220-52010 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F ANALOGUE METER,KM/H |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-52040 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F ANALOGUE METER |
1 | ||
| 83841-52130 |
NCP10,SCP10..JPP..RHD DIGITAL METER |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-52100 |
NCP10,SCP10..JPP..RHD DIGITAL METER |
1 | ||
| 83811-52040 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F ANALOGUE METER |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-52040 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F ANALOGUE METER |
1 | ||
| 83852-52130 |
NCP10,SCP10..JPP..RHD DIGITAL METER |
1 | ||
| 83852-52620 |
NCP10,SCP10..JPP..RHD DIGITAL METER |
1 | ||
| 83159 - SWITCH, METER, NO.1 | ||||
| 83871-1A710 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-52040 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-52130 |
NCP10,SCP10..JPP..RHD DIGITAL METER |
1 | ||
| 83861-52040 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F ANALOGUE METER |
1 | ||
| 83861-52620 |
NCP10,SCP10..JPP..RHD DIGITAL METER |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 83248-20010 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F |
1 | ||
| Common parts | ||||
| 90099-00211 | ||||
| 90099-00225 | ||||
| 90159-50068 | ||||
