SCP10R-AHMGKW (1999)
Toyota Yaris (Jpp)
Production
Jan 1999
-
Dec 2002
Engine
1SZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9901- )NCP10,NLP10,SCP10..JPP

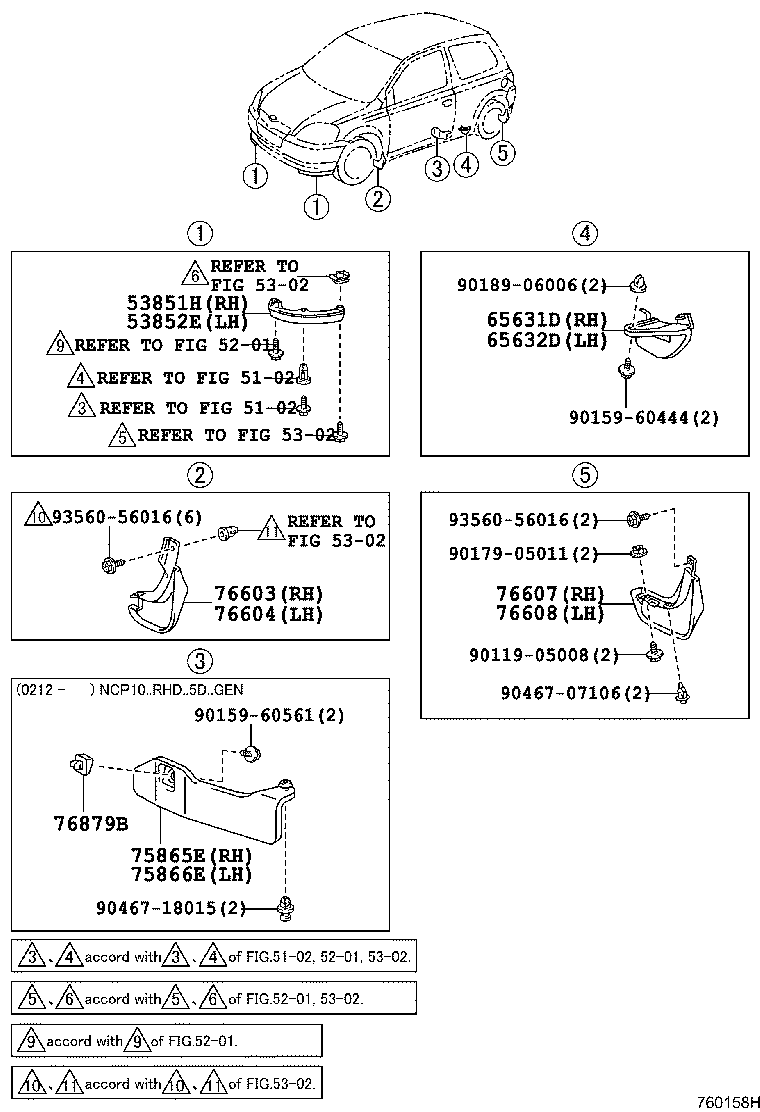

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53851H - PAD, FRONT SPOILER, RH | ||||
| 53851-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 53852E - PAD, FRONT SPOILER, LH | ||||
| 53852-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 65631D - PLATE, REAR WHEEL HOUSE, FRONT RH | ||||
| 65631-52010 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 65632D - PLATE, REAR WHEEL HOUSE, FRONT LH | ||||
| 65632-52010 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 75865E - PROTECTOR, ROCKER PANEL MOULDING, RH | ||||
| 75865-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 75866E - PROTECTOR, ROCKER PANEL MOULDING, LH | ||||
| 75866-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76621-52010 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76622-52010 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76625-52010 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76626-52010 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 76879B - CLIP, REAR SPOILER, NO.2 | ||||
| 76879-52010 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| Common parts | ||||
| 90119-05008 | ||||
| 90159-60444 | ||||
| 90159-60561 | ||||
| 90179-05011 | ||||
| 90189-06006 | ||||
| 90467-07106 | ||||
| 90467-18015 | ||||
| 93560-56016 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5201 | ||||
| 5302 | ||||
