SCP10R-AHMGKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

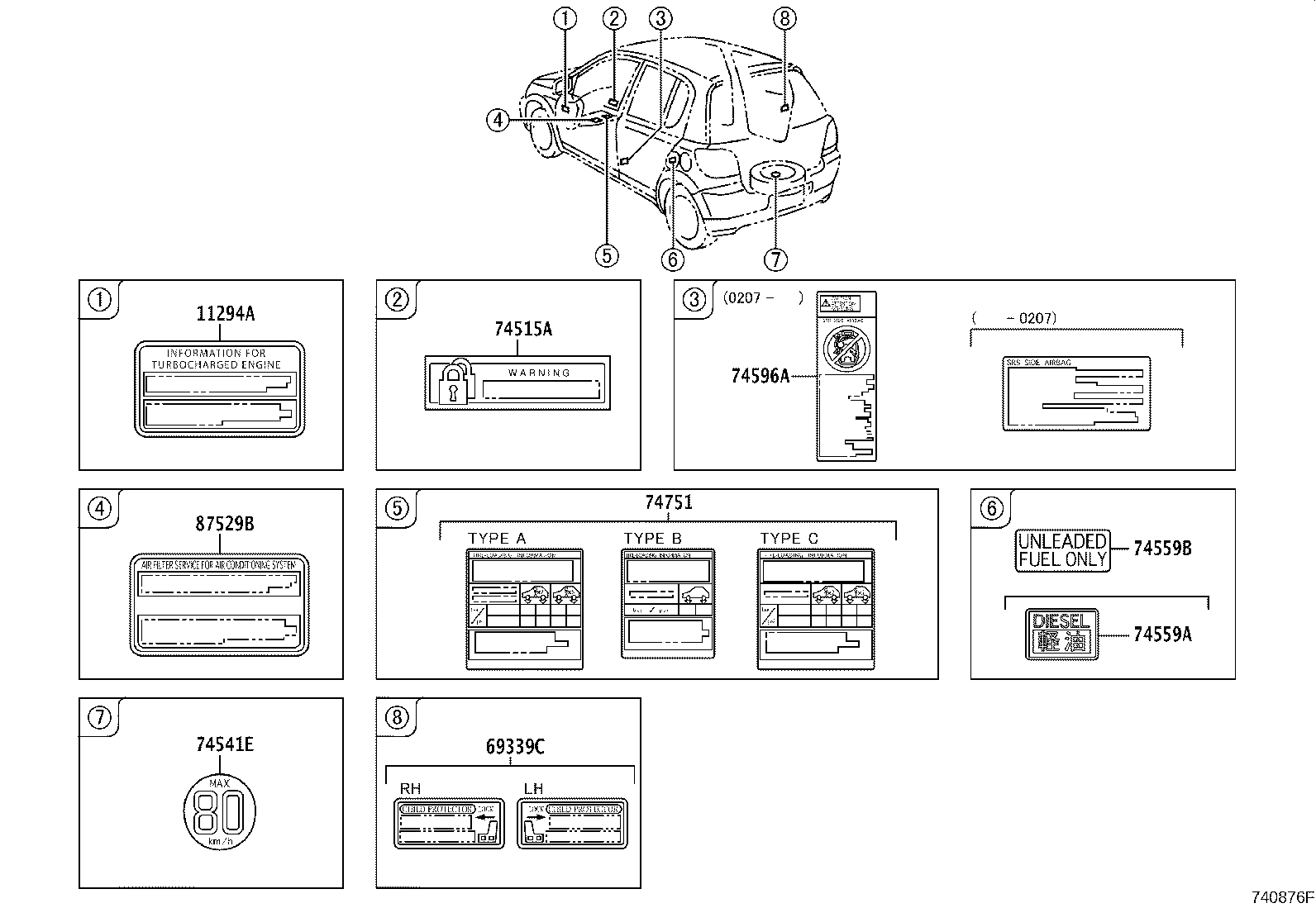

ILLUST NO. 2 OF 3(9901- )JPP

Click highlighted areas on diagram

EXTERIOR & INTERIOR

diagram 11294A 69339C 74515A 74541E 74559A 74559B 74596A 74751 87529B
Part # Description Qty Price
69339C - LABEL, CHILD PROTECTOR INFORMATION
69349-52010

NCP1#,NLP10,SCP10..JPP..5D

LH

 1
69339-52010

NCP1#,NLP10,SCP10..JPP..5D

RH

 1
74515A - PLATE, THEFT WARNING
74515-52010

NCP1#,NLP10,SCP10..JPP..RHD

 2
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-20020

NCP1#,NLP10,SCP10..JPP

 1
74559B - LABEL, FUEL INFORMATION
74559-14050

NCP1#,SCP10..JPP

 1
74596A - LABEL, SIDE AIR BAG CAUTION
74596-12011

NCP1#,NLP10,SCP10..JPP

 2
74596-12020

NCP1#,NLP10,SCP10..JPP

 2
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-52080

NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD)

TYPE C:REFER TO ILLUSTRATION

 1
42661-52071

SCP10..JPP..(LUNA,SOL,TRSTD)

TYPE A:REFER TO ILLUSTRATION

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-50010

NCP1#,NLP10,SCP10..JPP

 1

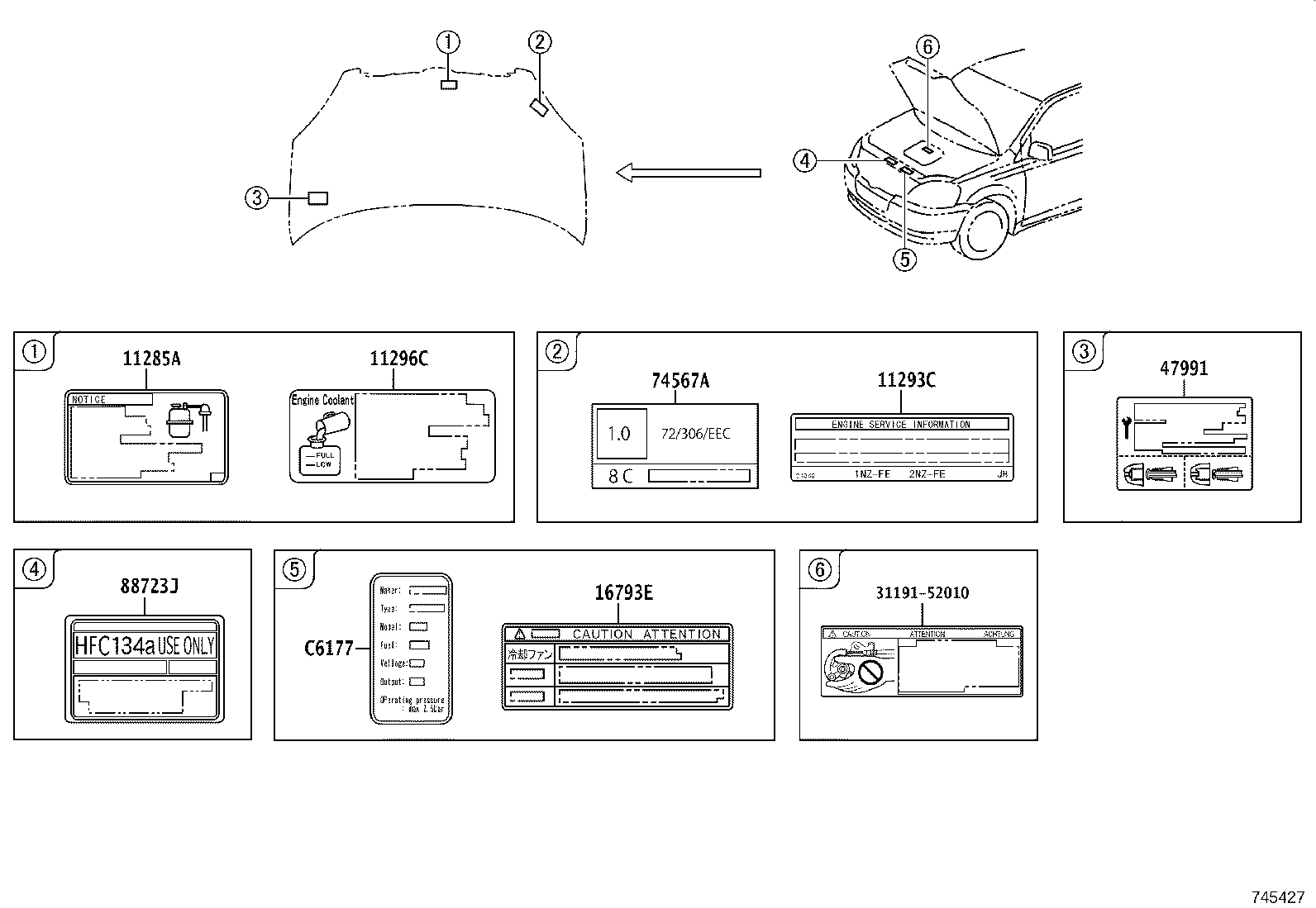

ILLUST NO. 1 OF 3(9901- )JPP

Click highlighted areas on diagram

ENGINE ROOM

diagram 11285A 11293C 11296C 16793E 3119152010 47991 74567A 88723J C6177
Part # Description Qty Price
16793E - LABEL, COOLING FAN CAUTION
16793-46010

1N#,2NZFE,1SZFE..NCP1#,NLP10,SCP10..JPP

 1
47991 - LABEL, BRAKE TUBE INFORMATION
47991-33010

NCP1#,NLP10,SCP10..JPP

 1
88723J - LABEL, COOLER SERVICE CAUTION, NO.2
88723-52010

NCP1#,NLP10,SCP10..JPP

 1
Common parts
31191-52010
