SCP10R-AGMRKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901- )SCP10..JPP

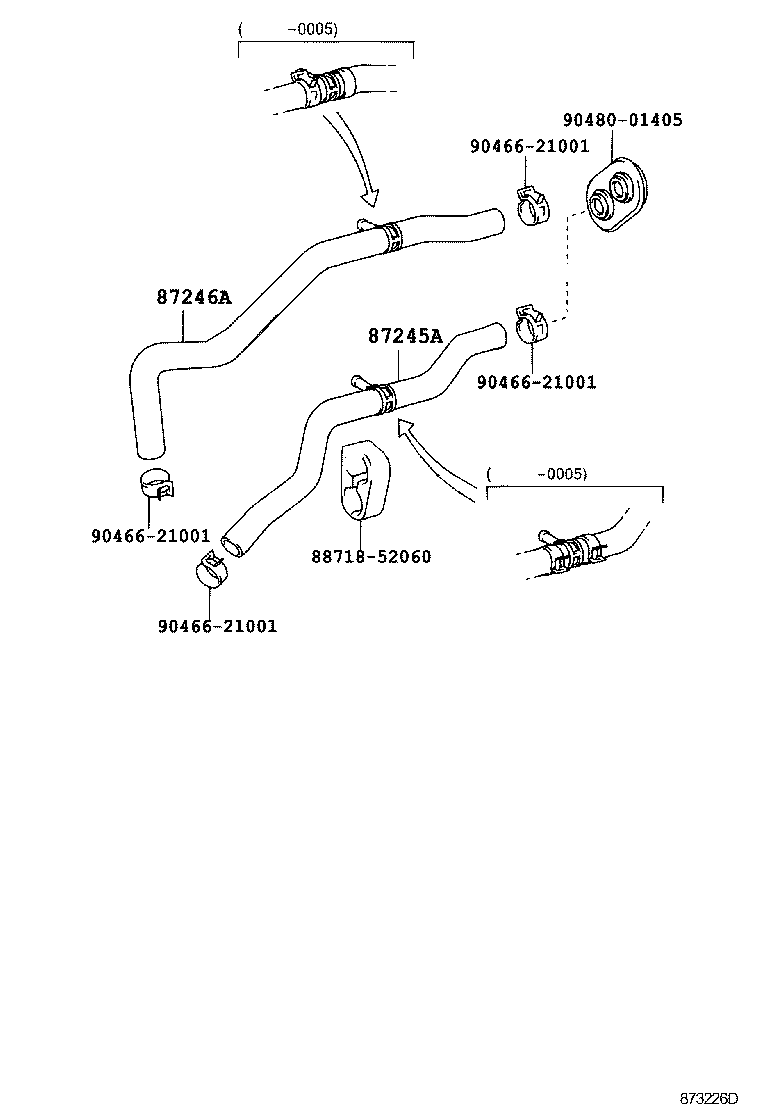

Click highlighted areas on diagram

diagram 87245A 87246A 8871852060 9046621001 9046621001 9046621001 9046621001 9048001405
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87209-52011

SCP10..JPP

 1
87209-52010

SCP10..JPP

 1
87246A - HOSE, HEATER WATER, OUTLET A
87209-52020

SCP10..JPP

 1
87209-52021

SCP10..JPP

 1
Common parts
88718-52060
90466-21001
90480-01405
