SCP10R-AGMRKW (1999)
Toyota Yaris (Jpp)
(9901-0212)JPP..LUNA,SOL,TRSTD,TS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89070 - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-52080 |
NCP10,SCP10..JPP..RHD |
1 | ||
| 89070-47101 |
NLP10..JPP..RHD;NLP10..JPP..LHD..5D..TRSTD;NLP10..JPP..LHD..(LUNA,SOL);NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) W(ENGINE IMMOBILIZER SYSTEM) |
1 | ||
| 89070-52110 |
NCP1#,NLP10,SCP10..JPP..RHD HONG KONG SPEC |
1 | ||
| 89070-52081 |
NLP10..JPP..RHD;NLP10..JPP..LHD..5D..TRSTD;NLP10..JPP..LHD..(LUNA,SOL);NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 89070-47160 |
NCP1#,NLP10,SCP10..JPP..RHD HONG KONG SPEC |
1 | ||
| 89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-52020 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 89071-52021 |
NCP1#,NLP10,SCP10..JPP..RHD W(DOUBLE-LOCK) |
2 | ||
| 89071-52030 |
NCP1#,NLP10,SCP10..JPP..RHD HONG KONG SPEC |
1 | ||
| 89071-52020 |
NCP10,SCP10..JPP..RHD W(DOUBLE-LOCK) |
2 | ||
| 89071-52021 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE) | ||||
| 89073-52060 |
NCP10,SCP10..JPP..RHD |
1 | ||
| 89073-52360 |
NCP10,SCP10..JPP..RHD W(DOUBLE-LOCK) |
1 | ||
| 89073-52361 |
NCP10,SCP10..JPP..RHD W(DOUBLE-LOCK) |
1 | ||
| 89073-52061 |
NCP10,SCP10..JPP..RHD |
1 | ||
| 89073-52470 |
NCP1#,NLP10,SCP10..JPP..RHD HONG KONG SPEC |
1 | ||
| 89073-52062 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 89073-52362 |
NCP1#,NLP10,SCP10..JPP..RHD W(DOUBLE-LOCK) |
1 | ||
| 89073-52460 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 89073-52490 |
NCP1#,NLP10,SCP10..JPP..RHD W(DOUBLE-LOCK) |
1 | ||
| 89073-52091 |
NCP1#,NLP10,SCP10..JPP..RHD HONG KONG SPEC |
1 | ||
| 89073A - IGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY) | ||||
| 89073-52040 |
NCP1#,NLP10,SCP10..JPP..RHD HONG KONG SPEC |
1 | ||
| 89073-52011 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 89073-52351 |
NCP1#,NLP10,SCP10..JPP..RHD W(DOUBLE-LOCK) |
1 | ||
| 89073-52430 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 89073-52450 |
NCP1#,NLP10,SCP10..JPP..RHD W(DOUBLE-LOCK) |
1 | ||
| 89073-52350 |
NCP10,SCP10..JPP..RHD W(DOUBLE-LOCK) |
1 | ||
| 89073-52440 |
NCP1#,NLP10,SCP10..JPP..RHD HONG KONG SPEC |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-52020 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 89741-52040 |
NCP1#,NLP10,SCP10..JPP..RHD HONG KONG SPEC |
1 | ||
| 89741-52021 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 89745 - BATTERY, TRANSMITTER | ||||
| 89745-52010 |
NCP1#,NLP10,SCP10..JPP..RHD W(DOUBLE-LOCK) |
2 | ||
| 89745-52010 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 89751 - COVER, TRANSMITTER HOUSING | ||||
| 89751-20010 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 89751-20020 |
NCP1#,NLP10,SCP10..JPP..RHD HONG KONG SPEC |
1 | ||
| 89751-20010 |
NCP1#,NLP10,SCP10..JPP..RHD W(DOUBLE-LOCK) |
2 | ||
| Common parts | ||||
| 89758-52010 | ||||
| 89759-41020 | ||||
| 90159-60547 | ||||

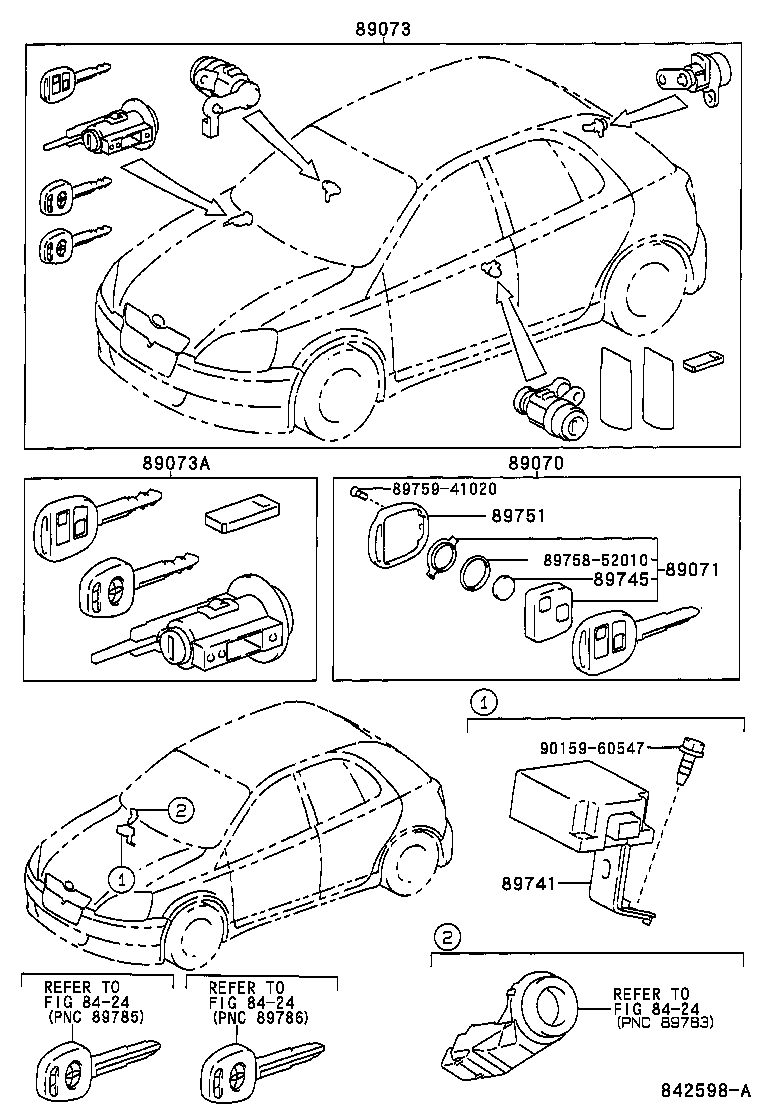

| Linked diagrams | ||||
| 8424 | ||||
