SCP10R-AGMRKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

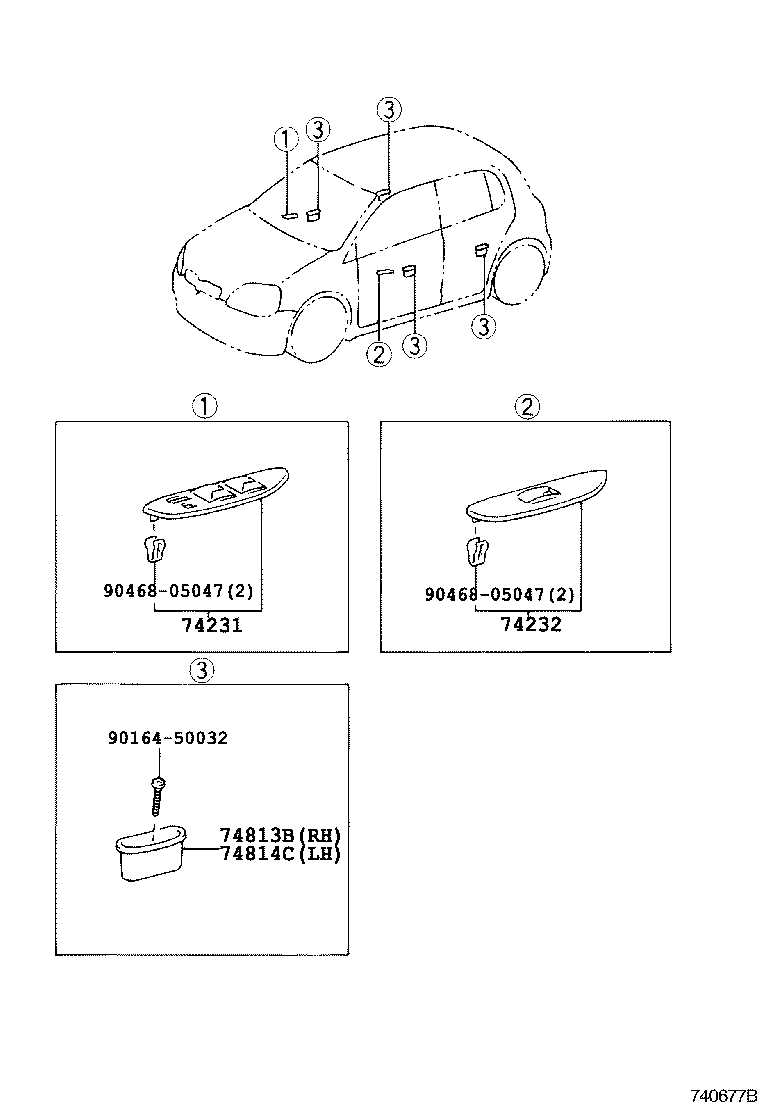

ILLUST NO. 1 OF 2(9901- )JPP

Click highlighted areas on diagram

ARMREST

diagram 74231 74232 74813B 74814C 9016450032 9046805047 9046805047
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-52020B0

NCP10,NLP10,SCP10..JPP..RHD

W(POWER WINDOW = FRONT ONLY),DK.GRAY

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-52030

NCP10,NLP10,SCP10..JPP..RHD

 1
74813B - HANDLE, FRONT DOOR PULL, RH
74813-52010B0

NCP10,SCP10..JPP..3D

SHADOW GRAY,TRIM1#

 1
74813-52010H0

NCP10,NLP10,SCP10..JPP..3D

FRENCH TURQUOISE,TRIM7#

 1
74813-52010B2

NCP10,NLP10,SCP10..JPP..3D

DK.GRAY,TRIM1#

 1
74814C - HANDLE, FRONT DOOR PULL, LH
74814-52010B0

NCP10,SCP10..JPP..3D

SHADOW GRAY,TRIM1#

 1
74814-52010B0

SCP10..JPP..3D..(TRSTD,TSGS)

SHADOW GRAY,TRIM1#

 1
74814-52010H0

NCP10,NLP10,SCP10..JPP..3D

FRENCH TURQUOISE,TRIM7#

 1
74814-52010B2

NCP10,NLP10,SCP10..JPP..3D

DK.GRAY,TRIM1#

 1
Common parts
90164-50032
90468-05047

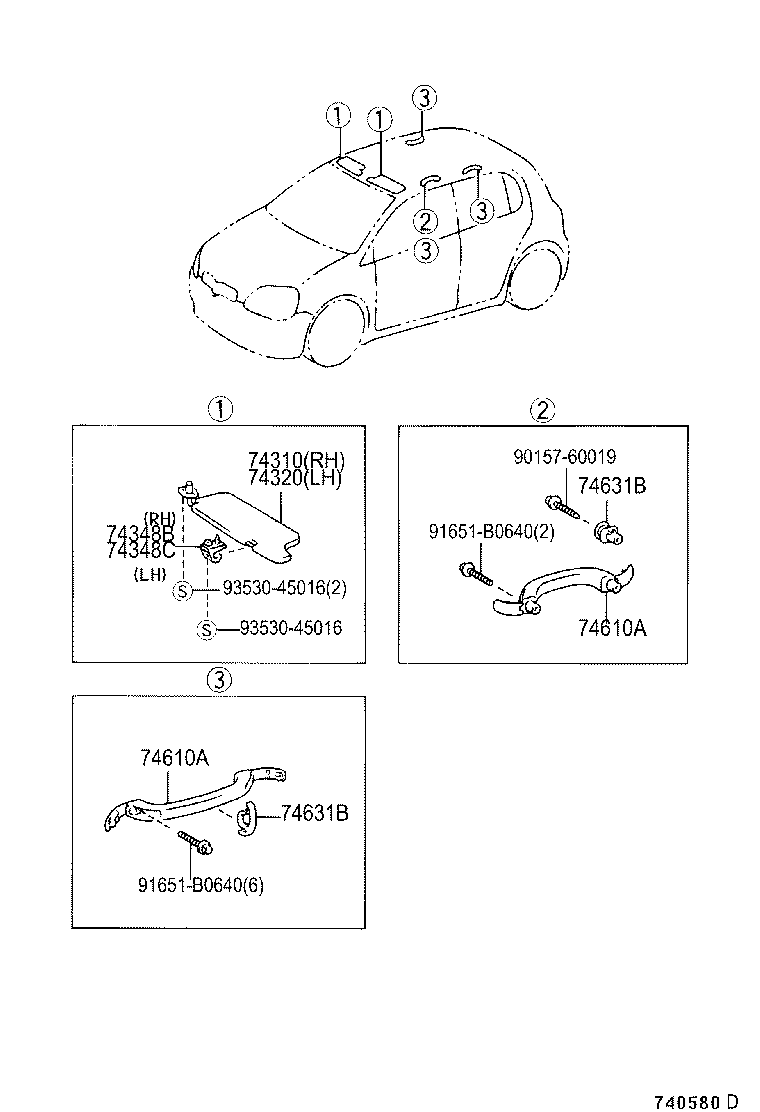

ILLUST NO. 2 OF 2(9901- )JPP

Click highlighted areas on diagram

VISOR & ASSIST GRIP

diagram 74310 74320 74348B 74348C 74610A 74610A 74631B 74631B 9015760019 91651B0640 91651B0640 9353045016 9353045016
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-52030B0

SCP10..JPP..RHD

W(*80,DRIVER SIDE ONLY),LT. GRAY,TRIM1#,7#

 1
74310-52060B0

SCP10..JPP..RHD

W(*80,DRIVER SIDE & PASSENGER SIDE),LT. GRAY,TRIM1#,7#

 1
74310-52033B0

NCP10,NLP10,SCP10..JPP..RHD

LT. GRAY,TRIM1#,7#

 1
74320 - VISOR ASSY, LH
74320-52060B0

SCP10..JPP..RHD

LT. GRAY,TRIM1#,7#

 1
74320-52050B0

SCP10..JPP..RHD

W(VANITY MIRROR),LT. GRAY,TRIM1#,7#

 1
74320-52321B0

NCP10,NLP10,SCP10..JPP..RHD

W(*80,DRIVER SIDE & PASSENGER SIDE),LT. GRAY,TRIM1#,7#

 1
74320-52331B0

NCP10,NLP10,SCP10..JPP..RHD

W(*80,DRIVER SIDE & PASSENGER SIDE & VANITY MIRROR),LT. GRAY,TRIM1#,7#

 1
74320-52051B0

NCP10,NLP10,SCP10..JPP..RHD

W(VANITY MIRROR),LT. GRAY,TRIM1#,7#

 1
74320-52061B0

NCP10,NLP10,SCP10..JPP..RHD

LT. GRAY,TRIM1#,7#

 1
74348B - HOLDER, VISOR, RH
74348-12030B5

NCP10,NLP10,SCP10..JPP

LT.GRAY,TRIM1#,7#

 1
74348C - HOLDER, VISOR, LH
74348-12030B5

NCP10,NLP10,SCP10..JPP

LT.GRAY,TRIM1#,7#

 1
74610A - GRIP SUB-ASSY, ASSIST
74611-52010B0

NCP10,NLP10,SCP10..JPP

W(ASSIST GRIP FRONT-1),LT.GRAY,TRIM1#,7#

 1
74611-52010B0

NCP10,NLP10,SCP10..JPP

W(ASSIST GRIP FRONT-1,REAR-2),LT.GRAY,TRIM1#,7#

 3
74610A - GRIP SUB-ASSY, ASSIST
74611-52010B0

NCP10,NLP10,SCP10..JPP

W(ASSIST GRIP FRONT-1),LT.GRAY,TRIM1#,7#

 1
74611-52010B0

NCP10,NLP10,SCP10..JPP

W(ASSIST GRIP FRONT-1,REAR-2),LT.GRAY,TRIM1#,7#

 3
74631B - HOOK, COAT
74631-52010B0

NCP10,NLP10,SCP10..JPP

W(ASSIST GRIP FRONT-1),LT.GRAY,TRIM1#,7#

 1
74631-28010B1

NCP10,NLP10,SCP10..JPP

W(ASSIST GRIP FRONT-1,REAR-2),LT.GRAY,TRIM1#,7#

 1
74631B - HOOK, COAT
74631-52010B0

NCP10,NLP10,SCP10..JPP

W(ASSIST GRIP FRONT-1),LT.GRAY,TRIM1#,7#

 1
74631-28010B1

NCP10,NLP10,SCP10..JPP

W(ASSIST GRIP FRONT-1,REAR-2),LT.GRAY,TRIM1#,7#

 1
Common parts
90157-60019
91651-B0640
93530-45016
