SCP10R-AGMNKW (1999)

Toyota Yaris (Jpp)

Production Aug 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901-0212)1SZFE..JPP

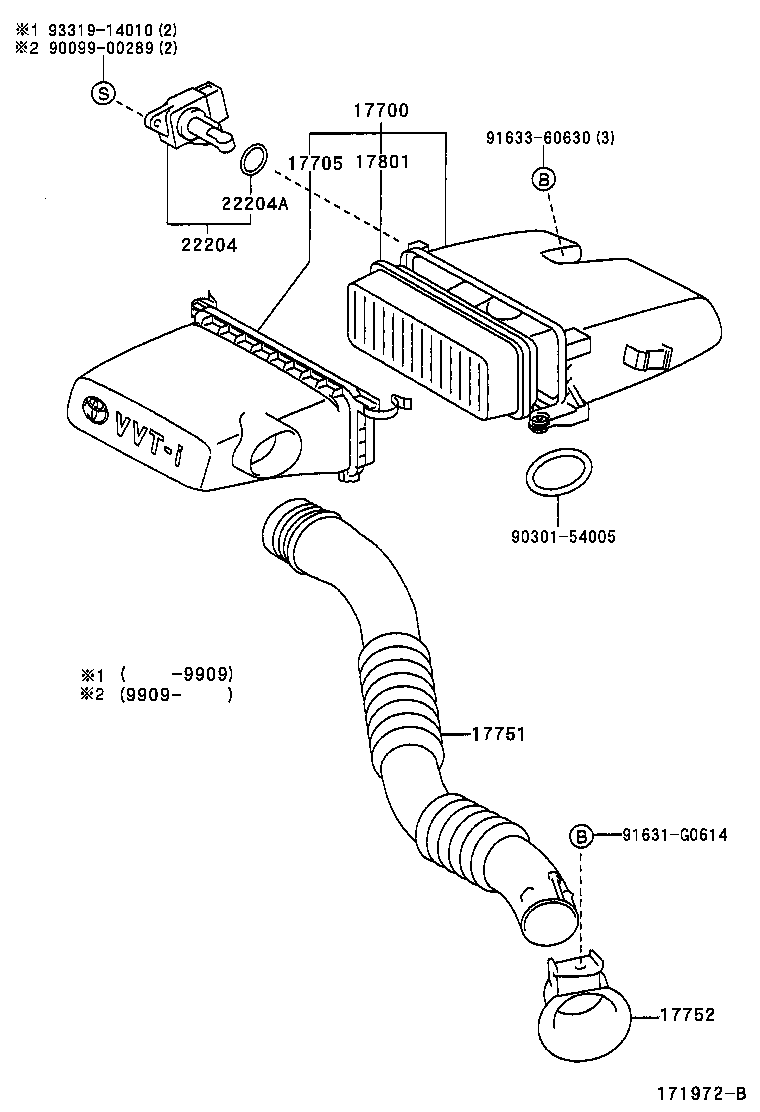

Click highlighted areas on diagram

diagram 17700 17705 17751 17752 17801 22204 22204A 9009900289 9030154005 91631G0614 9163360630 9331914010
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-23080

1SZFE..SCP10..JPP

 1
17700-23081

1SZFE..SCP10..JPP

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-23060

1SZFE..SCP10..JPP

 1
17751 - INLET, AIR CLEANER, NO.1
17751-23030

1SZFE..SCP10..JPP

 1
17752 - INLET, AIR CLEANER, NO.2
17752-23010

1SZFE..SCP10..JPP

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-23030

1SZFE..SCP10..JPP

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-22010

1SZFE..SCP10..JPP

 1
22204A - RING, O(FOR INTAKE AIR FLOW METER)
90099-14141

1SZFE..SCP10..JPP

 1
Common parts
90099-00289
90301-54005
91631-G0614
91633-60630
93319-14010
