SCP10R-AGMGKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901- )JPP

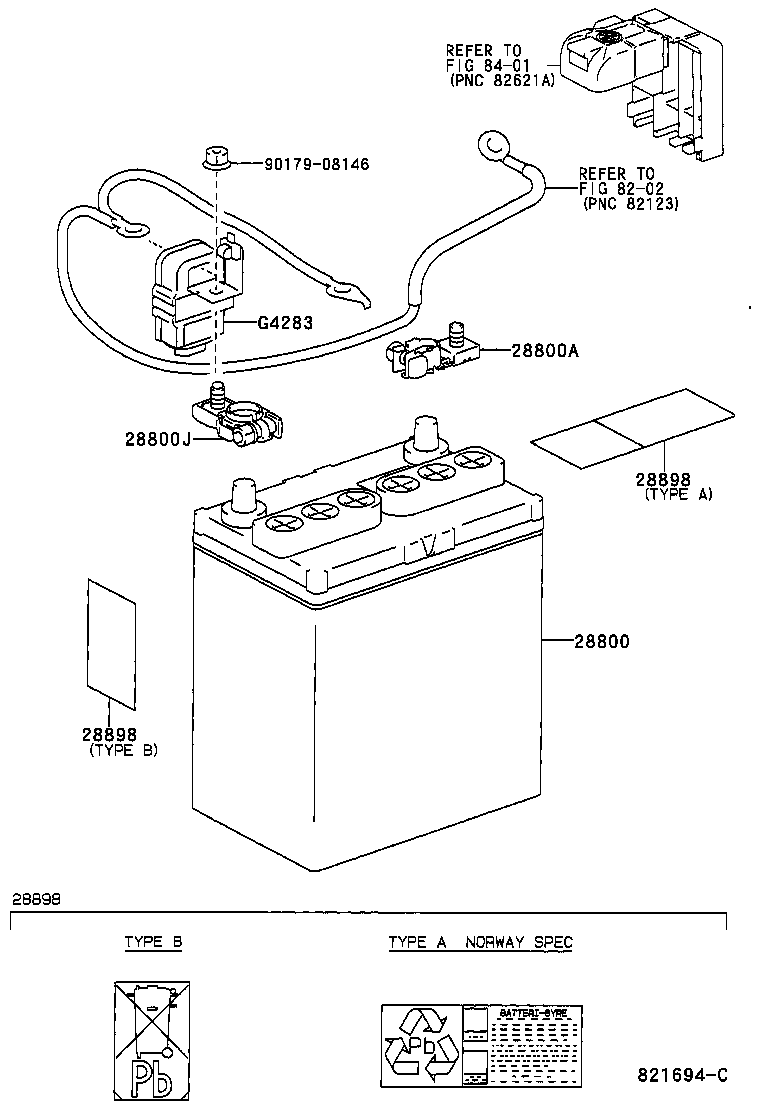

Click highlighted areas on diagram

diagram 28800 28800A 28800J 28898 28898 8202 8401 9017908146 G4283
Part # Description Qty Price
28800 - BATTERY
28800-74231

1NZFE,2NZFE,1SZFE..NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

46B24R(S),FURUKAWA

 1
28800-21070

1NZFE,2NZFE,1SZFE..NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS)..5F

34B19R(S)

 1
28800-21100

1NZFE,2NZFE,1SZFE..NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

46B24R(S),MATSUSHITA

 1
28800-74230

1SZFE..SCP10..JPP

46B24R(S)

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05053

1N#,2NZFE,1SZFE..NCP1#,NLP10,SCP10..JPP

 1
28898 - PLATE, BATTERY
28898-46020

1N#,2NZFE,1SZFE..NCP1#,NLP10,SCP10..JPP

TYPE B:REFER TO ILLUSTRATION

 1
28898 - PLATE, BATTERY
28898-46020

1N#,2NZFE,1SZFE..NCP1#,NLP10,SCP10..JPP

TYPE B:REFER TO ILLUSTRATION

 1
Common parts
90179-08146
Linked diagrams
8202
8401
