SCP10R-AGMGKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9901- )JPP

Click highlighted areas on diagram

diagram 67751 67751A 74811D
Part # Description Qty Price
67751 - BOARD, BACK DOOR TRIM
67751-52010C0

NCP10,NLP10,SCP10..JPP

BLACK,TRIM1#,7#

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-05165C0

NCP10,NLP10,SCP10..JPP

BLACK,TRIM1#,7#

 8
90467-0509622

NCP10,NLP10,SCP10..JPP

BLACK,TRIM1#,7#

 8
74811D - HANDLE, DOOR PULL
74811-13010C0

SCP10..JPP

BLACK,TRIM1#,7#&040 ,199 ,209 ,3N7 ,580 ,6R4 ,764 ,8K8 ,8M4

 1
74811-13010C0

NCP10,SCP10..JPP

BLACK,TRIM1#,7#&040 ,199 ,209 ,3N7 ,3P0 ,580 ,6R4 ,764 ,8K8 ,8M4

 1
74811-13010C0

NCP10,NLP10,SCP10..JPP

BLACK,TRIM1#,7#&199 ,209 ,3P0 ,580 ,6R4

 1
74811-13010C0

SCP10..JPP

BLACK,TRIM1#,7#&040 ,199 ,3N7 ,580 ,764 ,8K8

 1

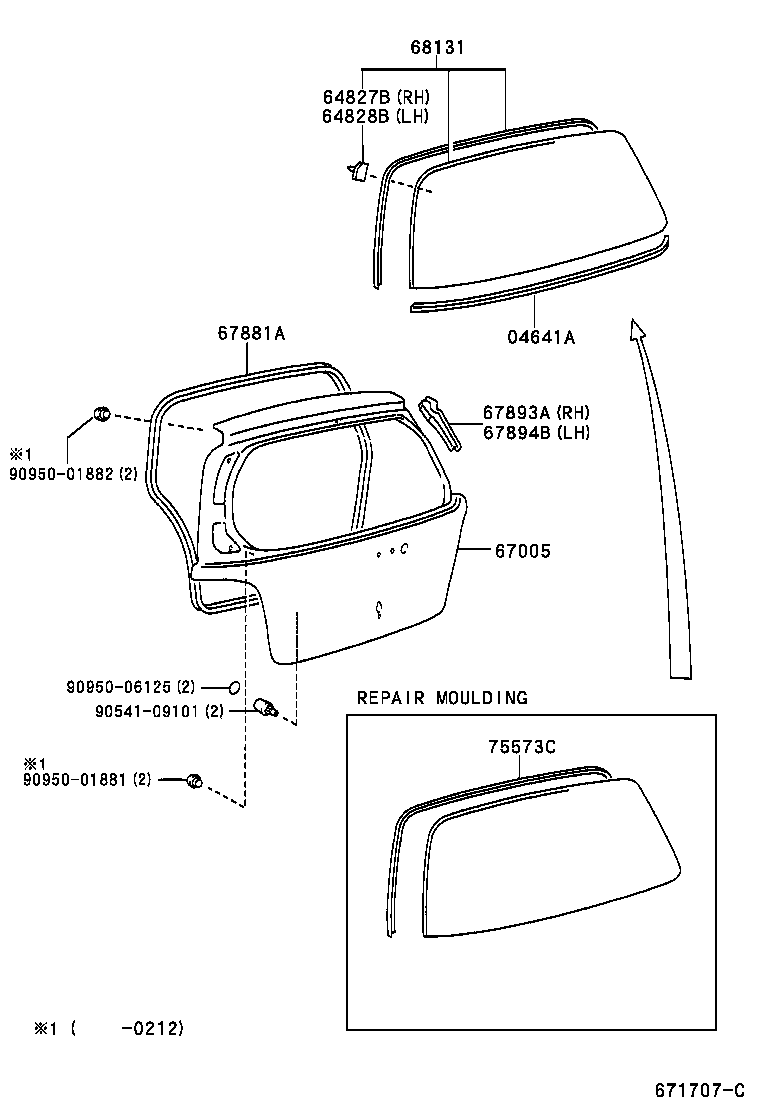

ILLUST NO. 2 OF 2(9901- )JPP

Click highlighted areas on diagram

diagram 04641A 64827B 64828B 67005 67881A 67893A 67894B 68131 75573C 9054109101 9095001881 9095001882 9095006125
Part # Description Qty Price
04641A - DAM KIT, BACK WINDOW GLASS ADHESIVE
64813-52010

NCP1#,NLP10,SCP10..JPP

 1
64827B - CLIP, BACK WINDOW GLASS, RH
64827-52010

NCP1#,NLP10,SCP10..JPP

 1
64828B - CLIP, BACK WINDOW GLASS, LH
64828-52010

NCP1#,NLP10,SCP10..JPP

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-52011

NCP1#,NLP10,SCP10..JPP

 1
67005-52010

SCP10..JPP

 1
67005-52012

NCP1#,NLP10,SCP10..JPP

W(REAR WIPER & HIGH MOUNT STOP LAMP)

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-52010

NCP1#,NLP10,SCP10..JPP

 1
67893A - PROTECTOR, BACK DOOR PANEL, NO.1
67893-52010

NCP1#,NLP10,SCP10..JPP

 1
67894B - PROTECTOR, BACK DOOR PANEL, NO.2
67894-52010

NCP1#,NLP10,SCP10..JPP

 1
68131 - GLASS, BACK DOOR
68105-52010

NCP1#,NLP10,SCP10..JPP

*EHTT,T=3.1,GREEN

 1
75573C - MOULDING, BACK WINDOW, OUTSIDE
75573-52110

NCP10..JPP;SCP10..JPP..RHD;SCP10..JPP..LHD..5D..LUNA;SCP10..JPP..LHD..(SOL,TRSTD,TSGS)

 1
75573-52111

SCP10..JPP..RHD;NCP1#,NLP10..JPP;SCP10..JPP..LHD..5D..LUNA;SCP10..JPP..LHD..(SOL,TRSTD,TSGS)

 1
75573-52110

NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)

 1
Common parts
90541-09101
90950-01881
90950-01882
90950-06125
