SCP10R-AGMGKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901-0212)1SZFE..JPP

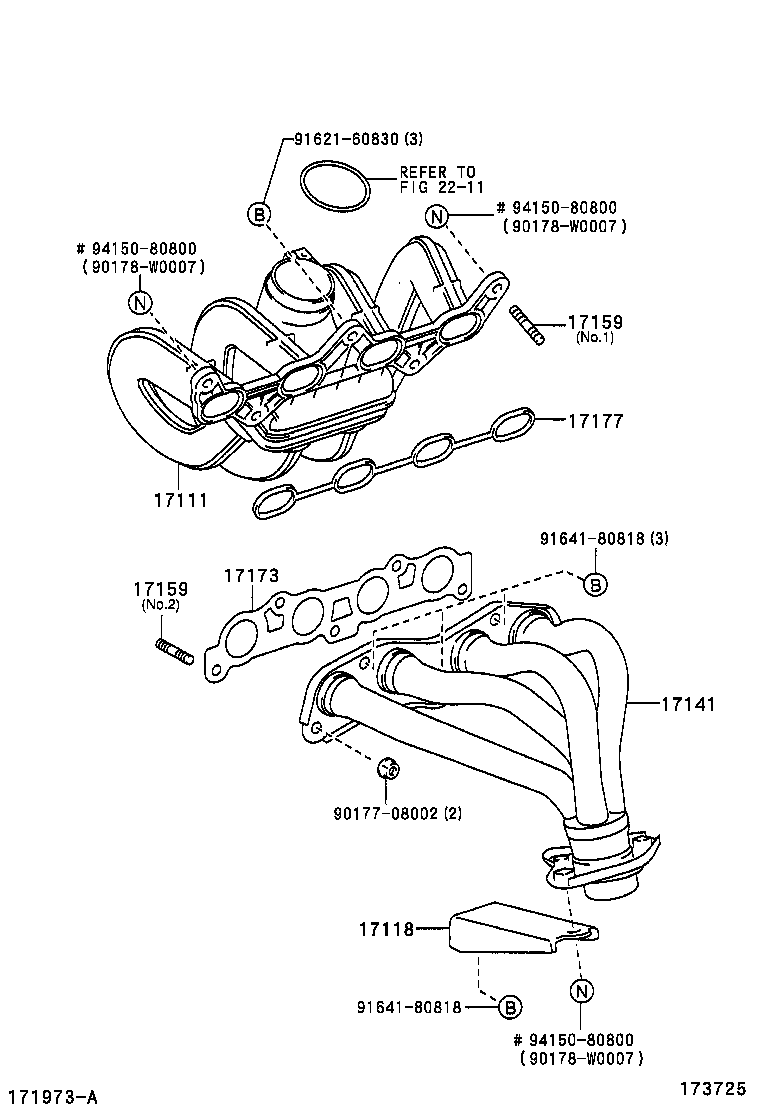

Click highlighted areas on diagram

diagram 17111 17118 17141 17159 17159 17173 17177 2211 9017708002 90178W0007 90178W0007 90178W0007 9162160830 9164180818 9164180818 9415080800 9415080800 9415080800
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-23020

1SZFE..SCP10..JPP

 1
17118 - STAY, MANIFOLD
17118-23010

1SZFE..SCP10..JPP

 1
17141 - MANIFOLD, EXHAUST
17141-23040

1SZFE..SCP10..JPP

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60825

1SZFE..SCP10..JPP

NO.1

 2
90116-08395

1SZFE..SCP10..JPP

NO.2

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60825

1SZFE..SCP10..JPP

NO.1

 2
90116-08395

1SZFE..SCP10..JPP

NO.2

 2
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-23010

1SZFE..SCP10..JPP

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-23020

1SZFE..SCP10..JPP

 1
Common parts
90177-08002
90178-W0007
91621-60830
91641-80818
94150-80800
Linked diagrams
2211
