SCP10L-AHMRKW (1999)
Toyota Yaris (Jpp)
Production
Jan 1999
-
Dec 2002
Engine
1SZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9901- )SCP10..JPP..LHD

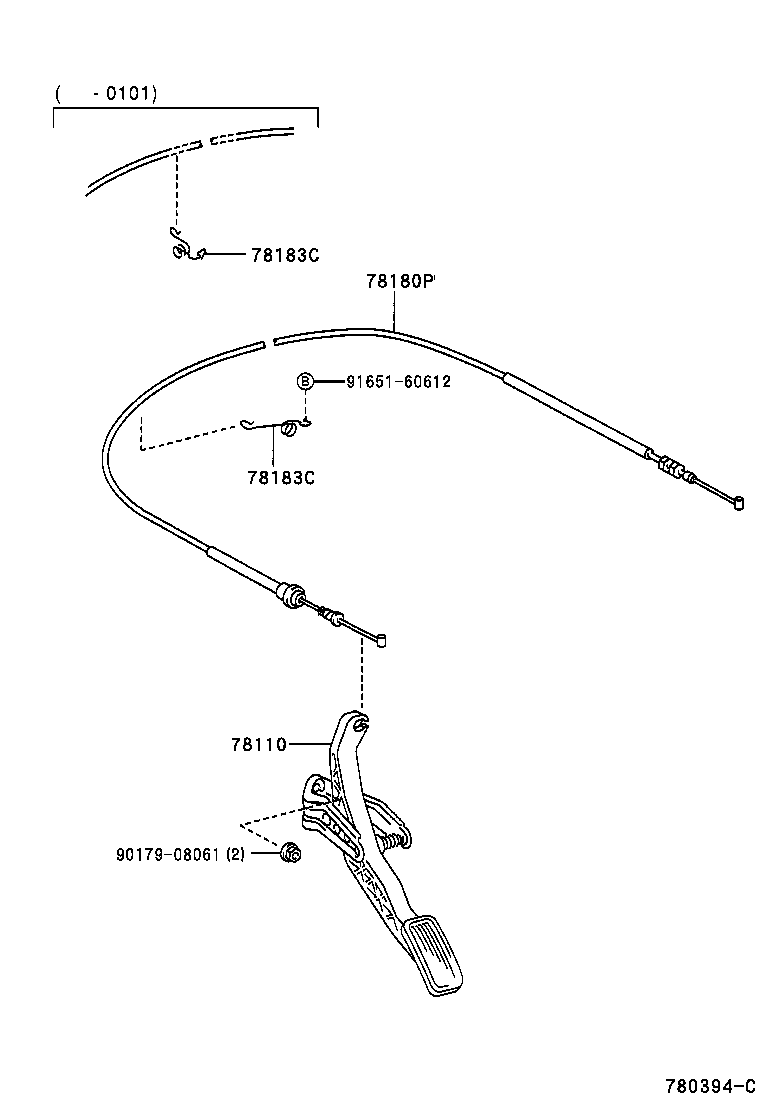

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-52060 |
NCP1#,SCP10..JPP..LHD TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-52050 |
SCP10..JPP..LHD |
1 | ||
| 78180-52090 |
SCP10..JPP..LHD |
1 | ||
| 78183C - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-52010 |
SCP10..JPP..LHD |
1 | ||
| 78183-52050 |
SCP10..JPP..LHD |
1 | ||
| 78183-52100 |
SCP10..JPP..LHD |
1 | ||
| 78183C - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-52010 |
SCP10..JPP..LHD |
1 | ||
| 78183-52050 |
SCP10..JPP..LHD |
1 | ||
| 78183-52100 |
SCP10..JPP..LHD |
1 | ||
| Common parts | ||||
| 90179-08061 | ||||
| 91651-60612 | ||||
