SCP10L-AHMGKW (1999)
Toyota Yaris (Jpp)

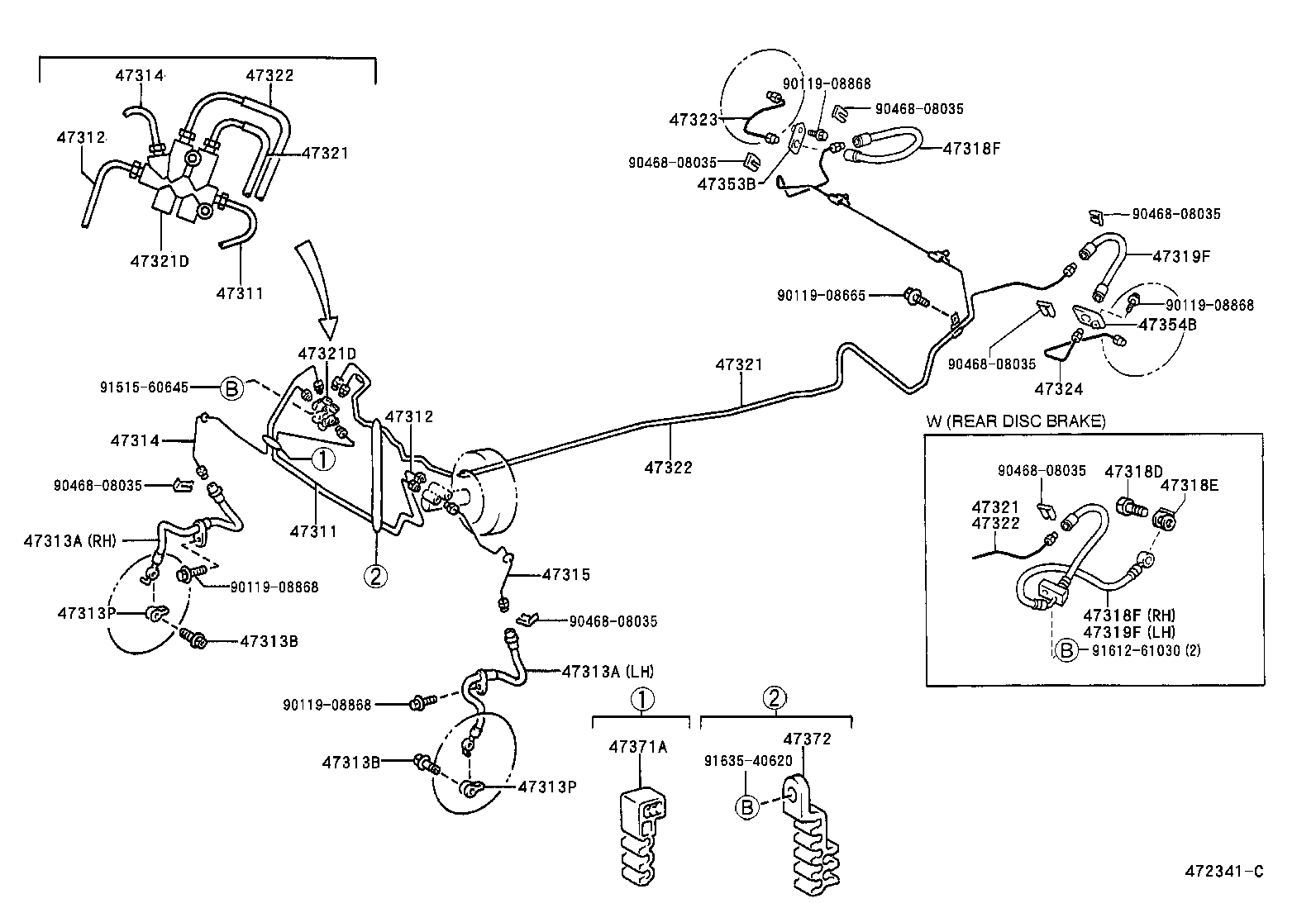

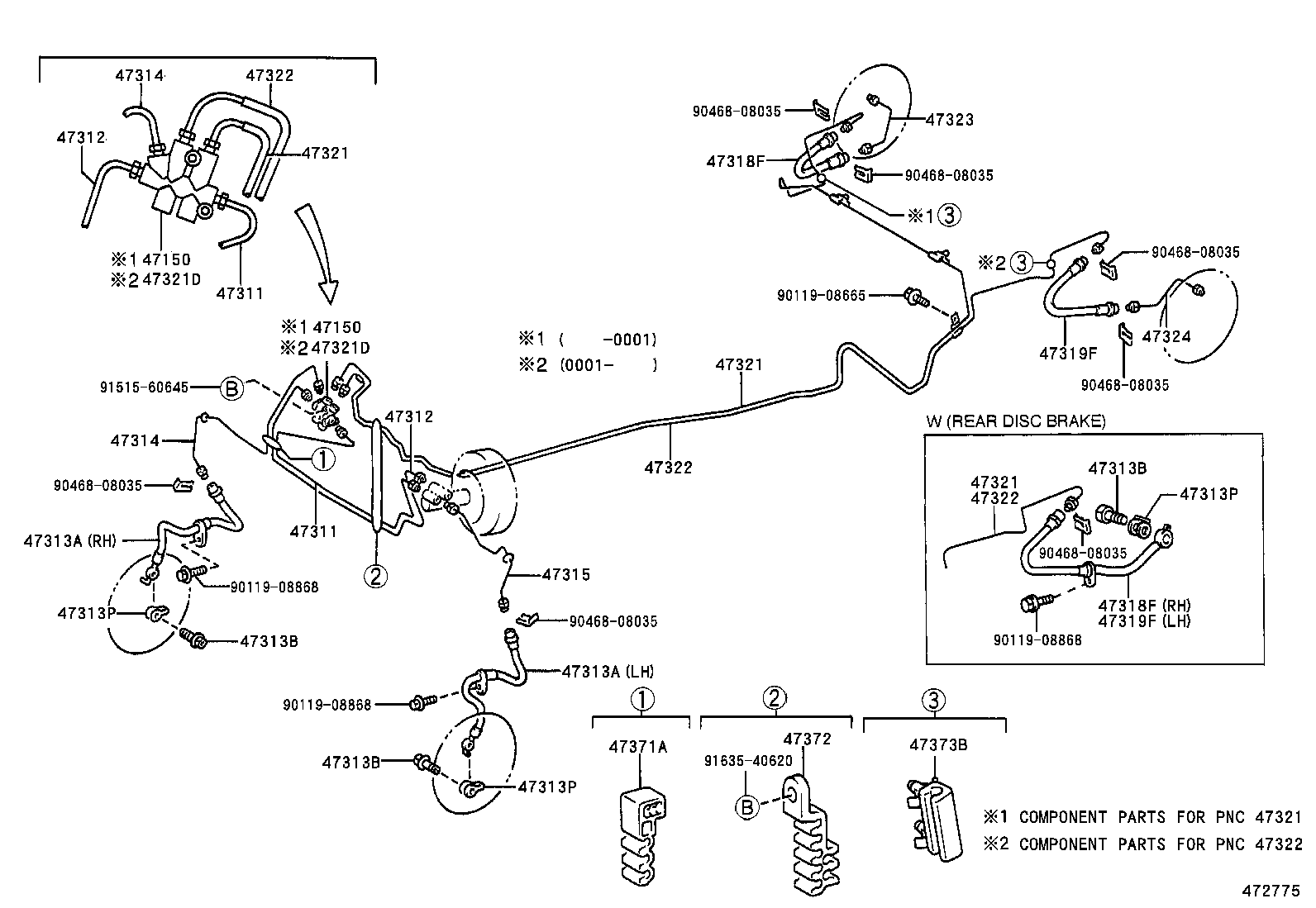

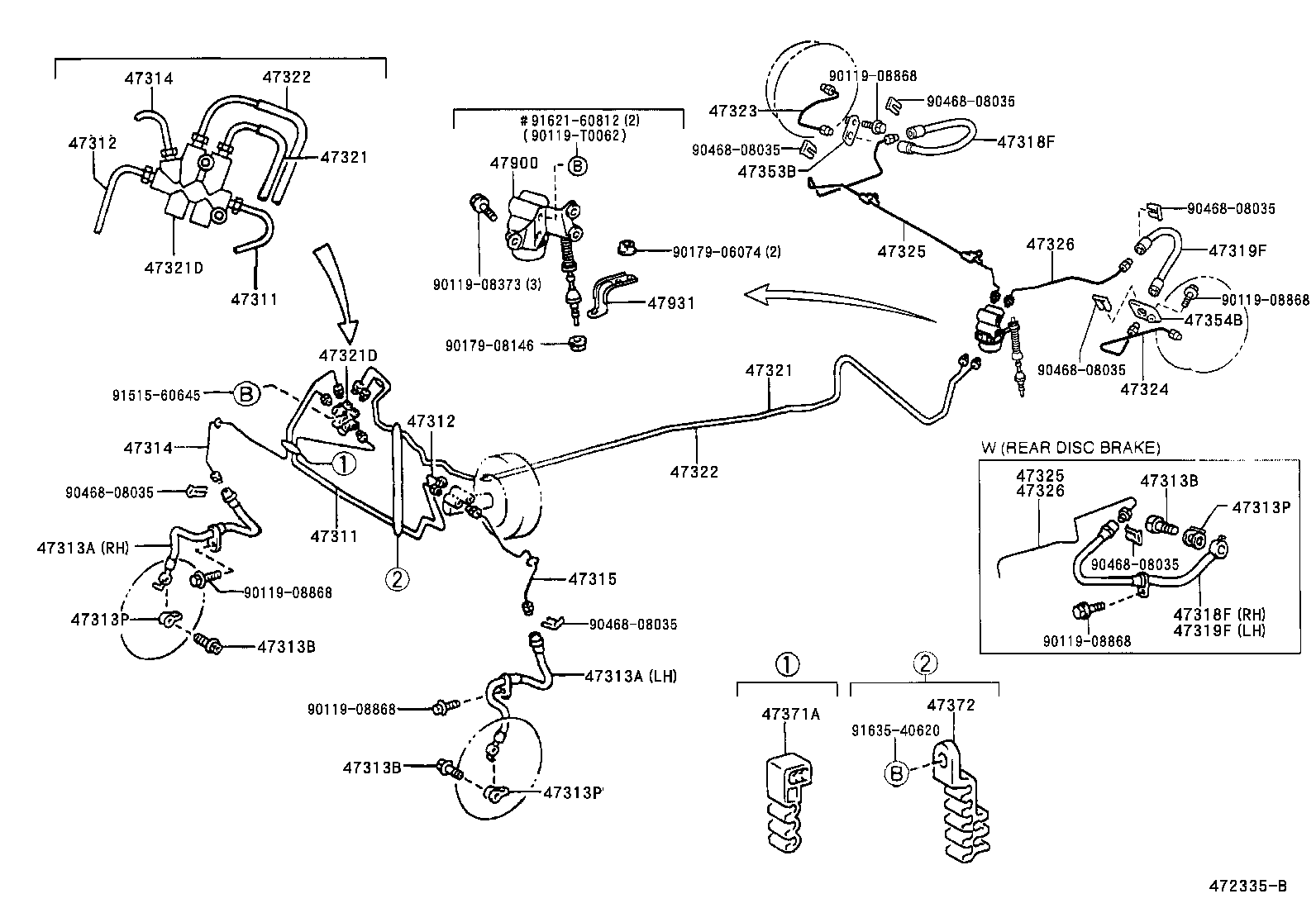

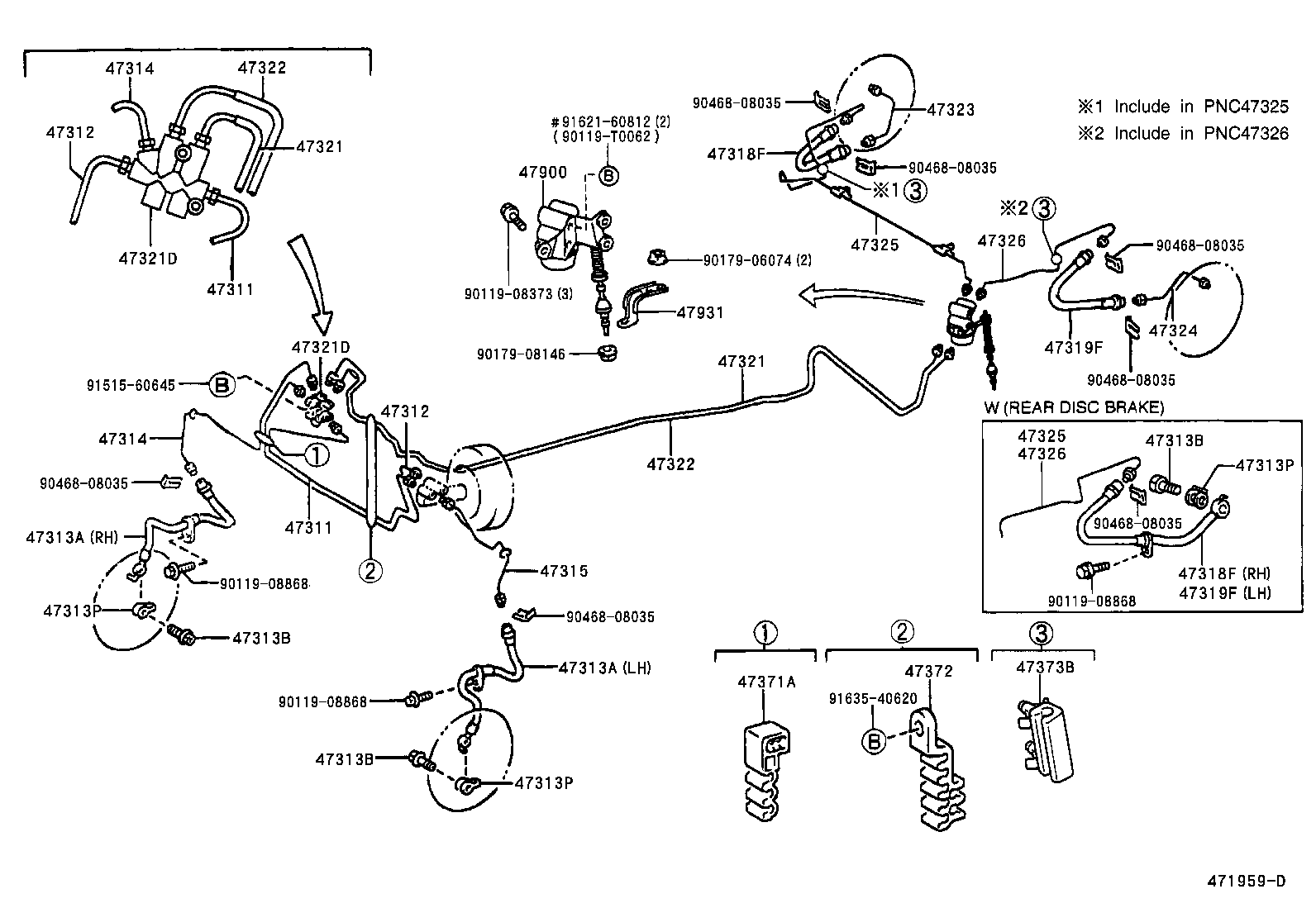

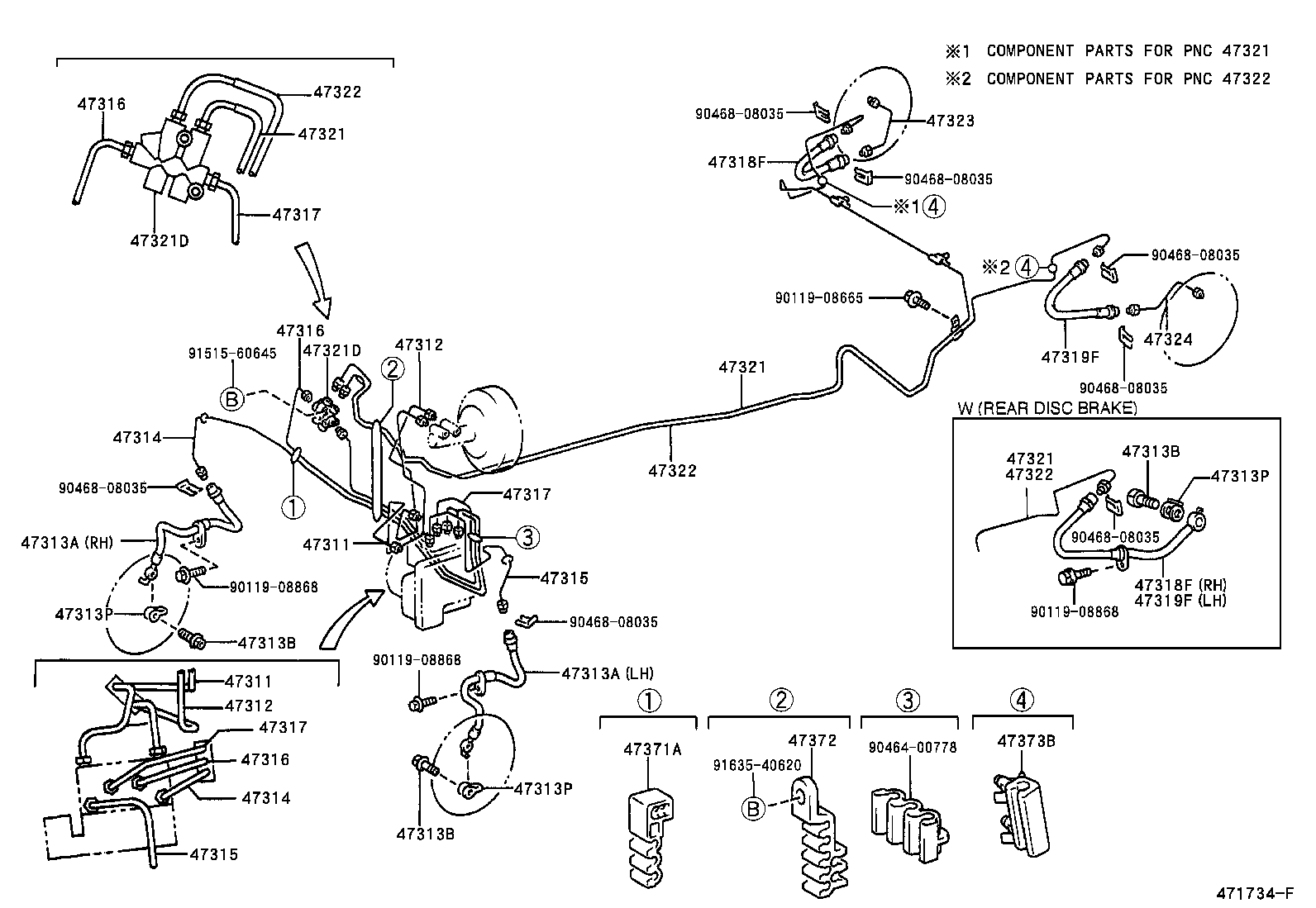

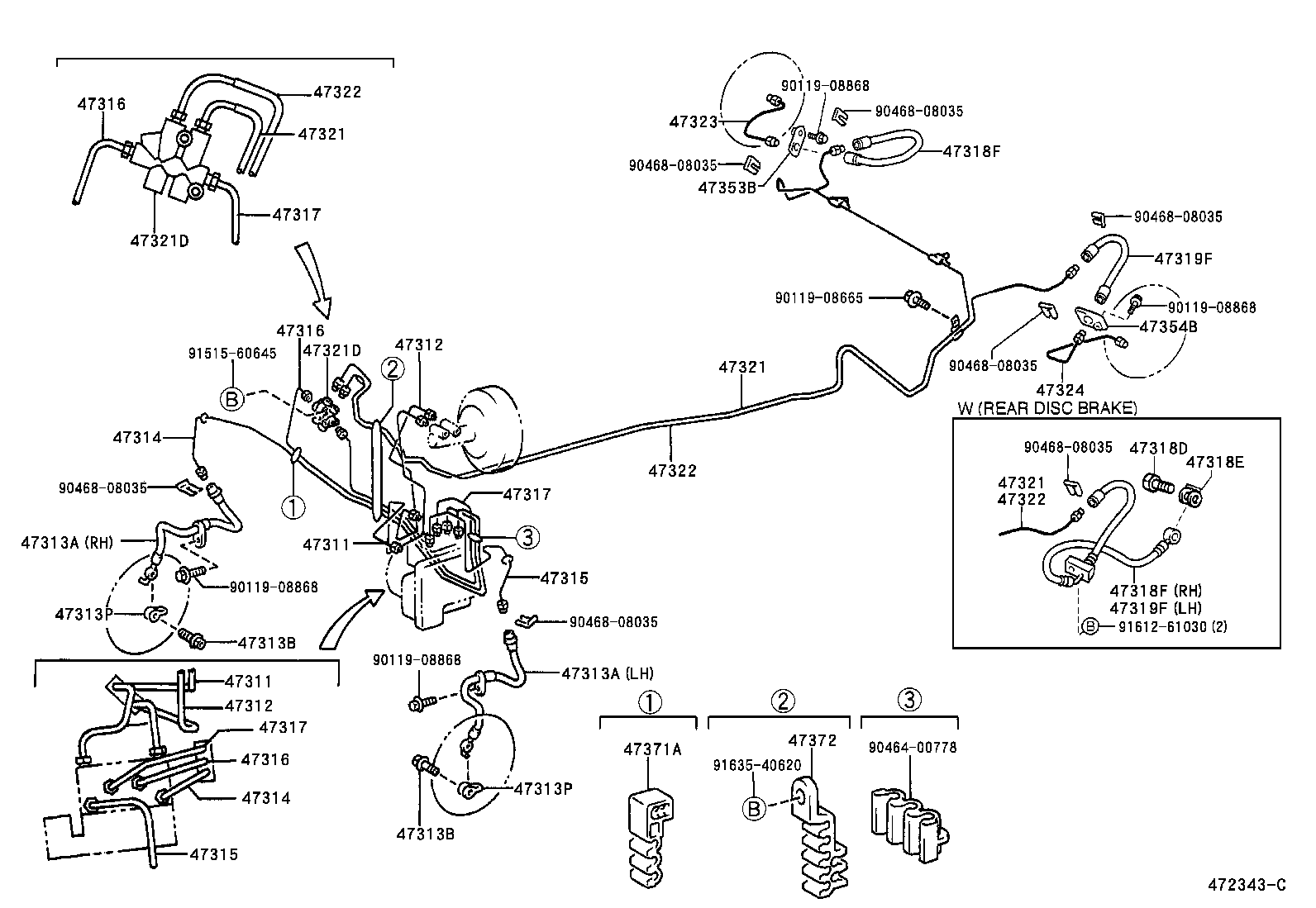

ILLUST NO. 3 OF 3(9901- )JPP
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 1 OF 3(9901-0010)JPP..LHD
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52021 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47311-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52031 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47311-52031 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52022 |
NCP1#,NLP10,SCP10..JPP..LHD W(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52021 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47311-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52031 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47311-52031 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52022 |
NCP1#,NLP10,SCP10..JPP..LHD W(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47312-52021 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47312-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47312-52031 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47312-52021 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47312-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47312-52031 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A45 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH |
1 | ||
| 90947-02A46 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH |
1 | ||
| 90947-02C31 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH |
1 | ||
| 90947-02C32 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A45 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH |
1 | ||
| 90947-02A46 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH |
1 | ||
| 90947-02C31 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH |
1 | ||
| 90947-02C32 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-52041 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47314-52031 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47314-52040 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47314-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47314-52042 |
NCP1#,NLP10,SCP10..JPP..LHD W(ABS) |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-52041 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47314-52031 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47314-52040 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47314-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47314-52042 |
NCP1#,NLP10,SCP10..JPP..LHD W(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52021 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47315-52040 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47315-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47315-52021 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47315-52041 |
NCP10,NLP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52021 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47315-52040 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47315-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47315-52021 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47315-52041 |
NCP10,NLP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52021 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47316-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52021 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47316-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52021 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47316-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47317-52021 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47317-52021 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47317-52021 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02A47 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02C30 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02K02 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C35 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C75 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02A47 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02C30 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02K02 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C35 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C75 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02A47 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02C36 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C76 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 90947-02J38 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C30 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02A47 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02C36 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C76 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 90947-02J38 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C30 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47321-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47321-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47321-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47321-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47321-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47321-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47321-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47321-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47321-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10140 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) AISIN SEIKI |
1 | ||
| 90904-12088 |
NCP1#,SCP10..JPP W(ABS) |
1 | ||
| 90904-12088 |
NCP10,SCP10..JPP NISSIN KOGYO |
1 | ||
| 90413-10293 |
NCP10,SCP10..JPP W/O(ABS) |
1 | ||
| 90413-10293 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(ABS) |
1 | ||
| 90412-10640 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10140 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) AISIN SEIKI |
1 | ||
| 90904-12088 |
NCP1#,SCP10..JPP W(ABS) |
1 | ||
| 90904-12088 |
NCP10,SCP10..JPP NISSIN KOGYO |
1 | ||
| 90413-10293 |
NCP10,SCP10..JPP W/O(ABS) |
1 | ||
| 90413-10293 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(ABS) |
1 | ||
| 90412-10640 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47322-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47322-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47322-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47322-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47322-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47322-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-52021 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47323-52020 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47323-52090 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47323-52022 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-52080 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47324-52020 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47324-52022 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47324-52021 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-52030 |
NCP10,SCP10..JPP |
2 | ||
| Common parts | ||||
| 90119-08665 | ||||
| 90119-08868 | ||||
| 90464-00778 | ||||
| 90468-08035 | ||||
| 91515-60645 | ||||
| 91635-40620 | ||||
ILLUST NO. 1 OF 2(0001-0010)JPP..LHD
W(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52021 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47311-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52031 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47311-52031 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52022 |
NCP1#,NLP10,SCP10..JPP..LHD W(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52021 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47311-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52031 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47311-52031 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52022 |
NCP1#,NLP10,SCP10..JPP..LHD W(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47312-52021 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47312-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47312-52031 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47312-52021 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47312-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47312-52031 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A45 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH |
1 | ||
| 90947-02A46 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH |
1 | ||
| 90947-02C31 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH |
1 | ||
| 90947-02C32 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A45 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH |
1 | ||
| 90947-02A46 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH |
1 | ||
| 90947-02C31 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH |
1 | ||
| 90947-02C32 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-52041 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47314-52031 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47314-52040 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47314-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47314-52042 |
NCP1#,NLP10,SCP10..JPP..LHD W(ABS) |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-52041 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47314-52031 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47314-52040 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47314-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47314-52042 |
NCP1#,NLP10,SCP10..JPP..LHD W(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52021 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47315-52040 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47315-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47315-52021 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47315-52041 |
NCP10,NLP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02A47 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02C30 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02K02 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C35 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C75 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02A47 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02C30 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02K02 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C35 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C75 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02A47 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02C36 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C76 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 90947-02J38 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C30 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02A47 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02C36 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C76 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 90947-02J38 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C30 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47321-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47321-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47321-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47321-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47321-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47321-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10140 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) AISIN SEIKI |
1 | ||
| 90904-12088 |
NCP1#,SCP10..JPP W(ABS) |
1 | ||
| 90904-12088 |
NCP10,SCP10..JPP NISSIN KOGYO |
1 | ||
| 90413-10293 |
NCP10,SCP10..JPP W/O(ABS) |
1 | ||
| 90413-10293 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(ABS) |
1 | ||
| 90412-10640 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10140 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) AISIN SEIKI |
1 | ||
| 90904-12088 |
NCP1#,SCP10..JPP W(ABS) |
1 | ||
| 90904-12088 |
NCP10,SCP10..JPP NISSIN KOGYO |
1 | ||
| 90413-10293 |
NCP10,SCP10..JPP W/O(ABS) |
1 | ||
| 90413-10293 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(ABS) |
1 | ||
| 90412-10640 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47322-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47322-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47322-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47322-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-52021 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47323-52020 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47323-52090 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47323-52022 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-52080 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47324-52020 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47324-52022 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47324-52021 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-52011 |
NCP10,SCP10..JPP |
1 | ||
| 47325-52012 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 47325-52011 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-52011 |
NCP10,SCP10..JPP |
1 | ||
| 47325-52012 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 47325-52011 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-52011 |
NCP10,SCP10..JPP |
1 | ||
| 47326-52011 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 47326-52012 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-52011 |
NCP10,SCP10..JPP |
1 | ||
| 47326-52011 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 47326-52012 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-52030 |
NCP10,SCP10..JPP |
2 | ||
| 47900 - VALVE ASSY, LOAD SENSING W/SPRING | ||||
| 47900-52030 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 47900-52020 |
NCP10,SCP10..JPP |
1 | ||
| 47900-52030 |
NCP10,SCP10..JPP |
1 | ||
| 47900-52050 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 47900-52090 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-52010 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 47931-52010 |
NCP10,SCP10..JPP |
1 | ||
| 47931-52010 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| Common parts | ||||
| 90119-08373 | ||||
| 90119-08868 | ||||
| 90119-T0062 | ||||
| 90179-06074 | ||||
| 90179-08146 | ||||
| 90468-08035 | ||||
| 91515-60645 | ||||
| 91621-60812 | ||||
| 91635-40620 | ||||
ILLUST NO. 1 OF 2(0010- )JPP..LHD
W(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52021 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47311-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52031 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47311-52031 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52022 |
NCP1#,NLP10,SCP10..JPP..LHD W(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52021 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47311-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52031 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47311-52031 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52022 |
NCP1#,NLP10,SCP10..JPP..LHD W(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47312-52021 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47312-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47312-52031 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47312-52021 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47312-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47312-52031 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A45 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH |
1 | ||
| 90947-02A46 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH |
1 | ||
| 90947-02C31 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH |
1 | ||
| 90947-02C32 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A45 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH |
1 | ||
| 90947-02A46 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH |
1 | ||
| 90947-02C31 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH |
1 | ||
| 90947-02C32 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-52041 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47314-52031 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47314-52040 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47314-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47314-52042 |
NCP1#,NLP10,SCP10..JPP..LHD W(ABS) |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-52041 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47314-52031 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47314-52040 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47314-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47314-52042 |
NCP1#,NLP10,SCP10..JPP..LHD W(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52021 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47315-52040 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47315-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47315-52021 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47315-52041 |
NCP10,NLP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02A47 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02C30 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02K02 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C35 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C75 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02A47 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02C30 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02K02 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C35 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C75 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02A47 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02C36 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C76 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 90947-02J38 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C30 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02A47 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02C36 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C76 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 90947-02J38 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C30 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47321-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47321-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47321-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47321-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47321-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47321-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10140 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) AISIN SEIKI |
1 | ||
| 90904-12088 |
NCP1#,SCP10..JPP W(ABS) |
1 | ||
| 90904-12088 |
NCP10,SCP10..JPP NISSIN KOGYO |
1 | ||
| 90413-10293 |
NCP10,SCP10..JPP W/O(ABS) |
1 | ||
| 90413-10293 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(ABS) |
1 | ||
| 90412-10640 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10140 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) AISIN SEIKI |
1 | ||
| 90904-12088 |
NCP1#,SCP10..JPP W(ABS) |
1 | ||
| 90904-12088 |
NCP10,SCP10..JPP NISSIN KOGYO |
1 | ||
| 90413-10293 |
NCP10,SCP10..JPP W/O(ABS) |
1 | ||
| 90413-10293 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(ABS) |
1 | ||
| 90412-10640 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47322-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47322-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47322-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47322-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-52021 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47323-52020 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47323-52090 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47323-52022 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-52080 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47324-52020 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47324-52022 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47324-52021 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-52011 |
NCP10,SCP10..JPP |
1 | ||
| 47325-52012 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 47325-52011 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-52011 |
NCP10,SCP10..JPP |
1 | ||
| 47325-52012 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 47325-52011 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-52011 |
NCP10,SCP10..JPP |
1 | ||
| 47326-52011 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 47326-52012 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-52011 |
NCP10,SCP10..JPP |
1 | ||
| 47326-52011 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 47326-52012 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-52010 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-52010 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 47900 - VALVE ASSY, LOAD SENSING W/SPRING | ||||
| 47900-52030 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 47900-52020 |
NCP10,SCP10..JPP |
1 | ||
| 47900-52030 |
NCP10,SCP10..JPP |
1 | ||
| 47900-52050 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 47900-52090 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-52010 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 47931-52010 |
NCP10,SCP10..JPP |
1 | ||
| 47931-52010 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| Common parts | ||||
| 90119-08373 | ||||
| 90119-08868 | ||||
| 90119-T0062 | ||||
| 90179-06074 | ||||
| 90179-08146 | ||||
| 90468-08035 | ||||
| 91515-60645 | ||||
| 91621-60812 | ||||
| 91635-40620 | ||||
ILLUST NO. 1 OF 3(0010- )JPP..LHD
W/O(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52021 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47311-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52031 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47311-52031 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52022 |
NCP1#,NLP10,SCP10..JPP..LHD W(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52021 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47311-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52031 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47311-52031 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52022 |
NCP1#,NLP10,SCP10..JPP..LHD W(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47312-52021 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47312-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47312-52031 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47312-52021 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47312-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47312-52031 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A45 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH |
1 | ||
| 90947-02A46 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH |
1 | ||
| 90947-02C31 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH |
1 | ||
| 90947-02C32 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A45 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH |
1 | ||
| 90947-02A46 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH |
1 | ||
| 90947-02C31 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH |
1 | ||
| 90947-02C32 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-52041 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47314-52031 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47314-52040 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47314-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47314-52042 |
NCP1#,NLP10,SCP10..JPP..LHD W(ABS) |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-52041 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47314-52031 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47314-52040 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47314-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47314-52042 |
NCP1#,NLP10,SCP10..JPP..LHD W(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52021 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47315-52040 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47315-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47315-52021 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47315-52041 |
NCP10,NLP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02A47 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02C30 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02K02 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C35 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C75 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02A47 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02C30 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02K02 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C35 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C75 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02A47 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02C36 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C76 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 90947-02J38 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C30 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02A47 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02C36 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C76 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 90947-02J38 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C30 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47321-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47321-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47321-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47321-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47321-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47321-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47321-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47321-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47321-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10140 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) AISIN SEIKI |
1 | ||
| 90904-12088 |
NCP1#,SCP10..JPP W(ABS) |
1 | ||
| 90904-12088 |
NCP10,SCP10..JPP NISSIN KOGYO |
1 | ||
| 90413-10293 |
NCP10,SCP10..JPP W/O(ABS) |
1 | ||
| 90413-10293 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(ABS) |
1 | ||
| 90412-10640 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10140 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) AISIN SEIKI |
1 | ||
| 90904-12088 |
NCP1#,SCP10..JPP W(ABS) |
1 | ||
| 90904-12088 |
NCP10,SCP10..JPP NISSIN KOGYO |
1 | ||
| 90413-10293 |
NCP10,SCP10..JPP W/O(ABS) |
1 | ||
| 90413-10293 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(ABS) |
1 | ||
| 90412-10640 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47322-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47322-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47322-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47322-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47322-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47322-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-52021 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47323-52020 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47323-52090 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47323-52022 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-52080 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47324-52020 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47324-52022 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47324-52021 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-52010 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-52010 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| Common parts | ||||
| 90119-08665 | ||||
| 90119-08868 | ||||
| 90468-08035 | ||||
| 91515-60645 | ||||
| 91612-61030 | ||||
| 91635-40620 | ||||
ILLUST NO. 1 OF 3(0010- )JPP..LHD
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52021 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47311-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52031 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47311-52031 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52022 |
NCP1#,NLP10,SCP10..JPP..LHD W(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52021 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47311-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52031 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47311-52031 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52022 |
NCP1#,NLP10,SCP10..JPP..LHD W(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47312-52021 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47312-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47312-52031 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47312-52021 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47312-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47312-52031 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A45 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH |
1 | ||
| 90947-02A46 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH |
1 | ||
| 90947-02C31 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH |
1 | ||
| 90947-02C32 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A45 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH |
1 | ||
| 90947-02A46 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH |
1 | ||
| 90947-02C31 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH |
1 | ||
| 90947-02C32 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-52041 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47314-52031 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47314-52040 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47314-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47314-52042 |
NCP1#,NLP10,SCP10..JPP..LHD W(ABS) |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-52041 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47314-52031 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47314-52040 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47314-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47314-52042 |
NCP1#,NLP10,SCP10..JPP..LHD W(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52021 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47315-52040 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47315-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47315-52021 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47315-52041 |
NCP10,NLP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52021 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47315-52040 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47315-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47315-52021 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47315-52041 |
NCP10,NLP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52021 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47316-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52021 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47316-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52021 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47316-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47317-52021 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47317-52021 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47317-52021 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02A47 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02C30 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02K02 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C35 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C75 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02A47 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02C30 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02K02 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C35 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C75 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02A47 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02C36 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C76 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 90947-02J38 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C30 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02A47 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02C36 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C76 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 90947-02J38 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C30 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47321-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47321-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47321-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47321-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47321-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47321-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47321-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47321-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47321-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10140 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) AISIN SEIKI |
1 | ||
| 90904-12088 |
NCP1#,SCP10..JPP W(ABS) |
1 | ||
| 90904-12088 |
NCP10,SCP10..JPP NISSIN KOGYO |
1 | ||
| 90413-10293 |
NCP10,SCP10..JPP W/O(ABS) |
1 | ||
| 90413-10293 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(ABS) |
1 | ||
| 90412-10640 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10140 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) AISIN SEIKI |
1 | ||
| 90904-12088 |
NCP1#,SCP10..JPP W(ABS) |
1 | ||
| 90904-12088 |
NCP10,SCP10..JPP NISSIN KOGYO |
1 | ||
| 90413-10293 |
NCP10,SCP10..JPP W/O(ABS) |
1 | ||
| 90413-10293 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(ABS) |
1 | ||
| 90412-10640 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47322-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47322-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47322-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47322-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47322-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47322-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-52021 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47323-52020 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47323-52090 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47323-52022 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-52080 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47324-52020 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47324-52022 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47324-52021 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-52010 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-52010 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| Common parts | ||||
| 90119-08665 | ||||
| 90119-08868 | ||||
| 90464-00778 | ||||
| 90468-08035 | ||||
| 91515-60645 | ||||
| 91612-61030 | ||||
| 91635-40620 | ||||
ILLUST NO. 1 OF 3(9901-0010)JPP..LHD
W/O(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-52040 |
NCP10,SCP10..JPP |
1 | ||
| 47150-52030 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-52040 |
NCP10,SCP10..JPP |
1 | ||
| 47150-52030 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52021 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47311-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52031 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47311-52031 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52022 |
NCP1#,NLP10,SCP10..JPP..LHD W(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52021 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47311-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52031 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47311-52031 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47311-52022 |
NCP1#,NLP10,SCP10..JPP..LHD W(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47312-52021 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47312-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47312-52031 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47312-52021 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47312-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47312-52031 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A45 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH |
1 | ||
| 90947-02A46 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH |
1 | ||
| 90947-02C31 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH |
1 | ||
| 90947-02C32 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A45 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH |
1 | ||
| 90947-02A46 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH |
1 | ||
| 90947-02C31 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH |
1 | ||
| 90947-02C32 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-52041 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47314-52031 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47314-52040 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47314-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47314-52042 |
NCP1#,NLP10,SCP10..JPP..LHD W(ABS) |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-52041 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47314-52031 |
SCP10..JPP..LHD..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47314-52040 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47314-52030 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47314-52042 |
NCP1#,NLP10,SCP10..JPP..LHD W(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52021 |
NCP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47315-52040 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47315-52020 |
SCP10..JPP..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47315-52021 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W/O(ABS) |
1 | ||
| 47315-52041 |
NCP10,NLP10,SCP10..JPP..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(ABS) |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02A47 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02C30 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02K02 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C35 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C75 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02A47 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02C30 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02K02 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C35 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C75 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02A47 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02C36 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C76 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 90947-02J38 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C30 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02A47 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90947-02C36 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C76 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 90947-02J38 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3, W(REAR DISC BRAKE) |
1 | ||
| 90947-02C30 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47321-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47321-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47321-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47321-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47321-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47321-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47321-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47321-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47321-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10140 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) AISIN SEIKI |
1 | ||
| 90904-12088 |
NCP1#,SCP10..JPP W(ABS) |
1 | ||
| 90904-12088 |
NCP10,SCP10..JPP NISSIN KOGYO |
1 | ||
| 90413-10293 |
NCP10,SCP10..JPP W/O(ABS) |
1 | ||
| 90413-10293 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(ABS) |
1 | ||
| 90412-10640 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10140 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) AISIN SEIKI |
1 | ||
| 90904-12088 |
NCP1#,SCP10..JPP W(ABS) |
1 | ||
| 90904-12088 |
NCP10,SCP10..JPP NISSIN KOGYO |
1 | ||
| 90413-10293 |
NCP10,SCP10..JPP W/O(ABS) |
1 | ||
| 90413-10293 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(ABS) |
1 | ||
| 90412-10640 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47322-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47322-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47322-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47322-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52011 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LSPV) |
1 | ||
| 47322-52012 |
NCP1#,SCP10..JPP |
1 | ||
| 47322-52010 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-52070 |
NCP10,SCP10..JPP W(LSPV) |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-52021 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47323-52020 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47323-52090 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47323-52022 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-52080 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47324-52020 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47324-52022 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 47324-52021 |
SCP10..JPP..(SOL,TRSTD) D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-52030 |
NCP10,SCP10..JPP |
2 | ||
| Common parts | ||||
| 90119-08665 | ||||
| 90119-08868 | ||||
| 90468-08035 | ||||
| 91515-60645 | ||||
| 91635-40620 | ||||
ILLUST NO. 2 OF 3(9901- )JPP
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-52030 |
SCP10..JPP |
1 | ||
| 44050-52220 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 44050-52031 |
SCP10..JPP S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 44050-52190 |
SCP10..JPP D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-52010 |
NCP1#,NLP10,SCP10..JPP |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-52010 |
NCP1#,NLP10,SCP10..JPP |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-52010 |
NCP1#,NLP10,SCP10..JPP |
3 | ||
| 44578 - BOLT, BRAKE ACTUATOR CUSHION | ||||
| 44578-52010 |
NCP1#,NLP10,SCP10..JPP |
3 | ||
| 44578 - BOLT, BRAKE ACTUATOR CUSHION | ||||
| 44578-52010 |
NCP1#,NLP10,SCP10..JPP |
3 | ||
| 44578 - BOLT, BRAKE ACTUATOR CUSHION | ||||
| 44578-52010 |
NCP1#,NLP10,SCP10..JPP |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-52021 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| 44590-52020 |
NCP1#,SCP10..JPP..LHD |
1 | ||
| Common parts | ||||
| 90119-08589 | ||||
| 90119-08934 | ||||
| 90119-08C24 | ||||
| 90179-06074 | ||||
| 90179-06080 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
