Toyota Yaris (jpp) SCP10 CLUTCH HOUSING & TRANSMISSION CASE (MTM)

SCP10L-AHMGKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002

Engine 1SZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

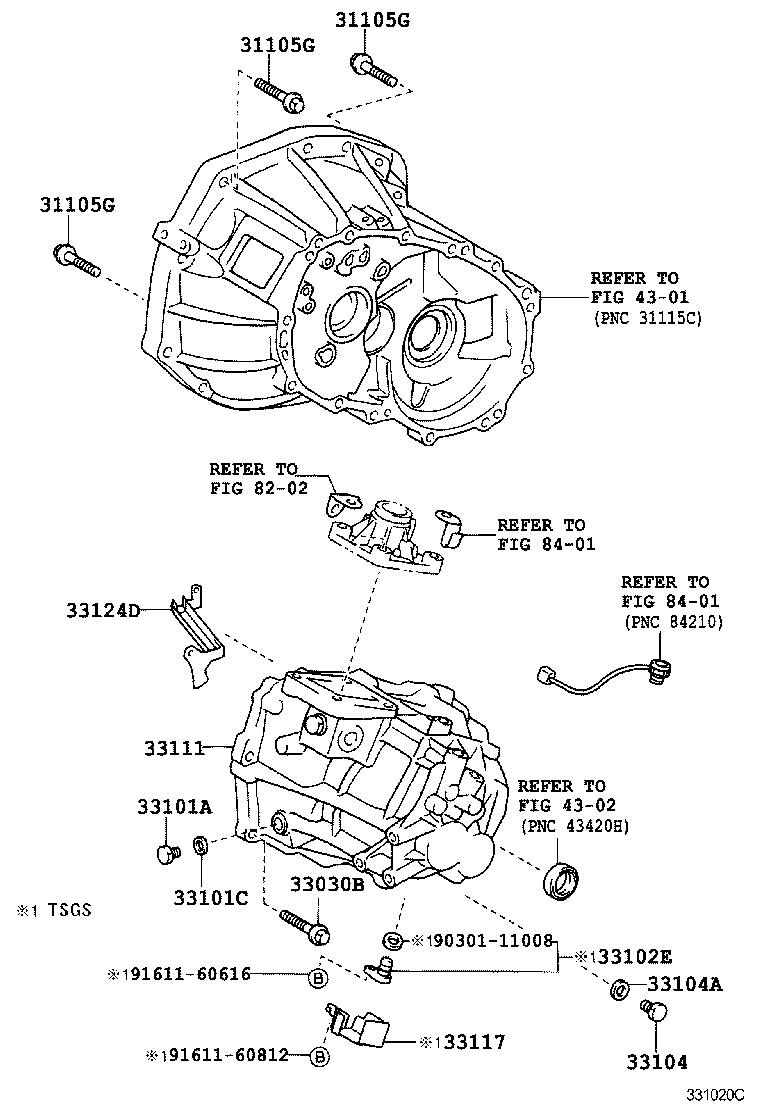

C551

Part #	Description	Period	Qty
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-08139	SCP10..JPP *8-1.25PX35-30	01/1999 - 12/2002	5
91619-61245	SCP10..JPP *12-1.25PX45-30	01/1999 - 12/2002	5
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-08139	SCP10..JPP *8-1.25PX35-30	01/1999 - 12/2002	5
91619-61245	SCP10..JPP *12-1.25PX45-30	01/1999 - 12/2002	5
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-08139	SCP10..JPP *8-1.25PX35-30	01/1999 - 12/2002	5
91619-61245	SCP10..JPP *12-1.25PX45-30	01/1999 - 12/2002	5
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08139	SCP10..JPP *8-1.25PX35-30	01/1999 - 12/2002	8
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006	NCP1#,NLP10,SCP10..JPP..5F	01/1999 - 12/2002	1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008	NCP1#,NLP10,SCP10..JPP..5F	01/1999 - 12/2002	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006	NCP1#,NLP10,SCP10..JPP..5F	01/1999 - 12/2002	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	NCP1#,NLP10,SCP10..JPP..5F	01/1999 - 12/2002	1
33111 - CASE, MANUAL TRANSMISSION
33111-52020	SCP10..JPP..(LUNA,SOL,TRSTD) W(FREE TRONIC)	01/1999 - 12/2002	1
33111-52010	SCP10..JPP..(LUNA,SOL,TRSTD)	01/1999 - 12/2002	1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-52010	SCP10..JPP	01/1999 - 12/2002	1
Common parts
90301-11008
91611-60616
91611-60812
Linked diagrams
4301
4302
8202
8401

Click highlighted areas on diagram

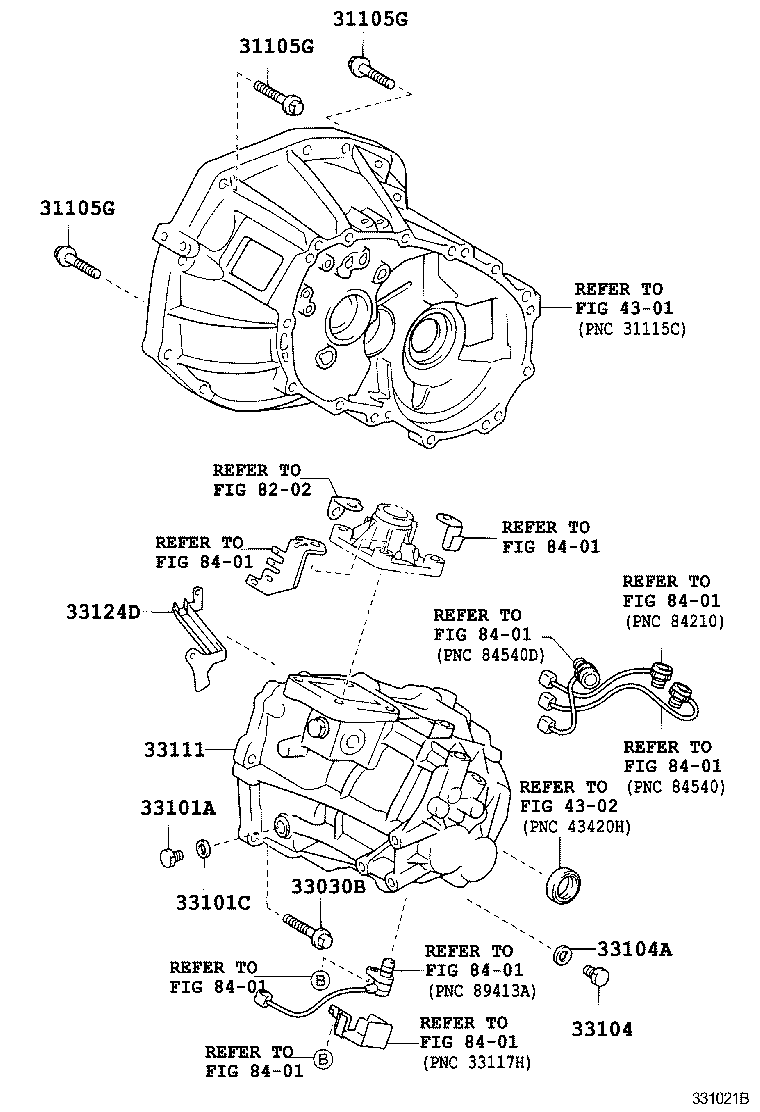

C551K,W(FREE TRONIC)

Part #	Description	Period	Qty
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-08139	SCP10..JPP *8-1.25PX35-30	01/1999 - 12/2002	5
91619-61245	SCP10..JPP *12-1.25PX45-30	01/1999 - 12/2002	5
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-08139	SCP10..JPP *8-1.25PX35-30	01/1999 - 12/2002	5
91619-61245	SCP10..JPP *12-1.25PX45-30	01/1999 - 12/2002	5
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-08139	SCP10..JPP *8-1.25PX35-30	01/1999 - 12/2002	5
91619-61245	SCP10..JPP *12-1.25PX45-30	01/1999 - 12/2002	5
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08139	SCP10..JPP *8-1.25PX35-30	01/1999 - 12/2002	8
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006	NCP1#,NLP10,SCP10..JPP..5F	01/1999 - 12/2002	1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008	NCP1#,NLP10,SCP10..JPP..5F	01/1999 - 12/2002	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006	NCP1#,NLP10,SCP10..JPP..5F	01/1999 - 12/2002	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	NCP1#,NLP10,SCP10..JPP..5F	01/1999 - 12/2002	1
33111 - CASE, MANUAL TRANSMISSION
33111-52020	SCP10..JPP..(LUNA,SOL,TRSTD) W(FREE TRONIC)	01/1999 - 12/2002	1
33111-52010	SCP10..JPP..(LUNA,SOL,TRSTD)	01/1999 - 12/2002	1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-52010	SCP10..JPP	01/1999 - 12/2002	1
Linked diagrams
4301
4302
8202
8401
