SCP10L-AHMGKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901-0212)1SZFE..JPP

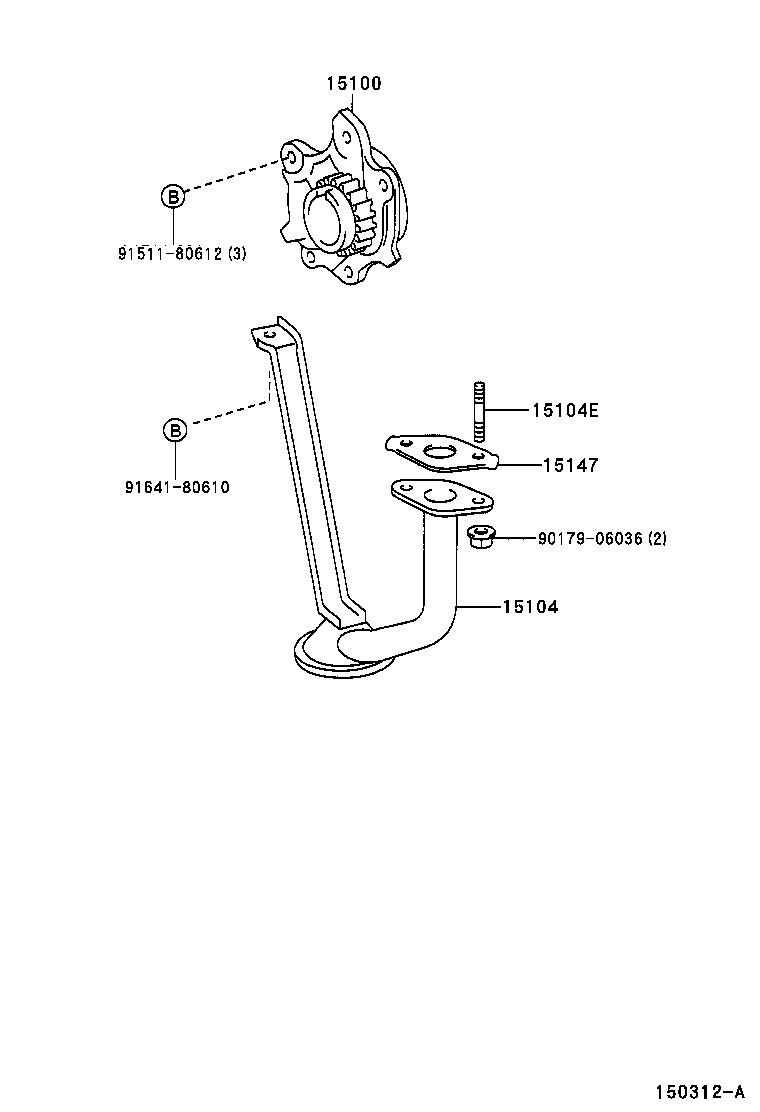

Click highlighted areas on diagram

diagram 15100 15104 15104E 15147 9017906036 9151180612 9164180610
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-23020

1SZFE..SCP10..JPP

 1
15104 - STRAINER SUB-ASSY, OIL
15104-23020

1SZFE..SCP10..JPP

 1
15104E - BOLT, STUD(FOR OIL STRAINER)
92122-60614

1SZFE..SCP10..JPP

 2
92122-B0614

1SZFE..SCP10..JPP

 2
15147 - GASKET, OIL STRAINER
15147-23020

1SZFE..SCP10..JPP

 1
Common parts
90179-06036
91511-80612
91641-80610
