SCP10L-AGMRKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901-0212)JPP..3D

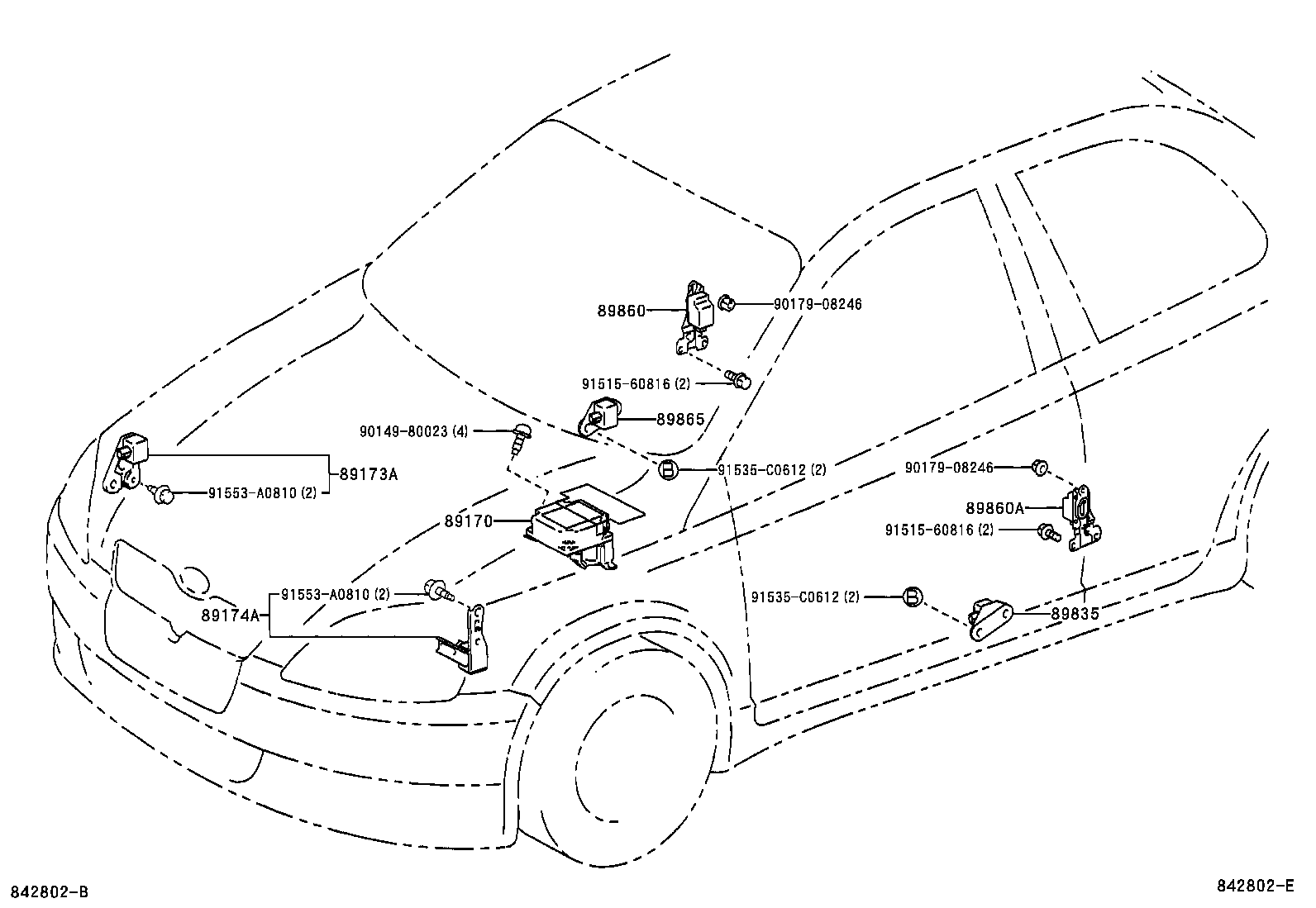

Click highlighted areas on diagram

diagram 89170 89173A 89174A 89835 89860 89860A 89865 9014980023 9017908246 9017908246 9151560816 9151560816 91535C0612 91535C0612 91553A0810 91553A0810
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-52030

NCP1#,SCP10..JPP

*80,DRIVER SIDE

 1
89170-52040

NCP1#,NLP10,SCP10..JPP

*80,DRIVER SIDE & PASSENGER SIDE

 1
89170-0D010

NCP1#,NLP10,SCP10..JPP..3D

*80,DRIVER SIDE & PASSENGER SIDE & SIDE

 1
89170-52090

NCP1#,NLP10,SCP10..JPP..3D

*80,DRIVER SIDE & PASSENGER SIDE & SIDE

 1
89170-52140

NCP1#,NLP10,SCP10..JPP

*80,DRIVER SIDE & PASSENGER SIDE

 1
89170-52130

NCP1#,NLP10,SCP10..JPP

*80,DRIVER SIDE

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-59125

NCP1#,NLP10,SCP10..JPP

 1
89173-59055

NCP10,SCP10..JPP

 1
89173-59225

NCP1#,NLP10,SCP10..JPP

 1
89174A - SENSOR, AIR BAG, FRONT LH
89174-59155

NCP1#,NLP10,SCP10..JPP

 1
89174-59065

NCP1#,NLP10,SCP10..JPP

 1
89174-59015

NCP10,SCP10..JPP

 1
89835 - SENSOR, DOOR SIDE AIR BAG, LH
89835-52010

NCP1#,NLP10,SCP10..JPP..3D

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89860-52020

NCP1#,NLP10,SCP10..JPP..3D

 1
89860-0D010

NCP1#,NLP10,SCP10..JPP..3D

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89830-52020

NCP1#,NLP10,SCP10..JPP..3D

 1
89830-0D010

NCP1#,NLP10,SCP10..JPP..3D

 1
89865 - SENSOR, DOOR SIDE AIR BAG, RH
89865-52010

NCP1#,NLP10,SCP10..JPP..3D

 1
Common parts
90149-80023
90179-08246
91515-60816
91535-C0612
91553-A0810
