SCP10L-AGMRKW (1999)
Toyota Yaris (Jpp)

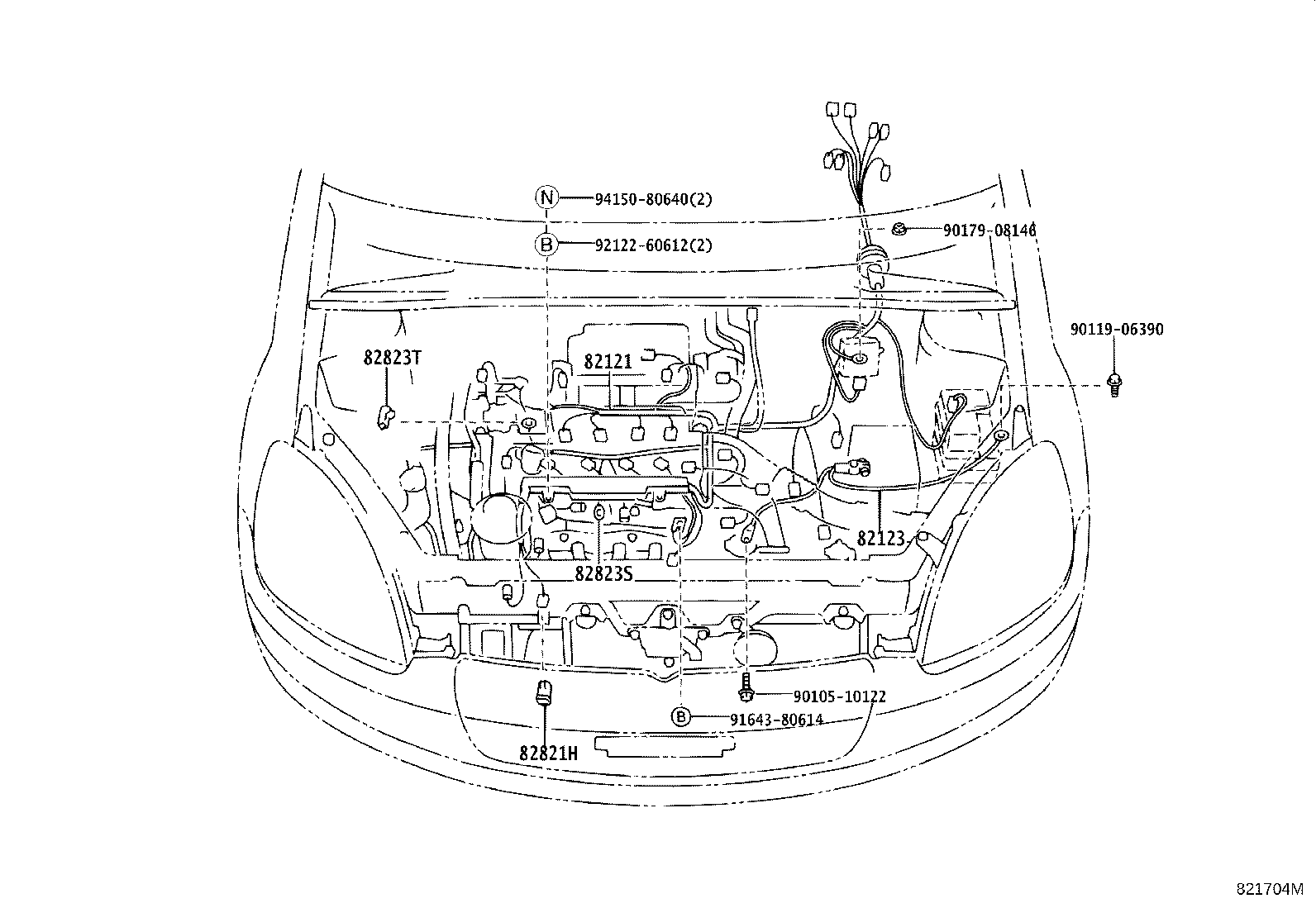

ILLUST NO. 2 OF 7(9901- )SCP10..JPP
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-52050 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) |
1 | ||
| 82121-52060 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(FREE TRONIC) |
1 | ||
| 82121-52051 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) |
1 | ||
| 82121-52062 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(FREE TRONIC) |
1 | ||
| 82121-52052 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) |
1 | ||
| 82121-52061 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(FREE TRONIC) |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-52020 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F |
1 | ||
| 82123-52070 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 82123-52071 |
NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-12400 |
SCP10..JPP..(LUNA,TRSTD) |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-20080 |
NCP1#,SCP10..JPP |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| Common parts | ||||
| 90105-10122 | ||||
| 90119-06390 | ||||
| 90179-08146 | ||||
| 91643-80614 | ||||
| 92122-60612 | ||||
| 94150-80640 | ||||

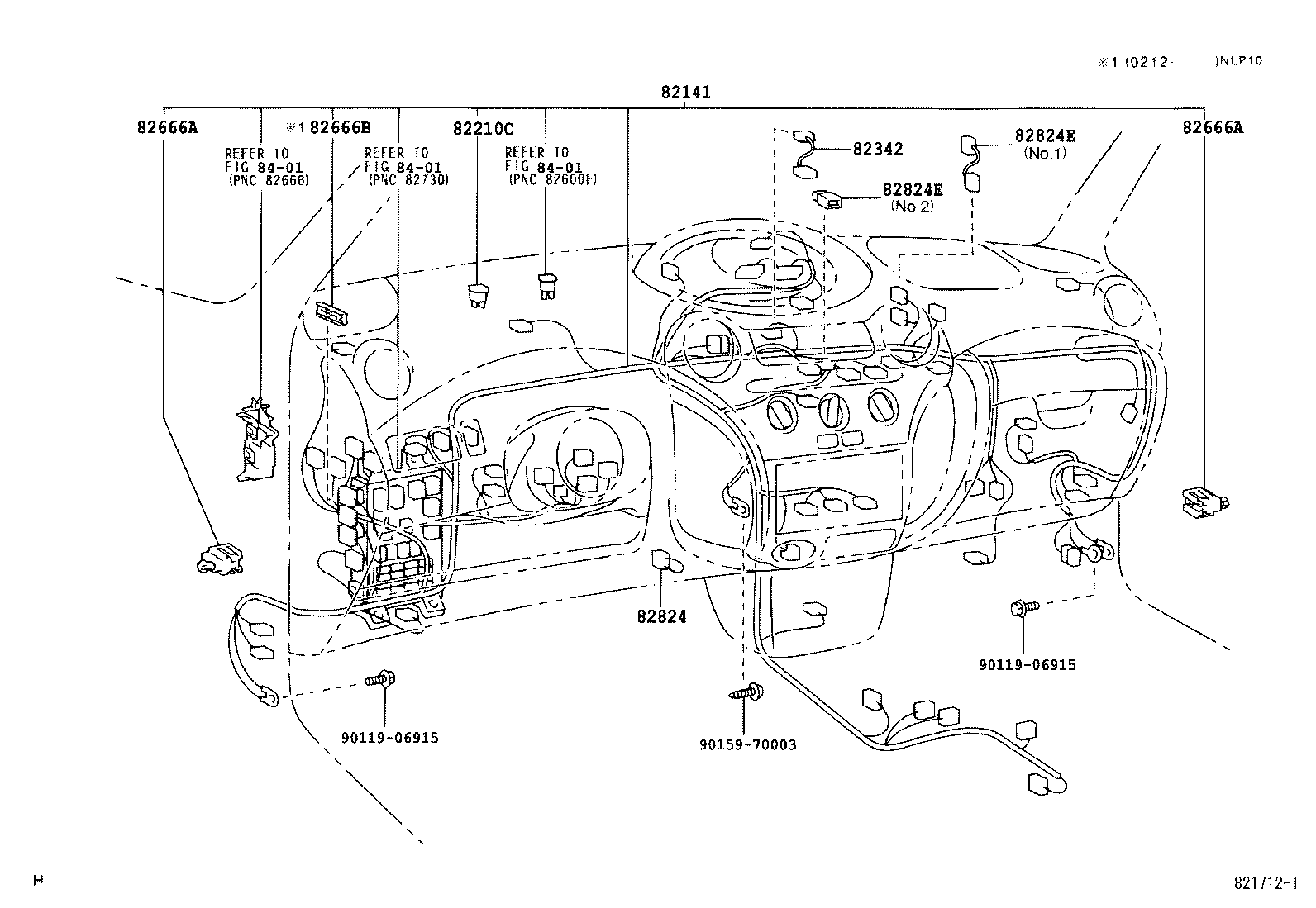

ILLUST NO. 3 OF 7(9901- )JPP..LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-52080 |
SCP10..JPP..LHD..TRSTD W(ANALOGUE METER) |
1 | ||
| 82141-52120 |
SCP10..JPP..LHD W(DIGITAL METER & FREE TRONIC) |
1 | ||
| 82141-52160 |
SCP10..JPP..LHD W(ANALOGUE METER & FREE TRONIC & MANUAL AIR CONDITIONER) |
1 | ||
| 82141-52150 |
SCP10..JPP..LHD W(ANALOGUE METER & MANUAL AIR CONDITIONER) |
1 | ||
| 82141-52100 |
SCP10..JPP..LHD W(ANALOGUE METER & FREE TRONIC) |
1 | ||
| 82141-52180 |
SCP10..JPP..LHD W(DIGITAL METER & FREE TRONIC & MANUAL AIR CONDITIONER) |
1 | ||
| 82141-52130 |
SCP10..JPP..LHD W(ANALOGUE METER & DAYTIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82141-52140 |
SCP10..JPP..LHD W(DIGITAL METER & DAYTIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82141-52090 |
SCP10..JPP..LHD W(ANALOGUE METER) & COLD SPEC OR W(ANALOGUE METER & POWER DOOR LOCK=DRIVER & PASSENGER) |
1 | ||
| 82141-52450 |
SCP10..JPP..LHD W(ANALOGUE METER & DAYTIME RUNNING LIGHT SYSTEM & FREE TRONIC) |
1 | ||
| 82141-52110 |
SCP10..JPP..LHD W(DIGITAL METER) |
1 | ||
| 82141-52091 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD)..5F W(ANALOGUE METER) |
1 | ||
| 82141-52111 |
SCP10..JPP..LHD..TRSTD W(DIGITAL METER & *80,DRIVER & PASSENGER) |
1 | ||
| 82141-52101 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(ANALOGUE METER & FREE TRONIC) |
1 | ||
| 82141-52121 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(DIGITAL METER & FREE TRONIC) |
1 | ||
| 82141-52460 |
SCP10..JPP..LHD W(DIGITAL METER & DAYTIME RUNNING LIGHT SYSTEM & FREE TRONIC) |
1 | ||
| 82141-52151 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD)..5F W(ANALOGUE METER & MANUAL AIR CONDITIONER) |
1 | ||
| 82141-52181 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(DIGITAL METER & FREE TRONIC & MANUAL AIR CONDITIONER) |
1 | ||
| 82141-52141 |
NCP10,SCP10..JPP..LHD..5F W(DIGITAL METER & DAYTIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82141-52131 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD)..5F W(ANALOGUE METER & DAYTIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82141-52170 |
SCP10..JPP..LHD W(DIGITAL METER & MANUAL AIR CONDITIONER) |
1 | ||
| 82141-52171 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(DIGITAL METER & MANUAL AIR CONDITIONER) |
1 | ||
| 82145-52100 |
SCP10..JPP..LHD..(LUNA,TRSTD) W(DIGITAL METER) |
1 | ||
| 82141-52451 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(ANALOGUE METER & DAYTIME RUNNING LIGHT SYSTEM & FREE TRONIC) |
1 | ||
| 82141-52161 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(ANALOGUE METER & FREE TRONIC & MANUAL AIR CONDITIONER) |
1 | ||
| 82141-52152 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD)..5F W(ANALOGUE METER & MANUAL AIR CONDITIONER) |
1 | ||
| 82141-52132 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD)..5F W(ANALOGUE METER & DAYTIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82141-52142 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(DIGITAL METER & DAYTIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82141-52122 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(DIGITAL METER & FREE TRONIC) |
1 | ||
| 82141-52162 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(ANALOGUE METER & FREE TRONIC & MANUAL AIR CONDITIONER) |
1 | ||
| 82141-52461 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(DIGITAL METER & DAYTIME RUNNING LIGHT SYSTEM & FREE TRONIC) |
1 | ||
| 82141-52092 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD)..5F W(ANALOGUE METER) |
1 | ||
| 82141-52102 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(ANALOGUE METER & FREE TRONIC) |
1 | ||
| 82141-52112 |
SCP10..JPP..LHD..TRSTD W(DIGITAL METER & *80,DRIVER & PASSENGER) |
1 | ||
| 82141-52141 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(DIGITAL METER & DAYTIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82141-52462 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(DIGITAL METER & DAYTIME RUNNING LIGHT SYSTEM & FREE TRONIC) |
1 | ||
| 82145-52101 |
SCP10..JPP..LHD..(LUNA,TRSTD) W(DIGITAL METER) |
1 | ||
| 82141-52182 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(DIGITAL METER & FREE TRONIC & MANUAL AIR CONDITIONER) |
1 | ||
| 82141-52452 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(ANALOGUE METER & DAYTIME RUNNING LIGHT SYSTEM & FREE TRONIC) |
1 | ||
| 82141-52172 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(DIGITAL METER & MANUAL AIR CONDITIONER) |
1 | ||
| 82141-52123 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(DIGITAL METER & FREE TRONIC) |
1 | ||
| 82141-52133 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD)..5F W(ANALOGUE METER & DAYTIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82141-52153 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD)..5F W(ANALOGUE METER & MANUAL AIR CONDITIONER) |
1 | ||
| 82141-52143 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(DIGITAL METER & DAYTIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82141-52453 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(ANALOGUE METER & DAYTIME RUNNING LIGHT SYSTEM & FREE TRONIC) |
1 | ||
| 82141-52173 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(DIGITAL METER & MANUAL AIR CONDITIONER) |
1 | ||
| 82141-52093 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD)..5F W(ANALOGUE METER) |
1 | ||
| 82141-52163 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(ANALOGUE METER & FREE TRONIC & MANUAL AIR CONDITIONER) |
1 | ||
| 82141-52113 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(DIGITAL METER & *80,DRIVER & PASSENGER) |
1 | ||
| 82141-52103 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(ANALOGUE METER & FREE TRONIC) |
1 | ||
| 82141-52463 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(DIGITAL METER & DAYTIME RUNNING LIGHT SYSTEM & FREE TRONIC) |
1 | ||
| 82141-52183 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(DIGITAL METER & FREE TRONIC & MANUAL AIR CONDITIONER) |
1 | ||
| 82141-52094 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD)..5F W(ANALOGUE METER) |
1 | ||
| 82145-52102 |
SCP10..JPP..LHD..(LUNA,TRSTD) W(DIGITAL METER) |
1 | ||
| 82141-52104 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(ANALOGUE METER & FREE TRONIC) |
1 | ||
| 82141-52144 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82141-52154 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD)..5F W(ANALOGUE METER & MANUAL AIR CONDITIONER) |
1 | ||
| 82141-52174 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(DIGITAL METER & MANUAL AIR CONDITIONER) |
1 | ||
| 82141-52184 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) |
1 | ||
| 82141-52164 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(ANALOGUE METER & FREE TRONIC & MANUAL AIR CONDITIONER) |
1 | ||
| 82141-52124 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(DIGITAL METER & FREE TRONIC) |
1 | ||
| 82141-52134 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD)..5F W(ANALOGUE METER & DAYTIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82141-52114 |
NCP10..JPP..LHD..4FC;NCP10..JPP..LHD..LUNA;NCP10..JPP..LHD..5D..SOL..5F;SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(DIGITAL METER & *80,DRIVER & PASSENGER) |
1 | ||
| 82141-52454 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(ANALOGUE METER & DAYTIME RUNNING LIGHT SYSTEM & FREE TRONIC) |
1 | ||
| 82141-52464 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(DIGITAL METER & DAYTIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82145-52103 |
SCP10..JPP..LHD..(LUNA,TRSTD) W(DIGITAL METER W/TACHO) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08285 |
NCP1#,NLP10,SCP10..JPP 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08283 |
NCP1#,NLP10,SCP10..JPP 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
NCP13..JPP;SCP10..JPP..LHD..(LUNA,TRSTD,TSGS) 40A,TERM.:FEMALE,GRN |
1 | ||
| 82342 - WIRE, CLOCK | ||||
| 82342-52010 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-52020 |
NCP10,SCP10..JPP |
2 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-52020 |
NCP10,SCP10..JPP |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-52100 |
NCP10,SCP10..JPP..(LUNA,TRSTD) |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-52110 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) NO.1 |
1 | ||
| 82824-52110 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-52110 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) NO.1 |
1 | ||
| 82824-52110 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-70003 | ||||
| Linked diagrams | ||||
| 8401 | ||||

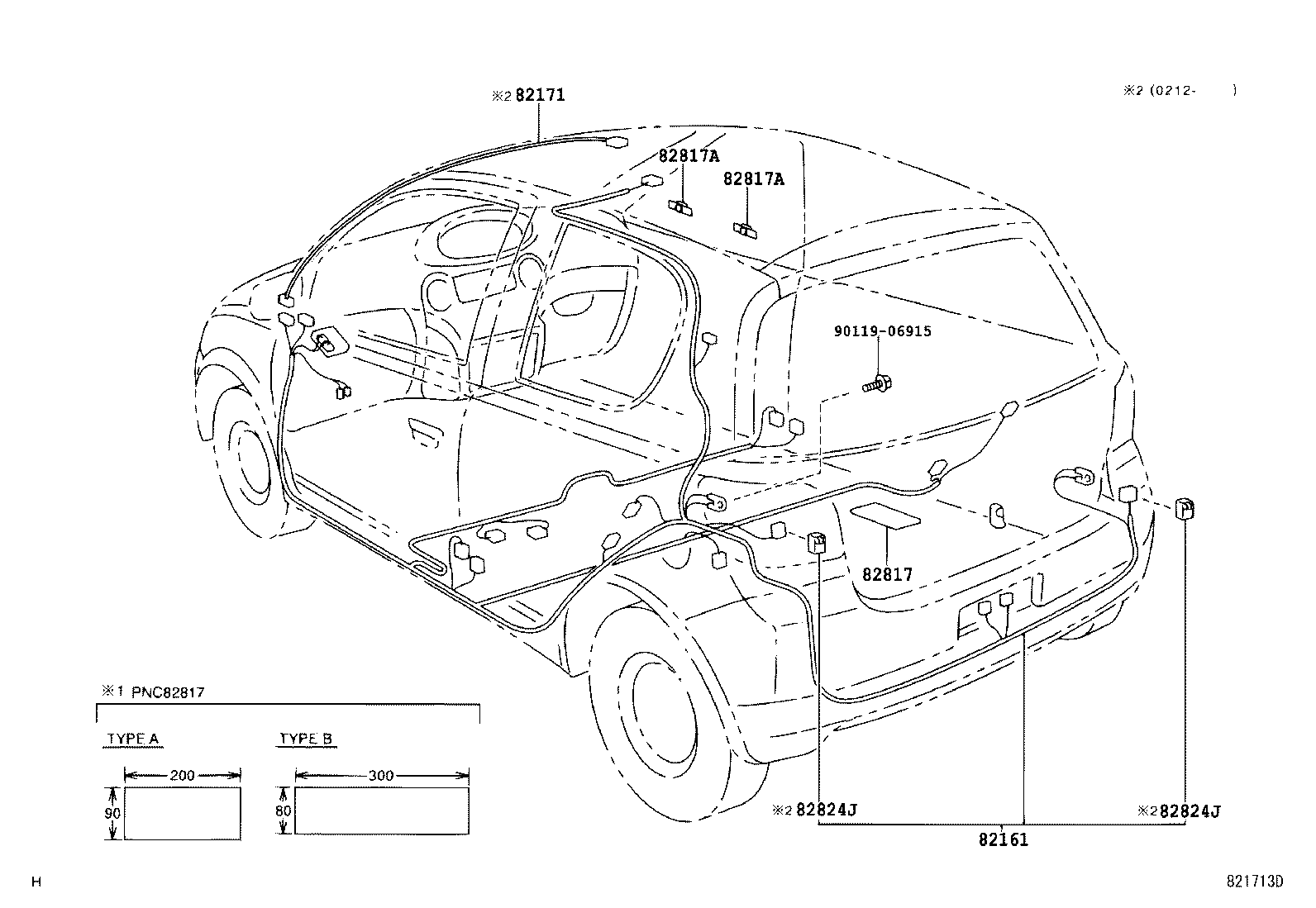

ILLUST NO. 5 OF 7(9901- )JPP
FLOOR,ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-52100 |
NCP10,SCP10..JPP..LHD..3D..(LUNA,TRSTD,TSGS) |
1 | ||
| 82161-52570 |
NCP10,SCP10..JPP..LHD..3D..(LUNA,TRSTD,TSGS) W(*80,DRIVER SIDE & PASSENGER SIDE & SIDE) |
1 | ||
| 82161-52581 |
NCP10,NLP10,SCP10..JPP..LHD..3D..(LUNA,SOL,TRSTD) W(*80,DRIVER SIDE & PASSENGER SIDE & SIDE & POWER DOOR LOCK = DRIVER & PASSENGER) |
1 | ||
| 82161-52571 |
NCP10,NLP10,SCP10..JPP..LHD..3D..(LUNA,TRSTD,TSGS) W(*80,DRIVER SIDE & PASSENGER SIDE & SIDE) |
1 | ||
| 82161-52090 |
NCP10,SCP10..JPP..LHD..3D..(LUNA,SOL,TRSTD) W(POWER DOOR LOCK = DRIVER & PASSENGER) |
1 | ||
| 82161-52100 |
NCP10,NLP10,SCP10..JPP..LHD..3D..(LUNA,TRSTD) |
1 | ||
| 82161-52580 |
NCP10,SCP10..JPP..LHD..3D..(LUNA,SOL,TRSTD) W(*80,DRIVER SIDE & PASSENGER SIDE & SIDE & POWER DOOR LOCK = DRIVER & PASSENGER) |
1 | ||
| 82161-52091 |
NCP10,NLP10,SCP10..JPP..LHD..3D..(LUNA,SOL,TRSTD) W(POWER DOOR LOCK = DRIVER & PASSENGER) |
1 | ||
| 82161-52080 |
NCP10,NLP10,SCP10..JPP..LHD..3D..(LUNA,TRSTD,TSGS) W(ABS) OR W(SEAT HEATER) |
1 | ||
| 82161-52582 |
NCP10,NLP10,SCP10..JPP..LHD..3D..(LUNA,SOL,TRSTD) W(SEAT HEATER(DRIVER SIDE)) |
1 | ||
| 82161-52572 |
NCP10,NLP10,SCP10..JPP..LHD..3D..(LUNA,TRSTD,TSGS) W(ABS) |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-30150 |
NCP1#,NLP10,SCP10..JPP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82817-16100 |
NCP1#,NLP10,SCP10..JPP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-52020 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-52020 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||

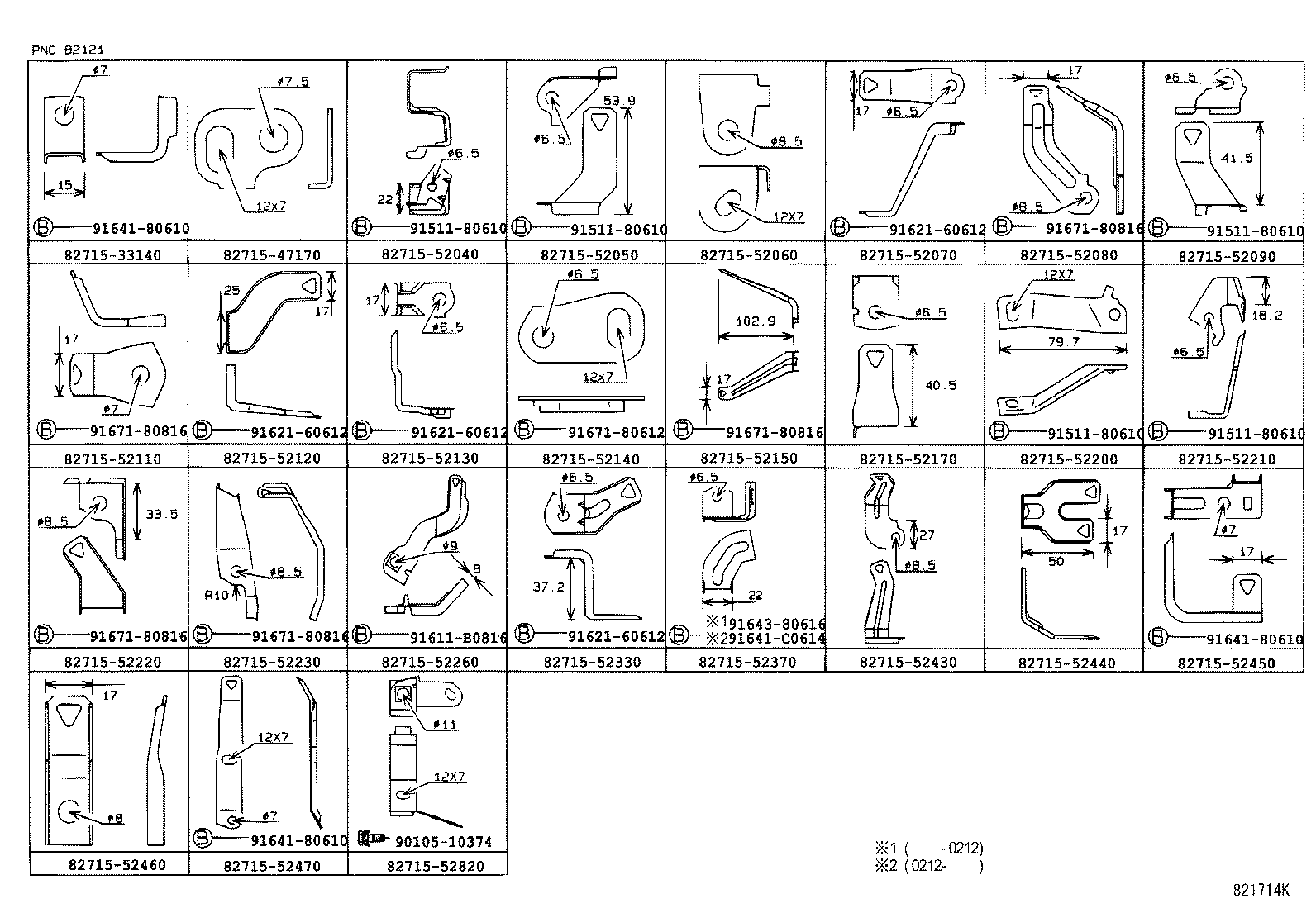

ILLUST NO. 6 OF 7(9901- )JPP
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-33140 | ||||
| 82715-47170 | ||||
| 82715-52040 | ||||
| 82715-52050 | ||||
| 82715-52060 | ||||
| 82715-52070 | ||||
| 82715-52080 | ||||
| 82715-52090 | ||||
| 82715-52110 | ||||
| 82715-52120 | ||||
| 82715-52130 | ||||
| 82715-52140 | ||||
| 82715-52150 | ||||
| 82715-52170 | ||||
| 82715-52200 | ||||
| 82715-52210 | ||||
| 82715-52220 | ||||
| 82715-52230 | ||||
| 82715-52260 | ||||
| 82715-52330 | ||||
| 82715-52370 | ||||
| 82715-52430 | ||||
| 82715-52440 | ||||
| 82715-52450 | ||||
| 82715-52460 | ||||
| 82715-52470 | ||||
| 82715-52820 | ||||
| 90105-10374 | ||||
| 91511-80610 | ||||
| 91611-B0816 | ||||
| 91621-60612 | ||||
| 91641-80610 | ||||
| 91641-C0614 | ||||
| 91643-80616 | ||||
| 91671-80612 | ||||
| 91671-80816 | ||||

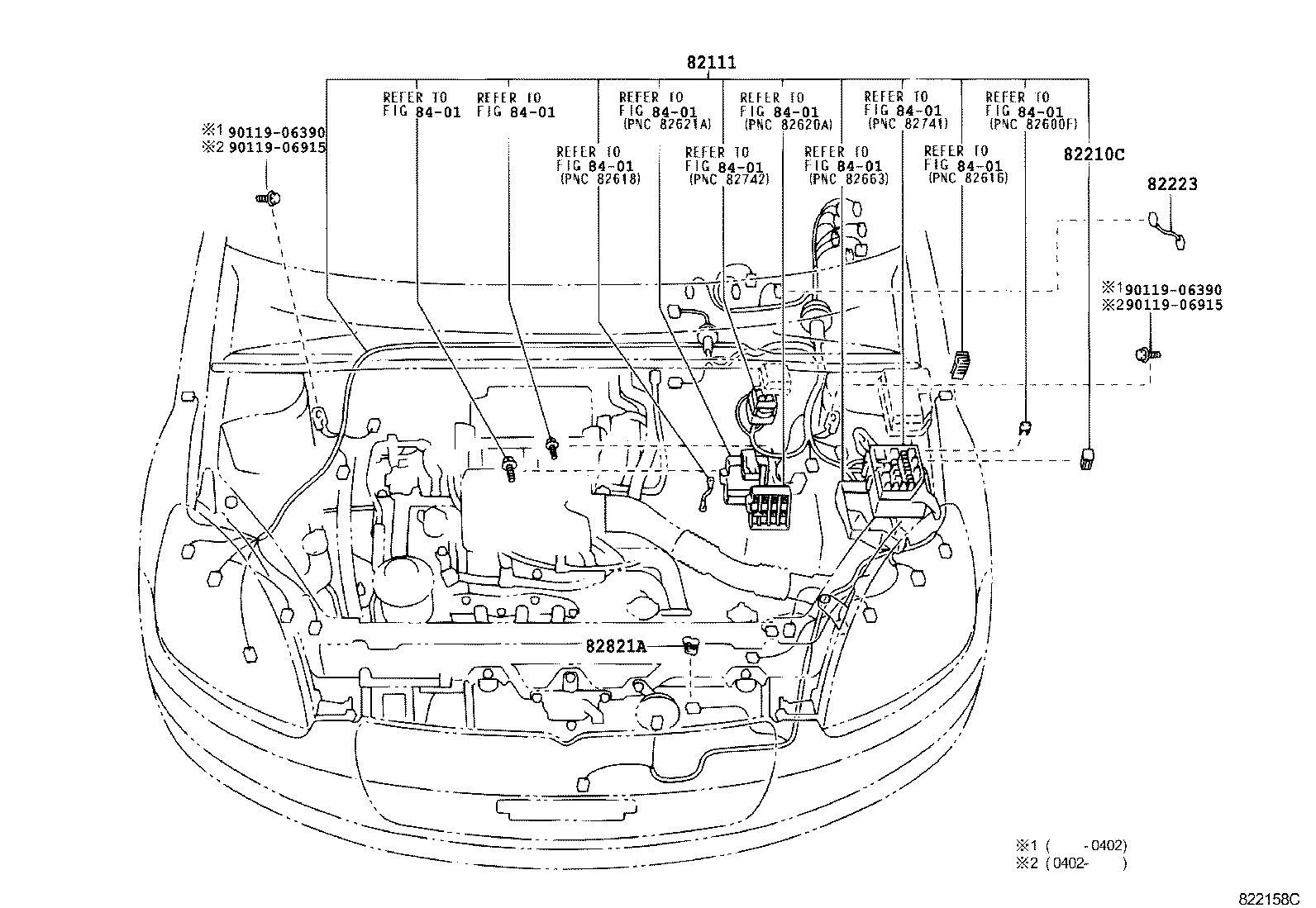

ILLUST NO. 1 OF 7(9901- )JPP..LHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-52070 |
SCP10..JPP..LHD |
1 | ||
| 82111-52130 |
SCP10..JPP..LHD W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-52080 |
SCP10..JPP..LHD COLD SPEC & W(HEATER AIR INLET MODE+AIR HEATER300W) |
1 | ||
| 82111-52141 |
NCP10,SCP10..JPP..LHD..5F COLD SPEC & W(*DRL & HEATER AIR INLET MODE+AIR HEATER300W) |
1 | ||
| 82111-52140 |
SCP10..JPP..LHD W(ABS & DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-52120 |
SCP10..JPP..LHD W(ABS) |
1 | ||
| 82111-52131 |
NCP10,SCP10..JPP..LHD..5F COLD SPEC & W(*DRL & HEATER AIR INLET MODE+AIR HEATER600W) |
1 | ||
| 82111-52110 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(FREE TRONIC) |
1 | ||
| 82111-52180 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(FREE TRONIC & MANUAL AIR CONDITIONER) |
1 | ||
| 82111-52190 |
SCP10..JPP..LHD W(ABS & MANUAL AIR CONDITIONER) |
1 | ||
| 82111-52100 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) COLD SPEC & W(ABS & HEATER AIR INLET MODE+AIR HEATER600W) |
1 | ||
| 82111-52071 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) |
1 | ||
| 82111-52090 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) COLD SPEC & W(HEATER AIR INLET MODE+AIR HEATER600W) |
1 | ||
| 82111-52131 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) COLD SPEC & W(*DRL & HEATER AIR INLET MODE+AIR HEATER600W) |
1 | ||
| 82111-52121 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(ABS) |
1 | ||
| 82111-52141 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) COLD SPEC & W(*DRL & HEATER AIR INLET MODE+AIR HEATER300W) |
1 | ||
| 82111-52191 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(ABS & MANUAL AIR CONDITIONER) |
1 | ||
| 82111-52151 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(MANUAL AIR CONDITIONER) |
1 | ||
| 82111-52150 |
SCP10..JPP..LHD W(MANUAL AIR CONDITIONER) |
1 | ||
| 82111-52181 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(FREE TRONIC & MANUAL AIR CONDITIONER) |
1 | ||
| 82111-52132 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) COLD SPEC & W(*DRL & HEATER AIR INLET MODE+AIR HEATER600W) |
1 | ||
| 82111-52192 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(ABS & MANUAL AIR CONDITIONER) |
1 | ||
| 82111-52142 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) COLD SPEC & W(*DRL & HEATER AIR INLET MODE+AIR HEATER300W) |
1 | ||
| 82111-52101 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) COLD SPEC & W(ABS & HEATER AIR INLET MODE+AIR HEATER600W) |
1 | ||
| 82111-52122 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(ABS) |
1 | ||
| 82111-52153 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(MANUAL AIR CONDITIONER) |
1 | ||
| 82111-52111 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(FREE TRONIC) |
1 | ||
| 82111-52152 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(MANUAL AIR CONDITIONER) |
1 | ||
| 82111-52193 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(ABS & MANUAL AIR CONDITIONER) |
1 | ||
| 82111-52072 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) |
1 | ||
| 82111-52091 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) COLD SPEC & W(HEATER AIR INLET MODE+AIR HEATER600W) |
1 | ||
| 82111-52182 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(FREE TRONIC & MANUAL AIR CONDITIONER) |
1 | ||
| 82111-52092 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) COLD SPEC & W(HEATER AIR INLET MODE+AIR HEATER600W) |
1 | ||
| 82111-52102 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) COLD SPEC & W(ABS & HEATER AIR INLET MODE+AIR HEATER600W) |
1 | ||
| 82111-52143 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) COLD SPEC & W(*DRL & HEATER AIR INLET MODE+AIR HEATER300W) |
1 | ||
| 82111-52133 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) COLD SPEC & W(*DRL & HEATER AIR INLET MODE+AIR HEATER600W) |
1 | ||
| 82111-52112 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(FREE TRONIC) |
1 | ||
| 82111-52154 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(MANUAL AIR CONDITIONER) |
1 | ||
| 82111-52194 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(ABS & MANUAL AIR CONDITIONER) |
1 | ||
| 82111-52123 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(ABS) |
1 | ||
| 82111-52073 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) |
1 | ||
| 82111-52144 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) COLD SPEC & W(*DRL & HEATER AIR INLET MODE+AIR HEATER300W) |
1 | ||
| 82111-52134 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) COLD SPEC & W(*DRL & HEATER AIR INLET MODE+AIR HEATER600W) |
1 | ||
| 82111-52124 |
NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(ABS) |
1 | ||
| 82111-52183 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(FREE TRONIC & MANUAL AIR CONDITIONER) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08285 |
NCP1#,NLP10,SCP10..JPP 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08283 |
NCP1#,NLP10,SCP10..JPP 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
NCP13..JPP;SCP10..JPP..LHD..(LUNA,TRSTD,TSGS) 40A,TERM.:FEMALE,GRN |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-10050 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8401 | ||||

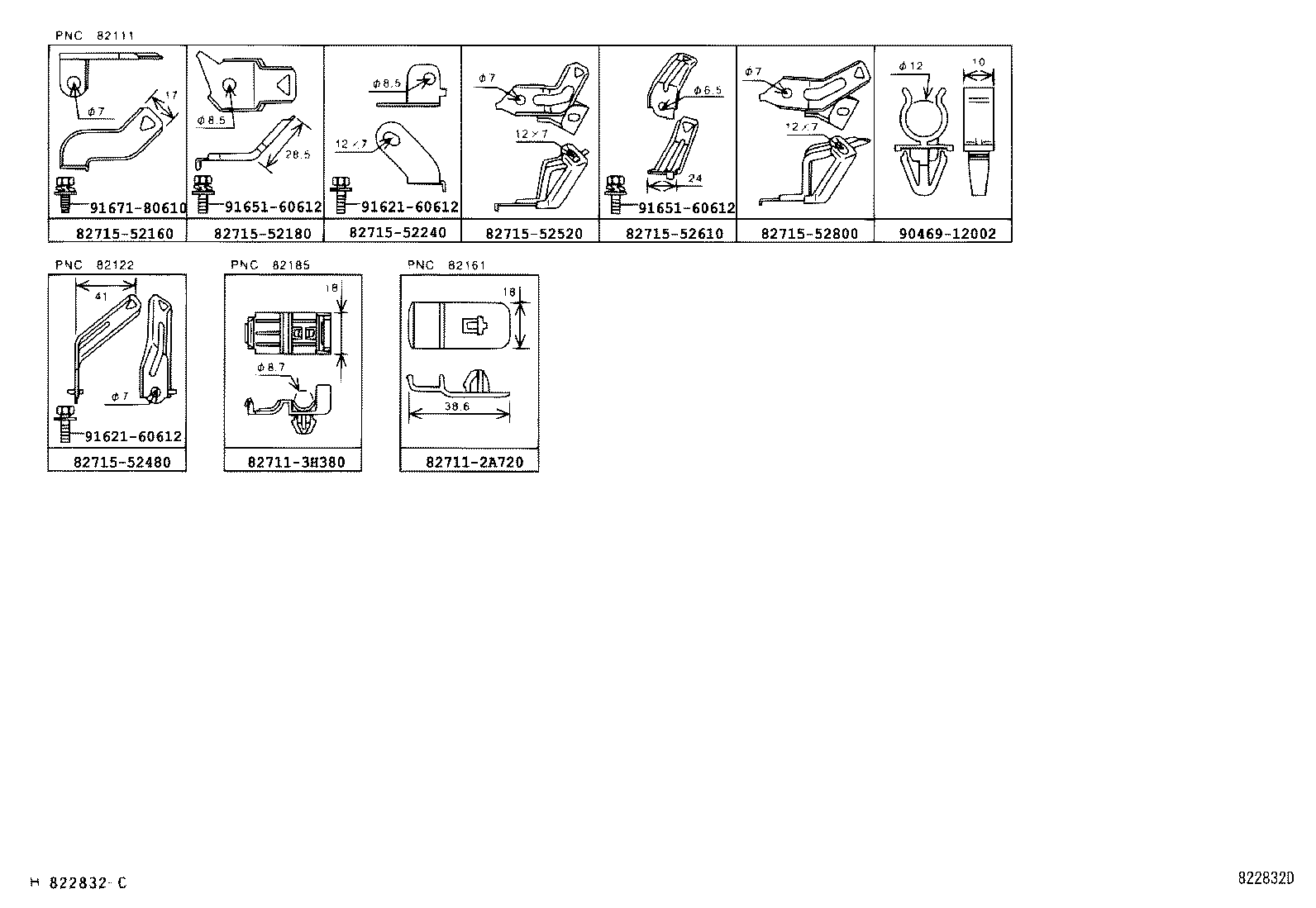

ILLUST NO. 6 OF 7(9901- )JPP
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-2A720 | ||||
| 82711-3H380 | ||||
| 82715-52160 | ||||
| 82715-52180 | ||||
| 82715-52240 | ||||
| 82715-52480 | ||||
| 82715-52520 | ||||
| 82715-52610 | ||||
| 82715-52800 | ||||
| 90469-12002 | ||||
| 91621-60612 | ||||
| 91651-60612 | ||||
| 91671-80610 | ||||

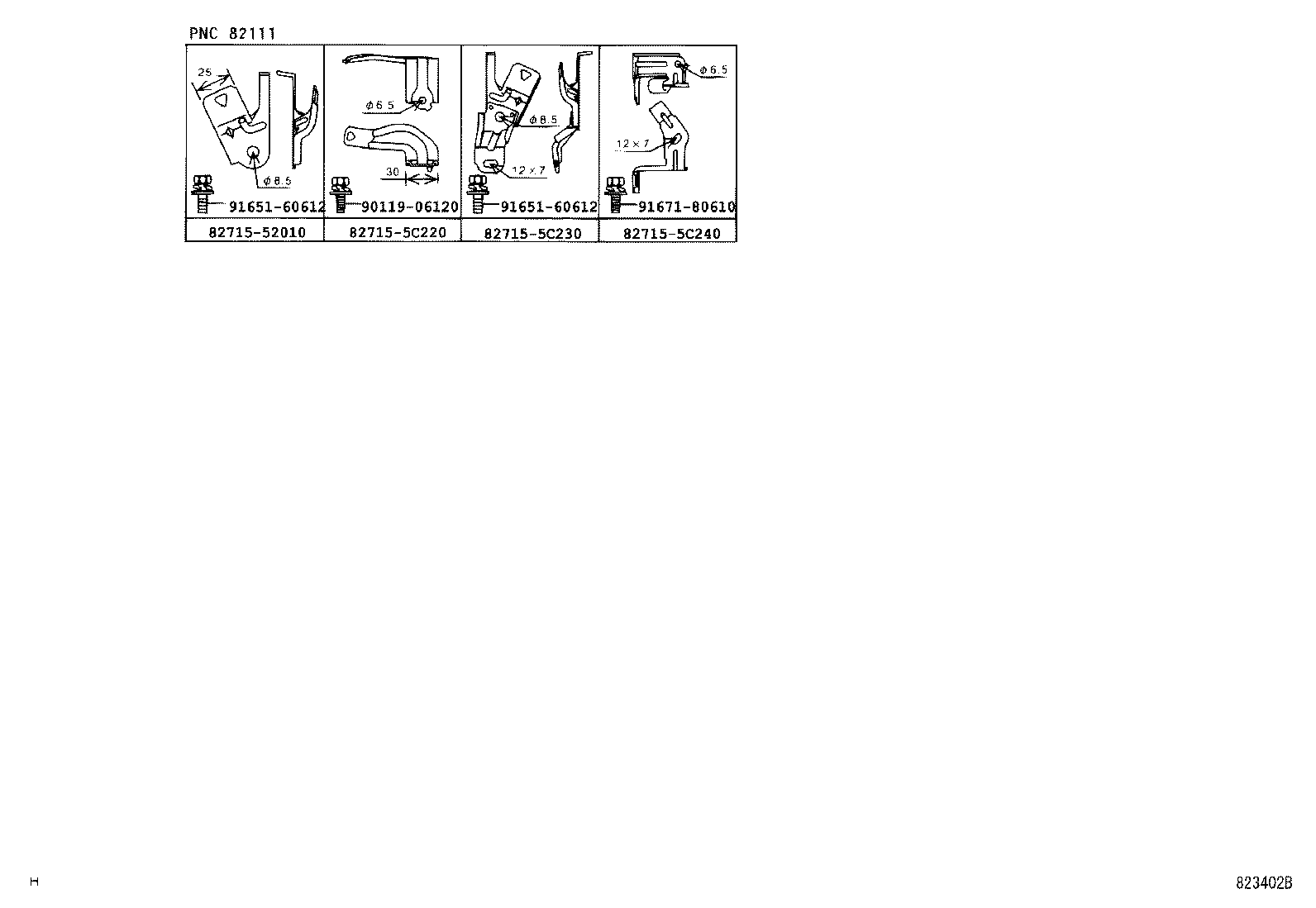

ILLUST NO. 6 OF 7(9901- )JPP
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-52010 | ||||
| 82715-5C220 | ||||
| 82715-5C230 | ||||
| 82715-5C240 | ||||
| 90119-06120 | ||||
| 91651-60612 | ||||
| 91671-80610 | ||||

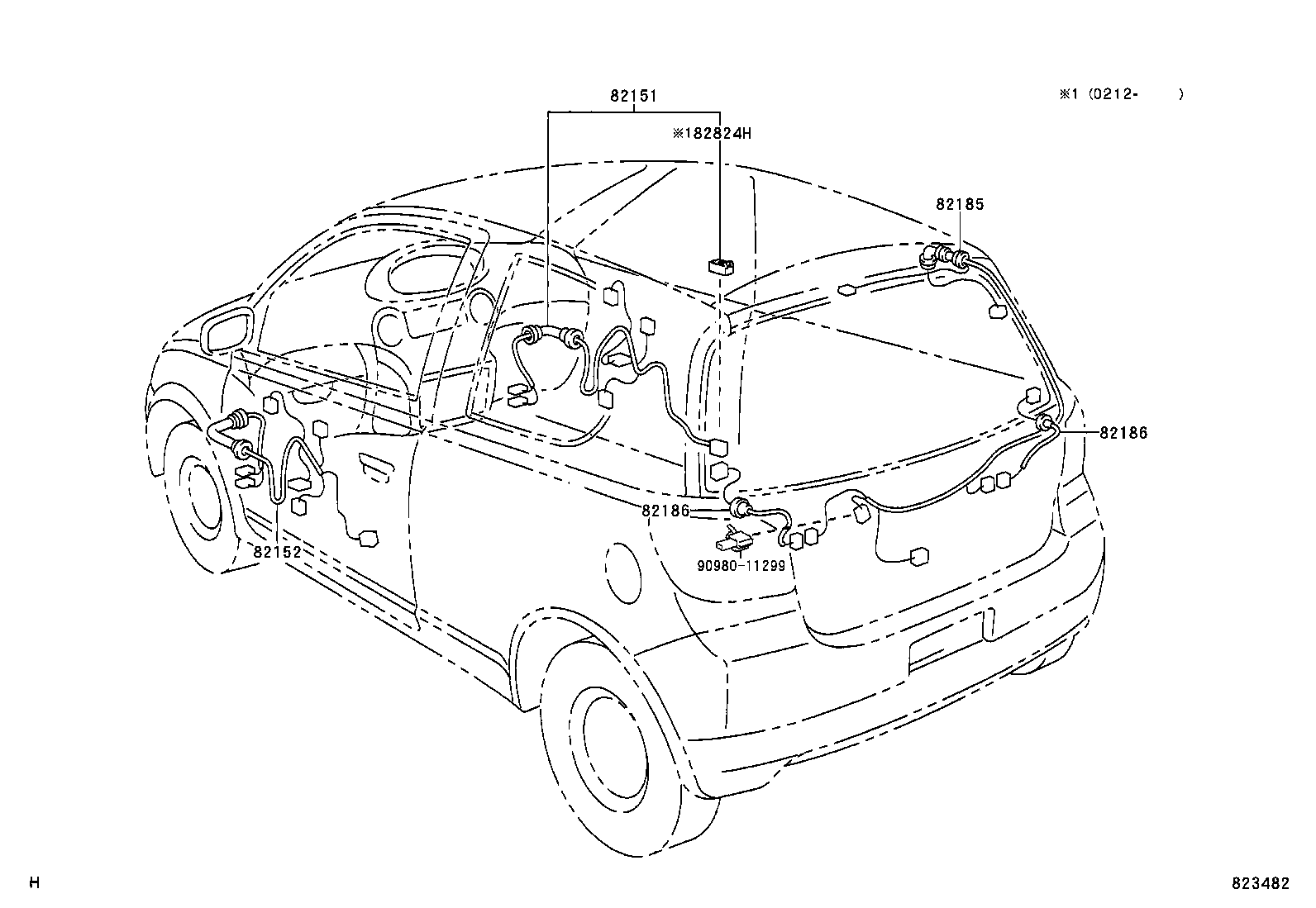

ILLUST NO. 4 OF 7(9901- )JPP..3D
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-52010 |
SCP10..JPP..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER) |
1 | ||
| 82151-52060 |
SCP10..JPP..LHD..3D W(POWER DOOR LOCK = DRIVER & PASSENGER & POWER WINDOW = FRONT ONLY) |
1 | ||
| 82151-52050 |
SCP10..JPP..LHD..3D..TRSTD W(POWER DOOR LOCK = DRIVER & PASSENGER) |
1 | ||
| 82151-52061 |
NCP1#,NLP10,SCP10..JPP..LHD..3D..(LUNA,SOL,TRSTD,TS) W(POWER DOOR LOCK = DRIVER & PASSENGER & POWER WINDOW = FRONT ONLY) |
1 | ||
| 82151-52051 |
NCP10,NLP10,SCP10..JPP..LHD..3D..(LUNA,TRSTD) W(POWER DOOR LOCK = DRIVER & PASSENGER) |
1 | ||
| 82151-52150 |
NCP10,SCP10..JPP..3D..(LUNA,TRSTD,TSGS) W(*80,DRIVER SIDE & PASSENGER SIDE & SIDE) |
1 | ||
| 82151-52360 |
NCP10,SCP10..JPP..LHD..3D..(LUNA,SOL,TRSTD) W(*80,DRIVER SIDE & PASSENGER SIDE & SIDE & POWER WINDOW=FRONT ONLY) |
1 | ||
| 82151-52011 |
NCP1#,NLP10,SCP10..JPP..(LUNA,TRSTD,TS) W/O(POWER DOOR LOCK) |
1 | ||
| 82151-52350 |
NCP10,NLP10,SCP10..JPP..LHD..3D..(LUNA,TRSTD) W(*80,DRIVER SIDE & PASSENGER SIDE & SIDE & POWER DOOR LOCK = DRIVER & PASSENGER) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-52010 |
SCP10..JPP..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER) |
1 | ||
| 82152-52060 |
SCP10..JPP..LHD..3D W(POWER DOOR LOCK = DRIVER & PASSENGER & POWER WINDOW = FRONT ONLY) |
1 | ||
| 82152-52050 |
SCP10..JPP..LHD..3D..TRSTD W(POWER DOOR LOCK = DRIVER & PASSENGER) |
1 | ||
| 82152-52011 |
NCP1#,NLP10,SCP10..JPP..(LUNA,TRSTD,TS) W/O(POWER DOOR LOCK) |
1 | ||
| 82152-52051 |
NCP10,NLP10,SCP10..JPP..LHD..3D..(LUNA,TRSTD) W(POWER DOOR LOCK = DRIVER & PASSENGER) |
1 | ||
| 82152-52061 |
NCP1#,NLP10,SCP10..JPP..LHD..3D..(LUNA,SOL,TRSTD,TS) W(POWER DOOR LOCK = DRIVER & PASSENGER & POWER WINDOW = FRONT ONLY) |
1 | ||
| 82152-52300 |
NCP10,NLP10,SCP10..JPP..LHD..3D..(LUNA,TRSTD) W(*80,DRIVER SIDE & PASSENGER SIDE & SIDE & POWER DOOR LOCK = DRIVER & PASSENGER) |
1 | ||
| 82152-52270 |
NCP10,SCP10..JPP..3D..(LUNA,TRSTD,TSGS) W(*80,DRIVER SIDE & PASSENGER SIDE & SIDE) |
1 | ||
| 82152-52310 |
NCP10,SCP10..JPP..LHD..3D..(LUNA,SOL,TRSTD) W(*80,DRIVER SIDE & PASSENGER SIDE & SIDE & POWER WINDOW=FRONT ONLY) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-52060 |
NCP1#,NLP10,SCP10..JPP..(LUNA,TRSTD,TS,TSGS) W/O(POWER DOOR LOCK) |
1 | ||
| 82185-52150 |
NCP1#,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) W(KEY LESS ENTRY) |
1 | ||
| 82185-52070 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) W(POWER DOOR LOCK = DRIVER & PASSENGER) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-52010 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-52010 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| Common parts | ||||
| 90980-11299 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
