SCP10L-AGMRKW (1999)
Toyota Yaris (Jpp)
ILLUST NO. 2 OF 2(9908- )JPP
W(REAR DISC BRAKE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-52010 |
NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 46503-52011 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-52010 |
NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 46504-52011 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-20080 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46540-20080 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90905-06044 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) LH |
1 | ||
| 90905-06045 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) RH |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90905-06046 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
2 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90905-06043 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
2 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-20080 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46540-20080 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-32010 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-32010 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 47446-32010 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
4 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 47446-32010 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
4 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-11010 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
4 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47601-32030 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47602-32030 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-32030 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47613-32030 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||

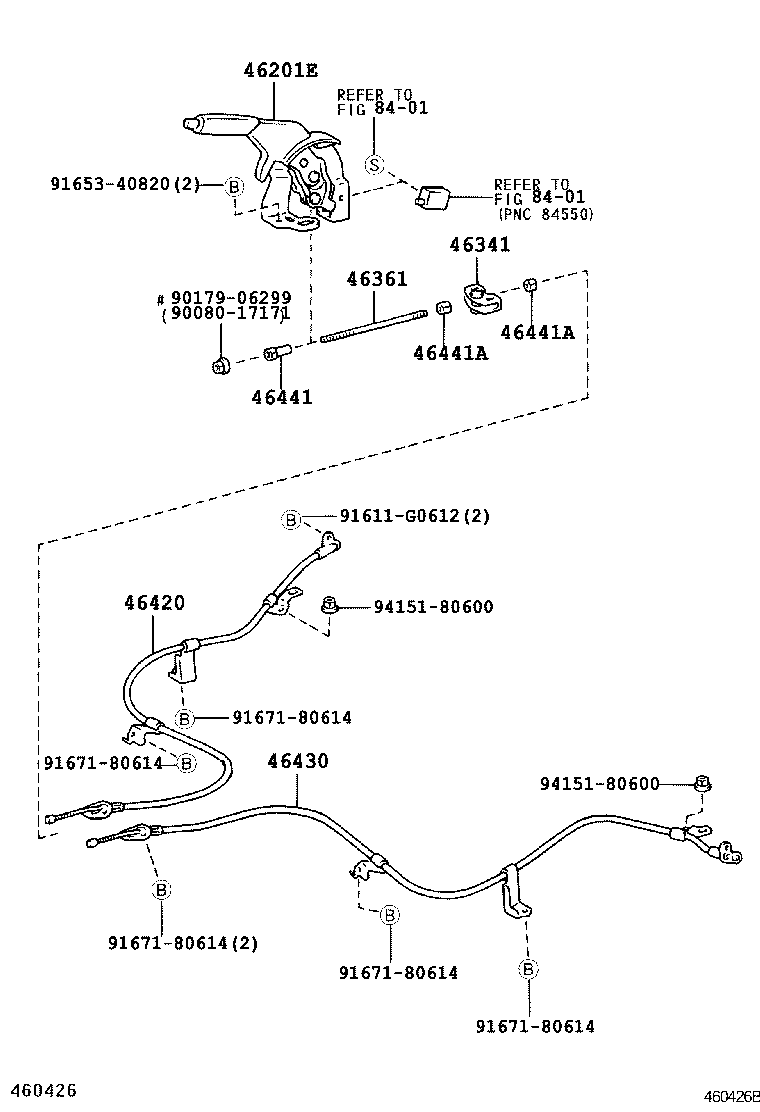

ILLUST NO. 1 OF 2(9901- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-52010G0 |
NCP10,NLP10,SCP10..JPP MIST GREEN,TRIM7# |
1 | ||
| 46201-52010B0 |
NCP10,NLP10,SCP10..JPP MD.GRAY,TRIM1# |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 46361 - ROD, PARKING BRAKE PULL | ||||
| 46361-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-52010 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 46420-52080 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-52010 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 46430-52080 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR DISC BRAKE) |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 90170-06014 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 90170-06014 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| Common parts | ||||
| 90080-17171 | ||||
| 90179-06299 | ||||
| 91611-G0612 | ||||
| 91653-40820 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
