SCP10L-AGMRKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901- )JPP..5F

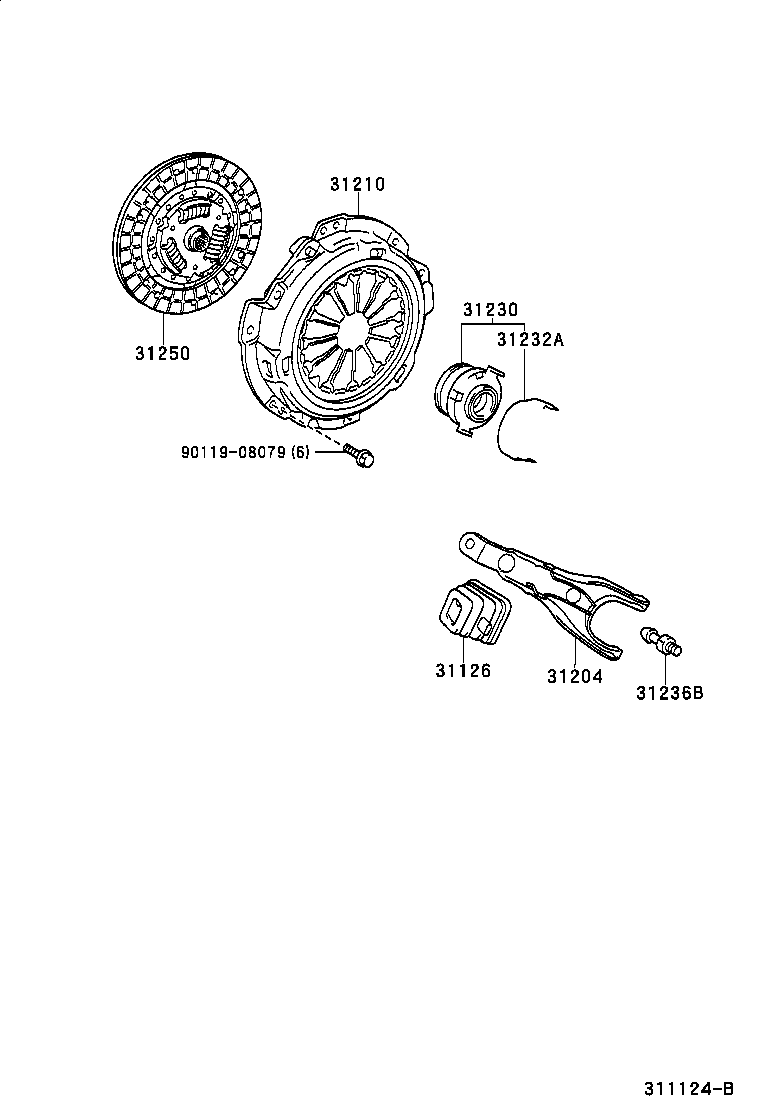

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31232A 31236B 31250 9011908079
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-12051

NCP1#,NLP10,SCP10..JPP..5F

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-52020

SCP10..JPP

 1
31210 - COVER ASSY, CLUTCH
31210-52010

SCP10..JPP

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-52010

SCP10..JPP

 1
31232A - CLIP, RELEASE BEARING HUB
31232-52010

SCP10..JPP

 1
31236B - SUPPORT, RELEASE FORK
31236-52010

SCP10..JPP

 1
31250 - DISC ASSY, CLUTCH
31250-52010

SCP10..JPP

W(FREE TRONIC)

 1
31250-52080

SCP10..JPP

 1
Common parts
90119-08079
