SCP10L-AGMGKW (1999)
Toyota Yaris (Jpp)

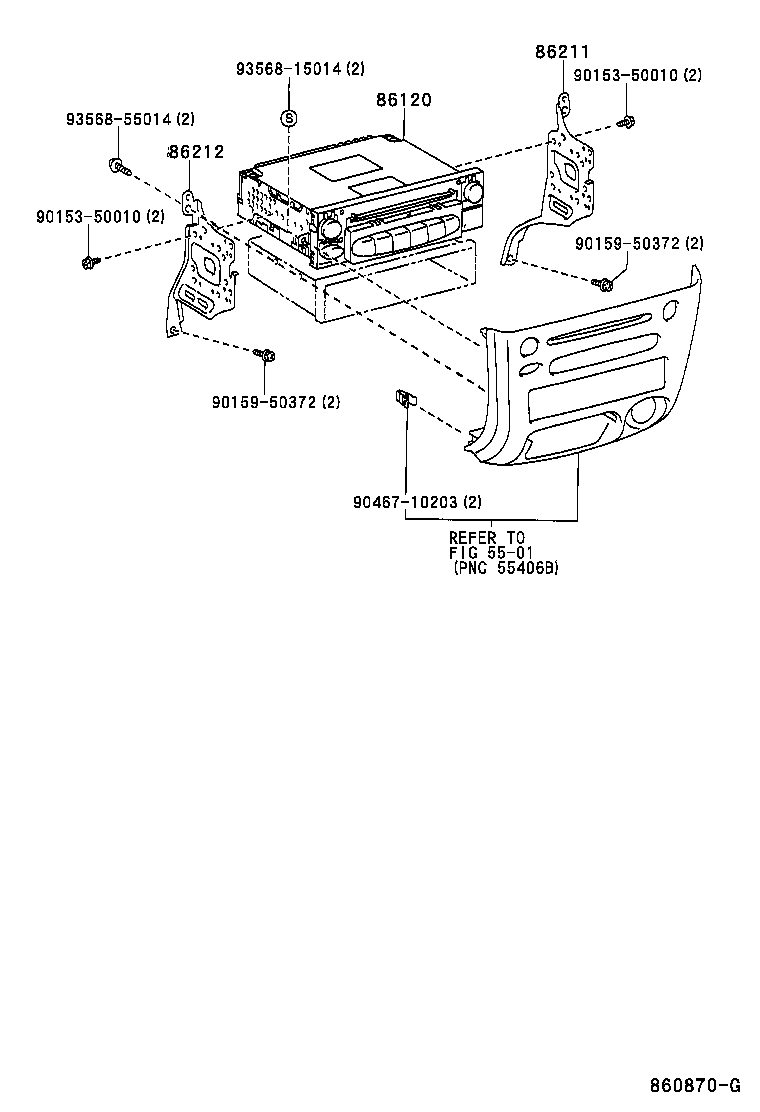

ILLUST NO. 1 OF 3(9901- )JPP
W(RADIO)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-52011 |
NCP1#,NLP10,SCP10..JPP FUJITSU TEN,ID=18201,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-52010 |
NCP1#,SCP10..JPP FUJITSU TEN,ID=18201,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-52020 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) FUJITSU TEN,ID=18402,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86120-52021 |
NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) FUJITSU TEN,ID=18406,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86120-52023 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) FUJITSU TEN,ID=18406,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86120-52012 |
NCP1#,NLP10,SCP10..JPP FUJITSU TEN,ID=18201,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-52022 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) FUJITSU TEN,ID=18406,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86120-52030 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) MATSUSHITA,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90159-50372 | ||||
| 90467-10203 | ||||
| 93568-15014 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5501 | ||||

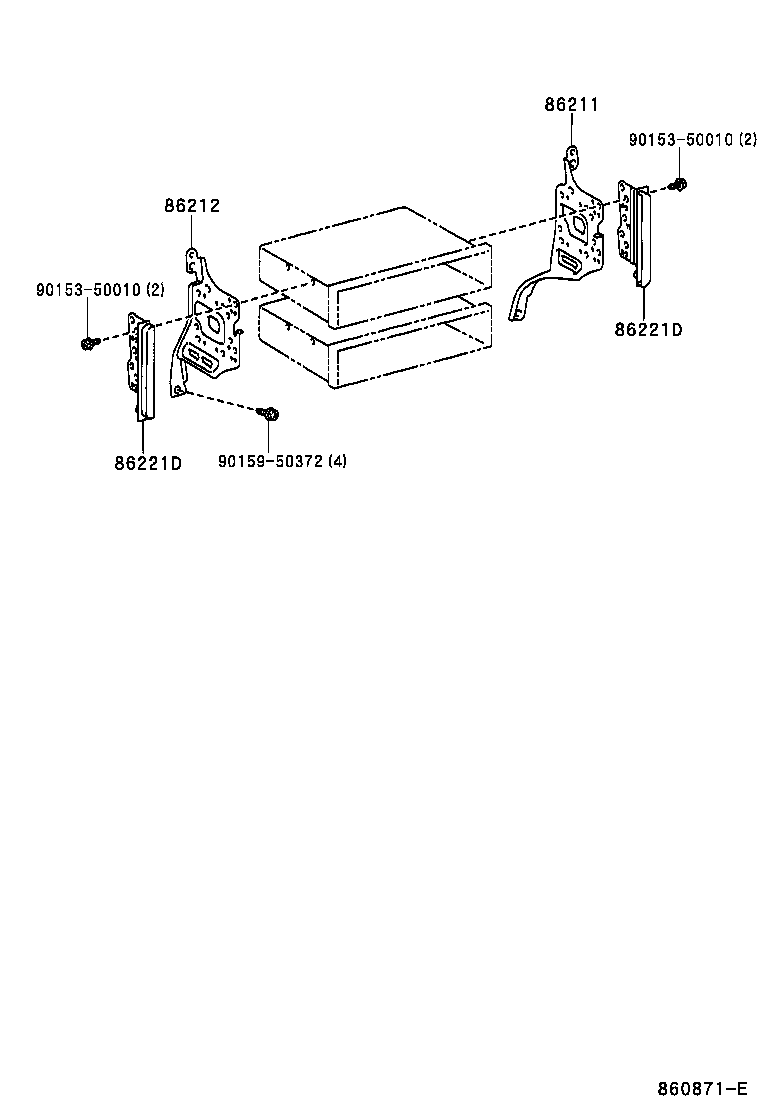

ILLUST NO. 1 OF 3(9901- )JPP
W/O(RADIO)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 86221D - PANEL, RADIO RECEIVER | ||||
| 86221-52060 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) RH |
1 | ||
| 86221-52050 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) LH |
1 | ||
| 86221D - PANEL, RADIO RECEIVER | ||||
| 86221-52060 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) RH |
1 | ||
| 86221-52050 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) LH |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90159-50372 | ||||

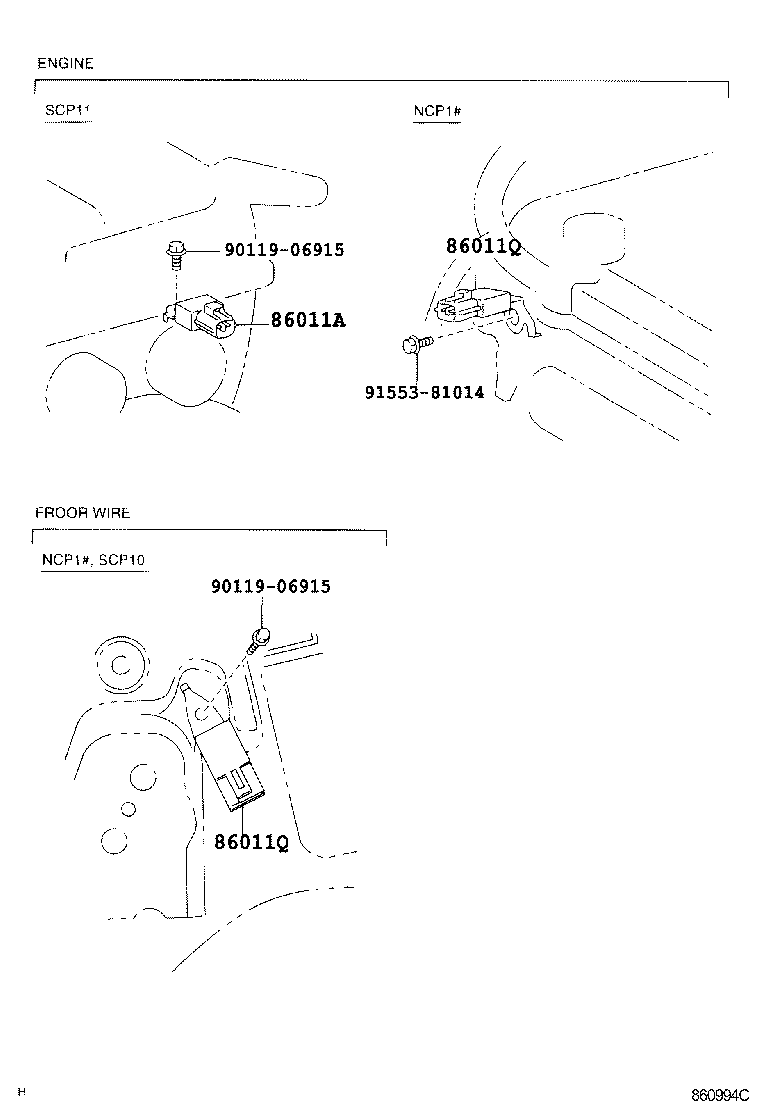

ILLUST NO. 3 OF 3(9901- )JPP
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04140 |
SCP10..JPP |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91553-81014 | ||||
ILLUST NO. 2 OF 3(9901- )JPP
| Part # | Description | Qty | Price |
|---|
