SCP10L-AGMGKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901- )JPP..LHD

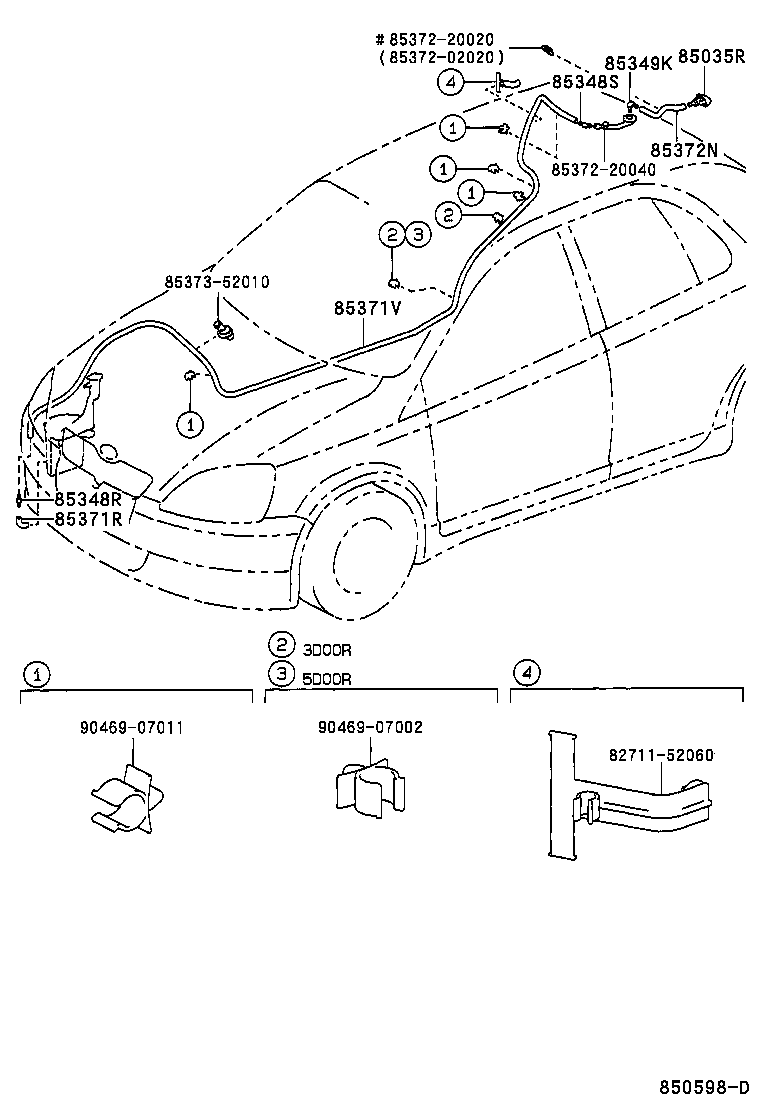

Click highlighted areas on diagram

diagram 8271152060 85035R 85348R 85348S 85349K 85371R 85371V 8537202020 8537220020 8537220040 85372N 8537352010 9046907002 9046907011
Part # Description Qty Price
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-52010

NCP1#,NLP10,SCP10..JPP

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

NCP1#,NLP10,SCP10..JPP

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200

NCP1#,NLP10,SCP10..JPP

 1
85349K - JOINT, REAR WASHER ELBOW, NO.2
85355-20200

NCP1#,NLP10,SCP10..JPP

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33080

NCP1#,NLP10,SCP10..JPP

*H,L=50

 1
85371V - HOSE, REAR WASHER (FROM JOINT TO JOINT)
90099-59247

NCP1#,NLP10,SCP10..JPP

L=4640

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

NCP10,SCP10..JPP

*H,L=190

 1
90099-33299

NCP1#,NLP10,SCP10..JPP

*H,L=190

 1
Common parts
82711-52060
85372-02020
85372-20020
85372-20040
85373-52010
90469-07002
90469-07011
