SCP10L-AGMGKW (1999)
Toyota Yaris (Jpp)
Production
Jan 1999
-
Dec 2002
Engine
1SZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9901- )JPP..LHD

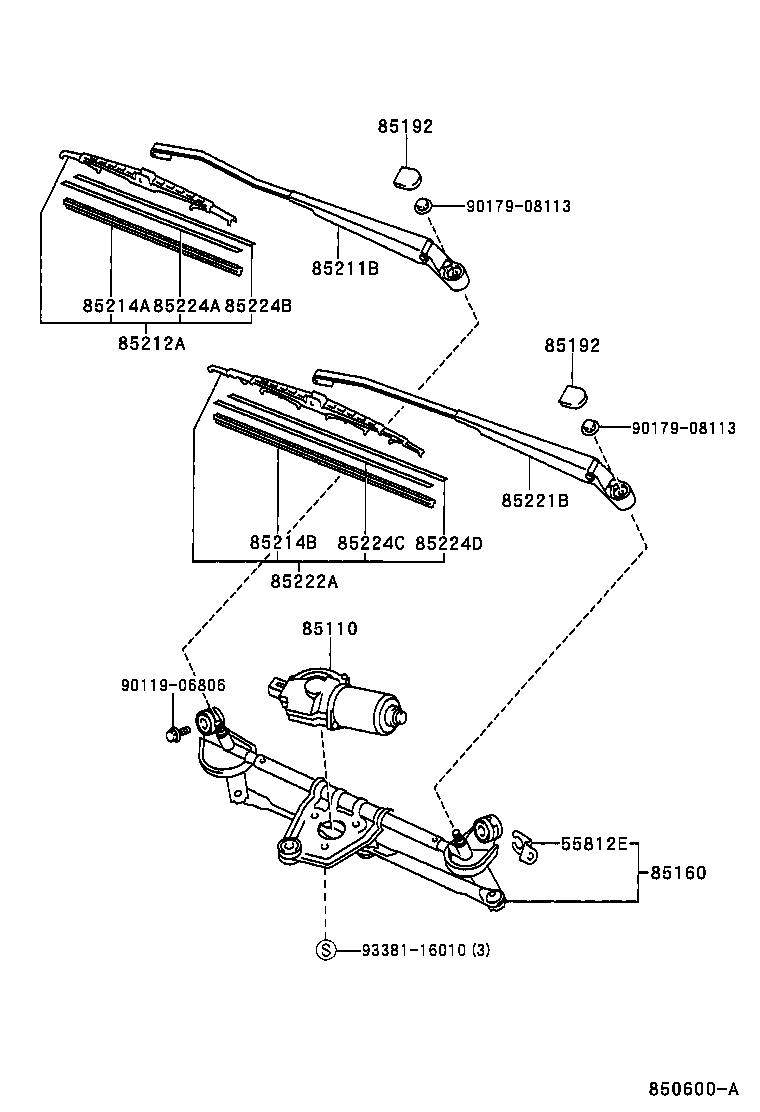

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55812E - BRACKET, COWL VENTILATOR | ||||
| 55812-52040 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-52010 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85150-52010 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| 85192 - COVER, WINDSHIELD WIPER ARM | ||||
| 85192-12800 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 85192 - COVER, WINDSHIELD WIPER ARM | ||||
| 85192-12800 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 85211B - ARM, FRONT WIPER, RH | ||||
| 85211-52010 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| 85212A - BLADE, FR WIPER, RH | ||||
| 85212-52010 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| 85214A - RUBBER, WIPER, RH | ||||
| 85214-44080 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| 85214B - RUBBER, WIPER, LH | ||||
| 85214-26020 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| 85221B - ARM, FRONT WIPER, LH | ||||
| 85221-52010 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| 85222A - BLADE, FR WIPER, LH | ||||
| 85222-26060 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| 85224A - PLATE, WIPER RUBBER BACKING, NO.1 | ||||
| 85224-44031 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| 85224B - PLATE, WIPER RUBBER BACKING, NO.2 | ||||
| 85224-44031 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| 85224C - PLATE, WIPER RUBBER BACKING, NO.3 | ||||
| 85224-20280 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| 85224D - PLATE, WIPER RUBBER BACKING, NO.4 | ||||
| 85224-20280 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| Common parts | ||||
| 90119-06806 | ||||
| 90179-08113 | ||||
| 93381-16010 | ||||
