SCP10L-AGMGKW (1999)
Toyota Yaris (Jpp)
Production
Jan 1999
-
Dec 2002
Engine
1SZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9901-0212)JPP

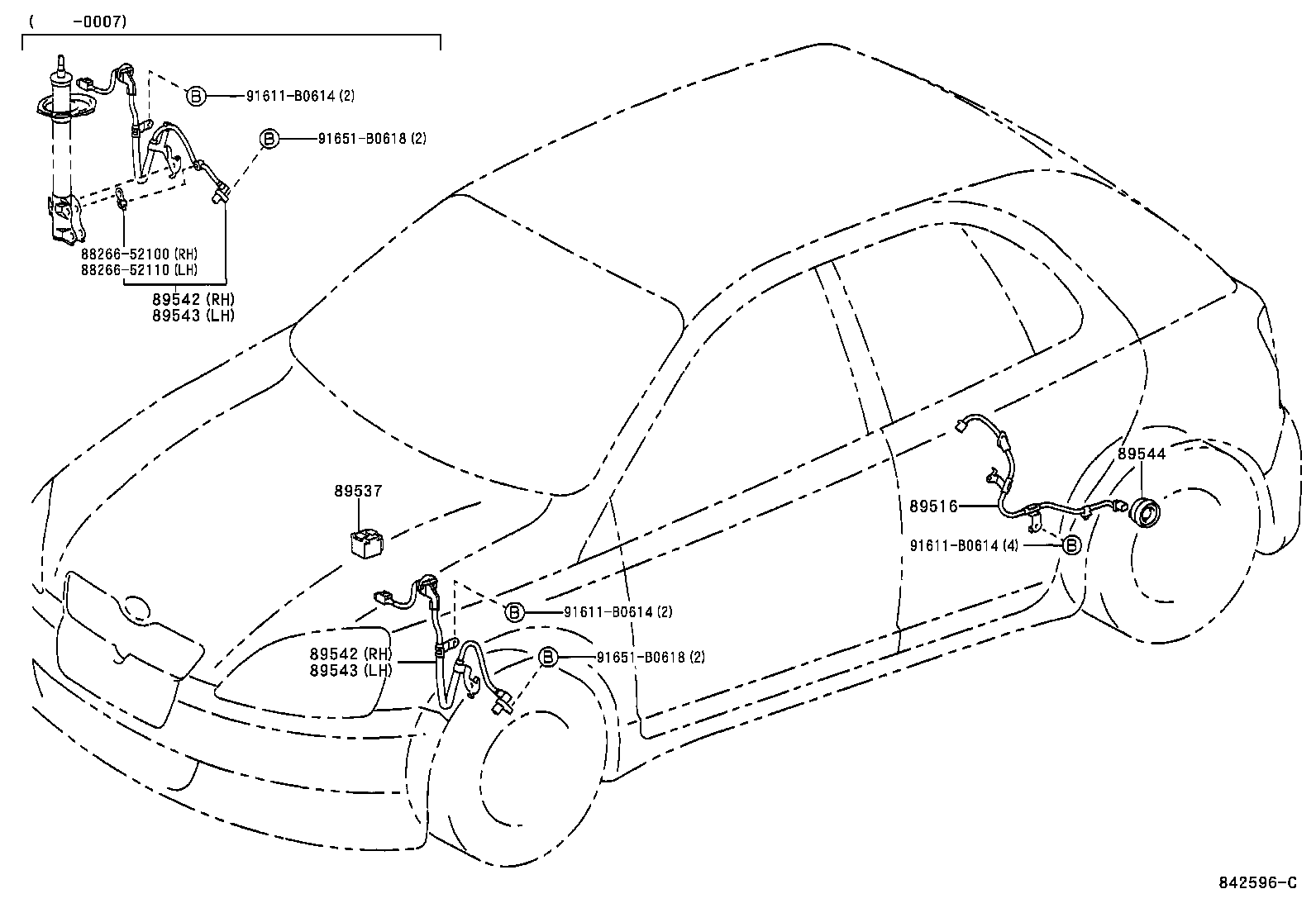

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-52010 |
NCP1#,NLP10,SCP10..JPP RH |
1 | ||
| 89516-52020 |
NCP1#,NLP10,SCP10..JPP LH |
1 | ||
| 89537 - RELAY, ACTIVE LAMP | ||||
| 89537-52020 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 04895-52010 |
NCP10,SCP10..JPP |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 04895-52010 |
NCP10,SCP10..JPP |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 04895-52020 |
NCP10,SCP10..JPP |
1 | ||
| 89543-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 04895-52020 |
NCP10,SCP10..JPP |
1 | ||
| 89543-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 89544 - SENSOR, SKID CONTROL | ||||
| 89544-52020 |
NCP1#,NLP10,SCP10..JPP NSK |
2 | ||
| 89544-52010 |
NCP1#,NLP10,SCP10..JPP KOYO |
2 | ||
| Common parts | ||||
| 88266-52100 | ||||
| 88266-52110 | ||||
| 91611-B0614 | ||||
| 91651-B0618 | ||||
