SCP10L-AGMGKW (1999)
Toyota Yaris (Jpp)

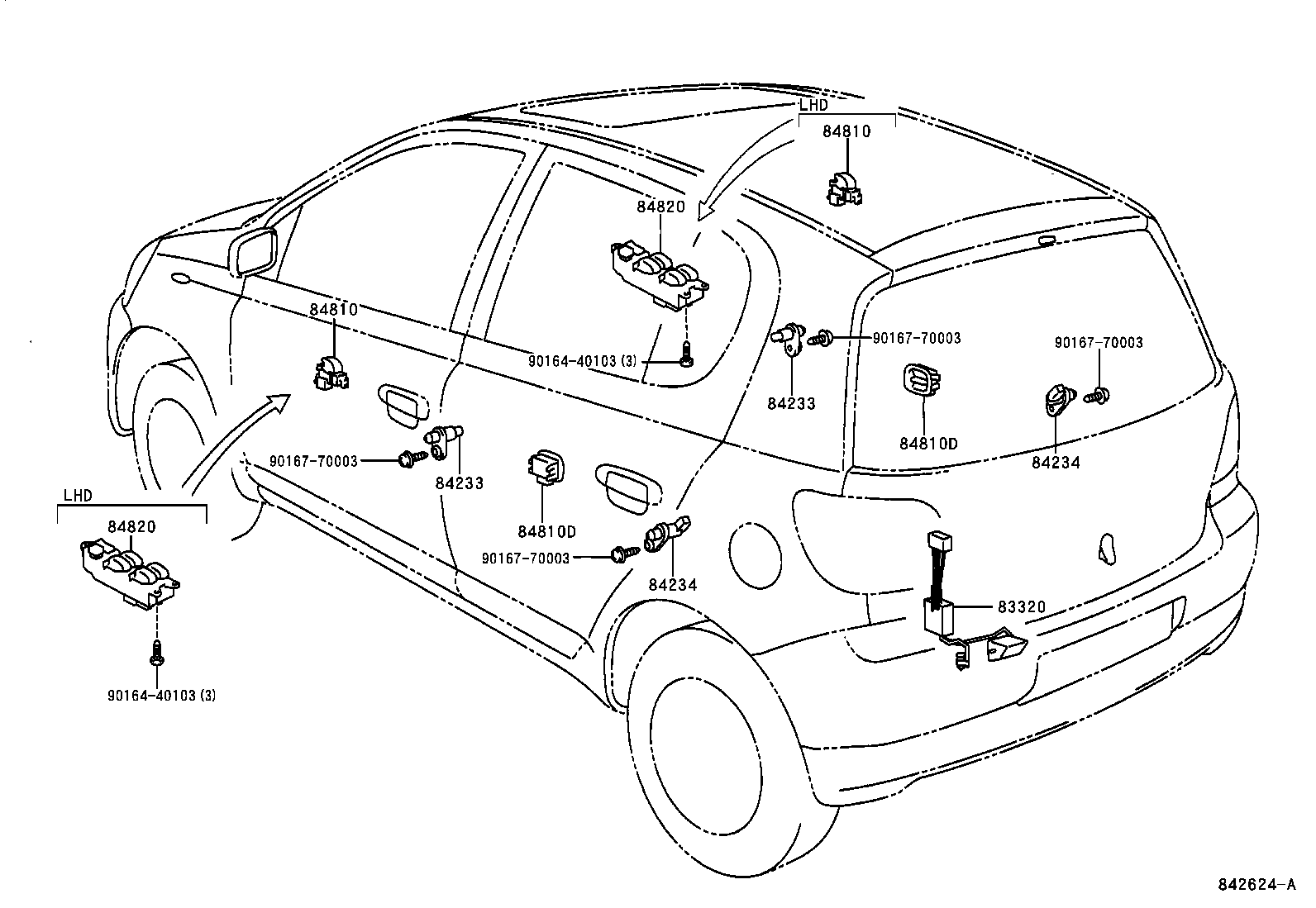

ILLUST NO. 6 OF 6(9901- )JPP
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52020 |
NCP10,SCP10..JPP..SOL..5F W(ANALOGUE METER) |
1 | ||
| 83320-52021 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)..5F |
1 | ||
| 83320-52061 |
NCP10,SCP10..JPP W(DIGITAL METER W/TACHO,KM/H) |
1 | ||
| 83320-52060 |
NCP10..JPP..LUNA;SCP10..JPP..(LUNA,SOL,TRSTD) W(DIGITAL METER) |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-10100 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-10100 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90167-70003 | ||||

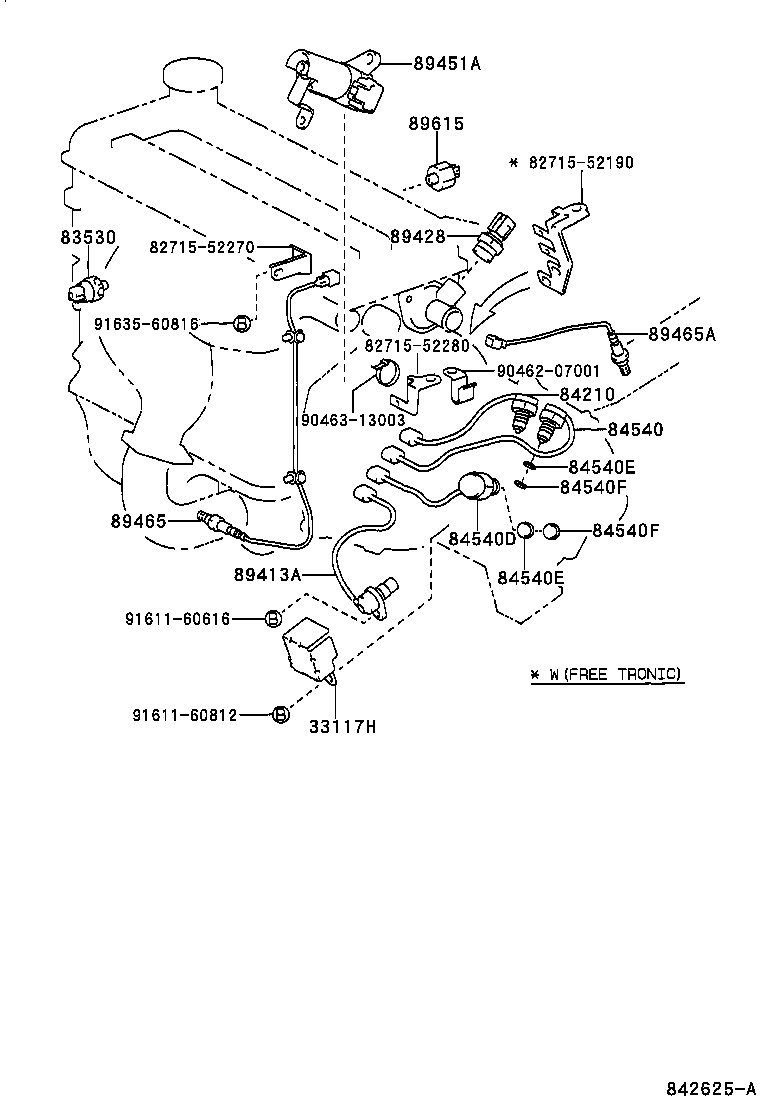

ILLUST NO. 1 OF 6(9901-0212)SCP10..JPP
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33117H - PROTECTOR, TRANSMISSION CASE | ||||
| 33117-52020 |
SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
NCP1#,SCP10..JPP DENSO |
1 | ||
| 83530-60020 |
NCP1#,SCP10..JPP YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60030 |
SCP10..JPP |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52020 |
SCP10..JPP |
1 | ||
| 84540D - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52030 |
SCP10..JPP |
1 | ||
| 84540E - GASKET, NEUTRAL START SWITCH | ||||
| 90430-16010 |
SCP10..JPP |
1 | ||
| 84540E - GASKET, NEUTRAL START SWITCH | ||||
| 90430-16010 |
SCP10..JPP |
1 | ||
| 84540F - GASKET, NEUTRAL START SWITCH | ||||
| 90430-16010 |
SCP10..JPP |
1 | ||
| 84540F - GASKET, NEUTRAL START SWITCH | ||||
| 90430-16010 |
SCP10..JPP |
1 | ||
| 89413A - SENSOR, TRANSMISSION REVOLUTION | ||||
| 89413-52010 |
SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-10120 |
SCP10..JPP DENSO |
1 | ||
| 89428-52010 |
SCP10..JPP AISIN |
1 | ||
| 89451A - SENSOR, SHIFT LEVER POSITION | ||||
| 89451-52010 |
SCP10..JPP |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-52020 |
SCP10..JPP |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-52180 |
SCP10..JPP |
1 | ||
| 89465-52030 |
SCP10..JPP |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-52010 |
NCP10,SCP10..JPP MATSUSHITA |
1 | ||
| 89615-52010 |
SCP10..JPP |
1 | ||
| Common parts | ||||
| 82715-52190 | ||||
| 82715-52270 | ||||
| 82715-52280 | ||||
| 90462-07001 | ||||
| 90463-13003 | ||||
| 91611-60616 | ||||
| 91611-60812 | ||||
| 91635-60816 | ||||

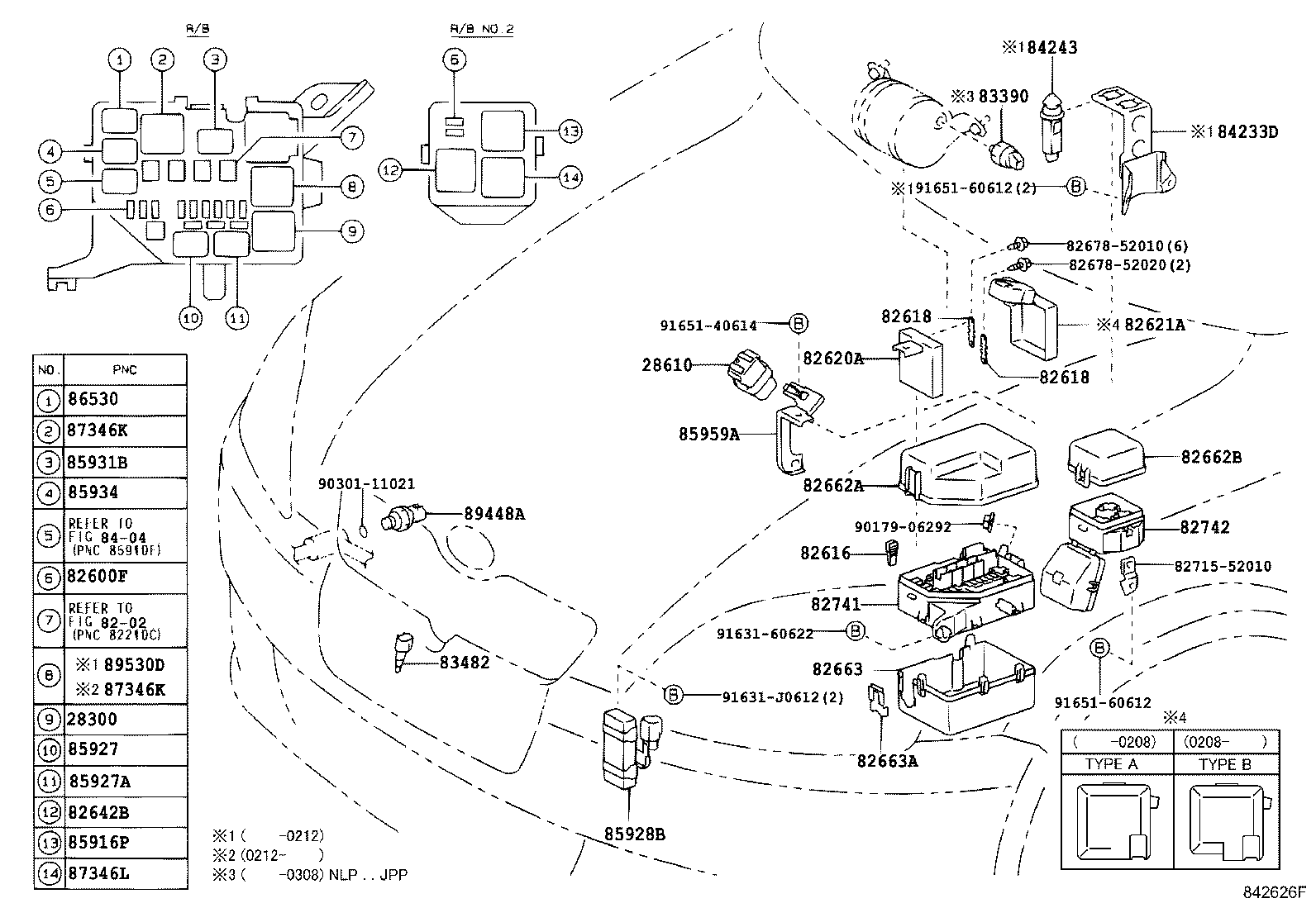

ILLUST NO. 2 OF 6(9901- )JPP
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
1N#,2NZFE,1SZFE..NCP1#,NLP10,SCP10..JPP |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
NCP1#,NLP10,SCP10..JPP 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
NCP1#,NLP10,SCP10..JPP 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
NCP1#,NLP10,SCP10..JPP 30A,MINI FUSE,GRN |
1 | ||
| 90982-09008 |
NCP1#,NLP10,SCP10..JPP 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
NCP1#,NLP10,SCP10..JPP 15A,MINI FUSE,BLUE |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 82618 - FUSE, FUSE BLOCK | ||||
| 82618-52020 |
SCP10..JPP 100A |
1 | ||
| 82618-52030 |
NCP13,NLP10..JPP;NCP10,SCP10..JPP..LHD 120A |
1 | ||
| 82618-52010 |
NCP10,SCP10..JPP 60A,W(FREE TRONIC) |
3 | ||
| 82618-52010 |
NCP10,SCP10..JPP..LHD 60A |
1 | ||
| 82618-52010 |
SCP10..JPP;NCP10..JPP..RHD;NCP10..JPP..LHD..5F 60A,W(ABS) |
2 | ||
| 82618-52010 |
NLP10..JPP;NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) 60A |
1 | ||
| 82618-52010 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) 60A,W(ABS) |
2 | ||
| 82618 - FUSE, FUSE BLOCK | ||||
| 82618-52020 |
SCP10..JPP 100A |
1 | ||
| 82618-52030 |
NCP13,NLP10..JPP;NCP10,SCP10..JPP..LHD 120A |
1 | ||
| 82618-52010 |
NCP10,SCP10..JPP 60A,W(FREE TRONIC) |
3 | ||
| 82618-52010 |
NCP10,SCP10..JPP..LHD 60A |
1 | ||
| 82618-52010 |
SCP10..JPP;NCP10..JPP..RHD;NCP10..JPP..LHD..5F 60A,W(ABS) |
2 | ||
| 82618-52010 |
NLP10..JPP;NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) 60A |
1 | ||
| 82618-52010 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) 60A,W(ABS) |
2 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 82620-52011 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-52010 |
SCP10..JPP |
1 | ||
| 82621-52020 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(ABS),TYPE A:REFER ILLUST. |
1 | ||
| 82621-52021 |
NCP13..JPP..RHD;NCP10,SCP10..JPP..LHD TYPE B:REFER ILLUST. |
1 | ||
| 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 | ||||
| 90987-04006 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-52030 |
NCP1#,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82662-52030 |
NCP10,SCP10..JPP..LHD..5F W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82662-52020 |
NCP1#,SCP10..JPP |
1 | ||
| 82662-52160 |
NCP1#,SCP10..JPP |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-52050 |
NCP10..JPP..LHD..4FC;NCP13,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 82662-52050 |
NCP10,SCP10..JPP..LHD |
1 | ||
| 82662-52051 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-52010 |
NCP1#,SCP10..JPP |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-52010 |
NCP10,SCP10..JPP..LHD..5F |
1 | ||
| 82742-52010 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 83482 - SENSOR, OUTER AMBIENT TEMPERATURE | ||||
| 83482-02010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02016 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02012 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 90987-02022 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-52010 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02022 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 90987-02012 |
NCP1#,SCP10..JPP W(MANUAL AIR CONDITIONER(DOP)) |
1 | ||
| 90987-02022 |
NCP13,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02012 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 90987-02022 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02016 |
NCP1#,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 90987-02016 |
NCP10,SCP10..JPP..LHD..5F |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02016 |
NCP1#,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 90987-02016 |
NCP10,SCP10..JPP..LHD..5F |
1 | ||
| 87346L - RELAY, PTC HEATER | ||||
| 90987-02016 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) |
1 | ||
| 89448A - SENSOR, POWER STEERING OIL PRESSURE | ||||
| 89448-51010 |
NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 89530D - RELAY, AUTO CLUTCH | ||||
| 90987-02016 |
SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| Common parts | ||||
| 82678-52010 | ||||
| 82678-52020 | ||||
| 82715-52010 | ||||
| 90179-06292 | ||||
| 90301-11021 | ||||
| 91631-60622 | ||||
| 91631-J0612 | ||||
| 91651-40614 | ||||
| 91651-60612 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
ILLUST NO. 3 OF 6(9901-0212)JPP..LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50020 |
SCP10..JPP |
1 | ||
| 81980-50030 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
NCP1#,NLP10,SCP10..JPP 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
NCP1#,NLP10,SCP10..JPP 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
NCP1#,NLP10,SCP10..JPP 30A,MINI FUSE,GRN |
1 | ||
| 90982-09008 |
NCP1#,NLP10,SCP10..JPP 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
NCP1#,NLP10,SCP10..JPP 15A,MINI FUSE,BLUE |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-52010 |
NCP1#,SCP10..JPP |
1 | ||
| 82683 - PLATE, FUSE BLOCK CAUTION | ||||
| 82683-52020 |
NCP10,SCP10..JPP |
1 | ||
| 82683-52090 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 82683-52170 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82732-52030 |
NCP10,SCP10..JPP..LHD..5F W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82732-52020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 82732-52030 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82810 - RELAY ASSY, RUNNING LIGHT | ||||
| 82810-52020 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
NCP1#,SCP10..JPP |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04006 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02012 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02012 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-52050 |
SCP10..JPP W(KEY LESS ENTRY) |
1 | ||
| 85980-52031 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 85980-52030 |
SCP10..JPP |
1 | ||
| 85980-52051 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) W(KEY LESS ENTRY) |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-52020 |
SCP10..JPP..LHD..(LUNA,SOL,TRSTD) |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90159-60546 | ||||
| 90170-10017 | ||||
| 90179-06115 | ||||
| 90183-05009 | ||||
| 93313-15016 | ||||
| 93568-15016 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
ILLUST NO. 4 OF 6(9901-0212)JPP..LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52010 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 84999-10540 |
NCP1#,NLP10,SCP10..JPP 14V 1.19W |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-52020 |
NCP10,SCP10..JPP |
1 | ||
| 84162B - BULB, FOG LAMP SWITCH | ||||
| 90010-09005 |
NCP10,SCP10..JPP 14V40MA,W(GREEN CAP) |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-12060G0 |
NCP10,NLP10,SCP10..JPP MIST GREEN,TRIM7# |
1 | ||
| 84656-12040G0 |
SCP10..JPP..LHD..TRSTD;NCP10,SCP10..JPP..(LUNA,SOL) W(ELECTRIC REMOTE CONTOROL MIRROR),MIST GREEN,TRIM7# |
1 | ||
| 84656-12040B2 |
SCP10..JPP..LHD..TRSTD;NCP10,SCP10..JPP..(LUNA,SOL) W(ELECTRIC REMOTE CONTOROL MIRROR),MD.GRAY,TRIM1# |
1 | ||
| 84656-12060B2 |
NCP10,NLP10,SCP10..JPP MD.GRAY,TRIM1# |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-12060G0 |
NCP10,NLP10,SCP10..JPP MIST GREEN,TRIM7# |
1 | ||
| 84656-12040G0 |
SCP10..JPP..LHD..TRSTD;NCP10,SCP10..JPP..(LUNA,SOL) W(ELECTRIC REMOTE CONTOROL MIRROR),MIST GREEN,TRIM7# |
1 | ||
| 84656-12040B2 |
SCP10..JPP..LHD..TRSTD;NCP10,SCP10..JPP..(LUNA,SOL) W(ELECTRIC REMOTE CONTOROL MIRROR),MD.GRAY,TRIM1# |
1 | ||
| 84656-12060B2 |
NCP10,NLP10,SCP10..JPP MD.GRAY,TRIM1# |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-52010 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 84999-10310 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) 14V 0.91W |
2 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 84999-10310 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) 14V 0.91W |
2 | ||
| 84763G - COVER, HOLE NO.1 | ||||
| 84763-12110B2 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) MD.GRAY,TRIM1# |
1 | ||
| 84763-12110G0 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) MIST GREEN,TRIM7# |
1 | ||
| 84763-12110G0 |
NCP10,NLP10,SCP10..JPP MIST GREEN,TRIM7# |
1 | ||
| 84763-12110B2 |
NCP10,NLP10,SCP10..JPP MD.GRAY,TRIM1# |
1 | ||
| 84763H - COVER, HOLE NO.2 | ||||
| 84763-12110B2 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) MD.GRAY,TRIM1# |
1 | ||
| 84763-12110G0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) MIST GREEN,TRIM7# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-12130 |
NLP10,SCP10..JPP..LHD..TRSTD;NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TS) |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-52030H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 84975-52030B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28050 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30060 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
ILLUST NO. 5 OF 6(9901-0212)JPP..LHD
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-60010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-52020 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(REAR FOG LAMP) |
1 | ||
| 84140-52020 |
NCP10,SCP10..JPP |
1 | ||
| 84140-52040 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-52040 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
