SCP10L-AGMGKW (1999)
Toyota Yaris (Jpp)

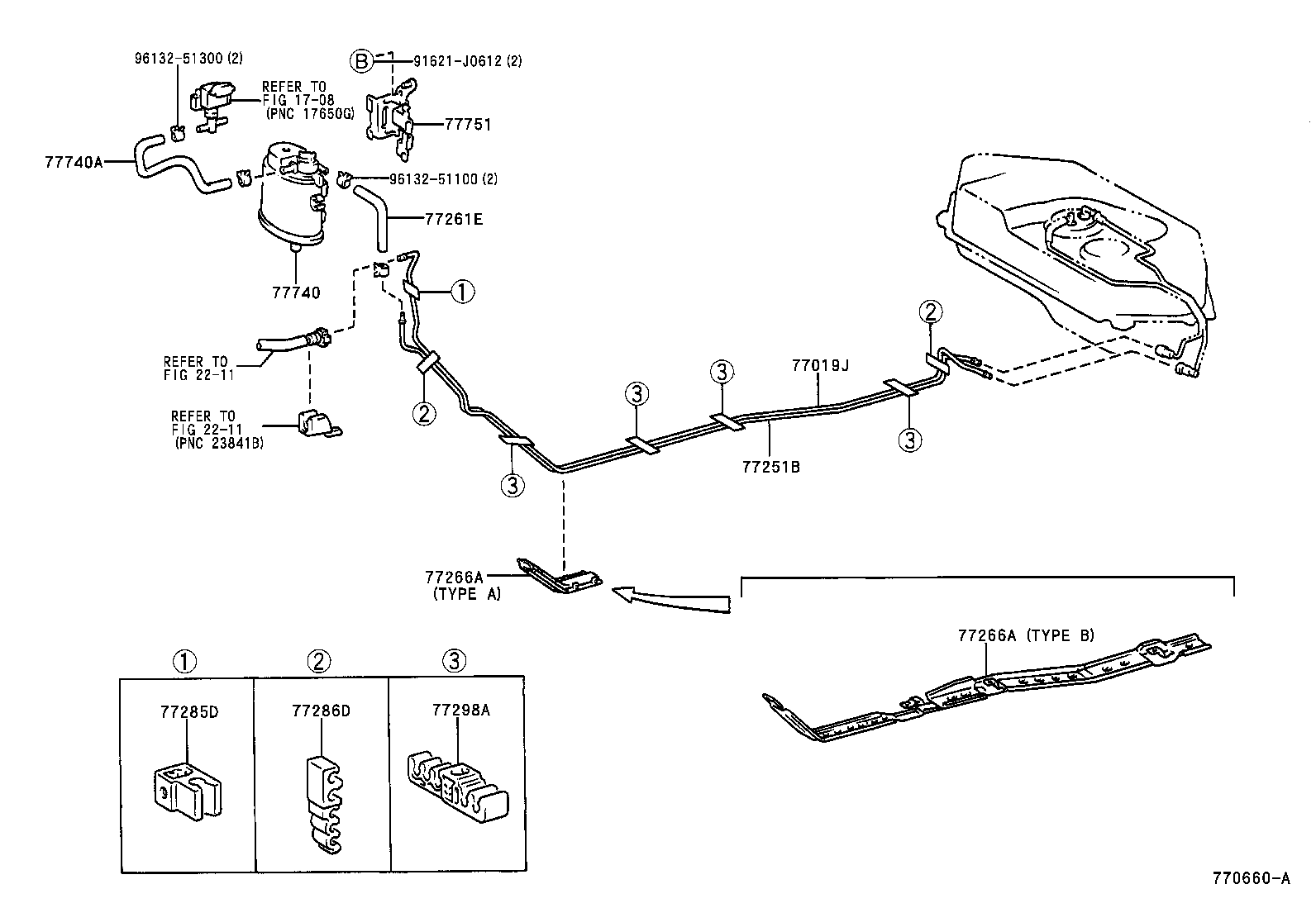

ILLUST NO. 2 OF 2(9901- )NCP1#,SCP10..JPP
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER | ||||
| 77261-52010 |
NCP1#,SCP10..JPP |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-52021 |
NCP1#,SCP10..JPP |
1 | ||
| 77251-52020 |
NCP1#,SCP10..JPP |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
NCP1#,SCP10..JPP *H,L=120 |
1 | ||
| 95337-06012 |
SCP10..JPP L=120 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-52030 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77266-52010 |
NCP1#,SCP10..JPP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-52030 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77266-52010 |
NCP1#,SCP10..JPP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-52010 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-52010 |
NCP1#,NLP10,SCP10..JPP |
4 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-52041 |
NCP1#,SCP10..JPP |
1 | ||
| 77740-52040 |
NCP10,SCP10..JPP |
1 | ||
| 77740-52020 |
SCP10..JPP |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 23827-23010 |
SCP10..JPP |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-52020 |
NCP1#,SCP10..JPP |
1 | ||
| Common parts | ||||
| 91621-J0612 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

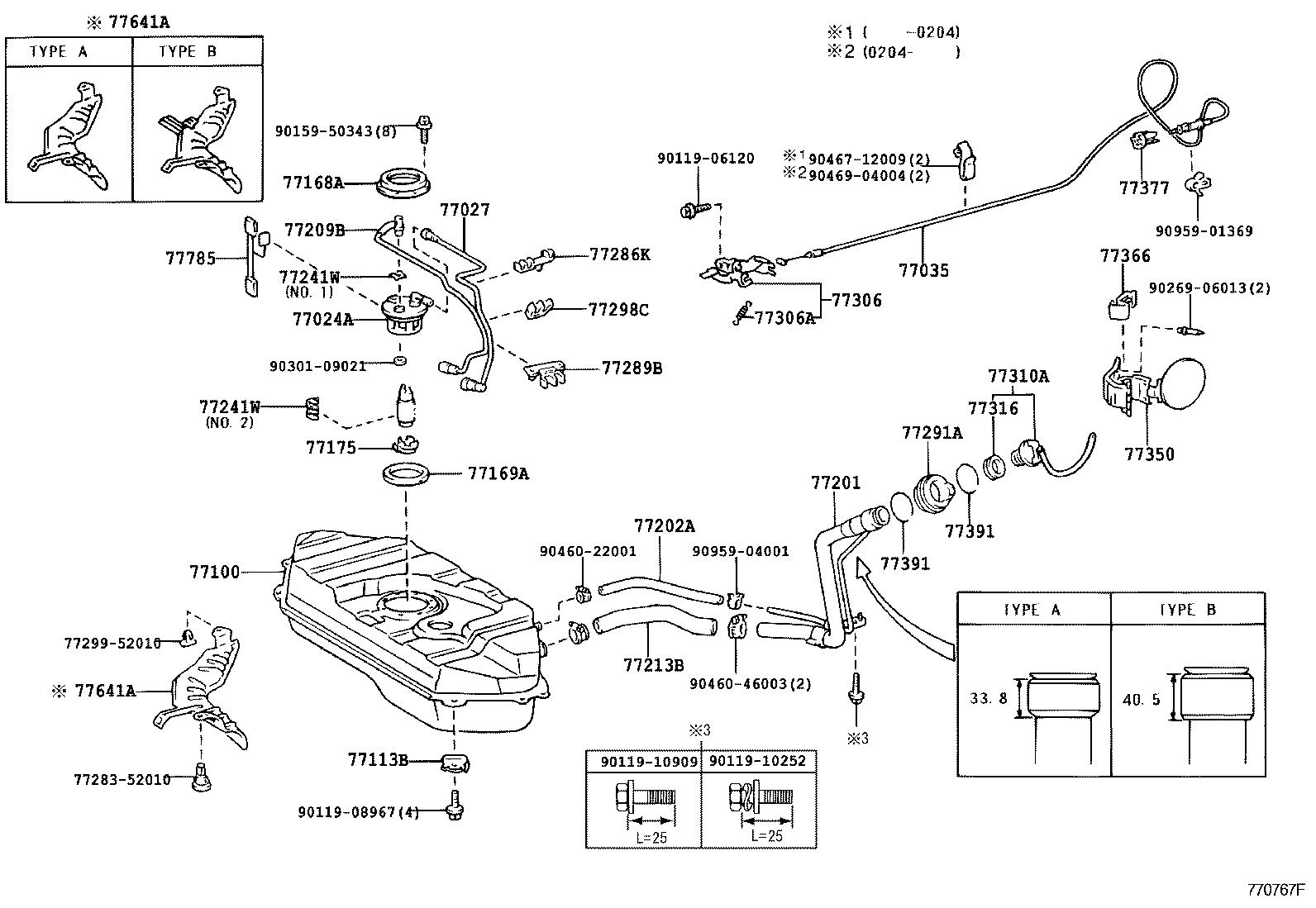

ILLUST NO. 1 OF 2(9901- )NCP1#,SCP10..JPP
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-52020 |
NCP1#,SCP10..JPP |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-52020 |
NCP1#,SCP10..JPP |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-52021 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| 77035-52020 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-52030 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 77001-52090 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 77113B - PLATE, FUEL TANK SIDE | ||||
| 77113-52010 |
NCP1#,NLP10,SCP10..JPP |
4 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-52020 |
NCP1#,SCP10..JPP |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-52020 |
NCP1#,SCP10..JPP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77201-52050 |
NCP1#,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 95312-13036 |
NCP1#,SCP10..JPP L=360 |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-52020 |
NCP1#,SCP10..JPP |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-32060 |
NCP10,SCP10..JPP |
1 | ||
| 77241-32060 |
NCP1#,SCP10..JPP NO.1 |
1 | ||
| 77241-52010 |
NCP1#,SCP10..JPP NO.2 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-32060 |
NCP10,SCP10..JPP |
1 | ||
| 77241-32060 |
NCP1#,SCP10..JPP NO.1 |
1 | ||
| 77241-52010 |
NCP1#,SCP10..JPP NO.2 |
1 | ||
| 77286K - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-52020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-52020 |
NCP1#,SCP10..JPP |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-13030 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| 77306A - SPRING, FUEL LID OPEN LEVER | ||||
| 90506-09004 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52010 |
NCP10,SCP10..JPP |
1 | ||
| 77300-28010 |
NCP1#,SCP10..JPP |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77631-52010 |
NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77631-52010 |
NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-32010 |
NCP1#,SCP10..JPP |
1 | ||
| Common parts | ||||
| 77283-52010 | ||||
| 77299-52010 | ||||
| 90119-06120 | ||||
| 90119-08967 | ||||
| 90119-10252 | ||||
| 90119-10909 | ||||
| 90159-50343 | ||||
| 90269-06013 | ||||
| 90301-09021 | ||||
| 90460-22001 | ||||
| 90460-46003 | ||||
| 90467-12009 | ||||
| 90469-04004 | ||||
| 90959-01369 | ||||
| 90959-04001 | ||||
