SCP10L-AGMGKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901- )JPP

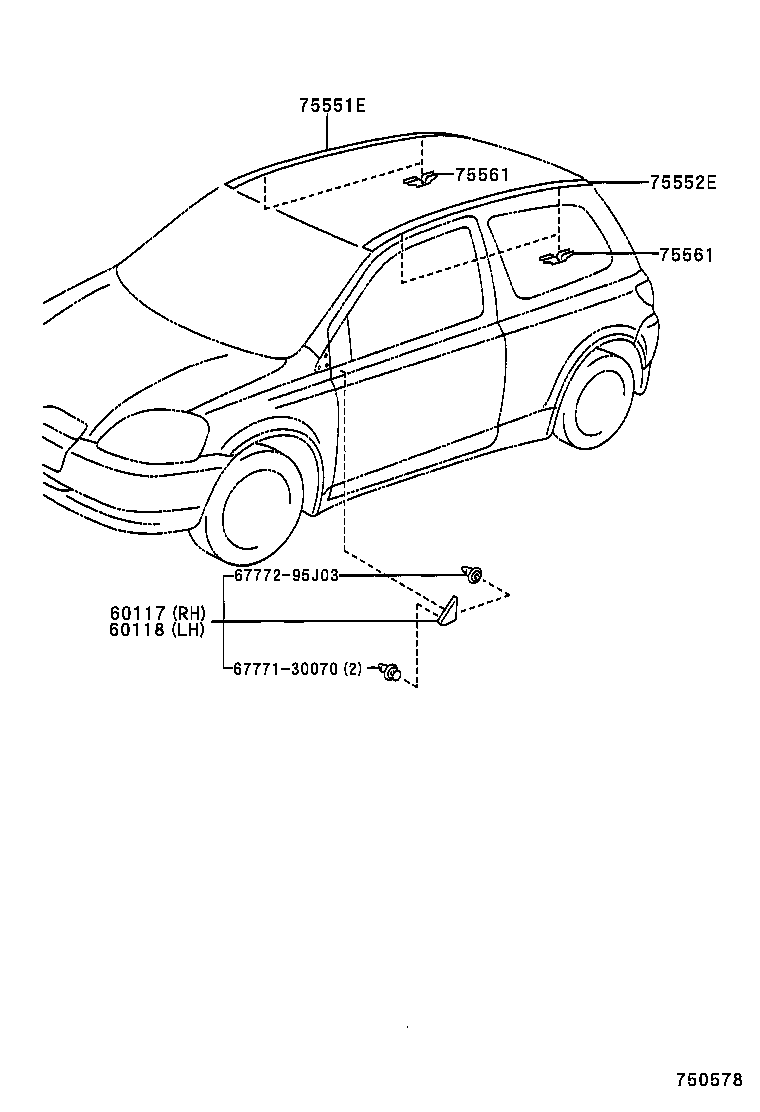

Click highlighted areas on diagram

diagram 60117 60118 6777130070 6777295J03 75551E 75552E 75561 75561
Part # Description Qty Price
60117 - COVER SUB-ASSY, FRONT PILLAR, UPR RH
60117-52010

NCP1#,NLP10,SCP10..JPP

 1
60118 - COVER SUB-ASSY, FRONT PILLAR, UPR LH
60118-52010

NCP1#,NLP10,SCP10..JPP

 1
75551E - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-52010

NCP1#,NLP10,SCP10..JPP

 1
75552E - MOULDING, ROOF DRIP SIDE FINISH, LH
75551-52010

NCP1#,NLP10,SCP10..JPP

 1
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-52010

NCP10,SCP10..JPP

 4
75561-52020

NCP1#,NLP10,SCP10..JPP

 4
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-52010

NCP10,SCP10..JPP

 4
75561-52020

NCP1#,NLP10,SCP10..JPP

 4
Common parts
67771-30070
67772-95J03
