SCP10L-AGMGKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901- )JPP..3D

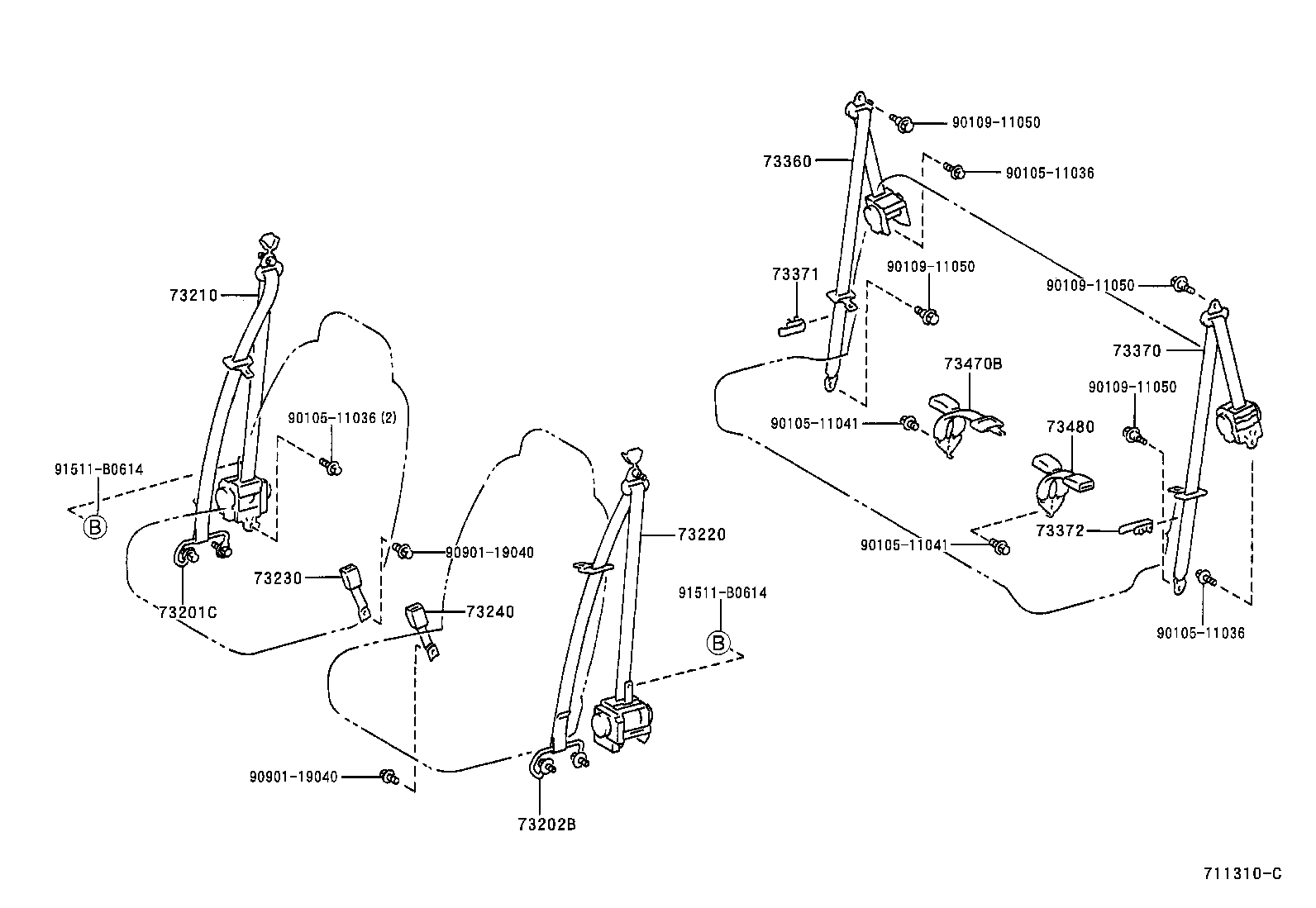

Click highlighted areas on diagram

diagram 73201C 73202B 73210 73220 73230 73240 73360 73370 73371 73372 73470B 73480 9010511036 9010511036 9010511036 9010511041 9010511041 9010911050 9010911050 9010911050 9010911050 9090119040 9090119040 91511B0614 91511B0614
Part # Description Qty Price
73201C - BAR SUB-ASSY, FRONT SEAT BELT, OUTER RH
73201-52010

NCP1#,NLP10,SCP10..JPP..3D

 1
73202B - BAR SUB-ASSY, FRONT SEAT BELT, OUTER LH
73202-52010

NCP1#,NLP10,SCP10..JPP..3D

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-52030C1

SCP10..JPP..LHD..3D

BLACK,TRIM7#

 1
73210-52030C0

SCP10..JPP..LHD..3D

BLACK,TRIM1#

 1
73210-52040C0

SCP10..JPP..LHD..3D

W(SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM1#

 1
73210-52040C1

SCP10..JPP..LHD..3D

W(SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM7#

 1
73210-52031C0

NCP10,SCP10..JPP..LHD..3D

BLACK,TRIM1#

 1
73210-52031C1

NCP10,SCP10..JPP..LHD..3D

BLACK,TRIM7#

 1
73210-52041C0

SCP10..JPP..LHD..3D

W(SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM1#

 1
73210-52220C2

NCP10,SCP10..JPP..LHD..3D

BLACK,TRIM1#

 1
73210-52041C1

SCP10..JPP..LHD..3D

W(SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM7#

 1
73210-52041C2

SCP10..JPP..LHD..3D

W(SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM1#

 1
73210-52041C3

SCP10..JPP..LHD..3D

W(SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM7#

 1
73210-52220C1

NCP10,NLP10,SCP10..JPP..LHD..3D

W/O(SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM7#

 1
73210-52042C2

NCP10,NLP10,SCP10..JPP..LHD..3D

W(SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM1#

 1
73210-52220C0

NCP10,NLP10,SCP10..JPP..LHD..3D

BLACK,TRIM1#

 1
73210-52042C3

NCP10,NLP10,SCP10..JPP..LHD..3D

W(SRS AIR BAG,PASSENGER SIDE),BLACK,TRIM7#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-52050C1

SCP10..JPP..LHD..3D

BLACK,TRIM7#

 1
73220-52051C0

NCP10,SCP10..JPP..LHD..3D

BLACK,TRIM1#

 1
73220-52050C0

SCP10..JPP..LHD..3D

BLACK,TRIM1#

 1
73220-52051C1

NCP10,SCP10..JPP..LHD..3D

BLACK,TRIM7#

 1
73220-52250C3

NCP10,SCP10..JPP..LHD..3D

BLACK,TRIM7#

 1
73220-52250C2

NCP10,SCP10..JPP..LHD..3D

BLACK,TRIM1#

 1
73220-52250C1

NCP10,SCP10..JPP..LHD..3D

BLACK,TRIM7#

 1
73220-52250C0

NCP10,SCP10..JPP..LHD..3D

BLACK,TRIM1#

 1
73220-52251C0

NCP10,NLP10,SCP10..JPP..LHD..3D

BLACK,TRIM1#

 1
73220-52251C1

NCP10,NLP10,SCP10..JPP..LHD..3D

BLACK,TRIM7#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-52030B0

NCP10,SCP10..JPP

SHADOW GRAY,TRIM1#,7#

 1
73230-52030B2

NCP10,NLP10,SCP10..JPP

DK.GRAY,TRIM1#,7#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-52030B0

NCP10,SCP10..JPP

SHADOW GRAY,TRIM1#,7#

 1
73230-52030B2

NCP10,NLP10,SCP10..JPP

DK.GRAY,TRIM1#,7#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-52020C4

NCP10,NLP10,SCP10..JPP

BLACK,TRIM1#,7#

 1
73360-52020C2

SCP10..JPP

BLACK,TRIM7#

 1
73360-52020C3

NCP10,SCP10..JPP

BLACK,TRIM1#,7#

 1
73360-52020C1

SCP10..JPP

BLACK,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-52020C2

SCP10..JPP

BLACK,TRIM7#

 1
73370-52020C3

NCP10,SCP10..JPP

BLACK,TRIM1#,7#

 1
73370-52020C1

SCP10..JPP

BLACK,TRIM1#

 1
73370-52020C4

NCP10,NLP10,SCP10..JPP

BLACK,TRIM1#,7#

 1
73371 - HANGER, REAR SEAT SHOULDER BELT, RH
73371-16050H0

NCP10,NLP10,SCP10..JPP

FRENCH TURQUOISE,TRIM7#

 1
73371-16050B1

NCP10,NLP10,SCP10..JPP

SHADOW GRAY,TRIM1#

 1
73372 - HANGER, REAR SEAT SHOULDER BELT, LH
73371-16050H0

NCP10,NLP10,SCP10..JPP

FRENCH TURQUOISE,TRIM7#

 1
73371-16050B1

NCP10,NLP10,SCP10..JPP

SHADOW GRAY,TRIM1#

 1
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-52020C1

NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD)

BLACK,TRIM1#,7#

 1
73470-52020C0

NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)

BLACK,TRIM1#,7#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-52010C1

NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD)

BLACK,TRIM1#,7#

 1
73480-52010C0

NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)

BLACK,TRIM1#,7#

 1
Common parts
90105-11036
90105-11041
90109-11050
90901-19040
91511-B0614
