SCP10L-AGMGKW (1999)
Toyota Yaris (Jpp)
(9901-0212)JPP

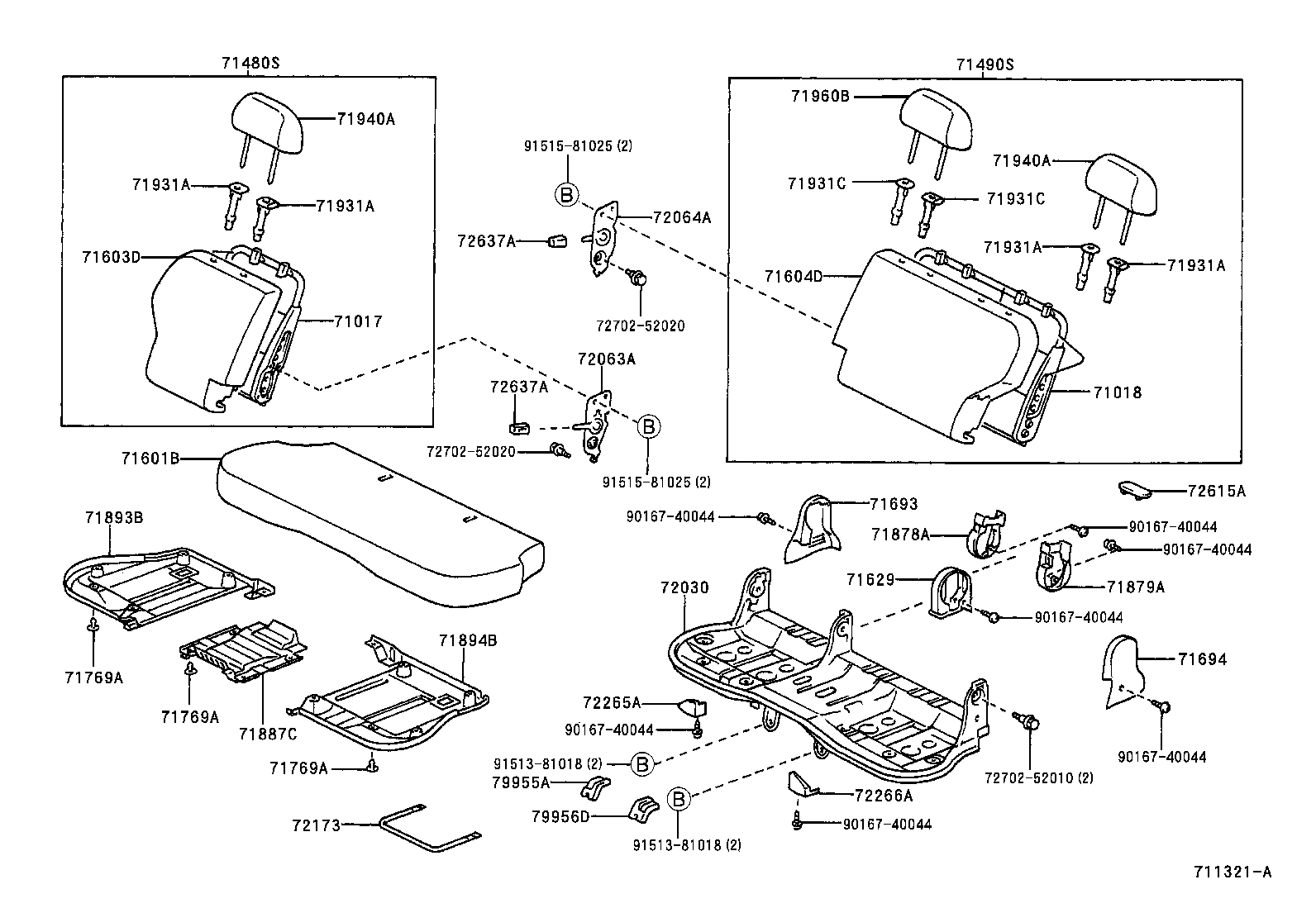

SLIDE SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-52020 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR HEADREST) |
1 | ||
| 71017-52190 |
NCP10,NLP10,SCP10..JPP..SOL |
1 | ||
| 71017-52190 |
NCP1#,NLP10,SCP10..JPP..(SOL,TS) |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-52120 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 71018-52030 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(CENTER HEADREST) |
1 | ||
| 71018-52020 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 71018-52130 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) W(CENTER HEADREST) |
1 | ||
| 71018-52130 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(CENTER HEADREST) |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-52060B3 |
SCP10..JPP..SOL SEAT = TYPE C-*104,GRAY,TRIM1# |
1 | ||
| 71480-52060H2 |
SCP10..JPP..SOL SEAT = TYPE C-*104,TORQUOISE,TRIM7# |
1 | ||
| 71480-52061B2 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-52061H1 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71480-52720H1 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71480-52720B1 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-52890H0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71480-52890B0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-52080B2 |
SCP10..JPP..SOL SEAT = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71490-52090H1 |
SCP10..JPP..SOL SEAT = TYPE C-*104 & W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71490-52080H1 |
SCP10..JPP..SOL SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71490-52090B2 |
SCP10..JPP..SOL SEAT = TYPE C-*104 & W(CENTER HEADREST),SHADOW GRAY,TRIM1# |
1 | ||
| 71490-52091B3 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104 & W(CENTER HEADREST),SHADOW GRAY,TRIM1# |
1 | ||
| 71490-52091H2 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104 & W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71490-52081B2 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71490-52081H1 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71490-52410B0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,XXXX,TRIM1# |
1 | ||
| 71490-52420B0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104 & W(CENTER HEADREST),XXXX,TRIM1# |
1 | ||
| 71490-52420H0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104 & W(CENTER HEADREST),XXXX,TRIM7# |
1 | ||
| 71490-52410H0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,XXXX,TRIM7# |
1 | ||
| 71490-52740H0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104 & W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71490-52750H0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71490-52750B0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71490-52740B0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104 & W(CENTER HEADREST),SHADOW GRAY,TRIM1# |
1 | ||
| 71601B - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER | ||||
| 71601-52080B0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104,GRAY,TRIM1# |
1 | ||
| 71601-52070B0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104,GRAY,TRIM1#,ARACO |
1 | ||
| 71601-52070H0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104,TORQUOISE,TRIM7#,ARACO |
1 | ||
| 71601-52780B0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71601-52780H0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71601-52080H0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104,TORQUOISE,TRIM7# |
1 | ||
| 71603D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH | ||||
| 71603-52110B0 |
SCP10..JPP..SOL SEAT = TYPE C-*104,GRAY,TRIM1#,ARACO |
1 | ||
| 71603-52110H0 |
SCP10..JPP..SOL SEAT = TYPE C-*104,TORQUOISE,TRIM7#,ARACO |
1 | ||
| 71603-52120H0 |
SCP10..JPP..SOL SEAT = TYPE C-*104,TORQUOISE,TRIM7#,TNK |
1 | ||
| 71603-52120B0 |
SCP10..JPP..SOL SEAT = TYPE C-*104,GRAY,TRIM1#,TNK |
1 | ||
| 71603-52111B0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104,GRAY,TRIM1#,ARACO |
1 | ||
| 71603-52121B0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104,GRAY,TRIM1# |
1 | ||
| 71603-52121H0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104,TORQUOISE,TRIM7# |
1 | ||
| 71603-52111H0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104,TORQUOISE,TRIM7#,ARACO |
1 | ||
| 71603-5C160B1 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71603-5C130B1 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#,TNK |
1 | ||
| 71603-5C160H1 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71603-5C130H1 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#,TNK |
1 | ||
| 71604D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH | ||||
| 71604-52160H0 |
SCP10..JPP..SOL SEAT = TYPE C-*104,TORQUOISE,TRIM7#,*(TA) |
1 | ||
| 71604-52170B0 |
SCP10..JPP..SOL SEAT = TYPE C-*104 & W(CENTER HEADREST),GRAY,TRIM1#,ARACO |
1 | ||
| 71604-52150H0 |
SCP10..JPP..SOL SEAT = TYPE C-*104,TORQUOISE,TRIM7#,ARACO |
1 | ||
| 71604-52180B0 |
SCP10..JPP..SOL SEAT = TYPE C-*104 & W(CENTER HEADREST),GRAY,TRIM1#,TNK |
1 | ||
| 71604-52180H0 |
SCP10..JPP..SOL SEAT = TYPE C-*104 & W(CENTER HEADREST),TORQUOISE,TRIM7#,TNK |
1 | ||
| 71604-52170H0 |
SCP10..JPP..SOL SEAT = TYPE C-*104 & W(CENTER HEADREST),TORQUOISE,TRIM7#,ARACO |
1 | ||
| 71604-52160B0 |
SCP10..JPP..SOL SEAT = TYPE C-*104,GRAY,TRIM1#,*(TA) |
1 | ||
| 71604-52150B0 |
SCP10..JPP..SOL SEAT = TYPE C-*104,GRAY,TRIM1#,ARACO |
1 | ||
| 71604-52151B0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104,GRAY,TRIM1#,ARACO |
1 | ||
| 71604-52171H0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104 & W(CENTER HEADREST),TORQUOISE,TRIM7#,ARACO |
1 | ||
| 71604-52181H0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104 & W(CENTER HEADREST),TORQUOISE,TRIM7#,TNK |
1 | ||
| 71604-52151H0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104,TORQUOISE,TRIM7#,ARACO |
1 | ||
| 71604-52171B0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104 & W(CENTER HEADREST),GRAY,TRIM1#,ARACO |
1 | ||
| 71604-52181B0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104 & W(CENTER HEADREST),GRAY,TRIM1#,TNK |
1 | ||
| 71604-52161H0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104,TORQUOISE,TRIM7#,TNK |
1 | ||
| 71604-52161B0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104,GRAY,TRIM1#,TNK |
1 | ||
| 71604-52590B0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#,TNK |
1 | ||
| 71604-52600H0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71604-52590H0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#,TNK |
1 | ||
| 71604-52610B0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104 & W(CENTER HEADREST),SHADOW GRAY,TRIM1#,TNK |
1 | ||
| 71604-52600B0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71604-52620H0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71604-52610H0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104 & W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7#,TNK |
1 | ||
| 71604-52620B0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-52010B1 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) DK.GRAY,TRIM1# |
1 | ||
| 71629-52010B0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) SHADOW GRAY,TRIM1# |
1 | ||
| 71629-52010H0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71693 - COVER, REAR SEAT CUSHION HINGE, LOWER RH | ||||
| 71693-52010B0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) SHADOW GRAY,TRIM1# |
1 | ||
| 71693-52010B1 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) DK.GRAY,TRIM1# |
1 | ||
| 71693-52010H0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71694 - COVER, REAR SEAT CUSHION HINGE, LOWER LH | ||||
| 71694-52010H0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71694-52010B0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) SHADOW GRAY,TRIM1# |
1 | ||
| 71694-52010B1 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) DK.GRAY,TRIM1# |
1 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10018 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
18 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10018 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
18 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10018 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
18 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-52010B1 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) DK.GRAY,TRIM1# |
1 | ||
| 71878-52010B0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) SHADOW GRAY,TRIM1# |
1 | ||
| 71878-52010H0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-52010B0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) SHADOW GRAY,TRIM1# |
1 | ||
| 71879-52010H0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71879-52010B1 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) DK.GRAY,TRIM1# |
1 | ||
| 71887C - CARPET, REAR SEAT CUSHION | ||||
| 71887-52010B1 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) DK.GRAY,TRIM1#,7# |
1 | ||
| 71887-52010B0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) SHADOW GRAY,TRIM1#,7# |
1 | ||
| 71893B - CARPET, REAR SEAT CUSHION, UNDER RH | ||||
| 71893-52010B0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) SHADOW GRAY,TRIM1#,7# |
1 | ||
| 71893-52010B1 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) DK.GRAY,TRIM1#,7# |
1 | ||
| 71894B - CARPET, REAR SEAT CUSHION, UNDER LH | ||||
| 71894-52010B1 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) DK.GRAY,TRIM1#,7# |
1 | ||
| 71894-52010B0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) SHADOW GRAY,TRIM1#,7# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52010G0 |
NCP10,SCP10..JPP W(LOCK),AGATE,TRIM7# |
2 | ||
| 71931-52010B0 |
NCP10,SCP10..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-52010G0 |
NCP10,SCP10..JPP W/O(LOCK),AGATE,TRIM7# |
2 | ||
| 71931-47010B2 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71930-47010B2 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71930-52010B0 |
NCP10,SCP10..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP10,NLP10,SCP10..JPP W(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-47010B2 |
NCP10,NLP10,SCP10..JPP W/O(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52010G0 |
NCP10,SCP10..JPP W(LOCK),AGATE,TRIM7# |
2 | ||
| 71931-52010B0 |
NCP10,SCP10..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-52010G0 |
NCP10,SCP10..JPP W/O(LOCK),AGATE,TRIM7# |
2 | ||
| 71931-47010B2 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71930-47010B2 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71930-52010B0 |
NCP10,SCP10..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP10,NLP10,SCP10..JPP W(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-47010B2 |
NCP10,NLP10,SCP10..JPP W/O(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52010G0 |
NCP10,SCP10..JPP W(LOCK),AGATE,TRIM7# |
2 | ||
| 71931-52010B0 |
NCP10,SCP10..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-52010G0 |
NCP10,SCP10..JPP W/O(LOCK),AGATE,TRIM7# |
2 | ||
| 71931-47010B2 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71930-47010B2 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71930-52010B0 |
NCP10,SCP10..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP10,NLP10,SCP10..JPP W(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-47010B2 |
NCP10,NLP10,SCP10..JPP W/O(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52010G0 |
NCP10,SCP10..JPP W(LOCK),AGATE,TRIM7# |
2 | ||
| 71931-52010B0 |
NCP10,SCP10..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-52010G0 |
NCP10,SCP10..JPP W/O(LOCK),AGATE,TRIM7# |
2 | ||
| 71931-47010B2 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71930-47010B2 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71930-52010B0 |
NCP10,SCP10..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP10,NLP10,SCP10..JPP W(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-47010B2 |
NCP10,NLP10,SCP10..JPP W/O(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71931-32020B0 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(LOCK),SHADOW GRAY,TRIM1# |
1 | ||
| 71930-44010G1 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LOCK),AGATE,TRIM7# |
1 | ||
| 71930-44010B1 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LOCK),SHADOW GRAY,TRIM1# |
1 | ||
| 71931-32020G0 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(LOCK),AGATE,TRIM7# |
1 | ||
| 71931-32020S0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71930-44010P4 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71970-47010B2 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71956-47010B2 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71931-32020B0 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(LOCK),SHADOW GRAY,TRIM1# |
1 | ||
| 71930-44010G1 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LOCK),AGATE,TRIM7# |
1 | ||
| 71930-44010B1 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LOCK),SHADOW GRAY,TRIM1# |
1 | ||
| 71931-32020G0 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(LOCK),AGATE,TRIM7# |
1 | ||
| 71931-32020S0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71930-44010P4 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71970-47010B2 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71956-47010B2 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(LOCK),DK.GRAY,TRIM1#,7# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-52190B0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52190H0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52040B0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104,GRAY,TRIM1# |
2 | ||
| 71910-52040H0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104,TORQUOISE,TRIM7# |
2 | ||
| 71910-52190B0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52190H0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-52190B0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52190H0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52040B0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104,GRAY,TRIM1# |
2 | ||
| 71910-52040H0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104,TORQUOISE,TRIM7# |
2 | ||
| 71910-52190B0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52190H0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-52030H0 |
NCP10,SCP10..JPP..SOL TORQUOISE,TRIM7# |
1 | ||
| 71960-52030B0 |
NCP10,SCP10..JPP..SOL GRAY,TRIM1# |
1 | ||
| 71960-52090H0 |
NCP10,NLP10,SCP10..JPP..SOL FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71960-52090B0 |
NCP10,NLP10,SCP10..JPP..SOL SHADOW GRAY,TRIM1# |
1 | ||
| 72030 - ADJUSTER ASSY, REAR NO.1 SEAT | ||||
| 72030-52010 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 72063A - ARM SUB-ASSY, REAR SEAT BACK LOCK, RH | ||||
| 72063-52010 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 72064A - ARM SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72064-52010 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 72173 - HANDLE, REAR SEAT TRACK ADJUSTING | ||||
| 72173-52010 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 72265A - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-52010B0 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) SHADOW GRAY,TRIM1# |
1 | ||
| 72265-52010H0 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72265-52011B0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) SHADOW GRAY,TRIM1# |
1 | ||
| 72265-52011B1 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) DK.GRAY,TRIM1# |
1 | ||
| 72265-52011H0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72266A - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72266-52010H0 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72266-52010B0 |
NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) SHADOW GRAY,TRIM1# |
1 | ||
| 72266-52011H0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72266-52011B1 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) DK.GRAY,TRIM1# |
1 | ||
| 72266-52011B0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) SHADOW GRAY,TRIM1# |
1 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-52010B0 |
NCP10,NLP10,SCP10..JPP..3D..(LUNA,SOL,TRSTD) SHADOW GRAY,TRIM1# |
2 | ||
| 72615-52010H0 |
NCP10,NLP10,SCP10..JPP..3D..(LUNA,SOL,TRSTD) FRENCH TURQUOISE,TRIM7# |
2 | ||
| 72637A - HANDLE, REAR SEAT LOCK | ||||
| 72637-52010B1 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) DK.GRAY,TRIM1# |
2 | ||
| 72637-52010H0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) FRENCH TURQUOISE,TRIM7# |
2 | ||
| 72637-52010B0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) SHADOW GRAY,TRIM1# |
2 | ||
| 72637A - HANDLE, REAR SEAT LOCK | ||||
| 72637-52010B1 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) DK.GRAY,TRIM1# |
2 | ||
| 72637-52010H0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) FRENCH TURQUOISE,TRIM7# |
2 | ||
| 72637-52010B0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) SHADOW GRAY,TRIM1# |
2 | ||
| 79955A - COVER, REAR SEAT FRONT BRACKET, RH | ||||
| 79955-52010B0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) SHADOW GRAY,TRIM1#,7# |
1 | ||
| 79955-52010B1 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) DK.GRAY,TRIM1#,7# |
1 | ||
| 79956D - COVER, REAR SEAT FRONT BRACKET, LH | ||||
| 79956-52010B0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) SHADOW GRAY,TRIM1#,7# |
1 | ||
| 79956-52010B1 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) DK.GRAY,TRIM1#,7# |
1 | ||
| Common parts | ||||
| 72702-52010 | ||||
| 72702-52020 | ||||
| 90167-40044 | ||||
| 91513-81018 | ||||
| 91515-81025 | ||||
(9909-0212)JPP

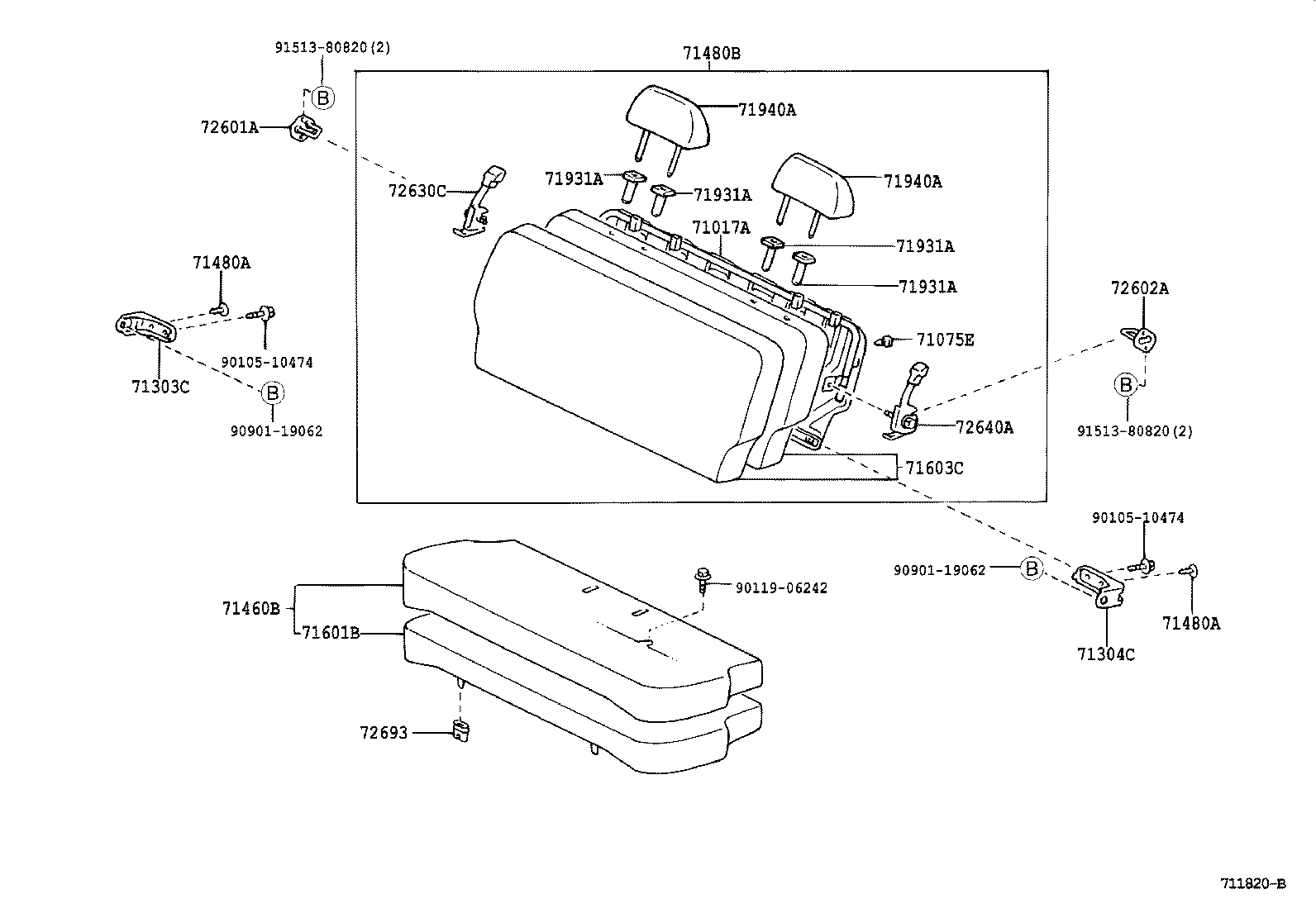

FIXED SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71601B - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER | ||||
| 71601-52080B0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104,GRAY,TRIM1# |
1 | ||
| 71601-52070B0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104,GRAY,TRIM1#,ARACO |
1 | ||
| 71601-52070H0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104,TORQUOISE,TRIM7#,ARACO |
1 | ||
| 71601-52780B0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71601-52780H0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71601-52080H0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104,TORQUOISE,TRIM7# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52010G0 |
NCP10,SCP10..JPP W(LOCK),AGATE,TRIM7# |
2 | ||
| 71931-52010B0 |
NCP10,SCP10..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-52010G0 |
NCP10,SCP10..JPP W/O(LOCK),AGATE,TRIM7# |
2 | ||
| 71931-47010B2 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71930-47010B2 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71930-52010B0 |
NCP10,SCP10..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP10,NLP10,SCP10..JPP W(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-47010B2 |
NCP10,NLP10,SCP10..JPP W/O(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52010G0 |
NCP10,SCP10..JPP W(LOCK),AGATE,TRIM7# |
2 | ||
| 71931-52010B0 |
NCP10,SCP10..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-52010G0 |
NCP10,SCP10..JPP W/O(LOCK),AGATE,TRIM7# |
2 | ||
| 71931-47010B2 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71930-47010B2 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71930-52010B0 |
NCP10,SCP10..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP10,NLP10,SCP10..JPP W(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-47010B2 |
NCP10,NLP10,SCP10..JPP W/O(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52010G0 |
NCP10,SCP10..JPP W(LOCK),AGATE,TRIM7# |
2 | ||
| 71931-52010B0 |
NCP10,SCP10..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-52010G0 |
NCP10,SCP10..JPP W/O(LOCK),AGATE,TRIM7# |
2 | ||
| 71931-47010B2 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71930-47010B2 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71930-52010B0 |
NCP10,SCP10..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP10,NLP10,SCP10..JPP W(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-47010B2 |
NCP10,NLP10,SCP10..JPP W/O(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52010G0 |
NCP10,SCP10..JPP W(LOCK),AGATE,TRIM7# |
2 | ||
| 71931-52010B0 |
NCP10,SCP10..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-52010G0 |
NCP10,SCP10..JPP W/O(LOCK),AGATE,TRIM7# |
2 | ||
| 71931-47010B2 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W/O(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71930-47010B2 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71930-52010B0 |
NCP10,SCP10..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP10,NLP10,SCP10..JPP W(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71931-47010B2 |
NCP10,NLP10,SCP10..JPP W/O(LOCK),DK.GRAY,TRIM1#,7# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-52190B0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52190H0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52040B0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104,GRAY,TRIM1# |
2 | ||
| 71910-52040H0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104,TORQUOISE,TRIM7# |
2 | ||
| 71910-52190B0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52190H0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-52190B0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52190H0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52040B0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104,GRAY,TRIM1# |
2 | ||
| 71910-52040H0 |
NCP10,SCP10..JPP..SOL SEAT = TYPE C-*104,TORQUOISE,TRIM7# |
2 | ||
| 71910-52190B0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52190H0 |
NCP10,NLP10,SCP10..JPP..SOL SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7# |
2 | ||
| Common parts | ||||
| 90105-10474 | ||||
| 90119-06242 | ||||
| 90901-19062 | ||||
| 91513-80820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
