SCP10L-AGMGKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901- )JPP

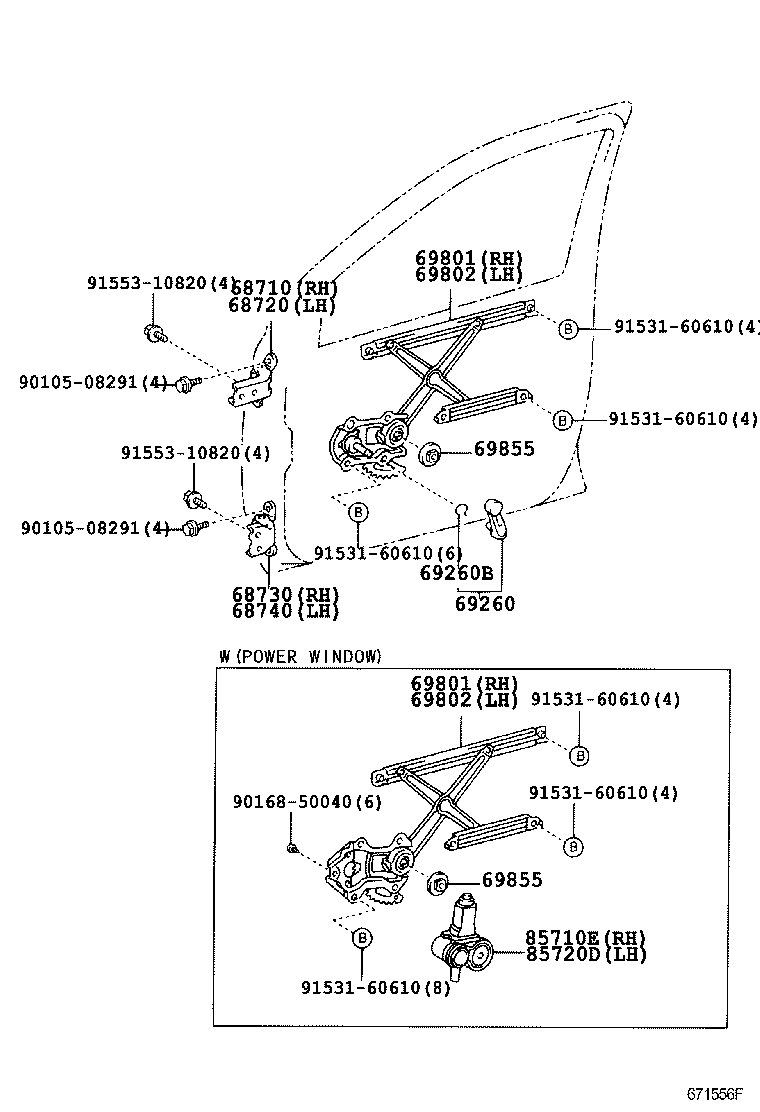

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69801 69801 69802 69802 69855 69855 85710E 85720D 9010508291 9010508291 9016850040 9153160610 9153160610 9153160610 9153160610 9153160610 9153160610 9155310820 9155310820
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-52010

NCP1#,NLP10,SCP10..JPP

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-52010

NCP1#,NLP10,SCP10..JPP

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-52010

NCP1#,NLP10,SCP10..JPP

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-52010

NCP1#,NLP10,SCP10..JPP

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-52010

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

W(POWER WINDOW)

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-52010

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

W(POWER WINDOW)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-52010

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

W(POWER WINDOW)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-52010

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

W(POWER WINDOW)

 1
69855 - COVER, DOOR WINDOW REGULATOR GEAR
69855-20010

NCP1#,NLP10,SCP10..JPP

 2
69855 - COVER, DOOR WINDOW REGULATOR GEAR
69855-20010

NCP1#,NLP10,SCP10..JPP

 2
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-52030

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-52020

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 1
Common parts
90105-08291
90168-50040
91531-60610
91553-10820
