SCP10L-AGMGKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901- )JPP

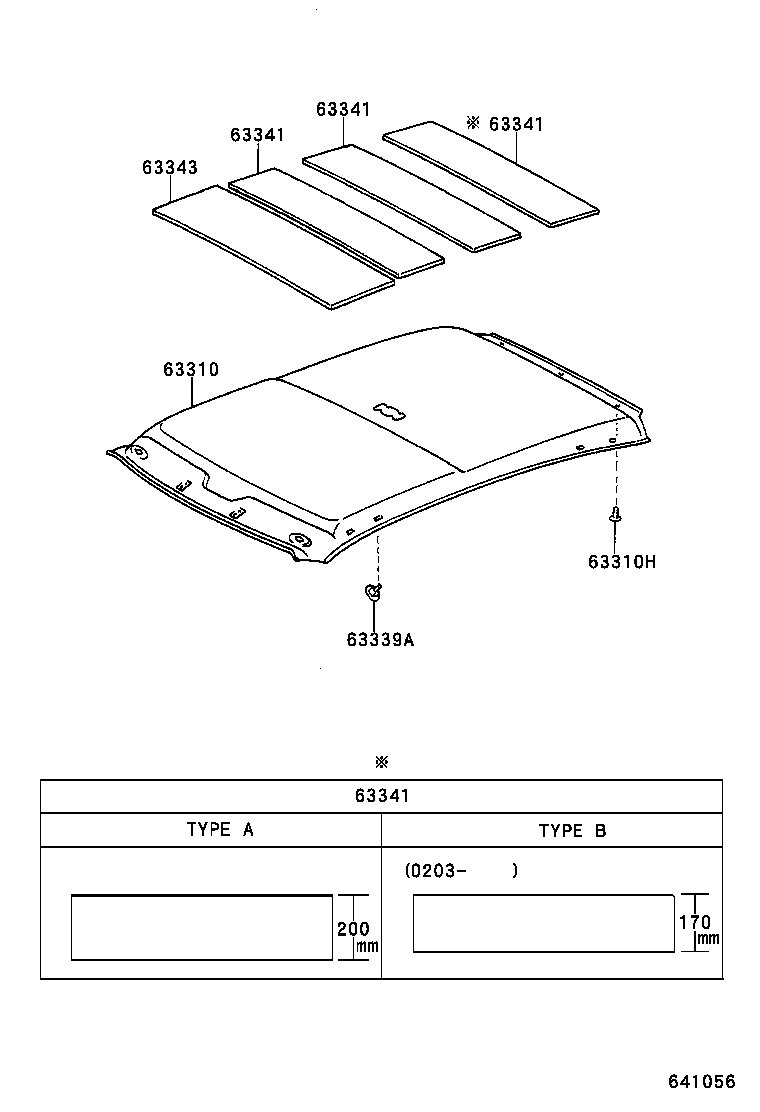

Click highlighted areas on diagram

diagram 63310 63310H 63339A 63341 63341 63341 63343
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-52030B0

NCP10,NLP10,SCP10..JPP..3D..(LUNA,SOL,TRSTD)

W(MOON ROOF & ASSIST GRIP FRONT-1),LT. GRAY,TRIM1#,7#

 1
63310-52150B0

NCP10,NLP10,SCP10..JPP..3D

W(ASSIST GRIP FRONT-1),LT. GRAY,TRIM1#,7#

 1
63310-52160B0

NCP10,NLP10,SCP10..JPP..3D

W(ASSIST GRIP FRONT-1,REAR-2),LT. GRAY,TRIM1#,7#

 1
63310-52040B0

NCP10,NLP10,SCP10..JPP..3D..(LUNA,SOL,TRSTD)

W(MOON ROOF & ASSIST GRIP FRONT-1,REAR-2),LT. GRAY,TRIM1#,7#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-08213B0

NCP10,NLP10,SCP10..JPP

LT.GRAY,TRIM1#,7#

 3
90467-08213B0

NCP10,SCP10..JPP

LT.GRAY,TRIM1#,7#

 3
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-52010B0

NCP10,NLP10,SCP10..JPP

W(ASSIST GRIP FRONT-1),LT.GRAY,TRIM1#,7#

 3
63339-52010B0

NCP10,NLP10,SCP10..JPP

W(ASSIST GRIP FRONT-1,REAR-2),LT.GRAY,TRIM1#,7#

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-12160

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

W(MOON ROOF)

 1
63342-52080

NCP1#,NLP10,SCP10..JPP

TYPE B:REFER TO ILLUSTRATION

 1
63341-12160

NCP1#,NLP10,SCP10..JPP

TYPE A:REFER TO ILLUSTRATION

 1
63341-12160

NCP1#,NLP10,SCP10..JPP

W/O(MOON ROOF)

 3
63341-12160

NCP1#,NLP10,SCP10..JPP

 3
63341 - PAD, ROOF SILENCER, NO.1
63341-12160

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

W(MOON ROOF)

 1
63342-52080

NCP1#,NLP10,SCP10..JPP

TYPE B:REFER TO ILLUSTRATION

 1
63341-12160

NCP1#,NLP10,SCP10..JPP

TYPE A:REFER TO ILLUSTRATION

 1
63341-12160

NCP1#,NLP10,SCP10..JPP

W/O(MOON ROOF)

 3
63341-12160

NCP1#,NLP10,SCP10..JPP

 3
63341 - PAD, ROOF SILENCER, NO.1
63341-12160

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

W(MOON ROOF)

 1
63342-52080

NCP1#,NLP10,SCP10..JPP

TYPE B:REFER TO ILLUSTRATION

 1
63341-12160

NCP1#,NLP10,SCP10..JPP

TYPE A:REFER TO ILLUSTRATION

 1
63341-12160

NCP1#,NLP10,SCP10..JPP

W/O(MOON ROOF)

 3
63341-12160

NCP1#,NLP10,SCP10..JPP

 3
63343 - PAD, ROOF SILENCER, NO.3
63343-12050

NCP1#,NLP10,SCP10..JPP

 1

(9901- )JPP

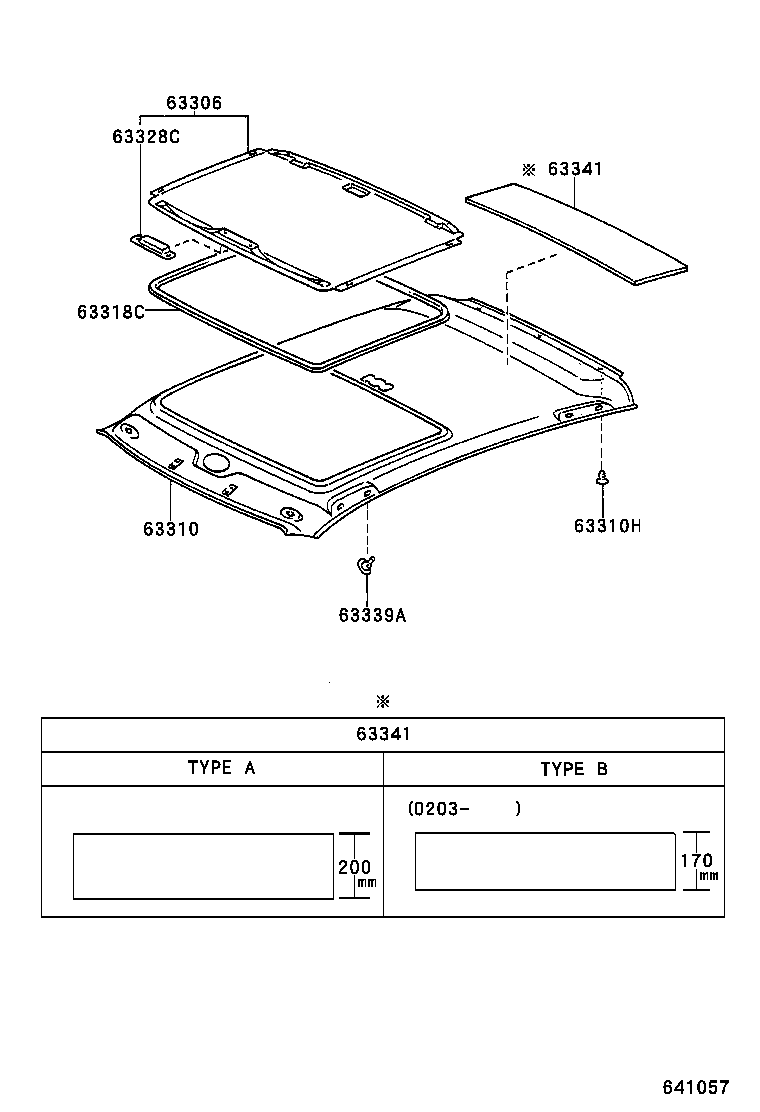

Click highlighted areas on diagram

W(MOON ROOF)

diagram 63306 63310 63310H 63318C 63328C 63339A 63341
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63306-52010B0

NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD)

LT. GRAY,TRIM1#,7#

 1
63310 - HEADLINING ASSY, ROOF
63310-52030B0

NCP10,NLP10,SCP10..JPP..3D..(LUNA,SOL,TRSTD)

W(MOON ROOF & ASSIST GRIP FRONT-1),LT. GRAY,TRIM1#,7#

 1
63310-52150B0

NCP10,NLP10,SCP10..JPP..3D

W(ASSIST GRIP FRONT-1),LT. GRAY,TRIM1#,7#

 1
63310-52160B0

NCP10,NLP10,SCP10..JPP..3D

W(ASSIST GRIP FRONT-1,REAR-2),LT. GRAY,TRIM1#,7#

 1
63310-52040B0

NCP10,NLP10,SCP10..JPP..3D..(LUNA,SOL,TRSTD)

W(MOON ROOF & ASSIST GRIP FRONT-1,REAR-2),LT. GRAY,TRIM1#,7#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-08213B0

NCP10,NLP10,SCP10..JPP

LT.GRAY,TRIM1#,7#

 3
90467-08213B0

NCP10,SCP10..JPP

LT.GRAY,TRIM1#,7#

 3
63318C - MOULDING, SUN ROOF OPENING TRIM
63318-52010B0

NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD)

L=2185,LT.GRAY,TRIM1#,7#

 1
63328C - KNOB, SUNSHADE TRIM
63328-12030B7

NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD)

LT.GRAY,TRIM1#,7#

 1
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-52010B0

NCP10,NLP10,SCP10..JPP

W(ASSIST GRIP FRONT-1),LT.GRAY,TRIM1#,7#

 3
63339-52010B0

NCP10,NLP10,SCP10..JPP

W(ASSIST GRIP FRONT-1,REAR-2),LT.GRAY,TRIM1#,7#

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-12160

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

W(MOON ROOF)

 1
63342-52080

NCP1#,NLP10,SCP10..JPP

TYPE B:REFER TO ILLUSTRATION

 1
63341-12160

NCP1#,NLP10,SCP10..JPP

TYPE A:REFER TO ILLUSTRATION

 1
63341-12160

NCP1#,NLP10,SCP10..JPP

W/O(MOON ROOF)

 3
63341-12160

NCP1#,NLP10,SCP10..JPP

 3
