SCP10L-AGMGKW (1999)
Toyota Yaris (Jpp)

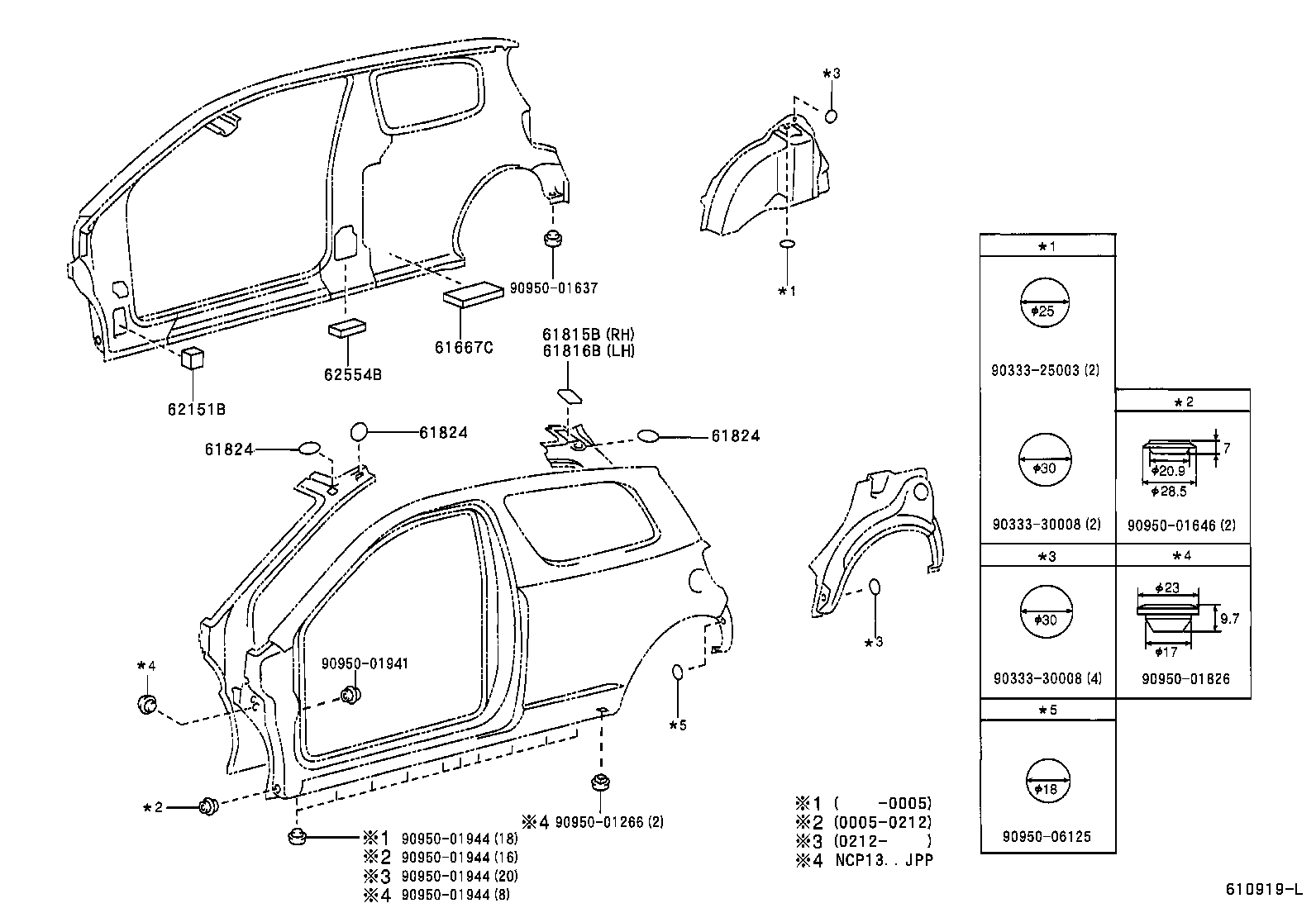

ILLUST NO. 1 OF 3(9901-0212)JPP..3D
SIDE MEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-52022 |
NCP10,NLP10,SCP10..JPP..3D |
1 | ||
| 58741-52021 |
NCP10,SCP10..JPP..3D |
1 | ||
| 58741-52020 |
NCP10,SCP10..JPP..3D |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-52021 |
NCP10,SCP10..JPP..3D |
1 | ||
| 58742-52020 |
NCP10,SCP10..JPP..3D |
1 | ||
| 58742-52022 |
NCP10,NLP10,SCP10..JPP..3D |
1 | ||
| 58745 - PROTECTOR, QUARTER PANEL, FRONT RH | ||||
| 58745-52010 |
NCP1#,NLP10,SCP10..JPP..3D |
1 | ||
| 58746 - PROTECTOR, QUARTER PANEL, FRONT LH | ||||
| 58746-52010 |
NCP1#,NLP10,SCP10..JPP..3D |
1 | ||
| 58747A - PROTECTOR, QUARTER PANEL, REAR RH | ||||
| 58747-52022 |
NCP1#,NLP10,SCP10..JPP..3D |
1 | ||
| 58747-52021 |
NCP10,SCP10..JPP..3D |
1 | ||
| 58747-52020 |
NCP10,SCP10..JPP..3D |
1 | ||
| 58748A - PROTECTOR, QUARTER PANEL, REAR LH | ||||
| 58748-52020 |
NCP10,SCP10..JPP..3D |
1 | ||
| 58748-52022 |
NCP1#,NLP10,SCP10..JPP..3D |
1 | ||
| 58748-52021 |
NCP10,SCP10..JPP..3D |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-52010 |
NCP10,SCP10..JPP |
1 | ||
| 61023-52011 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-52011 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 61024-52010 |
NCP10,SCP10..JPP |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-52011 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 61108-52010 |
NCP10,SCP10..JPP |
1 | ||
| 61108-52090 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-52090 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 61109-52010 |
NCP10,SCP10..JPP |
1 | ||
| 61109-52011 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-52010 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-52010 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-52021 |
NCP1#,NLP10,SCP10..JPP..3D |
1 | ||
| 61211-52020 |
NCP10,SCP10..JPP..3D |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-52021 |
NCP1#,NLP10,SCP10..JPP..3D |
1 | ||
| 61212-52020 |
NCP10,SCP10..JPP..3D |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-52031 |
NCP1#,NLP10,SCP10..JPP..3D |
1 | ||
| 61231-52041 |
NCP1#,NLP10,SCP10..JPP..3D..(LUNA,SOL,TRSTD,TS) W(MOON ROOF) |
1 | ||
| 61231-52040 |
NCP10,SCP10..JPP..3D |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-52041 |
NCP1#,NLP10,SCP10..JPP..3D..(LUNA,SOL,TRSTD,TS) W(MOON ROOF) |
1 | ||
| 61232-52031 |
NCP1#,NLP10,SCP10..JPP..3D |
1 | ||
| 61232-52040 |
NCP10,SCP10..JPP..3D |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-52021 |
NCP1#,NLP10,SCP10..JPP..3D |
1 | ||
| 61233-52020 |
NCP10,SCP10..JPP..3D |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-52020 |
NCP10,SCP10..JPP..3D |
1 | ||
| 61234-52021 |
NCP1#,NLP10,SCP10..JPP..3D |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-52020 |
SCP10..JPP..3D |
1 | ||
| 61305-52040 |
NCP1#,NLP10,SCP10..JPP..3D W(SIDE AIR BAG) |
1 | ||
| 61305-52021 |
NCP1#,NLP10,SCP10..JPP..3D |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-52020 |
SCP10..JPP..3D |
1 | ||
| 61306-52040 |
NCP1#,NLP10,SCP10..JPP..3D W(SIDE AIR BAG) |
1 | ||
| 61306-52021 |
NCP1#,NLP10,SCP10..JPP..3D |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-52901 |
NCP1#,NLP10,SCP10..JPP..3D |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-52901 |
NCP1#,NLP10,SCP10..JPP..3D |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-52020 |
NCP1#,NLP10,SCP10..JPP..3D |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-52020 |
NCP1#,NLP10,SCP10..JPP..3D |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-52020 |
NCP10,NLP10,SCP10..JPP..3D |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-52020 |
NCP10,NLP10,SCP10..JPP..3D |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-52020 |
NCP10,NLP10,SCP10..JPP..3D |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-52020 |
NCP10,NLP10,SCP10..JPP..3D |
1 | ||
| 61613E - PANEL, QUARTER, INNER RH | ||||
| 61613-52010 |
NCP1#,NLP10,SCP10..JPP..3D |
1 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61614-52010 |
NCP1#,NLP10,SCP10..JPP..3D |
1 | ||
| 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 61625G - EXTENSION, QUARTER PANEL, REAR RH | ||||
| 61625-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 61626G - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-52913 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR SLIDE SEAT) |
1 | ||
| 61607-52901 |
SCP10..JPP W(REAR SLIDE SEAT) |
1 | ||
| 61607-52900 |
SCP10..JPP W(REAR SLIDE SEAT & ABS) |
1 | ||
| 61607-52912 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR SLIDE SEAT & ABS) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-52901 |
SCP10..JPP W(REAR SLIDE SEAT) |
1 | ||
| 61608-52912 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR SLIDE SEAT & ABS) |
1 | ||
| 61608-52913 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(REAR SLIDE SEAT) |
1 | ||
| 61608-52900 |
SCP10..JPP W(REAR SLIDE SEAT & ABS) |
1 | ||
| 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH | ||||
| 61641-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH | ||||
| 61642-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-52020 |
NCP1#,NLP10,SCP10..JPP..3D |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-52020 |
NCP1#,NLP10,SCP10..JPP..3D |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-52020 |
NCP1#,NLP10,SCP10..JPP..3D |
1 | ||
| 61731-52021 |
NCP1#,NLP10,SCP10..JPP..3D |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-52020 |
NCP1#,NLP10,SCP10..JPP..3D |
1 | ||
| 61732-52021 |
NCP1#,NLP10,SCP10..JPP..3D |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61766-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH | ||||
| 61767-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH | ||||
| 61768-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 61769B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH | ||||
| 61769-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| Common parts | ||||
| 90950-01784 | ||||
| 90950-01866 | ||||
ILLUST NO. 3 OF 3(9901- )JPP..3D
PLUG, HOLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61667C - SEAL, QAURTER PANEL, NO.1 | ||||
| 61667-12130 |
NCP1#,NLP10,SCP10..JPP..3D |
2 | ||
| 61815B - COVER, ROOF SIDE, INNER UPPER RH | ||||
| 61825-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 61815-32020 |
SCP10..JPP |
1 | ||
| 61816B - COVER, ROOF SIDE, INNER UPPER LH | ||||
| 61815-32020 |
SCP10..JPP |
1 | ||
| 61825-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-52010 |
NCP1#,NLP10,SCP10..JPP |
8 | ||
| 61824-12040 |
SCP10..JPP W(MOON ROOF) |
4 | ||
| 61824-52010 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) W(MOON ROOF) |
4 | ||
| 61824-12040 |
SCP10..JPP |
8 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-52010 |
NCP1#,NLP10,SCP10..JPP |
8 | ||
| 61824-12040 |
SCP10..JPP W(MOON ROOF) |
4 | ||
| 61824-52010 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) W(MOON ROOF) |
4 | ||
| 61824-12040 |
SCP10..JPP |
8 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-52010 |
NCP1#,NLP10,SCP10..JPP |
8 | ||
| 61824-12040 |
SCP10..JPP W(MOON ROOF) |
4 | ||
| 61824-52010 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) W(MOON ROOF) |
4 | ||
| 61824-12040 |
SCP10..JPP |
8 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-12130 |
NCP1#,SCP10..JPP |
2 | ||
| 62151-52010 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-12130 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| Common parts | ||||
| 90333-25003 | ||||
| 90333-30008 | ||||
| 90950-01266 | ||||
| 90950-01637 | ||||
| 90950-01646 | ||||
| 90950-01826 | ||||
| 90950-01941 | ||||
| 90950-01944 | ||||
| 90950-06125 | ||||
