SCP10L-AGMGKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901- )JPP

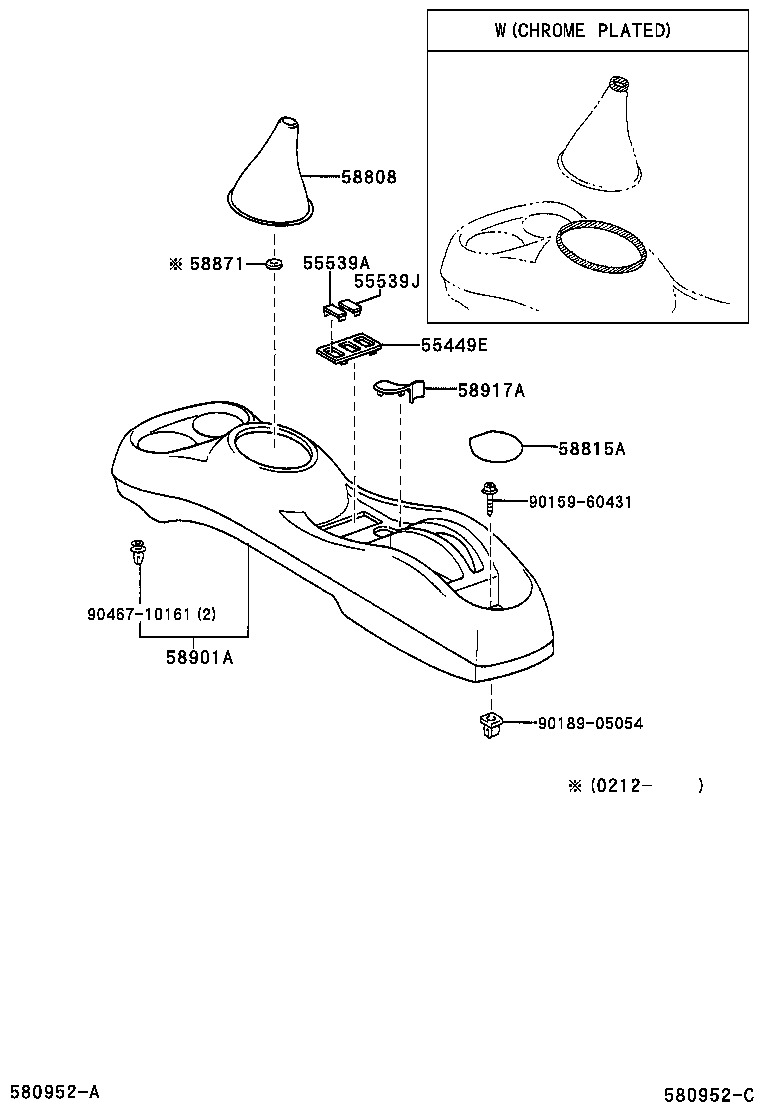

Click highlighted areas on diagram

diagram 55449E 55539A 55539J 58808 58815A 58871 58901A 58917A 9015960431 9018905054 9046710161
Part # Description Qty Price
55449E - BASE, SWITCH
55449-52010B0

NCP10,NLP10,SCP10..JPP..LHD..SOL;NCP10,NLP10,SCP10..JPP..(LUNA,TRSTD)

MD.GRAY,TRIM1#

 1
55449-52010G0

NCP10,NLP10,SCP10..JPP..LHD..SOL;NCP10,NLP10,SCP10..JPP..(LUNA,TRSTD)

MIST GREEN,TRIM7#

 1
55539A - COVER, SPARE SWITCH HOLE
55539-32010B7

SCP10..JPP..TRSTD;NCP10,SCP10..JPP..LHD..SOL;NCP10,SCP10..JPP..5D..LUNA

MD.GRAY,TRIM1#

 1
55539-32010B7

NCP10,SCP10..JPP..LHD..SOL;NCP10,SCP10..JPP..(LUNA,TRSTD)

MD.GRAY,TRIM1#

 1
55539-32010B7

NCP10,NLP10,SCP10..JPP..LHD..SOL;NCP10,NLP10,SCP10..JPP..(LUNA,TRSTD)

MD.GRAY,TRIM1#

 1
55539-32010G3

NCP10,NLP10,SCP10..JPP..LHD..SOL;NCP10,NLP10,SCP10..JPP..(LUNA,TRSTD)

MIST GREEN,TRIM7#

 1
55539J - COVER, SPARE SWITCH HOLE
55539-32010G3

NCP10,NLP10,SCP10..JPP..LHD..SOL;NCP10,NLP10,SCP10..JPP..(LUNA,TRSTD)

MIST GREEN,TRIM7#

 1
55539-32010B7

NCP10,NLP10,SCP10..JPP..LHD..SOL;NCP10,NLP10,SCP10..JPP..(LUNA,TRSTD)

MD.GRAY,TRIM1#

 1
55539-32010B7

NCP10,SCP10..JPP..LHD..SOL;NCP10,SCP10..JPP..(LUNA,TRSTD)

MD.GRAY,TRIM1#

 1
55539-32010B7

SCP10..JPP..TRSTD;NCP10,SCP10..JPP..LHD..SOL;NCP10,SCP10..JPP..5D..LUNA

MD.GRAY,TRIM1#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-52010G0

SCP10..JPP..(LUNA,SOL,TRSTD)

W(FREE TRONIC),MIST GREEN,TRIM7#

 1
58808-52020B0

NCP10,NLP10,SCP10..JPP..5F

BLUE GRAY,TRIM1#

 1
58808-52010B0

SCP10..JPP..(LUNA,SOL,TRSTD)

W(FREE TRONIC),BLUE GRAY,TRIM1#

 1
58808-52020G0

NCP10,NLP10,SCP10..JPP..5F

MIST GREEN,TRIM7#

 1
58815A - CARPET, CONSOLE BOX
58815-52010

NCP1#,NLP10,SCP10..JPP

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58911-52010B0

NCP10,NLP10,SCP10..JPP

MD.GRAY,TRIM1#

 1
58911-52010G0

NCP10,NLP10,SCP10..JPP

MIST GREEN,TRIM7#

 1
58917A - COVER, CONSOLE BOX, REAR
58917-52010G0

NCP10,NLP10,SCP10..JPP

MIST GREEN,TRIM7#

 1
58917-52010B0

NCP10,NLP10,SCP10..JPP

MD.GRAY,TRIM1#

 1
Common parts
90159-60431
90189-05054
90467-10161
